Product Introduction

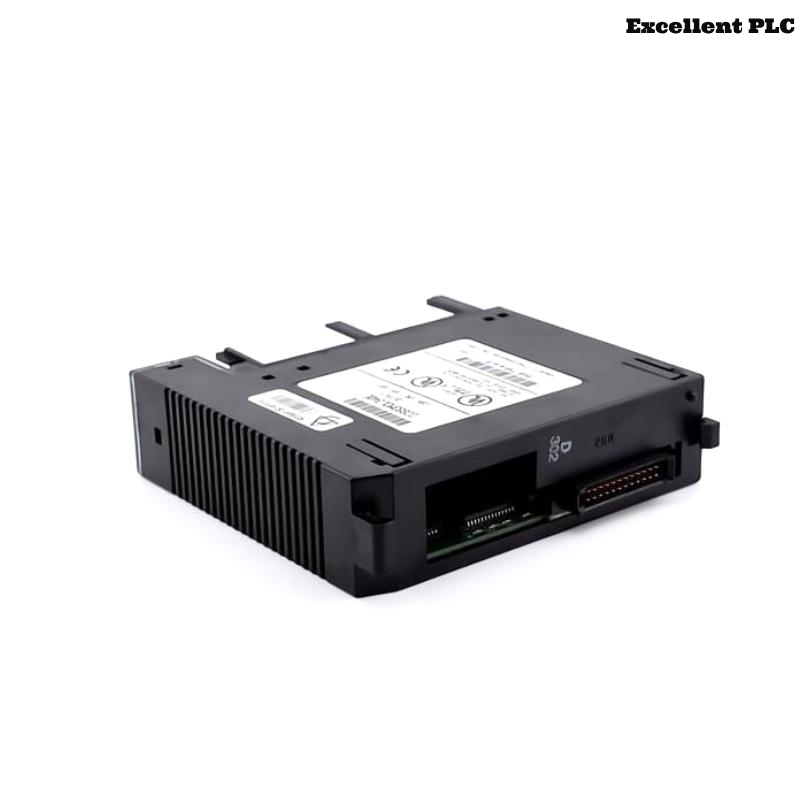

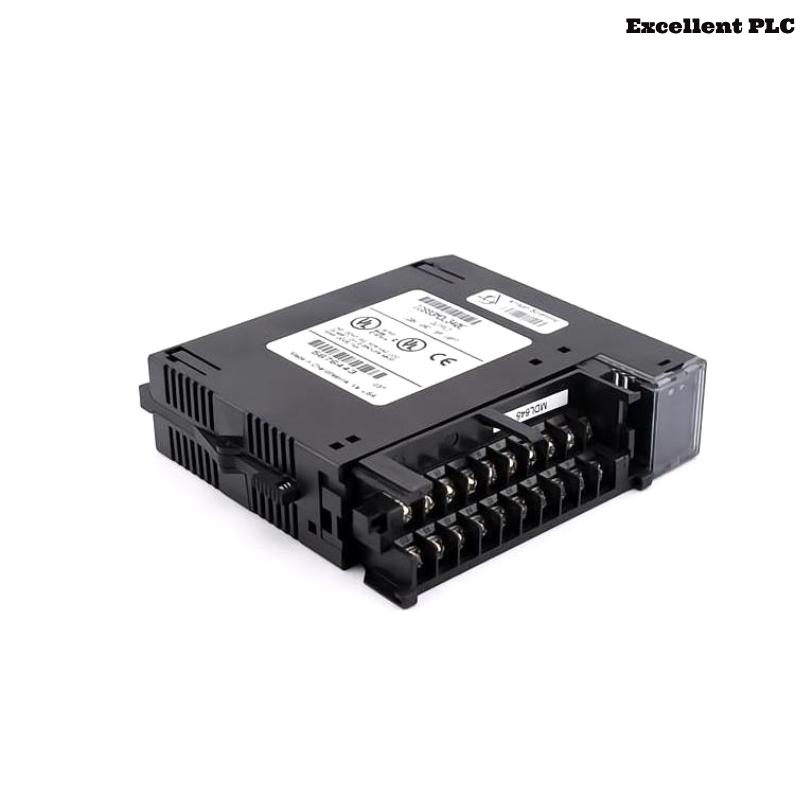

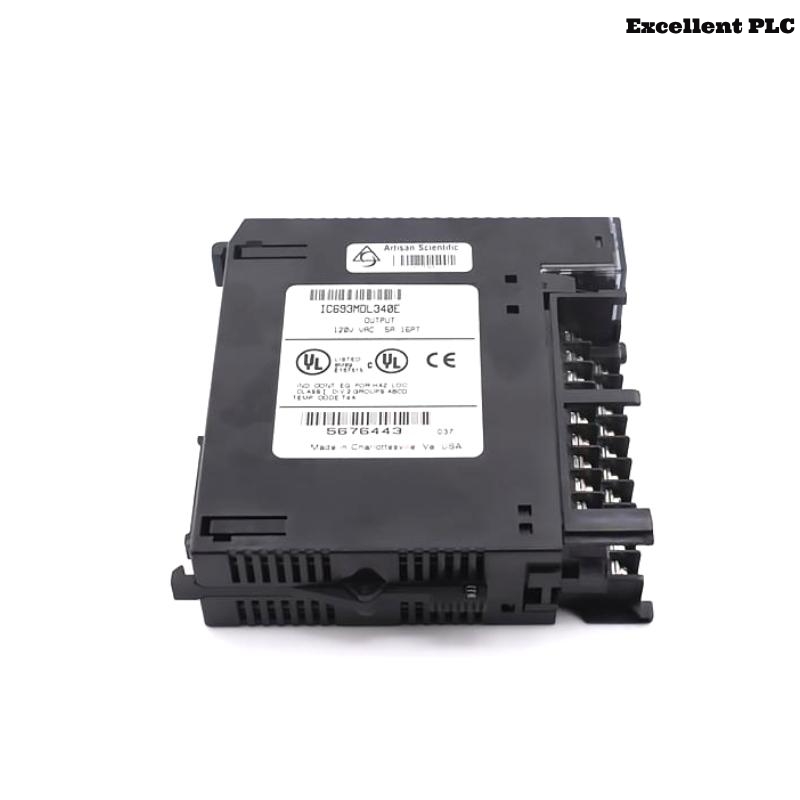

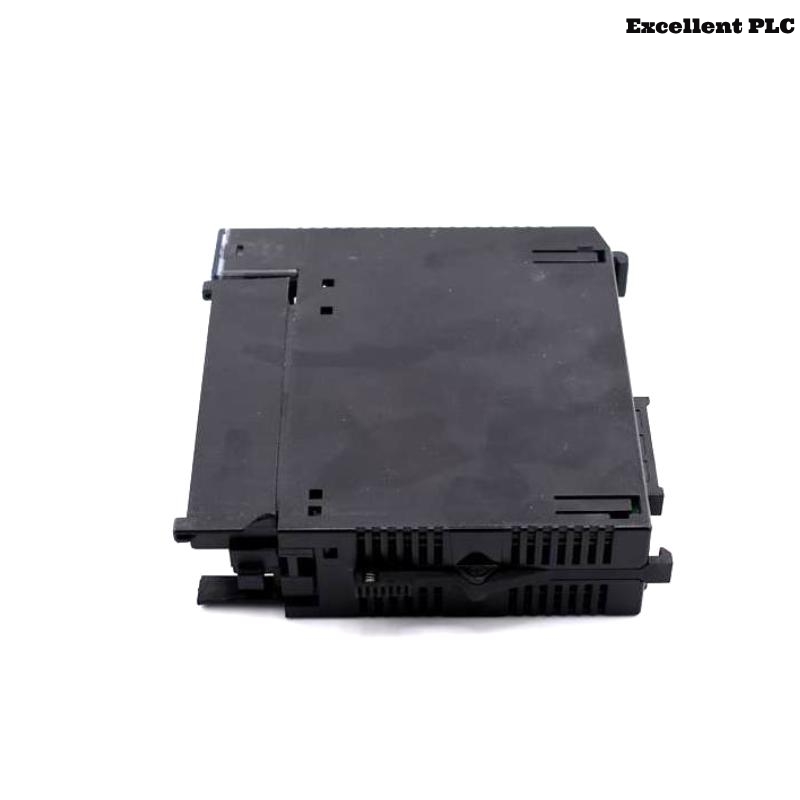

The GE IC693MDL340 is an AC Output Module designed for use with the GE Fanuc Series 90-30 PLC system. This module provides reliable interfacing between industrial control systems and devices operating on 120/240 VAC. Known for its robust design and consistent performance, the IC693MDL340 is ideal for controlling loads such as relays, solenoids, motor starters, and indicators. It includes 16 output points arranged in two isolated groups of eight, which enhances electrical isolation and protection for sensitive circuits.
The module is engineered to deliver solid-state switching with high durability and efficiency, eliminating the mechanical wear and tear associated with traditional relay systems. With built-in surge protection and diagnostics, the IC693MDL340 ensures reliable operation in demanding industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Product Type | AC Output Module |
| Part Number | IC693MDL340 |
| Number of Outputs | 16 isolated AC output points |
| Output Type | TRIAC (solid-state) |
| Voltage Range | 120/240 VAC nominal |
| Voltage Frequency | 47 to 63 Hz |
| Output Current | 0.5 A per point (max); 4 A per module (total max) |
| Group Isolation | 2 isolated groups (8 points per group) |
| Response Time | On: <1 ms, Off: <1 ms |
| Field Power Supply | Required externally, 120/240 VAC |
| Backplane Current Draw | 5VDC at 80 mA |
| Fuse Protection | Not included (external protection recommended) |
| LED Indicators | Yes – One LED per output point |
| Mounting | DIN rail or panel mount via baseplate |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (HxWxD) | 142 x 30 x 130 mm |
| Weight | 0.35 kg |
| Compatibility | Compatible with all GE Fanuc 90-30 PLC baseplates and CPUs |
Product Applications
The IC693MDL340 is widely used in applications where control of AC-powered devices is required. Some of its typical use cases include:
-
Industrial Automation Systems
-
Manufacturing Lines
-
Material Handling Equipment
-
Packaging Machinery
-
HVAC Control Panels
-
Water Treatment Plants
-
Food and Beverage Processing Systems
-
Conveyor System Control
-
Lighting and Indicator Control
-
Power Distribution Equipment
Its ability to directly switch 120/240 VAC loads makes it suitable for both light-duty and moderately heavy-duty industrial systems.
Product Advantages
-
Reliable Solid-State Design: Reduces wear, increases lifespan, and ensures fast switching.
-
High Channel Density: 16 outputs in a compact module helps save panel space.
-
Group Isolation: Enhances safety and minimizes risk from short circuits or voltage differences.
-
Diagnostic LEDs: Instant visual feedback for maintenance and troubleshooting.
-
Wide Voltage Compatibility: Supports both 120 VAC and 240 VAC devices.
-
Plug-and-Play Integration: Seamlessly integrates with the GE Fanuc Series 90-30 PLC family.
-
Low Power Consumption: Minimal draw from the backplane, reducing overall system load.
-
Durable and Rugged: Built for demanding industrial environments, ensuring long-term reliability.
Frequently Asked Questions (FAQ)
-
Q: Can the IC693MDL340 be used to control inductive loads like motors?
A: Yes, but for inductive loads, external protection such as snubber circuits or surge suppressors is recommended. -
Q: What kind of wiring terminals does the module have?
A: It uses screw-clamp terminal blocks for secure and easy field wiring. -
Q: Is there built-in fuse protection for each output point?
A: No, the module does not include internal fuses; external protection is advised. -
Q: Can the outputs be mixed between 120V and 240V?
A: Yes, but each isolated group should be wired consistently to avoid cross-voltage issues. -
Q: Does the module support output status diagnostics?
A: Yes, it includes individual LEDs per channel to show output status. -
Q: Can this module be hot-swapped?
A: No, it is not hot-swappable. Power must be turned off during installation or removal. -
Q: What happens if the output load exceeds the current rating?
A: Overloads can damage the output channel. Always observe maximum current limits. -
Q: Is this module compatible with all Series 90-30 CPUs?
A: Yes, it is compatible with all CPUs and baseplates within the Series 90-30 family. -
Q: Can this module be used outdoors?
A: Only in enclosed, weather-protected control panels. It is not weatherproof. -
Q: How do I configure this module in the PLC software?
A: Use GE’s Proficy Machine Edition or Logic Developer-PLC to configure the I/O mapping.
Related Models from the Same Series
| Model Number | Description | Output Type | Number of Channels | Voltage |
|---|---|---|---|---|
| IC693MDL330 | AC Output Module, 120 VAC | AC | 8 | 120 VAC |
| IC693MDL931 | Isolated Relay Output Module | Relay | 8 | 240 VAC |
| IC693MDL340 | AC Output Module, 120/240 VAC | AC | 16 | 120/240 VAC |
| IC693MDL645 | DC Output Module, Positive Logic | DC | 32 | 24 VDC |
| IC693MDL734 | Isolated DC Output Module | DC | 16 | 24 VDC |
| IC693MDL350 | AC Output Module, 240 VAC, High Current | AC | 8 | 240 VAC |
