Product Introduction

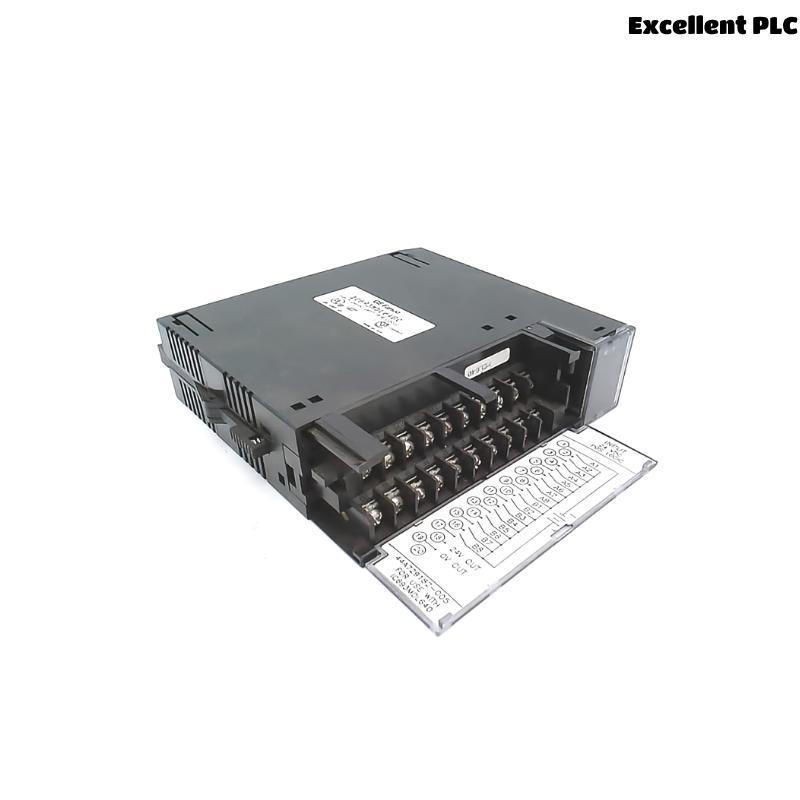

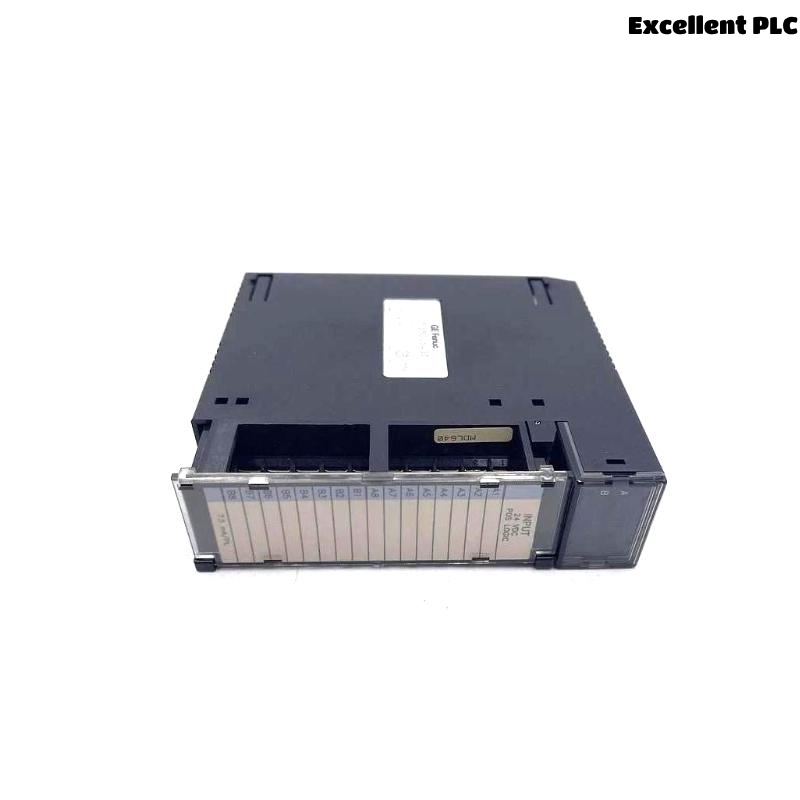

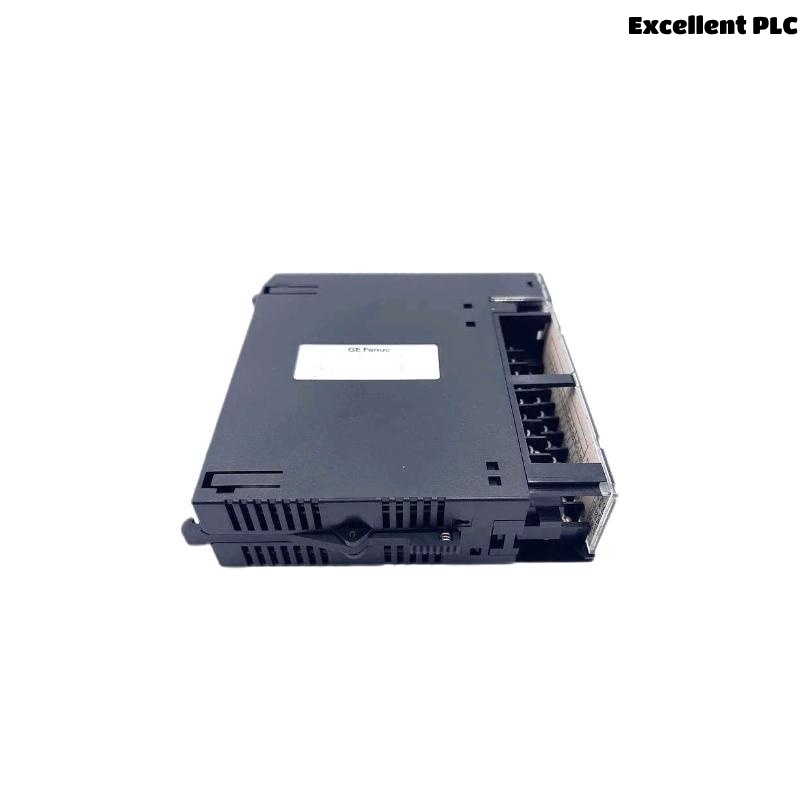

The GE IC693MDL640 is a 32-point Positive Logic Input Module designed for use in the GE Series 90-30 Programmable Logic Controller (PLC) systems. It is engineered to interface field input devices such as push buttons, limit switches, and other discrete sensors that operate on positive logic principles. With high-density input capability and robust noise immunity, the IC693MDL640 module ensures reliable signal processing in a wide range of industrial automation applications.
This input module receives 24 VDC signals and translates them into logic signals the PLC can process. Each input point is optically isolated, ensuring system integrity even under electrically noisy environments. The IC693MDL640 is particularly well-suited for manufacturing processes, machinery control systems, and facility automation where compact design and reliable input acquisition are essential.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC693MDL640 |
| Type | 32-Point Positive Logic Input Module |
| Input Voltage | 24 VDC Nominal (Positive Logic) |
| Input Voltage Range | 0 to 30 VDC |
| Input Current (Typical) | 7 mA at 24 VDC |
| Input Type | Sink (positive logic) |
| Isolation | 1500V between field side and logic side |
| Number of Inputs | 32 Points |
| Input Response Time | Off to On: 1 ms typical, On to Off: 1 ms typical |
| LED Indicators | Yes (One per input point) |
| Common Connections | 4 input commons (8 inputs per common) |
| Backplane Current Consumption | 120 mA from +5V supply |
| Terminal Type | Removable Terminal Block |
| Mounting Type | DIN-rail or panel-mounted (standard Series 90-30 base) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 130 x 35 x 125 mm |
| Weight | 0.322 kg |
| Approvals & Certifications | UL, CE, CSA |
Product Applications
The IC693MDL640 is used extensively in industrial and commercial automation environments. Key application areas include:
-
Manufacturing automation: For monitoring inputs from sensors and switches in assembly lines.
-
Packaging systems: Detecting box positions, conveyor status, or jam conditions.
-
Material handling: Interfaces with limit switches in conveyor belts and robotic arms.
-
Process control: Works with panel-mounted push buttons and selector switches in process industries.
-
Building automation: Suitable for HVAC system control, access control inputs, and lighting systems.
Product Advantages
-
High-Density Input: 32 input points in a compact module, ideal for space-constrained panels.
-
Optical Isolation: Enhances system reliability by electrically isolating input devices.
-
LED Status Indicators: Each input has an associated LED for instant visual diagnostics.
-
Flexible Wiring Options: Supports multiple commons for organized field wiring.
-
Fast Response Times: Ensures accurate signal capture in real-time control applications.
-
Wide Operating Conditions: Performs reliably under a wide range of industrial temperatures and humidity.
-
GE 90-30 System Compatibility: Seamless integration with GE Series 90-30 PLCs.
-
Rugged Design: Built to withstand harsh industrial conditions, ensuring long operational life.
Frequently Asked Questions (FAQ)
-
What is the primary function of the IC693MDL640?
It functions as a 32-point positive logic digital input module for use with 24 VDC field devices. -
Can this module be used with negative logic devices?
No, the IC693MDL640 is specifically designed for positive logic input devices. -
What is the recommended voltage for operation?
The nominal voltage is 24 VDC, but it accepts up to 30 VDC safely. -
Does the module have built-in status indicators?
Yes, each of the 32 input points has an individual LED indicator. -
Is the module hot-swappable?
No, it must be powered down before removing or inserting to avoid damage. -
How is the wiring organized for the 32 inputs?
It uses 4 separate commons, with 8 inputs grouped per common. -
Is this module compatible with all Series 90-30 CPUs?
Yes, it is compatible with any standard GE Series 90-30 base and CPU. -
Does it support DIN-rail mounting?
Yes, it can be mounted on a DIN rail or directly onto a panel. -
What is the isolation voltage between logic and field side?
It offers 1500V optical isolation for signal integrity and safety. -
What certifications does the IC693MDL640 hold?
It is certified by UL, CE, and CSA, meeting international safety standards.
