Product Introduction

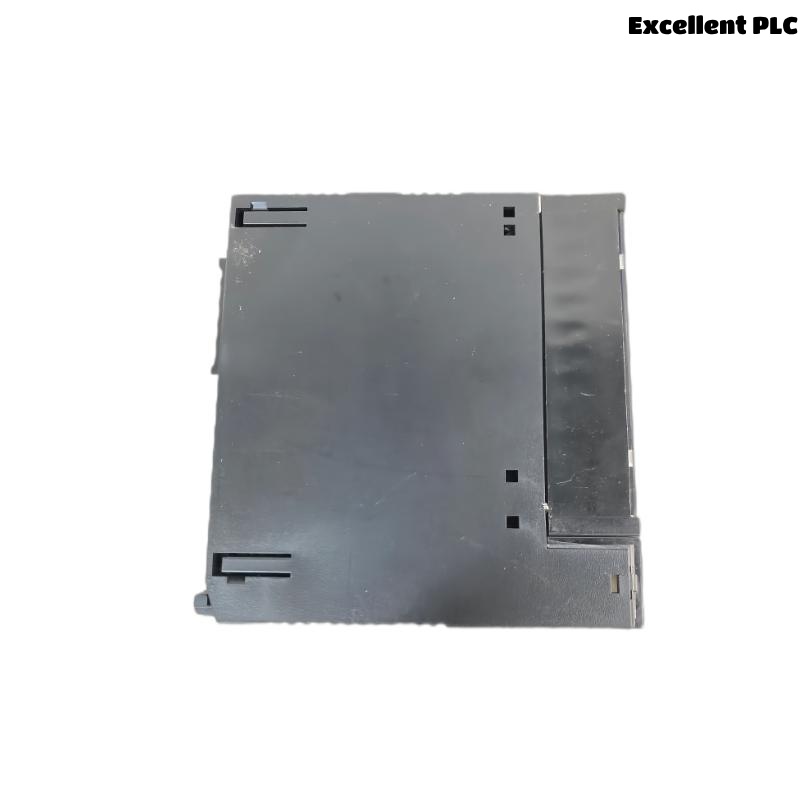

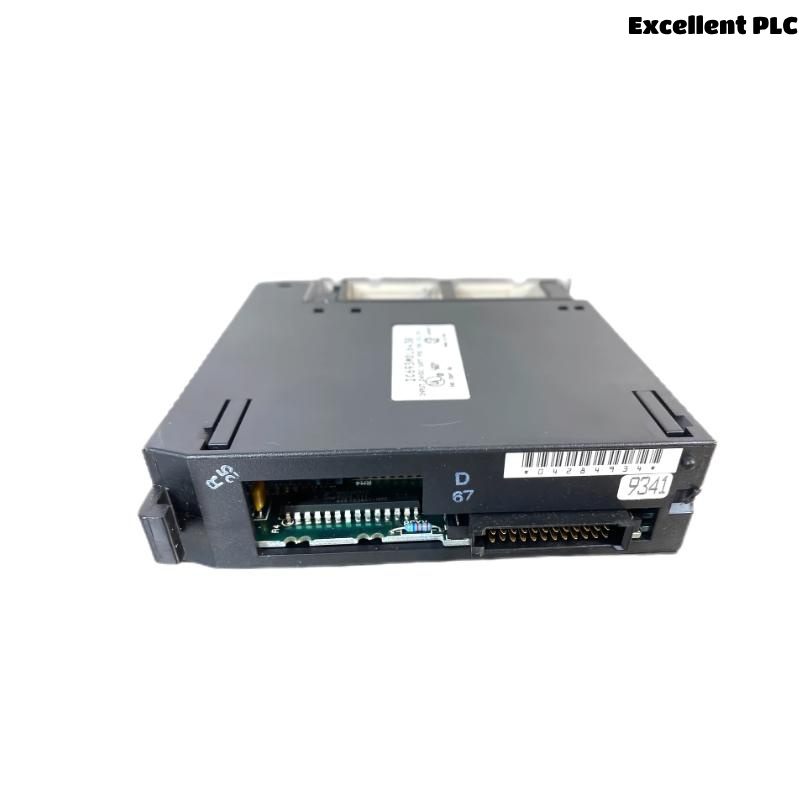

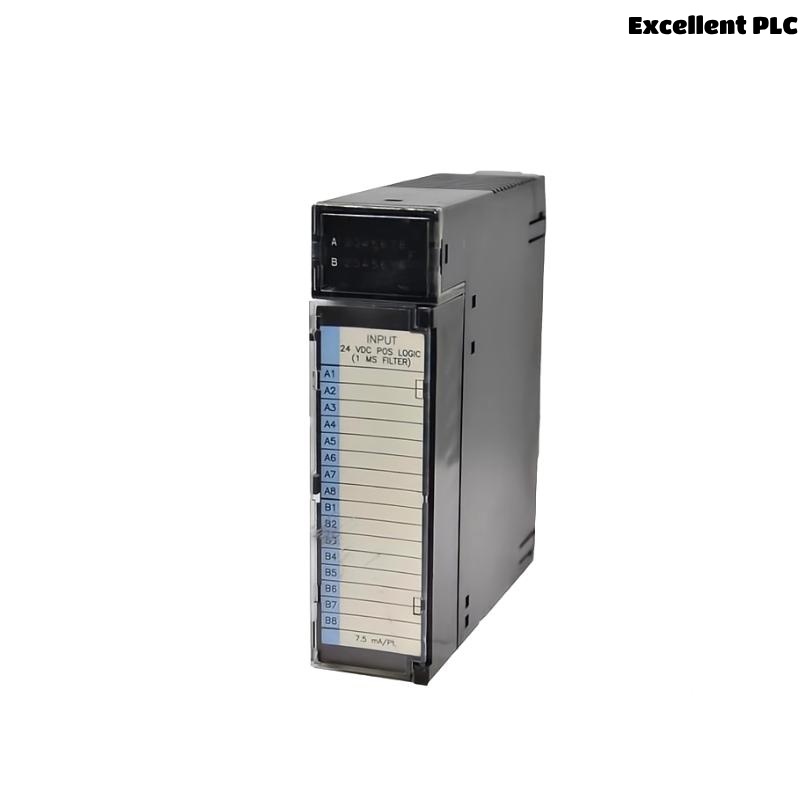

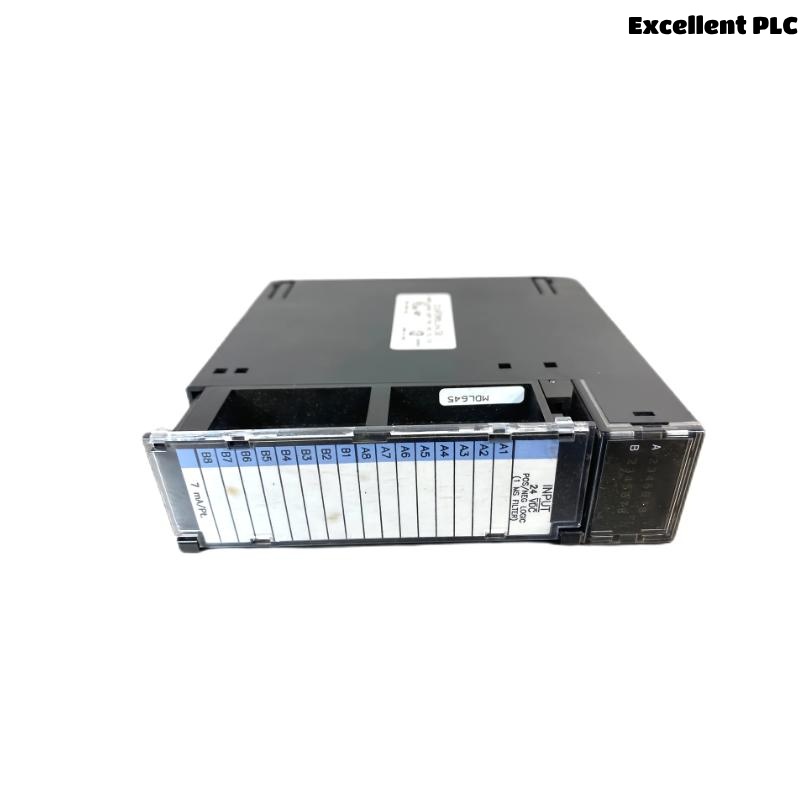

The GE IC693MDL643 is a 24VDC Positive Logic Input Module, designed for use with the GE Fanuc Series 90-30 PLC system. This industrial-grade module provides 16 discrete input points, grouped into four isolated groups of four inputs each. The module is specifically built to detect the presence of 24VDC voltage levels as ON signals, using positive logic, which means the module recognizes a high-level DC signal (typically >11V) as an active input.
Engineered for high reliability in demanding industrial environments, this input module is ideal for connecting a wide range of field devices like push buttons, limit switches, and other binary sensors. It is mounted in the I/O slot of a Series 90-30 baseplate and communicates seamlessly with the CPU via the system’s backplane.
The IC693MDL643 is a cost-effective and efficient choice for integrating discrete input monitoring into your automation solution, offering galvanic isolation, fast response time, and robust signal detection.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Discrete Input Module |
| Module Type | Positive Logic (Sourcing) Input |
| Number of Input Points | 16 |
| Input Voltage Range | 0 to 30 VDC |
| Input Voltage (Nominal) | 24 VDC |
| ON Voltage Threshold | >11 VDC |
| OFF Voltage Threshold | <5 VDC |
| Input Current @ 24VDC | 7 mA (typical per point) |
| Isolation | 1500 V RMS between field side and logic side |
| Group Isolation | 4 groups of 4 inputs, each group isolated |
| Input Type | Current Sourcing (positive logic) |
| Input Response Time | 7 ms (typical) |
| Backplane Current Consumption | 80 mA from +5V supply |
| LED Indicators | Yes, one per input point |
| Diagnostics | None |
| Mounting | Standard Series 90-30 I/O Slot |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 119 x 33 x 132 mm |
| Weight | 1.36 kg |
| Approvals & Certifications | UL, CE, CSA, Class I Div 2 (when used with rated systems) |
Product Applications
The GE IC693MDL643 module is widely used across various industrial sectors where discrete input monitoring is critical. Common applications include:
-
Manufacturing Automation: Detecting signals from sensors, safety devices, and operator controls.
-
Material Handling Systems: Monitoring limit switches and position sensors on conveyor systems.
-
Packaging Equipment: Tracking product detection sensors and actuator status.
-
Utilities and Water Treatment: Supervising float switches and relay contacts.
-
Food and Beverage Plants: Integrating washdown-rated control panels using DC input devices.
-
Machinery Control: Capturing interlock, door, and emergency stop statuses.
This module is particularly suitable for facilities where clean 24VDC control signals are used and positive logic signal flow is required.
Product Advantages
-
High Isolation Levels: Ensures protection between logic and field sides, increasing system safety.
-
Compact Form Factor: Fits into GE Series 90-30 systems without requiring additional real estate.
-
Quick and Accurate Response: 7 ms typical response time ensures real-time monitoring.
-
Group Isolation: Allows for functional grouping of inputs, minimizing the impact of electrical faults.
-
Reliable Positive Logic Design: Compatible with sourcing sensors, widely used in modern control systems.
-
LED Indicators per Point: Simplifies diagnostics and maintenance.
-
Backplane Communication: No separate wiring or configuration is needed beyond standard I/O slot usage.
-
UL and CE Certified: Ensures compliance with international industrial standards.
Frequently Asked Questions (FAQ)
-
Q: What voltage range can the IC693MDL643 safely detect?
A: It operates effectively from 0 to 30 VDC, with 24 VDC being the nominal input voltage. -
Q: Can this module be used with NPN (sinking) sensors?
A: No, it is designed for sourcing (PNP) input devices using positive logic. -
Q: Does this module provide input filtering?
A: It offers basic debounce filtering with a 7 ms typical response time to prevent false triggers. -
Q: Can the module inputs be used for AC voltage detection?
A: No, it is strictly intended for DC voltage input only. -
Q: Are the input points electrically isolated from each other?
A: Yes, the 16 inputs are arranged in 4 groups, each group being electrically isolated from the others. -
Q: How is this module installed into a Series 90-30 system?
A: It plugs into an available I/O slot on the backplane of a Series 90-30 baseplate. -
Q: Does the module require any special configuration software?
A: No special software is needed; it is configured using GE Proficy Machine Edition or compatible PLC software. -
Q: What kind of indicators are available on the module?
A: Each input point has an associated LED for real-time status display. -
Q: Can this module operate in hazardous locations?
A: It is suitable for Class I Division 2 environments when installed in compliant systems. -
Q: What happens if an input voltage falls between 5V and 11V?
A: The state may be undefined or unpredictable; valid ON is >11V, and valid OFF is <5V.
Related Models (Same Series or Function)
| Model Number | Description | Input Type | Input Points | Voltage | Logic Type |
|---|---|---|---|---|---|
| IC693MDL645 | 24VDC Negative Logic Input Module | Sinking | 16 | 24VDC | Negative |
| IC693MDL646 | Isolated 24VDC Input Module | Sourcing | 8 | 24VDC | Positive |
| IC693MDL640 | 120VAC Input Module | AC Input | 16 | 120VAC | AC |
| IC693MDL634 | 115VAC Isolated Input Module | AC Input | 8 | 115VAC | AC |
| IC693MDL241 | 24VDC Output Module | Sourcing Output | 8 | 24VDC | Positive |
| IC693MDL930 | 120/240VAC Input Module | AC Input | 16 | 120/240VAC | AC |
