Product Introduction

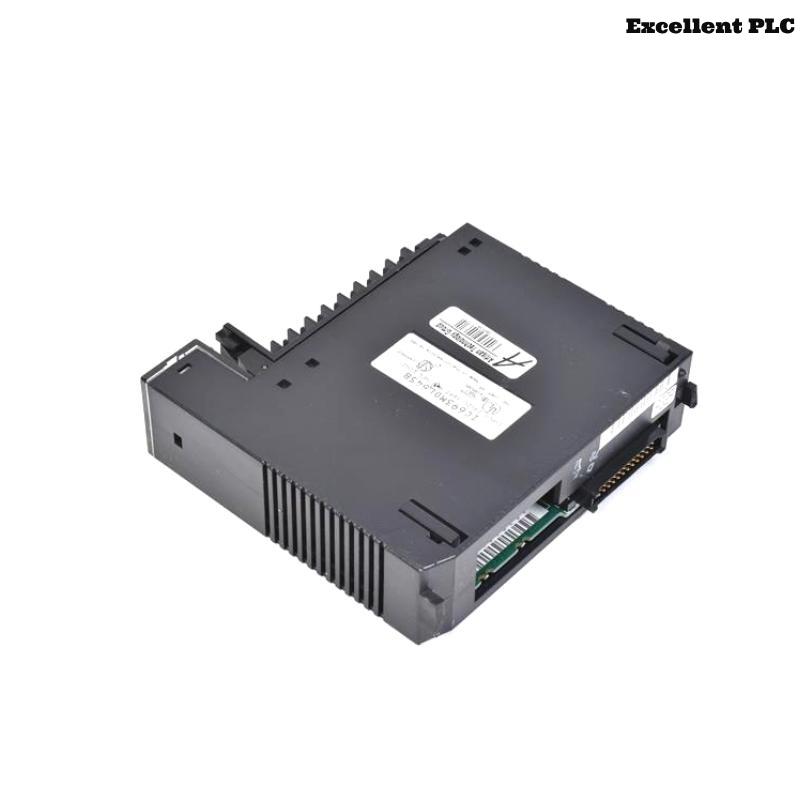

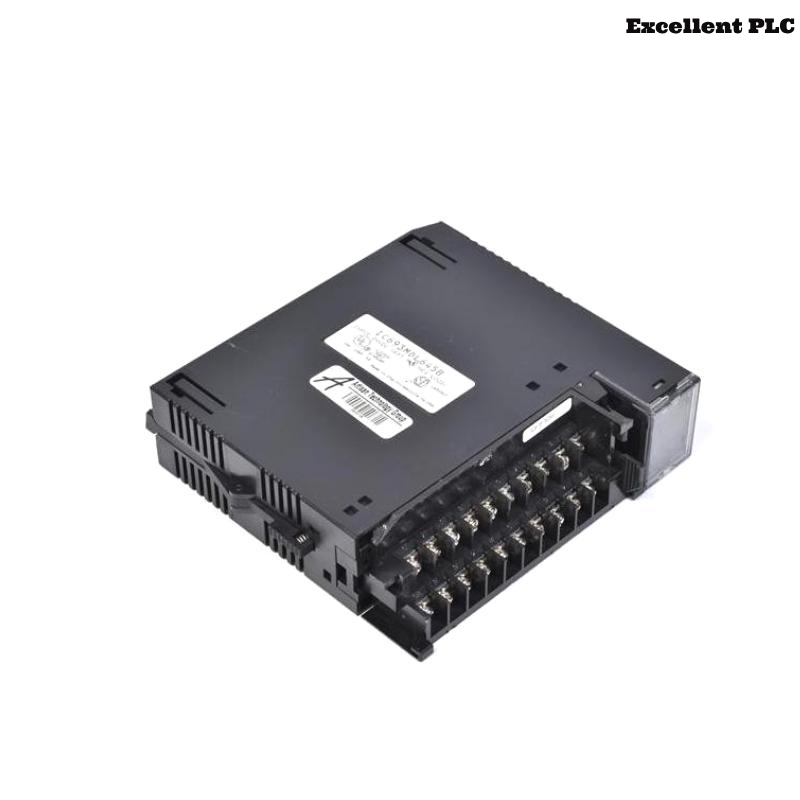

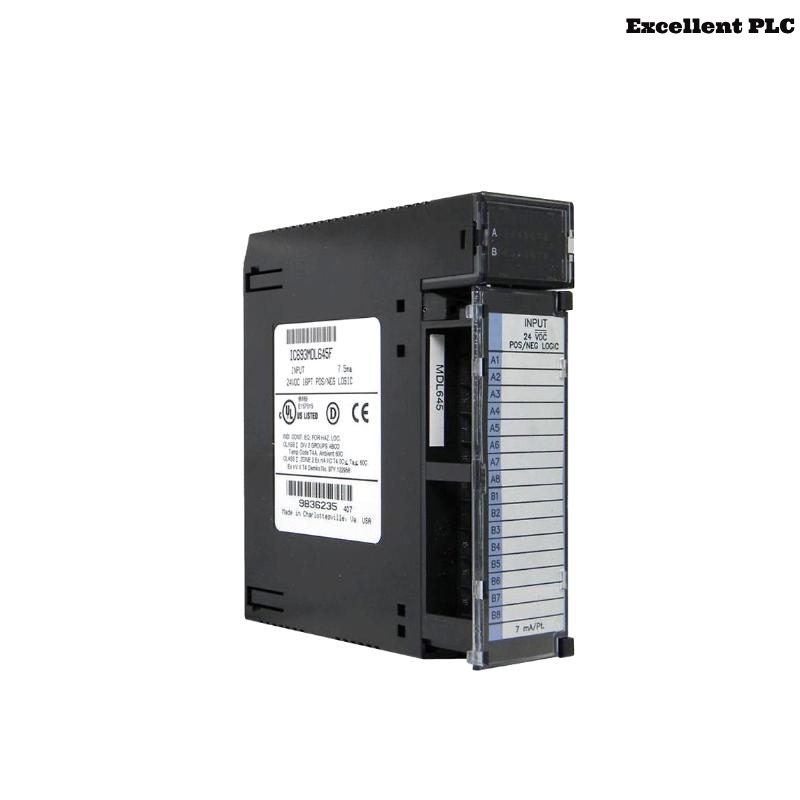

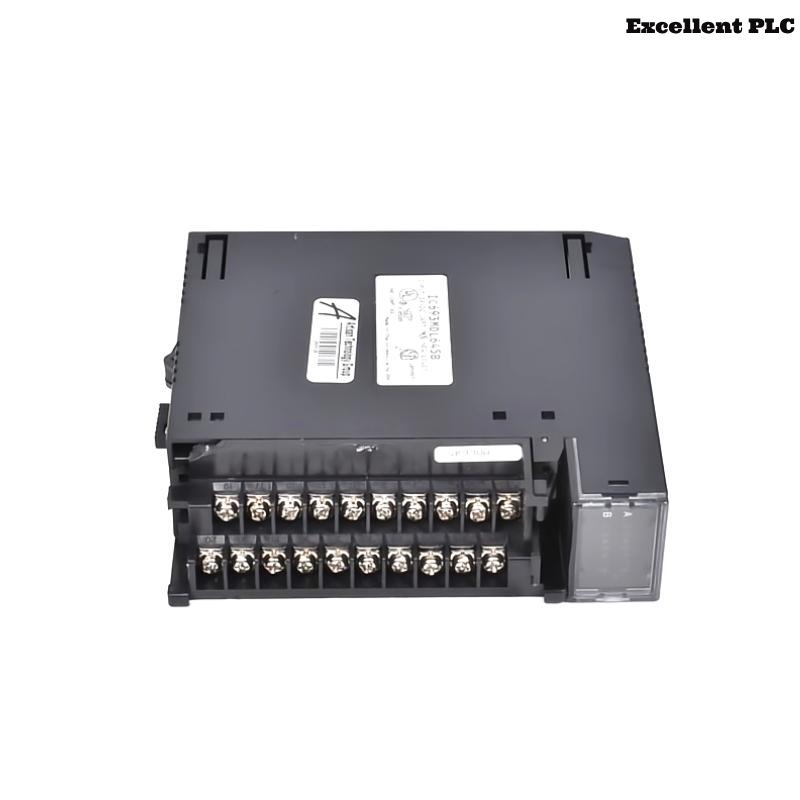

The GE IC693MDL645 is a Positive/Negative Logic Input Module designed for use with the GE Fanuc Series 90-30 PLC system. This versatile input module provides 32 discrete input channels that can be configured for either positive or negative logic. It is ideal for applications that require flexible input signal configurations, ensuring compatibility with a wide range of input devices, including sensors, switches, and other control components.
The module supports 24 VDC input signals, offering reliable operation for various industrial automation applications. Its flexible configuration options and durable design make the IC693MDL645 well-suited for demanding environments. With screw-clamp terminals for easy wiring, this module can be quickly integrated into existing control systems, improving both operational efficiency and system flexibility.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Product Type | Positive/Negative Logic Input Module |
| Part Number | IC693MDL645 |
| Number of Inputs | 32 inputs |
| Input Voltage | 24 VDC |
| Input Logic | Configurable (Positive or Negative Logic) |
| Response Time | On: <1 ms, Off: <1 ms |
| Input Type | Dry contact, sink/source configuration |
| Isolation | 1500 VAC (input to output isolation) |
| Mounting | DIN rail or panel mount |
| Terminal Type | Screw-clamp |
| Backplane Current Draw | 5VDC at 75 mA |
| Dimensions (HxWxD) | 142 x 30 x 130 mm |
| Weight | 0.42 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| LED Indicators | Yes (one LED per input point) |
| Field Power Supply | Required externally (24 VDC) |
| Compatibility | Compatible with all GE Fanuc Series 90-30 PLC CPUs and baseplates |
Product Applications
The GE IC693MDL645 Positive/Negative Logic Input Module is used in a variety of industrial automation and control applications where discrete input signals are needed. Some typical use cases include:
-
Industrial Automation Systems: Integrating various types of sensors, switches, and limit switches.
-
Manufacturing Control: Interfacing with production line equipment to monitor status.
-
Material Handling Systems: Monitoring conveyors, robotic arms, and sorting systems.
-
HVAC Control: Managing temperature, pressure, and flow switches in HVAC systems.
-
Packaging and Assembly Lines: Collecting input data from machines and production equipment.
-
Lighting and Indicator Control: Interfacing with on/off controls for lighting and alarm systems.
-
Automated Testing Systems: Reading inputs from test fixtures to control automated processes.
The positive/negative logic configuration makes it versatile, as it supports a wide variety of sensors and input devices, reducing the need for external conversion circuits.
Product Advantages
-
Flexibility in Logic Configuration: Supports both positive and negative logic, providing versatility in adapting to various control system requirements.
-
High Channel Density: 32 input channels within a compact module reduce the overall size of control panels, saving valuable space.
-
Easy Integration: Screw-clamp terminals allow for quick and secure connections to the control system, facilitating easy installation and maintenance.
-
Electrical Isolation: Offers 1500 VDC isolation between input and output, ensuring the protection of sensitive circuits from electrical surges or faults.
-
Durable Design: Built to withstand harsh industrial environments with high temperature ranges and resistance to mechanical stress.
-
LED Indicators for Status Monitoring: Each input point is equipped with an LED indicator to display the status, aiding in troubleshooting and system diagnostics.
-
Low Power Consumption: The module draws minimal power from the backplane, which contributes to overall system efficiency.
-
Wide Temperature Range: Can operate in environments ranging from 0°C to 60°C, making it suitable for diverse industrial conditions.
-
Reliable and Robust: The IC693MDL645 is built for continuous operation with high durability, offering a long service life.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum input voltage supported by the IC693MDL645 module?
A: The module supports a maximum input of 24 VDC. -
Q: Can this module be used with both NPN and PNP sensors?
A: Yes, the module can be configured to work with both NPN (sinking) and PNP (sourcing) sensors. -
Q: How is the input logic configured for each channel?
A: Each channel can be configured for either positive or negative logic, depending on the sensor type and application requirements. -
Q: Can the IC693MDL645 module be used in hazardous environments?
A: This module is not rated for hazardous locations; however, it is suitable for general industrial control applications. -
Q: How does the module handle electrical surges or spikes?
A: The module has built-in 1500 VDC isolation to protect against electrical surges and ensure safe operation. -
Q: Is the IC693MDL645 compatible with all GE Series 90-30 CPUs?
A: Yes, it is fully compatible with all GE Series 90-30 PLC CPUs and baseplates. -
Q: Can I connect a relay to the module?
A: Yes, relays can be used as inputs, provided they are properly wired according to the module’s input requirements. -
Q: Does this module have a built-in fuse for protection?
A: No, the IC693MDL645 does not have internal fuses, so external protection is recommended. -
Q: What is the maximum number of modules that can be connected to a single PLC system?
A: The number of modules depends on the specific PLC configuration and available backplane slots. -
Q: Can the IC693MDL645 module be used with 120 VAC inputs?
A: No, this module is designed for 24 VDC input signals and is not suitable for AC input devices.
