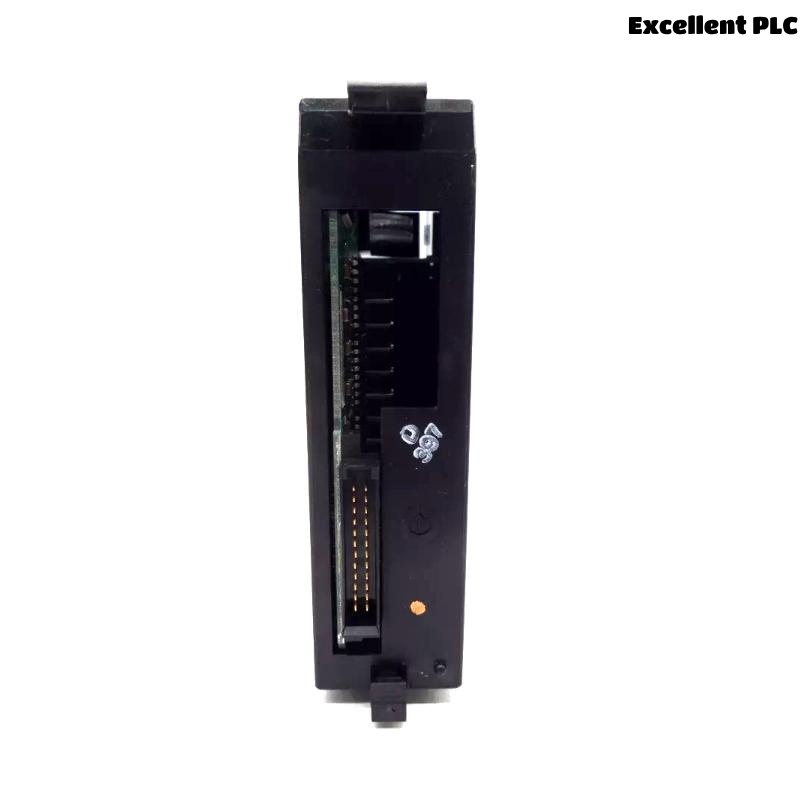

GE IC693MDL645H Product Introduction
The GE IC693MDL645H is a 24 VDC Positive Logic Output Module designed for use within the GE Series 90-30 Programmable Logic Controller (PLC) system. As part of GE’s robust modular automation platform, this model is engineered to handle discrete output tasks reliably and efficiently, meeting the needs of industrial automation systems across a wide range of industries.
With 32 output points arranged in four isolated groups, the IC693MDL645H provides high-density output capability while ensuring electrical isolation to reduce the risk of cross-interference. Its design reflects GE’s commitment to providing cost-effective, compact, and user-friendly solutions without compromising on performance.
Product Parameters
| Parameter | Specification |
|---|---|
| Number of Outputs | 32 (positive logic, sourcing) |
| Voltage Range | 5–30 VDC |
| Nominal Voltage | 24 VDC |
| Output Current (per point) | 0.5 A maximum |
| Output Current (per group) | 4 A maximum |
| Isolation | 1500 V (field side to logic side) |
| Dimension | 142 x 30 x 130 mm |
| Weight | 0.42 kg |
| Response Time (ON → OFF/OFF → ON) | <1 ms typical |
| LED Indicators | Individual output status |
| Output Type | Solid-state (electronic) |
Product Applications
The IC693MDL645H module is widely used in industrial and commercial environments where reliable and fast-response discrete output control is required. Typical applications include:
-
Automated production lines
-
Packaging machinery
-
Conveyor systems
-
Process control systems
-
Material handling systems
-
HVAC control systems
-
Energy management panels
Thanks to its high-density design and reliable solid-state outputs, it is especially suitable for large-scale applications where numerous discrete outputs must be controlled in limited space.
Product Advantages
-
Compact Design: High-density 32-point module helps save valuable panel space.
-
Electrical Isolation: Four separate groups with isolated commons improve system reliability and safety.
-
Fast Switching: Quick response times (<1 ms) support applications requiring precise control.
-
Solid-State Outputs: Longer lifespan compared to mechanical relays, with less maintenance.
-
Clear Diagnostics: Built-in LED indicators for each output channel help with quick troubleshooting.
-
Seamless Integration: Fully compatible with the GE Series 90-30 PLC platform, ensuring ease of installation.
These strengths make the IC693MDL645H a practical choice for automation engineers and maintenance teams alike.
FAQ
Q1: What is the maximum current each output can handle?
A1: Each output point can handle up to 0.5 A, and each group of 8 outputs can handle a total of 4 A.
Q2: Can this module switch AC loads?
A2: No, it is specifically designed for DC loads, with a nominal voltage of 24 VDC.
Q3: Does it have output protection against short circuits?
A3: Yes, the module features electronic short-circuit protection for safer operation.
Q4: Is the IC693MDL645H hot-swappable?
A4: No, the module should be installed or removed when the PLC is powered down to avoid damage.
Q5: Are the outputs isolated?
A5: Yes, there are four groups of 8 outputs each, and each group is isolated from the others.
Q6: How can I check output status?
A6: The front panel has LED indicators showing the status of each individual output.
Q7: What type of wiring is recommended?
A7: It is recommended to use shielded cables and proper grounding to minimize noise.
Q8: Which PLC series supports this module?
A8: The IC693MDL645H is designed for use with the GE Series 90-30 PLC system.
Q9: Is there a replacement or newer version available?
A9: Yes, newer GE modules with similar functionality exist, but compatibility and system requirements should be checked.
Q10: What maintenance does the module require?
A10: Periodic inspection for loose wiring and checking the LED indicators; otherwise, the solid-state design requires minimal maintenance.
Recommended Related Models (Same Series / Functionally Similar)
-
IC693MDL340
-
IC693MDL645F
-
IC693MDL742
-
IC693MDL241
-
IC693MDL260
-
IC693MDL730
These models vary by voltage, output type (AC/DC), or number of points, offering flexibility depending on system requirements.
