Product Introduction

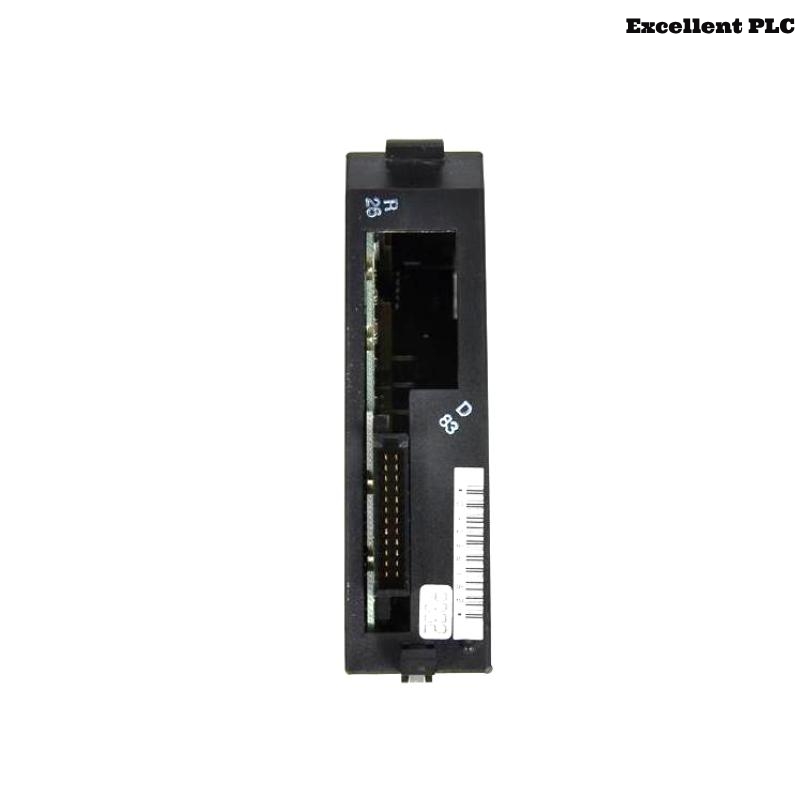

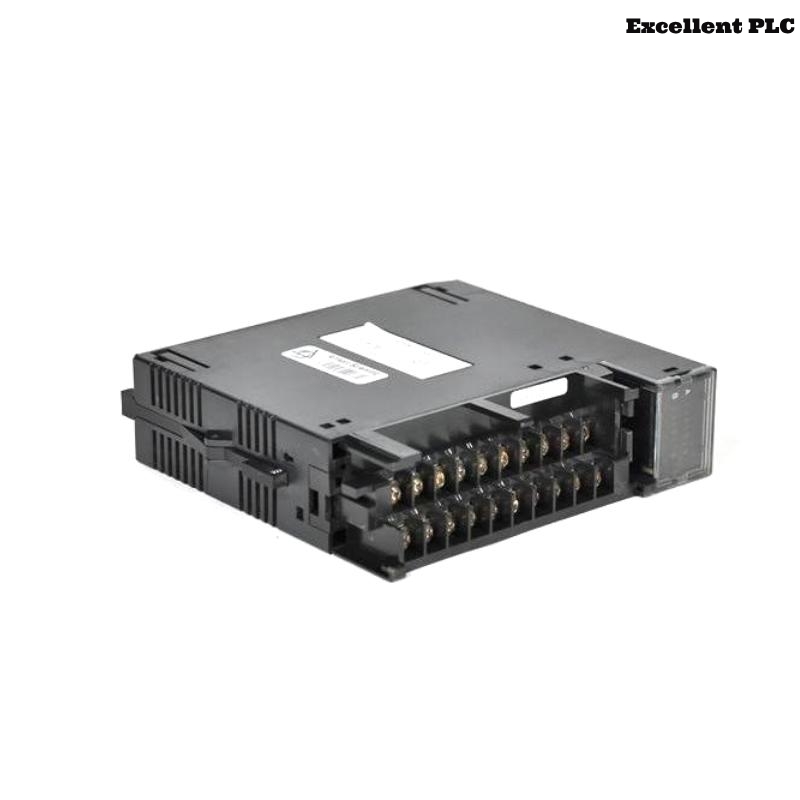

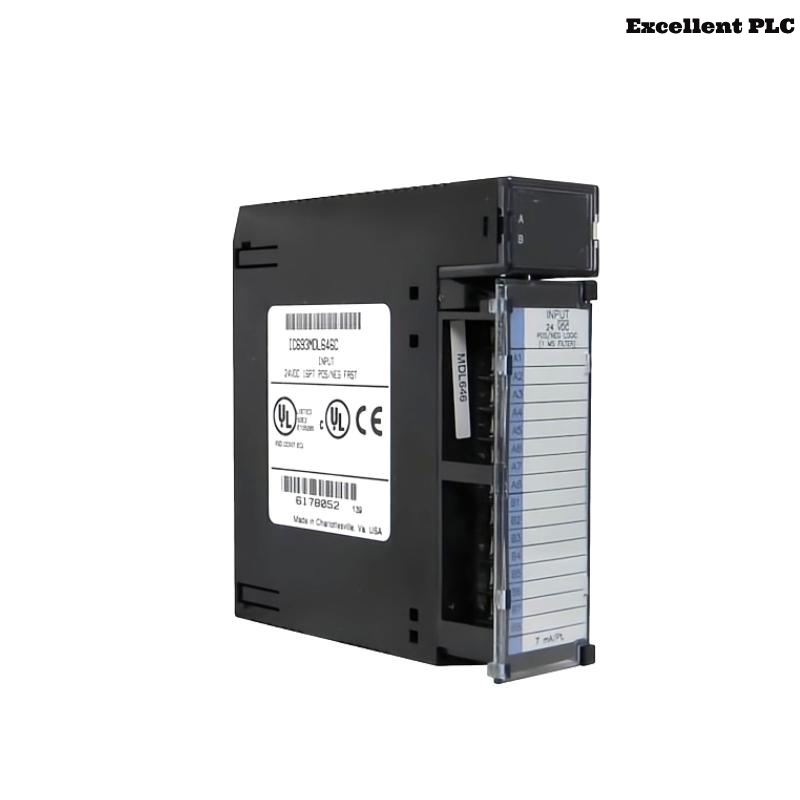

The GE IC693MDL646 is a Positive/Negative Logic Input Module designed for use with the GE Fanuc Series 90-30 PLC system. This module offers 32 discrete input channels, which can be configured to support both positive and negative logic. It provides a versatile solution for industrial automation and control applications, where flexibility and reliability are crucial.
This module is ideal for systems that require precise input signal management, offering 24 VDC input and allowing for compatibility with a variety of sensors, switches, and other input devices. The IC693MDL646 module is designed for easy integration with GE Fanuc Series 90-30 PLCs, supporting applications in manufacturing, process control, and other industrial environments.

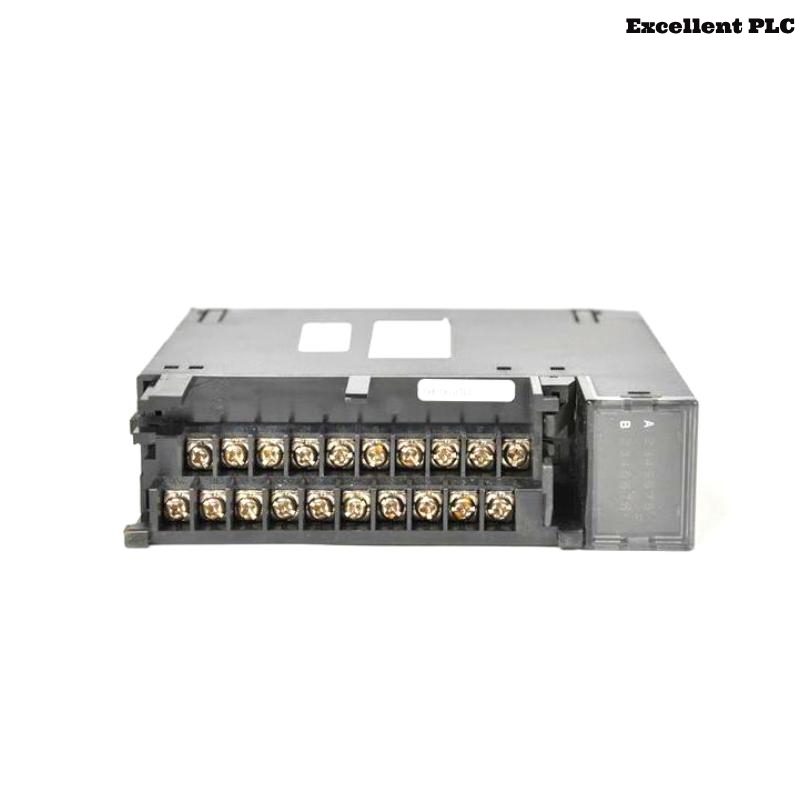

With screw-clamp terminal blocks for easy wiring, this module ensures quick installation and reliable performance. Its configuration flexibility enables users to customize the input signal processing to meet specific application needs, reducing the need for additional equipment.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Product Type | Positive/Negative Logic Input Module |
| Part Number | IC693MDL646 |
| Number of Inputs | 32 inputs |
| Input Voltage | 24 VDC |
| Input Logic | Configurable (Positive or Negative Logic) |
| Response Time | On: <1 ms, Off: <1 ms |
| Input Type | Dry contact, sink/source configuration |
| Isolation | 1500 VAC (input to output isolation) |
| Mounting | DIN rail or panel mount |
| Terminal Type | Screw-clamp terminals |
| Backplane Current Draw | 5VDC at 75 mA |
| Dimensions (HxWxD) | 142 x 30 x 130 mm |
| Weight | 0.42 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| LED Indicators | Yes (one LED per input point) |
| Field Power Supply | Required externally (24 VDC) |
| Compatibility | Compatible with all GE Fanuc Series 90-30 PLC CPUs and baseplates |
Product Applications
The GE IC693MDL646 Positive/Negative Logic Input Module is used in a wide range of industrial automation and control applications. Some of the key areas where this module is commonly applied include:
-
Manufacturing Automation: Connecting to sensors and switches on production lines to monitor status and control machinery.
-
Process Control Systems: Collecting data from various field devices to monitor and control production processes in industries such as chemical, food processing, and pharmaceuticals.
-
Material Handling Systems: Integrating with conveyors, sorters, and automated guided vehicles (AGVs) to ensure smooth and efficient operations.
-
Packaging and Assembly Lines: Monitoring input signals from machines used in packaging, assembly, and quality testing.
-
HVAC Systems: Interfacing with temperature and pressure sensors to manage heating, ventilation, and air conditioning systems.
-
Control of Lighting and Alarms: Managing input signals for lighting systems and alarm panels to provide real-time monitoring and control.
-
Building Automation: Collecting inputs from environmental sensors, occupancy sensors, and control devices to manage building systems.
The positive/negative logic configuration flexibility allows users to adapt the module for various sensor types, making it highly versatile for a broad spectrum of control applications.
Product Advantages
-
Highly Flexible Logic Configuration: The IC693MDL646 allows users to choose between positive or negative logic for each channel, providing greater flexibility and compatibility with a wide variety of devices and sensors.
-
Compact Design with High Channel Density: With 32 input channels in a small, compact module, it is designed to fit easily into control systems where space is limited.
-
Easy to Install and Maintain: The screw-clamp terminal blocks ensure easy and secure wiring connections, simplifying installation and reducing maintenance time.
-
Electrical Isolation: The module provides 1500 VDC isolation between input and output, ensuring protection against electrical surges, spikes, and faults.
-
Wide Operating Temperature Range: The IC693MDL646 can operate in temperatures ranging from 0°C to 60°C, making it suitable for a variety of industrial environments.
-
Reliable Performance: The module has a fast response time, offering <1 ms for both on and off transitions, ensuring reliable data transmission and control.
-
LED Indicators for Status Monitoring: Each input point is equipped with an LED to indicate its status, allowing operators to quickly assess the system’s health and troubleshoot any issues.
-
Energy Efficient: The module consumes minimal power from the backplane, ensuring it operates efficiently without overloading the PLC system.
-
High Durability: Built to withstand industrial environments, the module is durable and reliable over time, even in challenging conditions.
Frequently Asked Questions (FAQ)
-
Q: What is the voltage rating for the GE IC693MDL646 module?
A: The module supports 24 VDC input voltage. -
Q: Can this module be configured to work with both NPN and PNP sensors?
A: Yes, the IC693MDL646 can be configured to work with both NPN (sinking) and PNP (sourcing) sensors. -
Q: How many channels are available on this module?
A: The module has 32 discrete input channels. -
Q: What type of wiring terminals does this module use?
A: The IC693MDL646 uses screw-clamp terminals, which are easy to wire and provide secure connections. -
Q: Can I use this module in environments with high temperature fluctuations?
A: Yes, the module can operate within a temperature range of 0°C to 60°C, making it suitable for most industrial applications. -
Q: Does the module offer electrical isolation?
A: Yes, the IC693MDL646 offers 1500 VDC isolation between input and output, protecting the module and connected equipment from electrical surges. -
Q: Can this module be used with relay inputs?
A: Yes, it can interface with relay inputs, provided they meet the module’s input specifications. -
Q: Is the IC693MDL646 compatible with the GE Series 90-30 CPUs?
A: Yes, this module is fully compatible with all GE Series 90-30 PLC CPUs and baseplates. -
Q: What is the response time for the input signals on this module?
A: The response time is <1 ms for both the on and off states. -
Q: Can I use this module for AC input signals?
A: No, the IC693MDL646 is designed for 24 VDC input signals only and cannot be used with AC inputs.
Related Models from the Same Series
| Model Number | Description | Input Type | Channels | Voltage |
|---|---|---|---|---|
| IC693MDL646 | Positive/Negative Logic Input Module | Positive/Negative | 32 | 24 VDC |
| IC693MDL645 | Positive/Negative Logic Input Module | Positive/Negative | 32 | 24 VDC |
| IC693MDL630 | 16-Point, Isolated DC Input Module | DC Input | 16 | 24 VDC |
| IC693MDL631 | 16-Point, Positive Logic DC Input Module | DC Input | 16 | 24 VDC |
| IC693MDL632 | 16-Point, Negative Logic DC Input Module | DC Input | 16 | 24 VDC |
| IC693MDL933 | Isolated AC Input Module | AC Input | 8 | 120/240 VAC |
Popular Models from the Same Brand (GE Fanuc)
| Model Number | Description | Type | Channels | Voltage |
|---|---|---|---|---|
| IC693CPU374 | 5-slot CPU with Ethernet support | PLC CPU | N/A | N/A |
| IC693CHS397 | 5-Slot Baseplate | Baseplate | 5 | N/A |
| IC693ALG220 | Analog Input Module, 4 Channels, Voltage/Current | Analog Input | 4 | 0-10V / 4-20mA |
| IC693MDL738 | DC Output Module, 16 Points | DC Output | 16 | 24 VDC |
| IC693PWR330 | 30W Power Supply Module | Power Supply | N/A | 120/240 VAC |
| IC693ACC300 | Memory Expansion Module | Accessory | N/A | N/A |
