Product Introduction

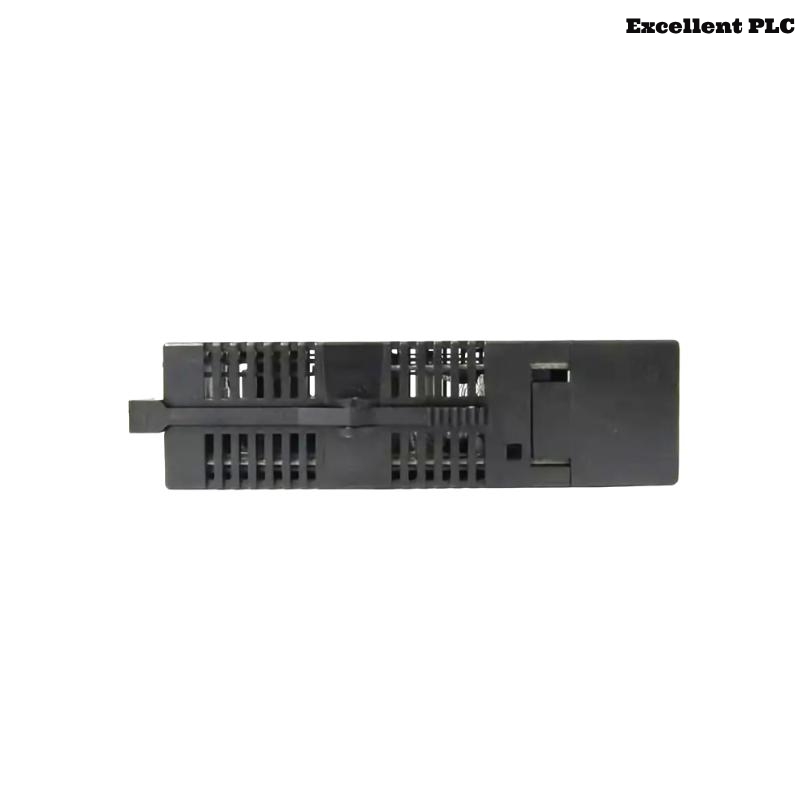

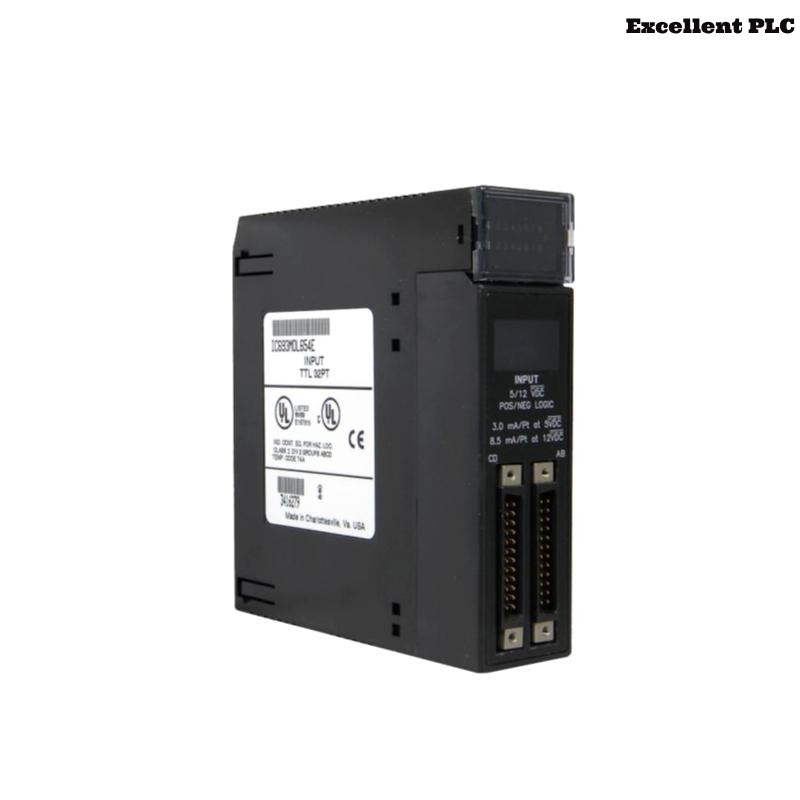

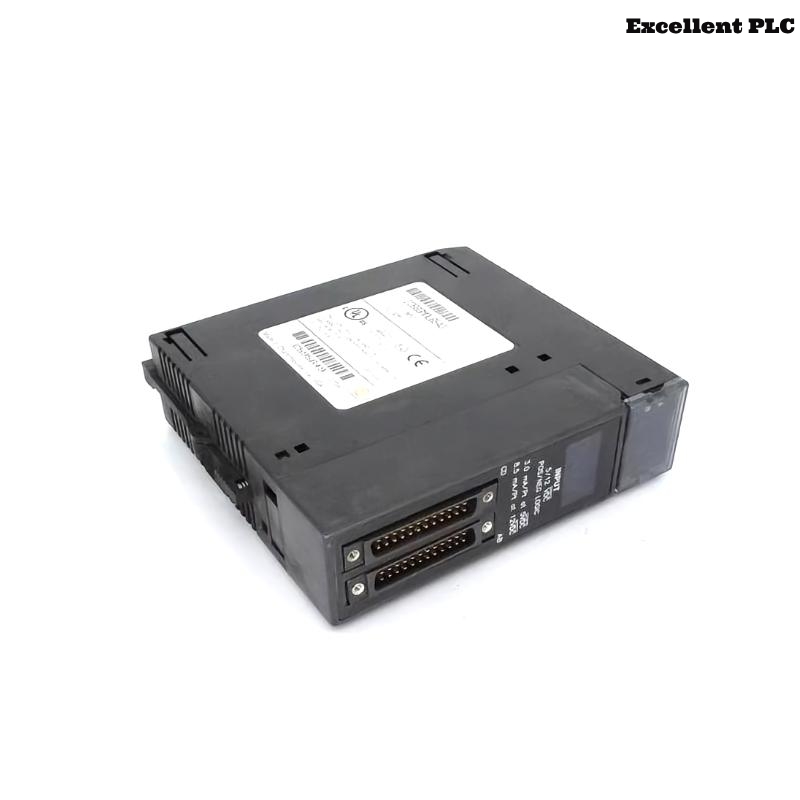

The GE IC693MDL654 is a discrete input module designed for the GE Series 90-30 PLC system. This module provides 32 input points configured as 4 isolated groups of 8 inputs, making it well-suited for applications requiring high-density input configurations with both positive and negative logic compatibility.
This module accepts DC inputs in the range of 0 to 30V, making it ideal for industrial environments that rely on 24VDC control signals. Its versatile input design accommodates both sourcing and sinking logic types, which makes it easier to integrate with a wider variety of field devices.
Engineered for durability and consistent performance, the IC693MDL654 module is built to withstand the demanding conditions of industrial automation environments such as manufacturing, process control, and machine automation.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (General Electric) |
| Series | Series 90-30 |
| Product Type | Discrete Input Module |
| Model Number | IC693MDL654 |
| Input Type | DC (Positive/Negative Logic) |
| Number of Inputs | 32 |
| Input Voltage Range | 0 – 30 VDC |
| Nominal Input Voltage | 24 VDC |
| Input Current | 7 mA (typical at 24 VDC) |
| Group Isolation | 4 groups of 8 inputs (isolated) |
| Input Characteristics | Sourcing and Sinking Compatible |
| Backplane Current Consumption | 130 mA @ 5 VDC |
| LED Indicators | Yes (1 per input point) |
| Environmental Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Shock/Vibration | IEC 60068-2 Compliant |
| Mounting | DIN-rail or panel-mounted |
| Module Width | Standard single-slot module |
| Dimensions (HxWxD) | 142 x 30 x 130 mm |
| Weight | 0.58 kg |
Product Applications
The GE IC693MDL654 is widely used in the following application areas:
-
Factory Automation Systems
Interfaces sensors and switches for automated assembly lines, packaging systems, and robotic arms. -
Machine Tool Control
Ideal for monitoring machine status and controlling machine functions using proximity switches and limit switches. -
Process Control Systems
Integrates with distributed control systems in process industries like oil & gas, chemical, and food processing. -
Building Management Systems (BMS)
Used to manage lighting, HVAC controls, and security sensors in large facilities. -
Power & Utility Systems
Suitable for input monitoring in substation automation, power plant SCADA, and energy distribution networks.
Product Advantages
-
High-Density Input
Supports 32 input channels, making it cost-effective and space-efficient. -
Flexible Logic Compatibility
Positive and negative logic support increases adaptability with various input devices. -
Isolated Groups for Enhanced Safety
Four isolated input groups reduce electrical noise and improve system safety and signal integrity. -
Visual Status Indicators
Individual LEDs for each input allow for easy troubleshooting and real-time monitoring. -
Easy Integration
Fully compatible with the GE Series 90-30 PLC family, ensuring seamless system expansion and upgrades. -
Industrial-Grade Design
Designed to operate reliably in harsh industrial environments with wide temperature ranges and resistance to vibration and shock.
Frequently Asked Questions (FAQ)
-
What type of devices can be connected to the IC693MDL654?
It supports digital field devices such as push buttons, limit switches, and proximity sensors that operate on 24 VDC. -
Does this module support both sourcing and sinking inputs?
Yes, the IC693MDL654 supports both positive (sourcing) and negative (sinking) logic inputs. -
Can this module be hot-swapped?
No, it must be removed and inserted with power off to prevent damage or improper operation. -
What is the maximum number of modules I can use in one PLC system?
It depends on the power supply and CPU capacity of your Series 90-30 base. Check power and slot limitations. -
How are the inputs grouped?
The 32 inputs are divided into 4 isolated groups of 8 channels each. -
What protection does the module offer for overvoltage or reverse polarity?
Basic protection is provided, but for critical applications, external protection circuits are recommended. -
Can the module be used in outdoor environments?
It is not designed for direct outdoor exposure. Install it in an enclosure rated for the application environment. -
Is this module CE or UL certified?
Yes, the module is typically UL and CE certified for industrial applications. -
Can this be used with other PLC series?
It is specifically designed for the GE Series 90-30. Compatibility with other series may be limited or require adapters. -
What kind of wiring should be used for connecting field devices?
Use shielded, twisted pair wiring for best noise immunity, especially in electrically noisy environments.
