Product Overview

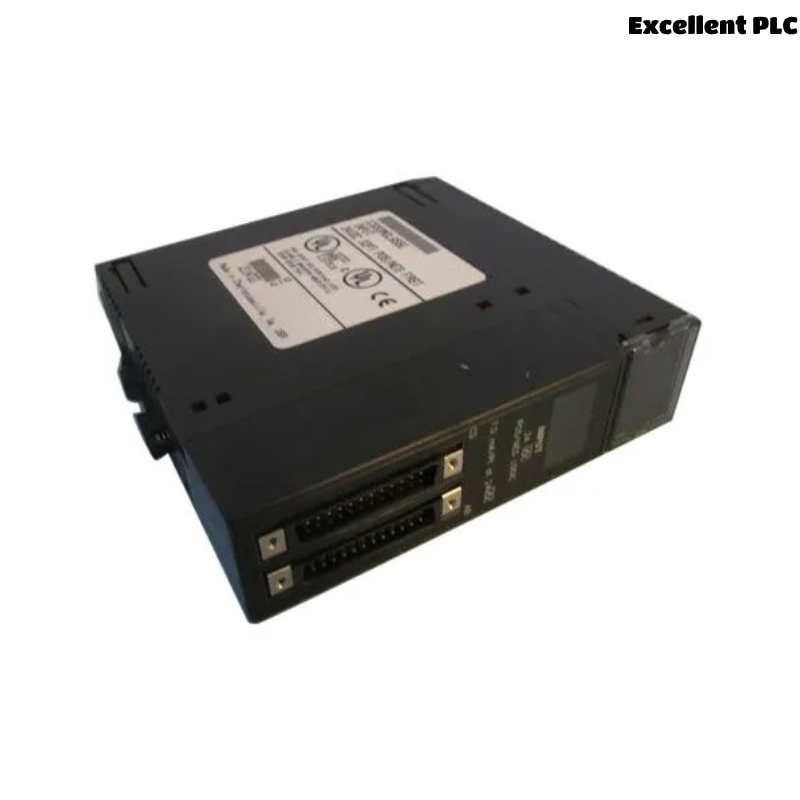

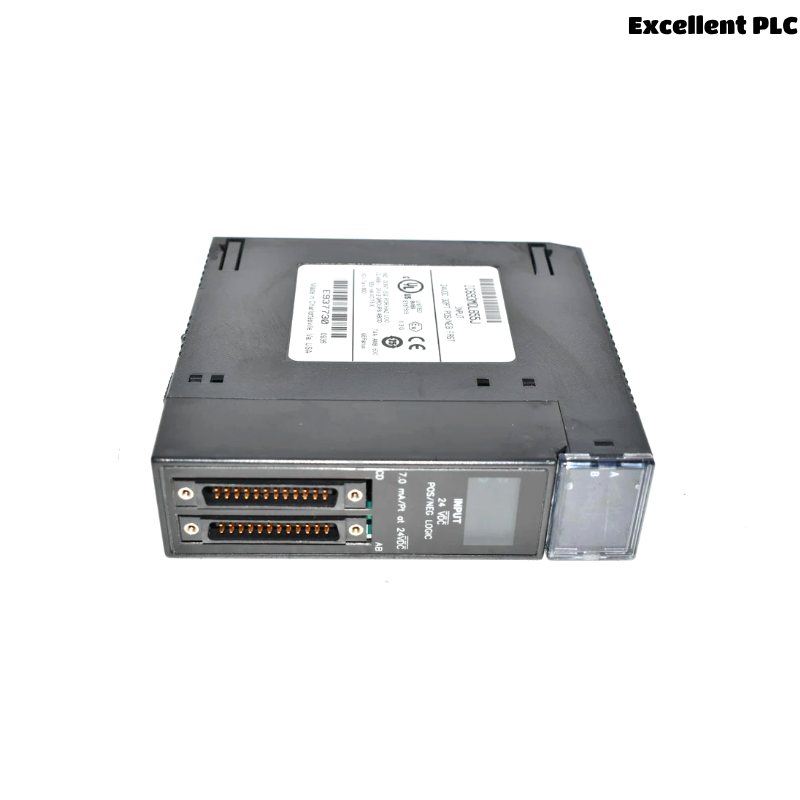

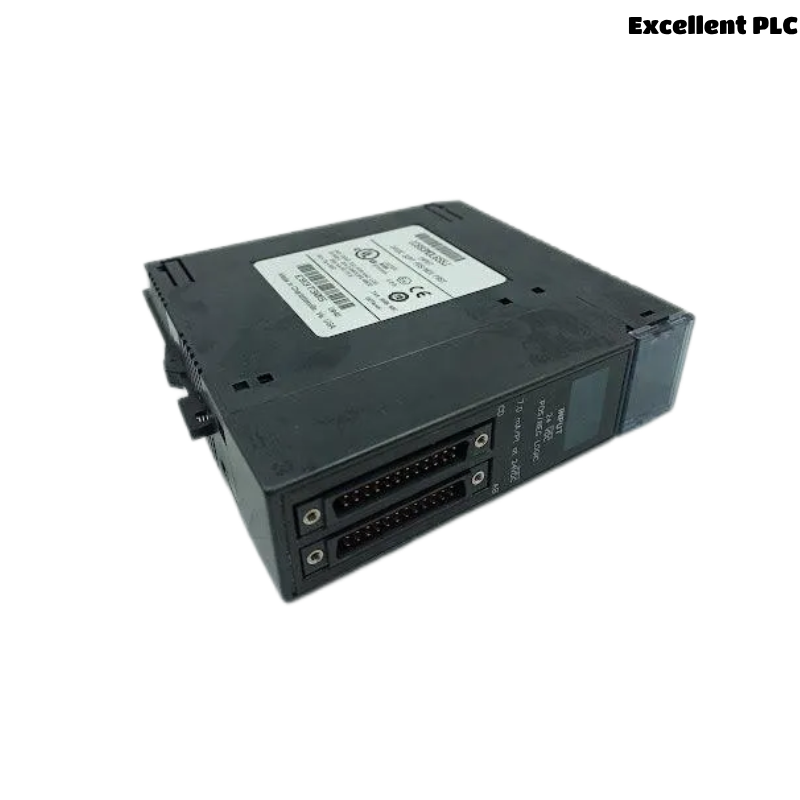

The GE IC693MDL655J is a high-quality modular digital output module used in GE’s Series 90-30 programmable logic controller (PLC) system. It is designed to provide reliable and efficient digital output solutions for industrial automation and control systems. This module plays a crucial role in controlling various industrial processes and machinery by sending output signals to connected devices.
The IC693MDL655J module is suitable for various industries, including manufacturing, oil & gas, and energy, where precision and reliability are paramount.
Product Advantages
-
High Reliability: Designed with industrial-grade components to ensure long-lasting performance even in demanding environments.
-
Flexible Integration: Seamlessly integrates into the GE Series 90-30 PLC system for enhanced functionality.
-
High Output Capability: Offers multiple output channels, making it ideal for controlling high-demand systems.
-
Robust Design: Built to withstand extreme industrial environments, ensuring stable operations.
-
Easy Installation: Can be installed quickly with minimal downtime, optimizing productivity.
-
Efficient Power Consumption: The module is designed to operate with low power consumption, improving energy efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Model | GE IC693MDL655J |
| Module Type | Digital Output Module |
| Input Voltage | 24V DC |
| Output Channels | 16 channels (sink or source) |
| Output Voltage | 24V DC |
| Output Current | 0.5A per channel |
| Dimensions | 128 x 55 x 105 mm |
| Weight | 0.281 kg |
| Power Consumption | 50mA at 5V DC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
Applications
-
Industrial Automation: Ideal for controlling actuators, solenoids, and other output devices in industrial automation systems.
-
PLC Systems: Commonly used in control systems built on the GE Series 90-30 platform.
-
Machine Control: Used in manufacturing machinery for controlling various automated processes such as assembly lines, packaging systems, etc.
-
Energy Sector: Suitable for control in power generation plants where stable and reliable outputs are necessary.
-
Oil & Gas: Helps in controlling process equipment, valves, and motors in harsh environments like refineries and drilling sites.
Installation Instructions
-
Ensure Safety: Before installing the IC693MDL655J module, power off the system to avoid any electrical hazards.
-
Positioning: The module should be installed in the correct slot of the GE Series 90-30 PLC rack to ensure proper connectivity.
-
Wiring: Connect the digital output wires to the appropriate channels on the module, ensuring correct polarity and voltage ratings.
-
Power Up: After installation, restore power to the system and verify the module is functioning correctly using the PLC’s diagnostic tools.
-
Testing: Perform operational tests to ensure the outputs are being triggered correctly.
FAQ
Q1: What is the primary function of the GE IC693MDL655J module?
A1: The primary function of the IC693MDL655J module is to provide digital outputs for controlling various devices in industrial automation systems.
Q2: Can this module be used with other GE PLC models?
A2: This module is specifically designed for the GE Series 90-30 PLC system and may not be compatible with other models.
Q3: What is the maximum current that can be supplied by each output channel?
A3: Each output channel can supply up to 0.5A of current.
Q4: What is the operating temperature range for this module?
A4: The operating temperature range is 0°C to 60°C (32°F to 140°F).
Q5: How do I install this module?
A5: Installation involves inserting the module into the correct slot of the GE Series 90-30 PLC rack, wiring the output devices, and powering up the system.
Q6: Is this module suitable for controlling high-power devices?
A6: While the IC693MDL655J is suitable for controlling low-power devices (0.5A per channel), high-power devices may require additional interfacing components like relays.
Q7: Can this module be used in hazardous environments?
A7: The module is designed for industrial environments but may not be suitable for highly hazardous locations without additional protection.
Q8: What is the power consumption of the module?
A8: The module consumes 50mA at 5V DC.
Q9: What is the maximum number of channels I can use on a single module?
A9: This module provides 16 output channels.
Q10: Does the module support both sinking and sourcing outputs?
A10: Yes, the IC693MDL655J supports both sinking and sourcing output configurations.
Recommended Models (Same Series/Related)
| Model | Specification | Description |
|---|---|---|
| GE IC693MDL654 | 16 Digital Outputs, 24V DC | Similar to the IC693MDL655J but with a different output configuration. |
| GE IC693MDL631 | 8 Digital Outputs, 24V DC | Compact version with fewer channels, used for smaller applications. |
| GE IC693MDL630 | 4 Digital Outputs, 24V DC | Ideal for applications with limited output needs. |
| GE IC693MDL656 | 16 Digital Outputs, 24V DC | Provides additional features for complex industrial systems. |
| GE IC693MDL651 | 8 Digital Outputs, 24V DC | Cost-effective option for smaller automation systems. |
| GE IC693MDL657 | 16 Digital Outputs, 24V DC | Features enhanced safety features for critical applications. |
Popular Models from GE (Same Brand)
| Model | Specification | Description |
|---|---|---|
| GE IC693CPU363 | 32-bit Processor | High-performance CPU for industrial control systems. |
| GE IC693PWR330 | 24V DC Power Supply | Reliable power supply for the GE Series 90-30 system. |
| GE IC693MDL940 | 16 Digital Inputs, 24V DC | Used for input control in GE PLC systems. |
| GE IC693ALG223 | Analog Input Module | Used for acquiring analog signals in control systems. |
| GE IC693MDL231 | 8 Digital Inputs, 24V DC | Compact input module for basic automation tasks. |
| GE IC693SDM300 | 16 Digital Inputs, 24V DC | Used in applications requiring robust digital input solutions. |
| GE IC693SMU302 | 16 Digital Outputs, 24V DC | Output module designed for large control applications. |
| GE IC693APU300 | Analog Output Module | Provides analog output for controlling devices like valves. |
