Product Introduction:

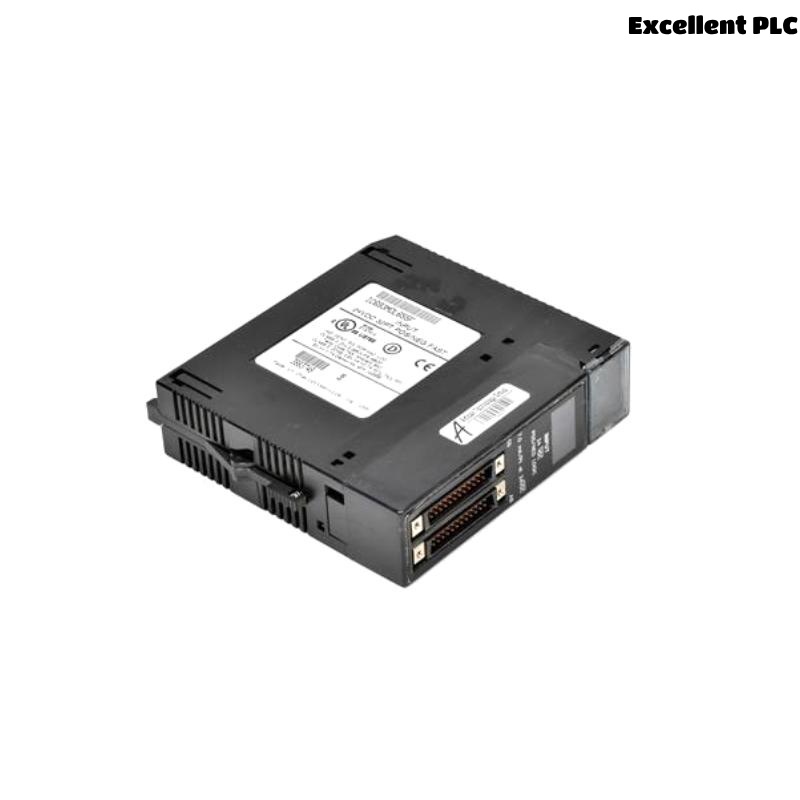

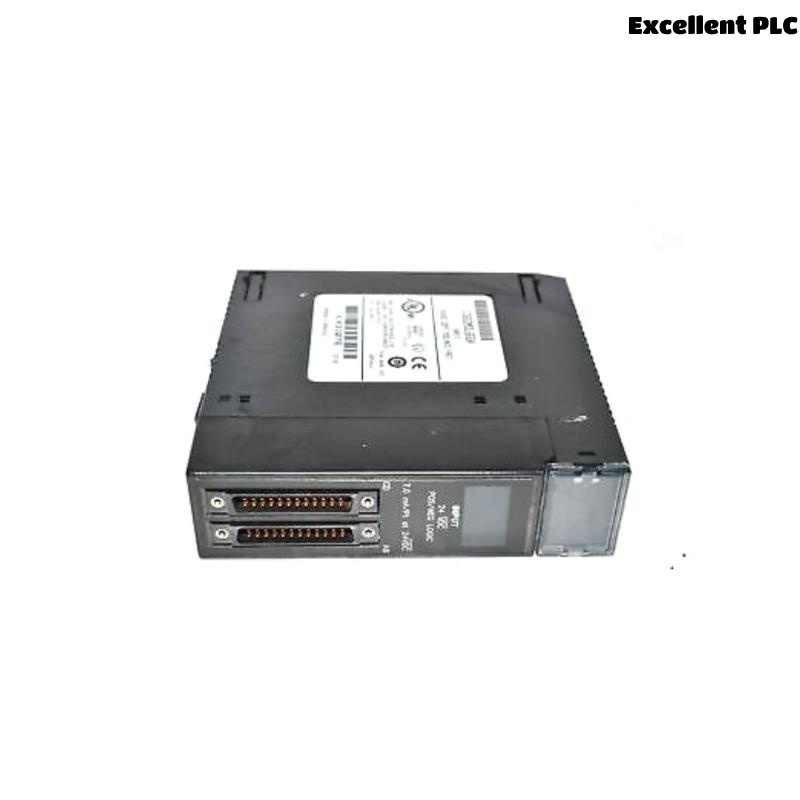

The GE IC693MDL655K is a digital input module from the Series 90-30 PLC family by GE Fanuc. This module is designed to interface with various digital signals in industrial automation systems. It provides reliable and high-speed input processing, making it suitable for a wide range of applications in manufacturing, process control, and machinery automation. The module is built to withstand harsh industrial environments, ensuring long-term durability and performance.
Product Parameters:
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Model Number | IC693MDL655K |
| Input Type | Digital (Sinking or Sourcing) |
| Number of Inputs | 16 |
| Input Voltage | 24V DC |
| Current Consumption | 100mA (typical) |
| Isolation Voltage | 1500V AC (channel to bus) |
| Response Time | <1ms |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 128 x 55 x 105 mm |
| Weight | 0.281 kg |
| Certifications | CE, UL, CSA |
Product Applications:
The GE IC693MDL655K is widely used in industrial automation and control systems. Key applications include:
-
Manufacturing Lines: Monitoring sensors, limit switches, and push buttons.
-
Process Control: Interfacing with valves, pumps, and relays.
-
Machinery Automation: Integrating with conveyor systems and robotic arms.
-
Energy Management: Monitoring equipment status in power distribution systems.
-
Water Treatment: Controlling pumps and valves in treatment plants.
Product Advantages:
-
High Reliability: Designed for continuous operation in demanding environments.
-
Fast Response Time: <1ms input response ensures real-time control.
-
Versatile Compatibility: Works seamlessly with Series 90-30 PLCs.
-
Robust Construction: Built to withstand vibration, dust, and temperature fluctuations.
-
Easy Installation: Compact design and screw terminal connections simplify setup.
-
Wide Voltage Range: Supports 24V DC inputs, common in industrial settings.
-
Isolation Protection: 1500V AC isolation prevents damage from voltage spikes.
Frequently Asked Questions (FAQ):
-
What is the input voltage range for the IC693MDL655K?
The module accepts 24V DC inputs. -
Can this module be used with other PLC series?
No, it is specifically designed for the GE Series 90-30 PLCs. -
What is the maximum current per input channel?
Each channel can handle up to 10mA. -
Is the module hot-swappable?
No, the module must be powered down before installation or removal. -
What is the operating temperature range?
The module operates reliably between 0°C and 60°C. -
Does the module support sinking or sourcing inputs?
Yes, it supports both sinking and sourcing configurations. -
What is the isolation voltage between channels and the bus?
1500V AC isolation is provided. -
Can the module be used in hazardous environments?
No, it is not rated for hazardous locations. -
What is the typical lifespan of this module?
With proper use, the module can last 5+ years. -
How do I troubleshoot a faulty input channel?
Check wiring, power supply, and replace the module if necessary.
