Product Description

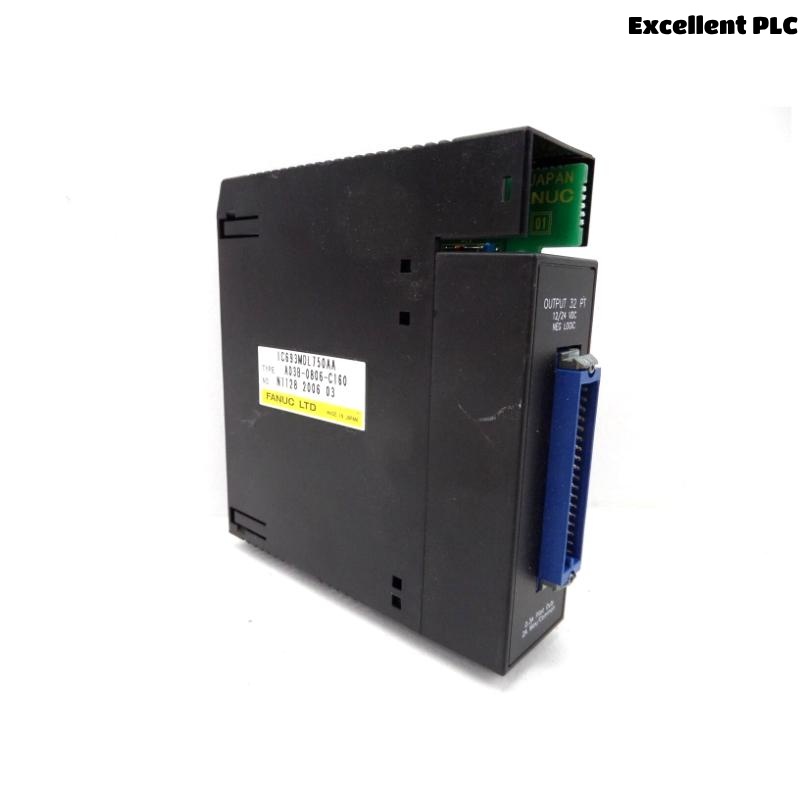

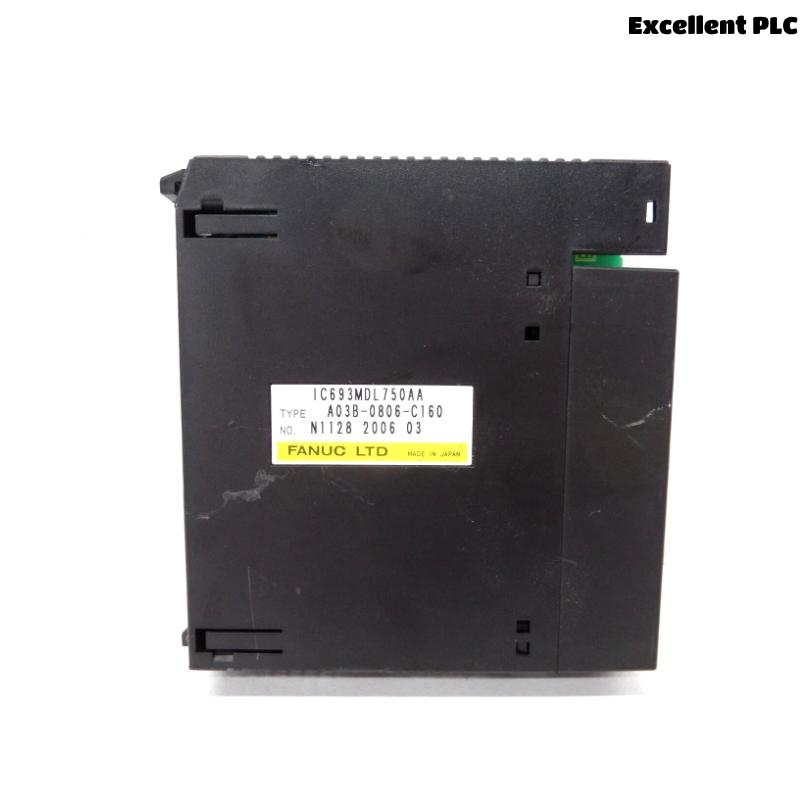

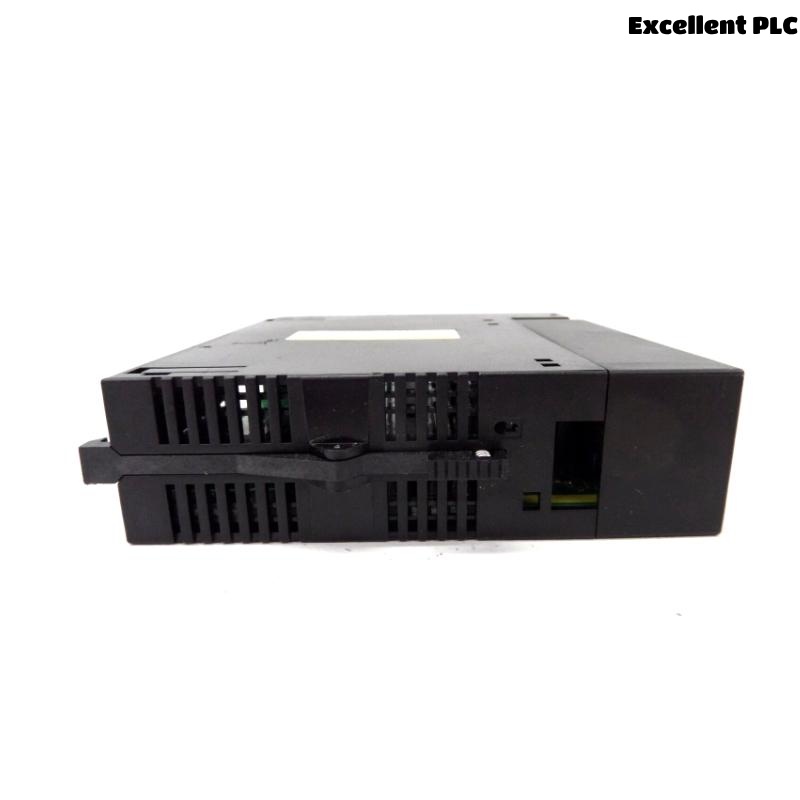

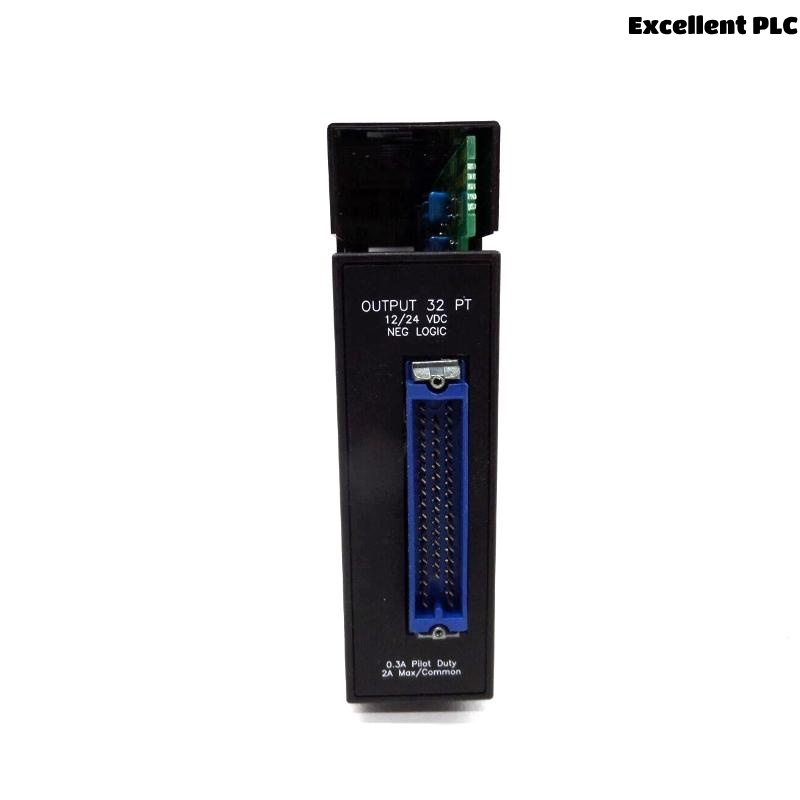

The GE IC693MDL750 is a 32-point negative logic DC output module designed for the Series 90-30 PLC systems. This module provides an efficient means of controlling a wide range of DC devices by sinking current to the load, making it suitable for applications requiring fast switching and reliable digital control. Each of the 32 outputs is grouped into four isolated groups of eight, allowing flexible integration into various industrial systems.

Technical Specifications

Parameter	Value
Module Type	DC Output Module (Negative Logic)
Output Points	32
Output Type	Sinking (Negative Logic)
Voltage Range	5 to 30 VDC
Output Current	0.5 A per point, 4 A per group max
Isolation	500V between field side and logic side
Response Time	Off to On: 0.1 ms, On to Off: 0.1 ms
Internal Power Consumption	135 mA @ 5 VDC
Connector Type	50-pin female (HE10 type)
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Dimensions (W x H x D)	142 x 30 x 130 mm
Weight	0.25 kg

Applications

Industrial automation systems
Digital control of relays, solenoids, and lamps
Assembly line and conveyor systems
Machine control systems
Packaging and material handling systems
Building automation interfaces

Advantages

High-density 32-point output in a compact module
Fast response suitable for time-critical operations
Electrically isolated groups enhance system protection
Low power consumption
Designed for seamless integration with GE Series 90-30 PLCs
Reduces wiring complexity with grouped output configuration

Frequently Asked Questions (FAQ)

Q1: What type of logic does the IC693MDL750 use?
A1: It uses negative logic (sinking) outputs.

Q2: Can I connect this module directly to inductive loads?
A2: Yes, but external suppression (snubber or diode) is recommended.

Q3: How are the outputs grouped?
A3: The 32 outputs are divided into 4 groups of 8, each group isolated from the others.

Q4: What is the maximum current for each group?
A4: Each group can handle up to 4 A total current.

Q5: Is the IC693MDL750 hot-swappable?
A5: No, the module is not hot-swappable. Power must be off during installation/removal.

Q6: What is the recommended wire gauge for connections?
A6: Typically, 18 to 24 AWG wires are recommended for signal connections.

Q7: Does it support diagnostic LEDs?
A7: Yes, each output point has an LED for status indication.

Q8: What connector is used on this module?
A8: A 50-pin female HE10 connector is used.

Q9: Can it be used with other GE modules in the same rack?
A9: Yes, it is fully compatible with other Series 90-30 modules.

Q10: What is the output voltage range supported?
A10: The module supports 5 to 30 VDC output voltage.
