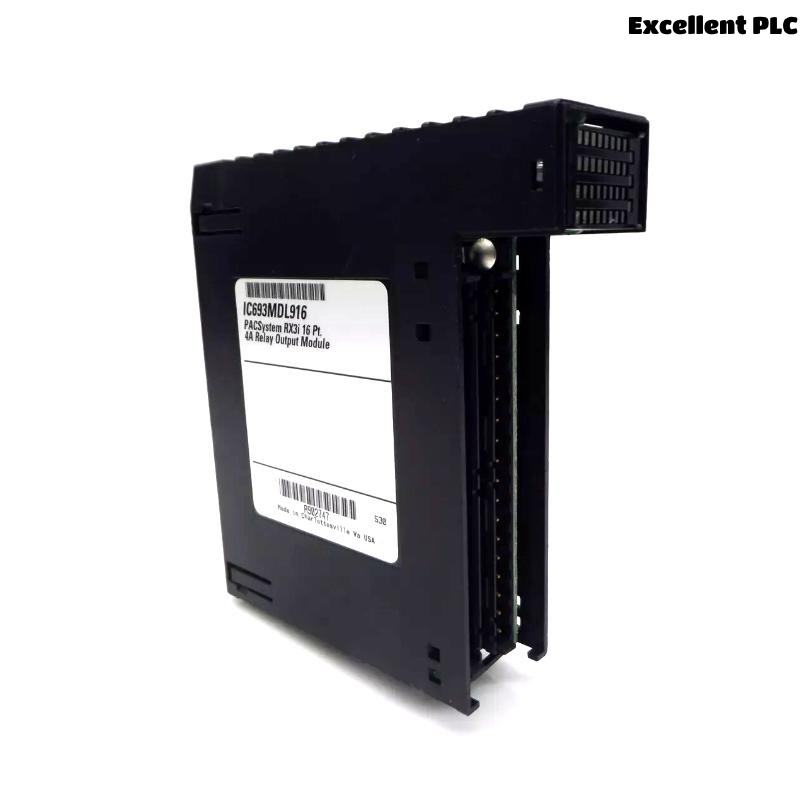

GE IC693MDL916 Series 90-30 Isolated Relay Output Module

Company Information
E-mail		sales@xmjzjsgs.com
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview
The GE IC693MDL916 is a 6-point isolated relay output module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module is used to interface field devices such as indicator lamps, solenoids, and relays to the control system. Its electromechanical relays provide flexibility for both AC and DC output loads, making it suitable for diverse industrial applications. Each output point is isolated, allowing for maximum protection and system design flexibility.

---

Technical Specifications

---

Applications
The IC693MDL916 is widely used across various industries for output control where electrical isolation is essential. Key application areas include:

• Actuating relays and solenoids

• Controlling indicator lights and buzzers

• Interfacing with both AC and DC field devices

• Use in energy management systems, water treatment, and discrete manufacturing lines

• Industrial automation requiring mixed-voltage switching in one module

---

Advantages

• Electrical Isolation: Each output point is isolated, improving safety and allowing mixed voltage usage.

• Versatility: Supports a wide range of AC and DC output devices.

• Compact Design: Efficient use of panel space with standard 90-30 footprint.

• Status LEDs: Visual indication of output status for quick diagnostics.

• Durability: Relay outputs suitable for rugged industrial environments.

• Ease of Integration: Seamlessly integrates into the GE Series 90-30 PLC system.

---

Frequently Asked Questions (FAQs)

Q1: What types of loads can the IC693MDL916 handle?
A1: The module can handle both AC (up to 250V) and DC (up to 30V) loads, such as lamps, relays, and solenoids.

Q2: Are the outputs on the IC693MDL916 isolated from each other?
A2: Yes, each of the 6 relay outputs is individually isolated.

Q3: Can I mix AC and DC loads on the same module?
A3: Yes, the module allows mixing of AC and DC loads because of its isolated relay design.

Q4: Does the module provide status feedback for each point?
A4: Yes, each output point has an LED indicator showing its current state.

Q5: Is the module hot-swappable?
A5: No, the module should not be installed or removed while the system is powered.

Q6: What is the maximum load current per channel?
A6: Each channel supports up to 2.0 A at 30 VDC or 250 VAC.

Q7: What is the isolation rating?
A7: 1500V RMS from point-to-point and field-side to logic-side isolation.

Q8: How is this module mounted?
A8: It mounts into a standard Series 90-30 baseplate slot.

Q9: What is the switching time of the relays?
A9: The relay operates and releases in approximately 10 milliseconds each.

Q10: Is this module compatible with all Series 90-30 CPUs?
A10: Yes, it is compatible with all CPUs in the GE Series 90-30 range.

---
