Product Introduction

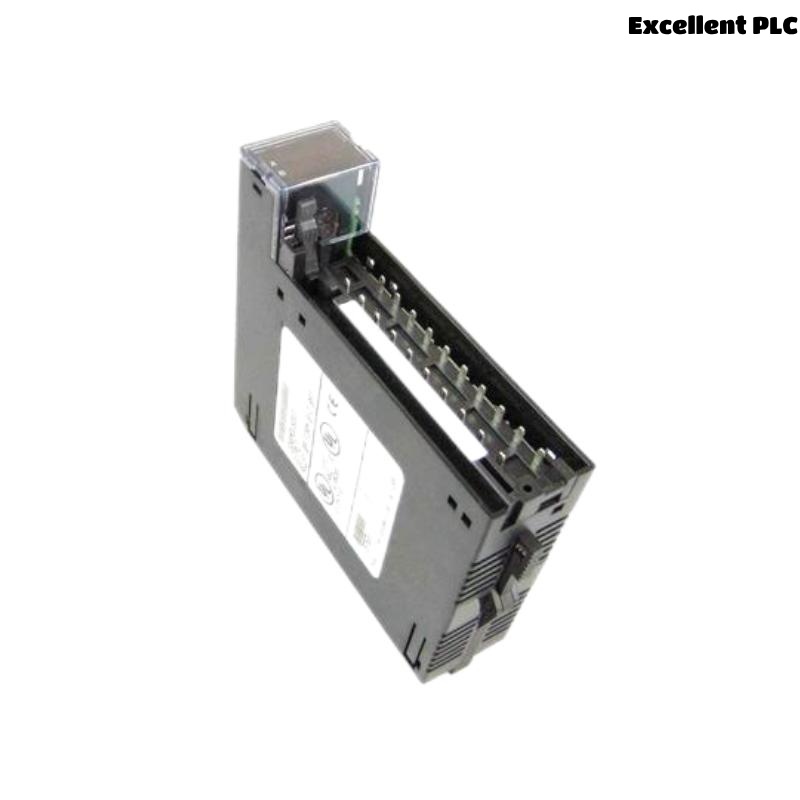

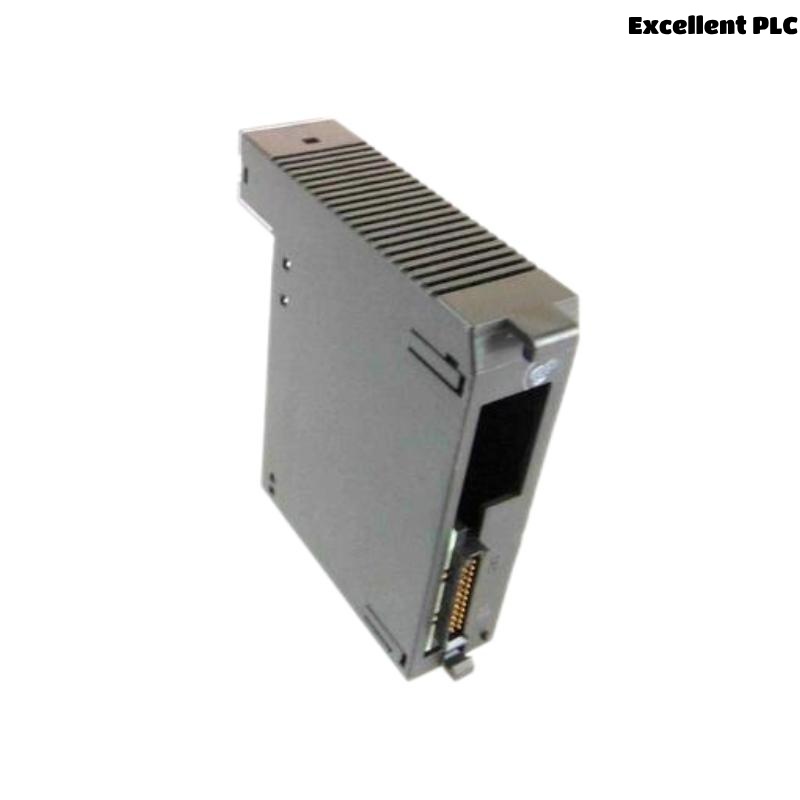

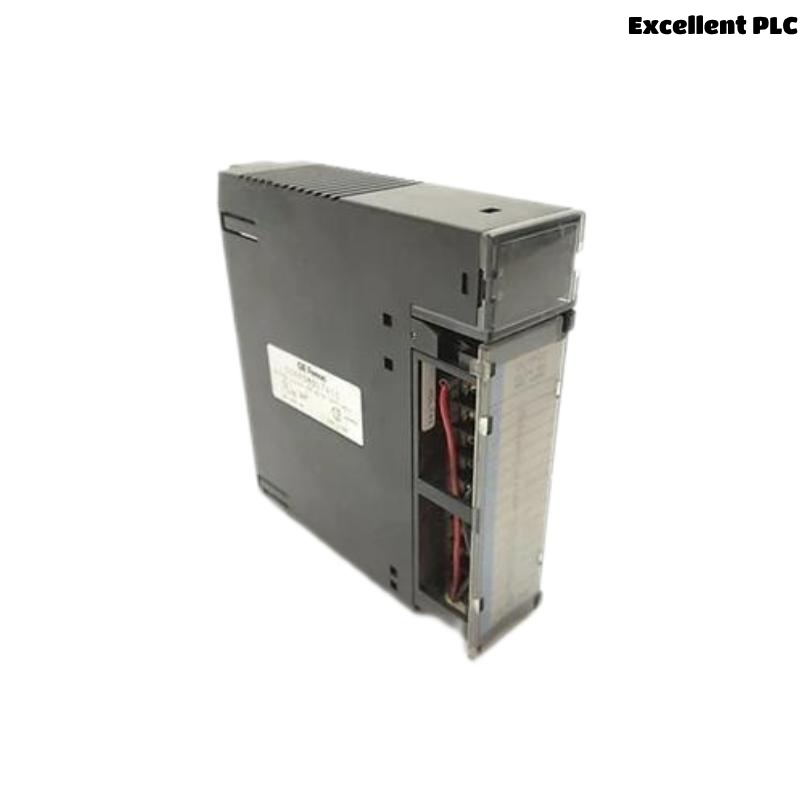

The GE IC693MDL931 is a high-performance digital input module designed for use with GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). This module provides reliable and fast signal acquisition for industrial automation systems. It is widely used in manufacturing, process control, and machinery applications due to its robust design and compatibility with various industrial environments.
The IC693MDL931 features 32-point DC input channels, supporting 24V DC signals, making it ideal for monitoring sensors, switches, and other digital devices. Its modular design allows for easy integration into existing PLC systems, ensuring flexibility and scalability.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC693MDL931 |
| Input Type | 32-point DC Sinking Input |
| Input Voltage | 24V DC (Nominal) |
| Input Current | 6 mA per point (Typical) |
| On-State Voltage | 15V DC (Minimum) |
| Off-State Voltage | 5V DC (Maximum) |
| Isolation Voltage | 1500V AC (Channel-to-Bus) |
| Response Time | 1 ms (On to Off), 3 ms (Off to On) |
| Power Consumption | 1.5W (Typical) |
| Operating Temp. | 0°C to 60°C (32°F to 140°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (Non-condensing) |
| Dimensions | 89 x 107 x 188 mm |
| Weight | 0.52kg |
| Compatibility | GE Series 90-30 PLCs |
Product Applications
The IC693MDL931 is suitable for a wide range of industrial applications, including:
-
Manufacturing Automation – Monitoring limit switches, push buttons, and sensors.
-
Process Control – Detecting valve positions, flow switches, and pressure sensors.
-
Material Handling – Conveyor belt control and safety interlock systems.
-
Energy Management – Power distribution monitoring and equipment status detection.
-
Machinery Safety – Emergency stop circuits and safety relay monitoring.
Product Advantages
-
High Channel Density – 32 input points in a compact module save space in control cabinets.
-
Fast Response Time – Ensures real-time signal processing for critical applications.
-
Wide Voltage Range – Supports 15V to 30V DC inputs for flexible compatibility.
-
Robust Isolation – 1500V AC isolation protects the PLC from electrical noise and surges.
-
Easy Installation – Plug-and-play design with secure screw terminal connections.
-
Reliable Performance – Designed for harsh industrial environments with high MTBF (Mean Time Between Failures).
Frequently Asked Questions (FAQ)
Q1: What is the maximum input voltage for the IC693MDL931?
A: The module supports up to 30V DC, but the nominal operating voltage is 24V DC.
Q2: Can this module be used with Series 90-70 PLCs?
A: No, it is only compatible with Series 90-30 PLCs.
Q3: What is the power consumption of this module?
A: Approximately 1.5W under normal operation.
Q4: Does it support sourcing (PNP) inputs?
A: No, this module is designed for sinking (NPN) inputs only.
Q5: What is the response time for input signals?
A: 1 ms (On to Off) and 3 ms (Off to On).
Q6: Is there optical isolation between channels?
A: No, isolation is between channels and the backplane, not between individual channels.
Q7: Can it operate in high-temperature environments?
A: Yes, it operates in temperatures up to 60°C (140°F).
Q8: What type of connectors does it use?
A: It uses screw terminal blocks for secure wiring.
Q9: Is the module hot-swappable?
A: No, the PLC should be powered down before module installation/removal.
Q10: What is the warranty period for this module?
A: Typically 1 years.
