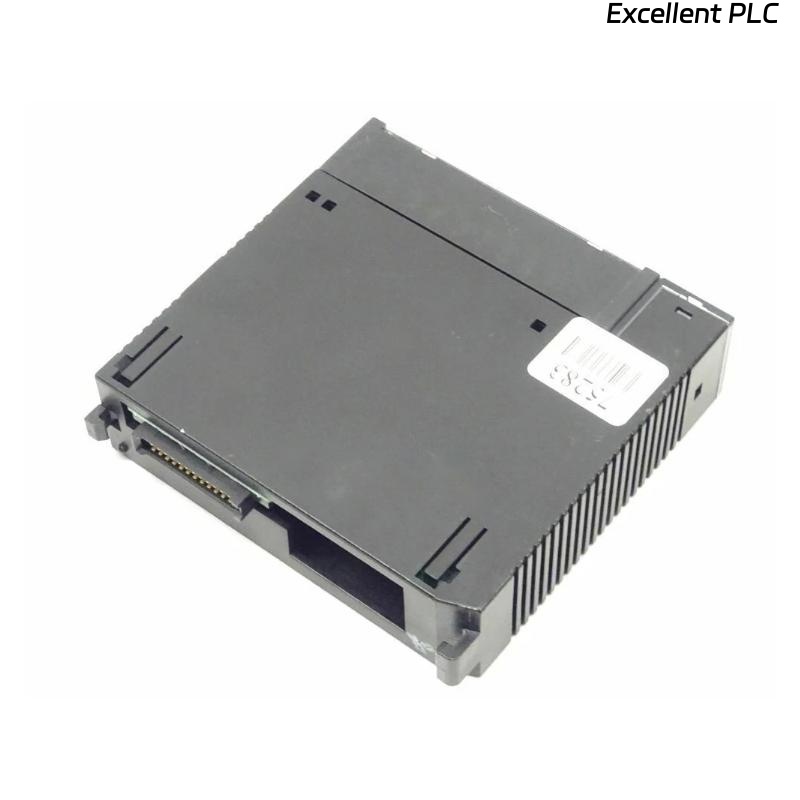

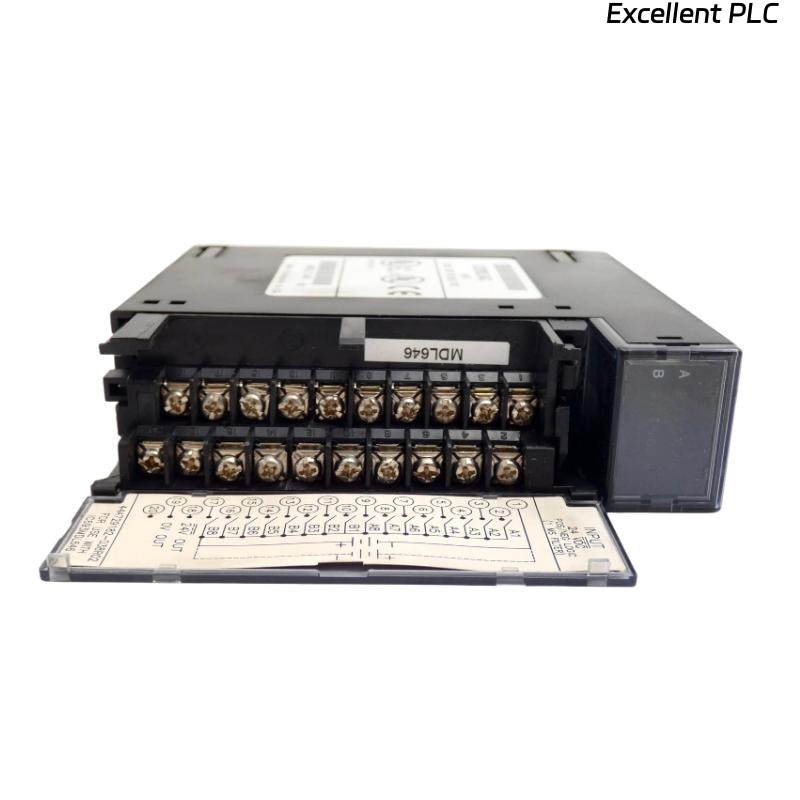

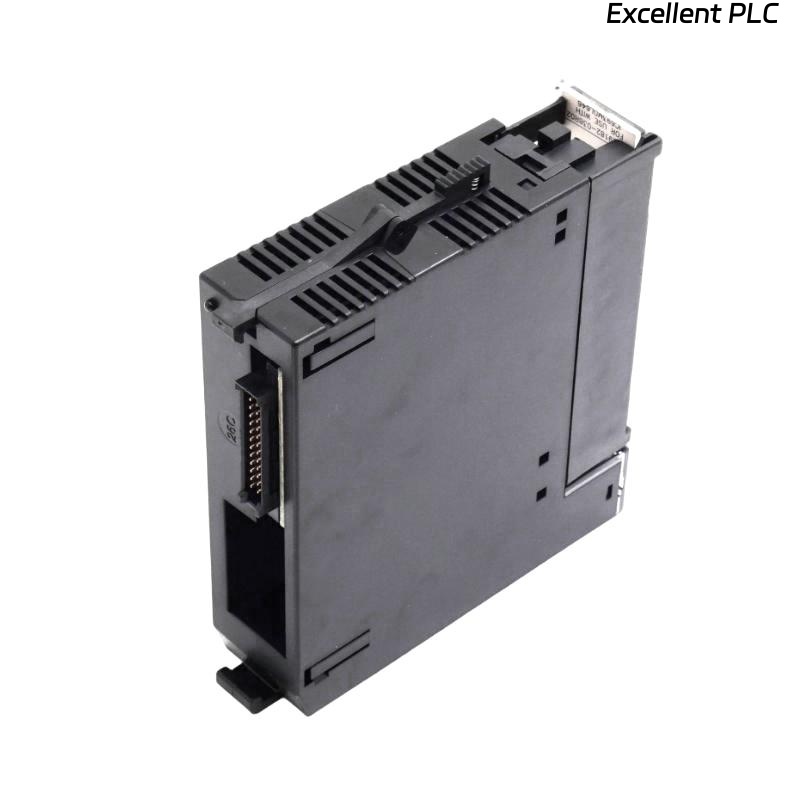

GE IC693MOL646 Relay Output Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The GE IC693MOL646 Relay Output Module is a high-performance output module designed for GE Fanuc Series 90-30 Programmable Logic Controllers (PLCs). This relay output module is used to control various electrical devices such as solenoids, valves, contactors, and indicator lamps within industrial automation systems.

The IC693MOL646 provides isolated relay outputs that can handle both AC and DC loads, offering flexibility for different applications. Its rugged design ensures reliable operation in demanding environments, making it suitable for continuous industrial control processes. The module integrates seamlessly with GE PLC racks, supporting easy installation, maintenance, and system scalability.

With built-in diagnostic capabilities, the module provides system feedback on output status and fault conditions, ensuring efficient troubleshooting and minimizing downtime. Its precision engineering and durability make it ideal for industries such as power generation, manufacturing, water treatment, and transportation.

---

Technical Specifications

---

Applications

The GE IC693MOL646 Relay Output Module is engineered for precise control in a wide range of automation and process control applications, including:

• Power Generation Systems: Controls relays for generator start/stop, breaker control, and interlocks.

• Manufacturing Automation: Operates actuators, conveyors, and material handling systems.

• Water and Wastewater Treatment: Drives pumps, valves, and motor starters in process control systems.

• Building Automation: Manages lighting, HVAC systems, and alarm circuits.

• Oil and Gas Industry: Controls solenoids, compressors, and safety shut-off mechanisms.

• Transportation Systems: Used in signaling, switching, and protection circuits for industrial transit systems.

The module’s high isolation and robust relay design ensure reliable performance under continuous operation, making it a preferred choice for mission-critical control applications.

---

Advantages

• High Reliability: Built with industrial-grade relays to ensure long-term, stable performance.

• Versatile Voltage Range: Supports both AC and DC control voltages for maximum flexibility.

• Isolated Outputs: Each output is electrically isolated, minimizing cross-interference and improving safety.

• Integrated Status Indicators: Each output has an individual LED for instant status verification.

• Easy Integration: Fully compatible with GE Fanuc Series 90-30 PLCs without external interface modules.

• Compact Design: Space-efficient form factor allows easy installation in control cabinets.

• High Load Capacity: Supports up to 2 A per output for robust control of field devices.

• Diagnostic Capability: Provides feedback for monitoring and troubleshooting.

• Low Power Draw: Efficient power usage reduces heat generation in the PLC rack.

• Industrial-Grade Durability: Designed to withstand vibration, temperature fluctuation, and electrical noise.

---

FAQ

1. What type of outputs does the IC693MOL646 module provide?
   It provides 16 isolated Form C (SPDT) relay outputs for controlling AC or DC loads.

2. Can this module be used for both AC and DC applications?
   Yes, it supports both AC (5–240 VAC) and DC (5–30 VDC) load operations.

3. What is the maximum current each output can handle?
   Each output can handle up to 2 amperes of resistive load.

4. Does the module offer output isolation?
   Yes, it provides 1500 V RMS isolation between field and logic circuits for safety and noise immunity.

5. What kind of loads are suitable for this relay module?
   It is suitable for solenoids, contactors, pilot lamps, and other electromechanical or resistive loads.

6. How are output statuses indicated?
   Each relay output has a corresponding LED indicator for visual status monitoring.

7. What backplane power does the module require?
   It consumes approximately 400 mA from the 5 VDC backplane power supply.

8. Is this module hot-swappable in a GE 90-30 system?
   No, the module should be powered down before installation or removal to prevent circuit damage.

9. Does the IC693MOL646 support external protection?
   Yes, it is recommended to use external fuses or circuit breakers for each output to prevent overload.

10. What communication interface is used for data exchange with the PLC CPU?
    It uses the GE Fanuc backplane bus to communicate with the Series 90-30 CPU for control signal processing.

---
