Product Introduction

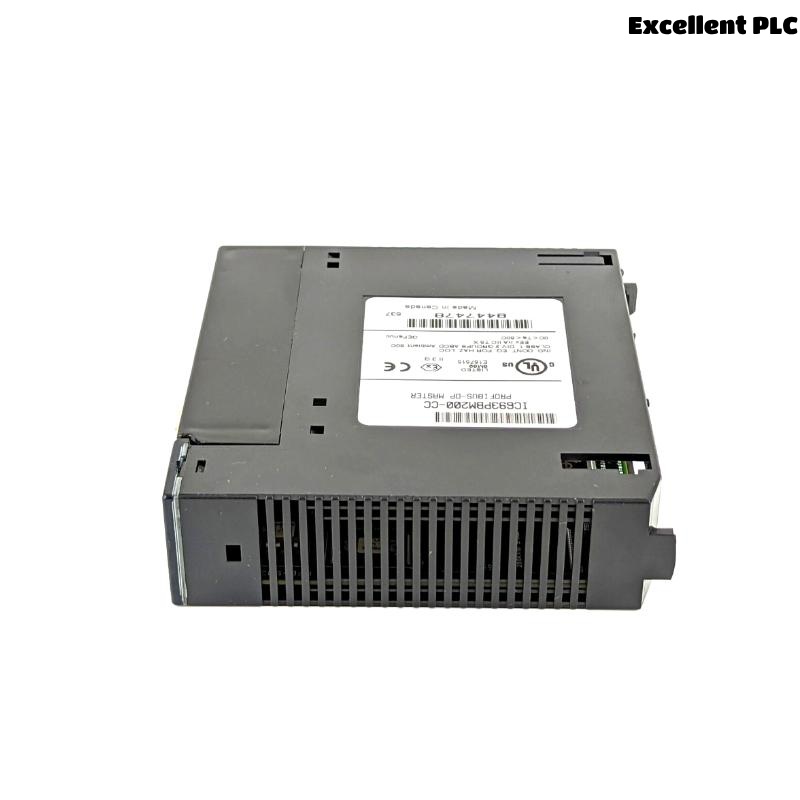

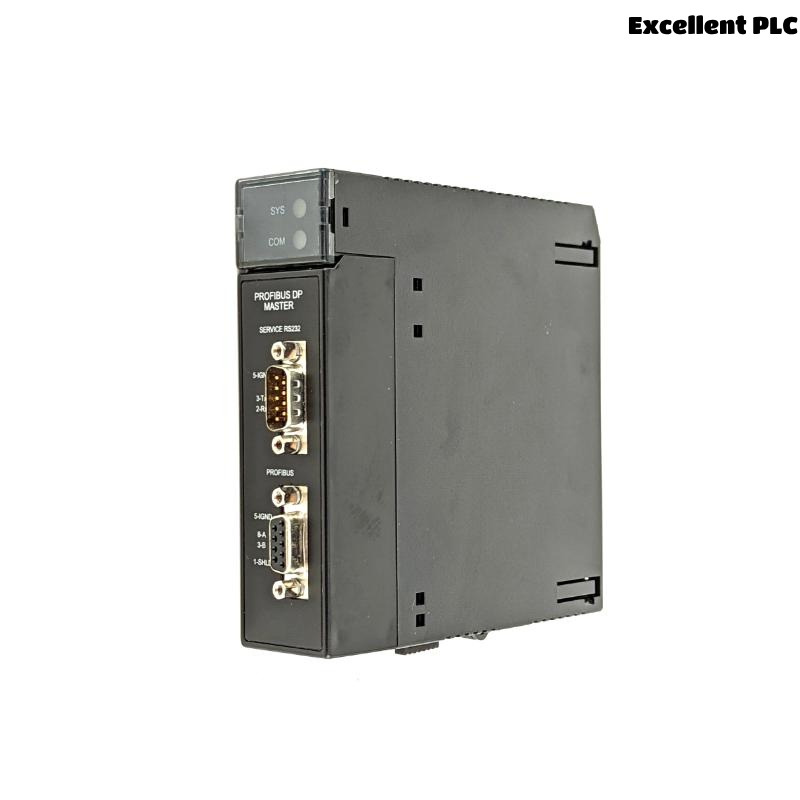

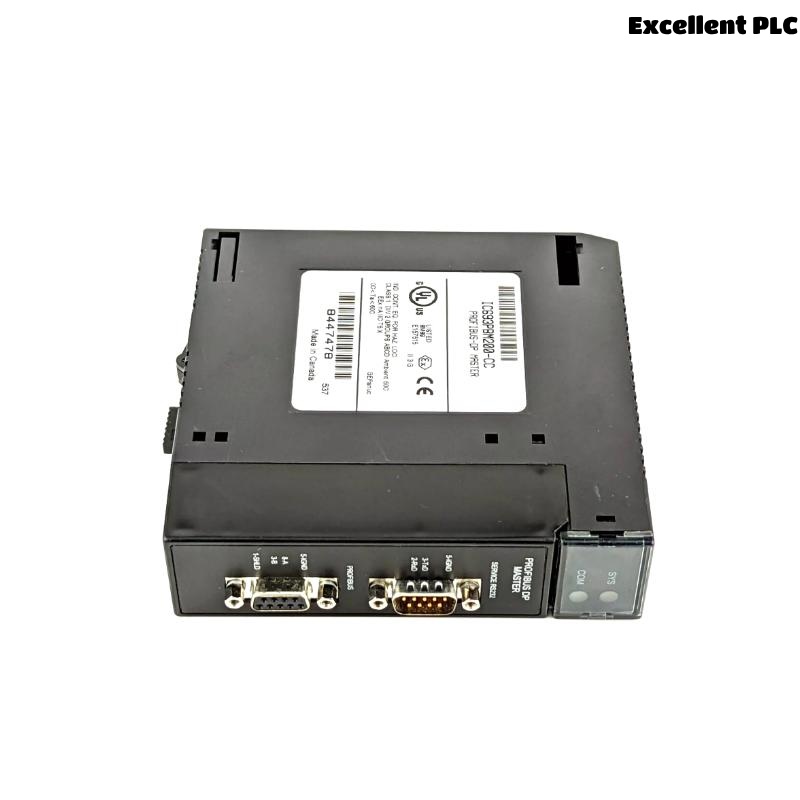

The GE IC693PBM200 is a high-performance Profibus-DP Master Module developed for the GE Fanuc Series 90-30 PLC family. Designed to serve as a central controller on a Profibus network, the PBM200 enables efficient and deterministic communication with a wide variety of Profibus-DP slave devices such as remote I/O stations, drives, sensors, and other distributed control equipment.
This module is ideal for industrial users seeking to integrate Profibus devices into their GE 90-30 architecture without compromising system performance. It is configured using standard GE software tools and supports up to 124 slave devices on a single segment, significantly reducing wiring complexity and installation time.
With built-in diagnostics, dual-port RAM architecture for fast communication with the PLC CPU, and full compliance with EN50170 Profibus standards, the IC693PBM200 is engineered to simplify control architectures and boost system reliability in demanding automation environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC693PBM200 |
| Product Type | Profibus-DP Master Module |
| Protocol Supported | Profibus-DP (EN 50170) |
| Network Role | Master (DP-Master Class 1) |
| Baud Rate | 9.6 Kbps to 12 Mbps (auto-detect) |
| Max Number of Slaves | 124 devices |
| Max Input Data per Slave | 244 bytes |
| Max Output Data per Slave | 244 bytes |
| Configuration Tool | GSD file-based configuration via external Profibus configurators |
| Status Indication | LED indicators for module status and Profibus communication |
| Communication Interface | 9-pin Sub-D (female) Profibus connector |
| Internal Data Exchange | Dual-Port RAM for CPU communication |
| Power Supply | Powered from PLC backplane |
| Backplane Current Consumption | 400 mA @ 5 VDC |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | CE, UL, cULus, Class I Div 2 (HazLoc) |
| Dimensions (H x W x D) | 140 x 140 x 35 mm |
| Weight | 0.2 kg |
Product Applications
The GE IC693PBM200 is used in industrial automation environments where Profibus-DP slave devices need to be integrated seamlessly into a GE 90-30 PLC control system. Its applications span across multiple industries and sectors:
-
Automotive Manufacturing: Control and monitor robot arms, field sensors, and I/O terminals via Profibus.
-
Process Industries: Efficiently link field devices in oil & gas, chemical, and pharmaceuticals to central PLCs.
-
Material Handling Systems: Communicate with frequency drives and distributed I/O over Profibus for conveyor and crane systems.
-
Utilities and Water Treatment: Interface field instrumentation such as flow meters, actuators, and pumps.
-
Building Automation Systems: Enable BMS controllers to communicate with HVAC Profibus slave components.
By allowing centralized control of distributed equipment over a reliable fieldbus, the IC693PBM200 helps minimize wiring, reduce maintenance time, and improve diagnostics.
Product Advantages
-
Full Master Capability: Operates as a Profibus-DP Master Class 1 controller, capable of managing up to 124 slave devices.
-
Reliable High-Speed Communication: Auto-baud rate support up to 12 Mbps ensures optimal data transfer speeds across the network.
-
Standard Compatibility: Fully compliant with EN 50170 and integrates easily using standard GSD files.
-
Efficient CPU Communication: Dual-Port RAM allows fast, buffered data exchange with the PLC CPU.
-
Built-In LED Diagnostics: Onboard LEDs provide clear status for network and module operation, aiding troubleshooting.
-
Minimal Configuration Overhead: Compatible with standard Profibus configuration tools for rapid deployment.
-
Compact and Modular: Easy to install in any Series 90-30 baseplate with minimal space requirements.
-
Reduced Wiring Complexity: Replaces traditional point-to-point wiring with a single Profibus cable network.
Frequently Asked Questions (FAQ)
-
Q: What is the maximum number of slave devices that the IC693PBM200 can support?
A: It supports up to 124 Profibus-DP slave devices. -
Q: What Profibus baud rates are supported?
A: All standard baud rates from 9.6 Kbps to 12 Mbps are supported and auto-detected. -
Q: Is the IC693PBM200 compatible with non-GE Profibus devices?
A: Yes, as long as the device supports Profibus-DP and has a valid GSD file. -
Q: Can I use GE Proficy Machine Edition to configure the Profibus network?
A: No, configuration is typically done using third-party Profibus configuration tools such as Siemens STEP 7 or COM PROFIBUS. -
Q: Does the module require a separate power supply?
A: No, it draws power directly from the PLC backplane. -
Q: Are diagnostic features available for troubleshooting?
A: Yes, LED indicators provide real-time status of both the module and Profibus network. -
Q: Can the module be used in hazardous environments?
A: Yes, it is certified for Class I, Division 2 hazardous locations. -
Q: What connector type does the Profibus interface use?
A: It uses a standard 9-pin Sub-D female connector. -
Q: Is firmware upgradeable on the IC693PBM200?
A: No, firmware updates are not user-installable. -
Q: Is this module hot-swappable?
A: No, the module should only be inserted or removed with the power off.
