Product Description

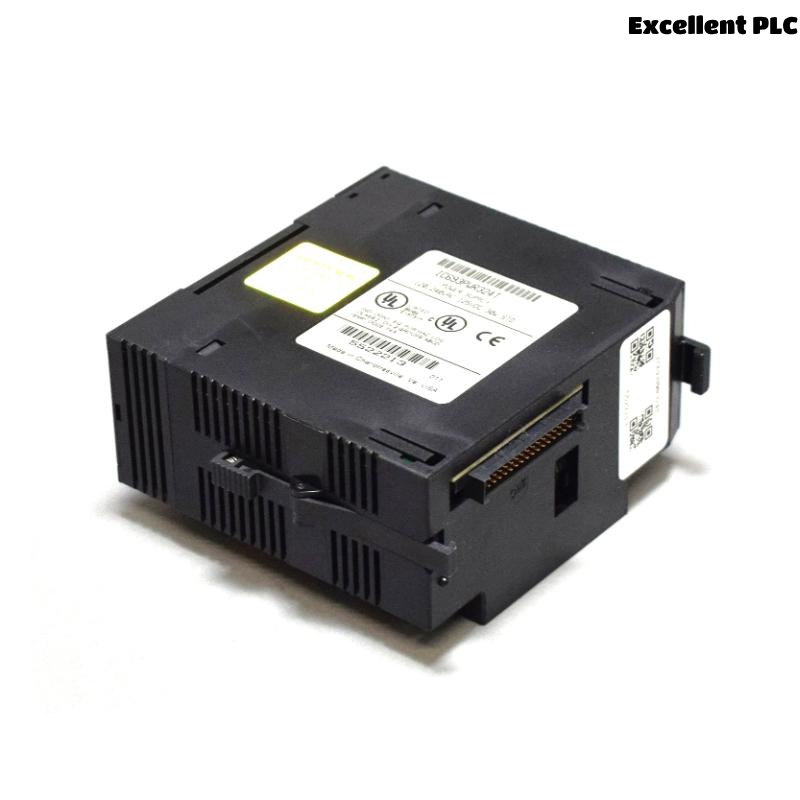

The GE IC693PWR324 is a high-capacity power supply module designed for the GE Series 90-30 Programmable Logic Controller (PLC) system. It supports modular automation systems with reliable power conversion and regulation. The module provides an output of 24 VDC and integrates battery-backed memory support.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Power Consumption | 100 VA |
| Output Voltage | 24 VDC |
| Output Current | 0.8 A max |
| Backup Battery Support | Yes (IC693ACC312 compatible) |
| Mounting | Baseplate-mounted |
| Indicator LEDs | PWR OK, RUN, BATT |
| Dimensions (W x D x H) | 129 x 52 x 117 mm |
| Weight | 0.5 kg |
Product Applications
-
Industrial automation systems
-
Manufacturing control
-
Energy management
-
Process control environments
-
OEM machinery requiring modular PLC systems
Product Advantages
-
High Capacity Output: Supports demanding I/O modules
-
Battery Backup Support: Ensures memory retention during power loss
-
Broad Input Range: Accepts a wide AC voltage range
-
LED Diagnostics: Quick visual status check
-
Rugged Design: Suitable for harsh industrial environments
Frequently Asked Questions (FAQ)
Q1: What is the input voltage range of the IC693PWR324?
A1: It supports 100–240 VAC at 50/60 Hz.
Q2: Does this power supply include a battery backup?
A2: It supports external battery modules such as the IC693ACC312, but the battery is not included by default.
Q3: What is the maximum output current?
A3: The output current is up to 0.8 A.
Q4: What type of systems is it compatible with?
A4: It is used in the GE Series 90-30 PLC system.
Q5: Can it be hot-swapped?
A5: No, the module must be powered down during replacement.
Q6: What is the function of the LED indicators?
A6: They indicate power OK, RUN status, and battery status.
Q7: Is it suitable for redundant power configurations?
A7: No, it’s a standalone supply and does not support redundancy.
Q8: What is the typical application industry?
A8: Manufacturing, automation, process control, and energy systems.
Q9: What kind of battery module is recommended?
A9: The IC693ACC312 auxiliary battery module.
Q10: Is it compliant with international standards?
A10: Yes, GE Series 90-30 modules are designed to comply with industrial automation standards.
Related Models (Same Series or Function)
| Model Number | Description | Voltage Input | Output | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| IC693PWR321 | Standard Power Supply | 120/240 VAC | 5VDC, 24VDC | 129 x 52 x 117 | 0.45 kg |
| IC693PWR322 | Standard Power Supply (DC Input) | 125 VDC | 5VDC, 24VDC | 129 x 52 x 117 | 0.48 kg |
| IC693PWR325 | High Capacity Power Supply | 100–240 VAC | 24VDC | 129 x 52 x 117 | 0.5 kg |
| IC693PWR330 | Universal Power Supply | 85–264 VAC | 5VDC, 24VDC | 129 x 52 x 117 | 0.5 kg |
| IC693PWR331 | Power Supply (Rev B or earlier) | 120/240 VAC | 24VDC | 129 x 52 x 117 | 0.5 kg |
| IC693PWR332 | Power Supply | 125 VDC | 24VDC | 129 x 52 x 117 | 0.5 kg |
