Product Description

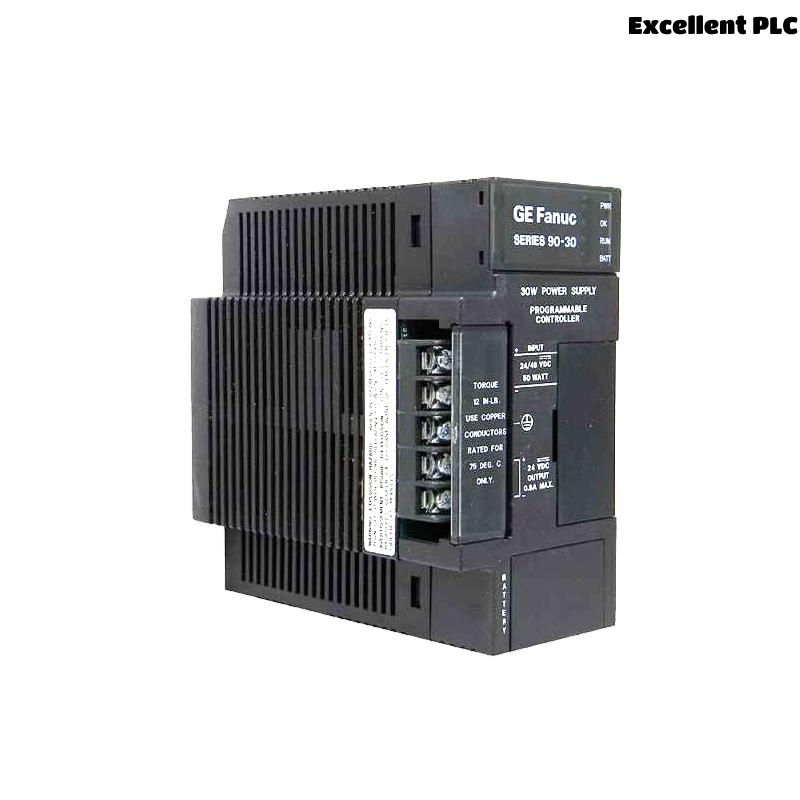

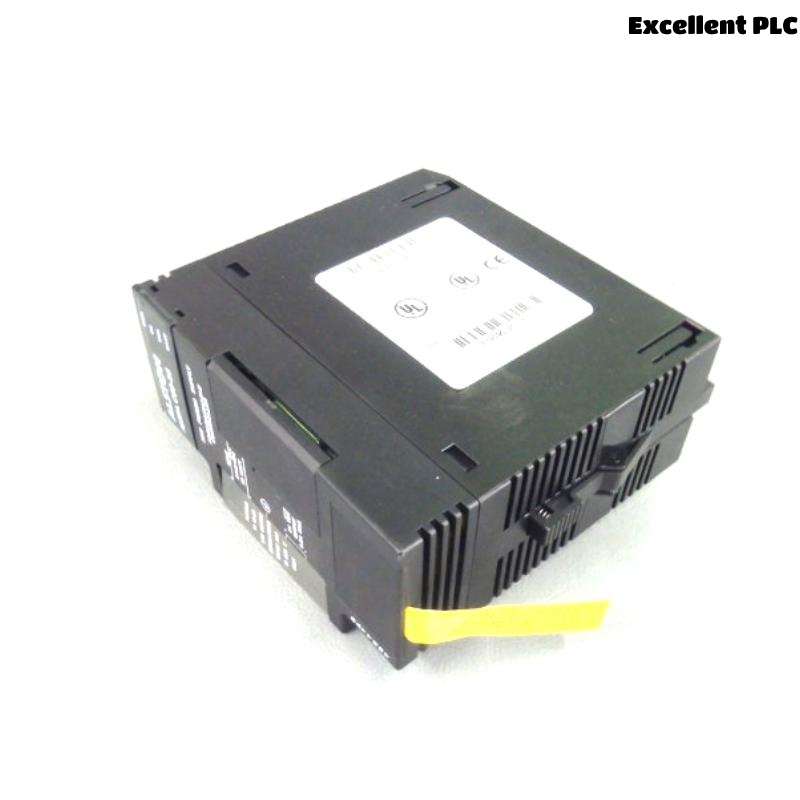

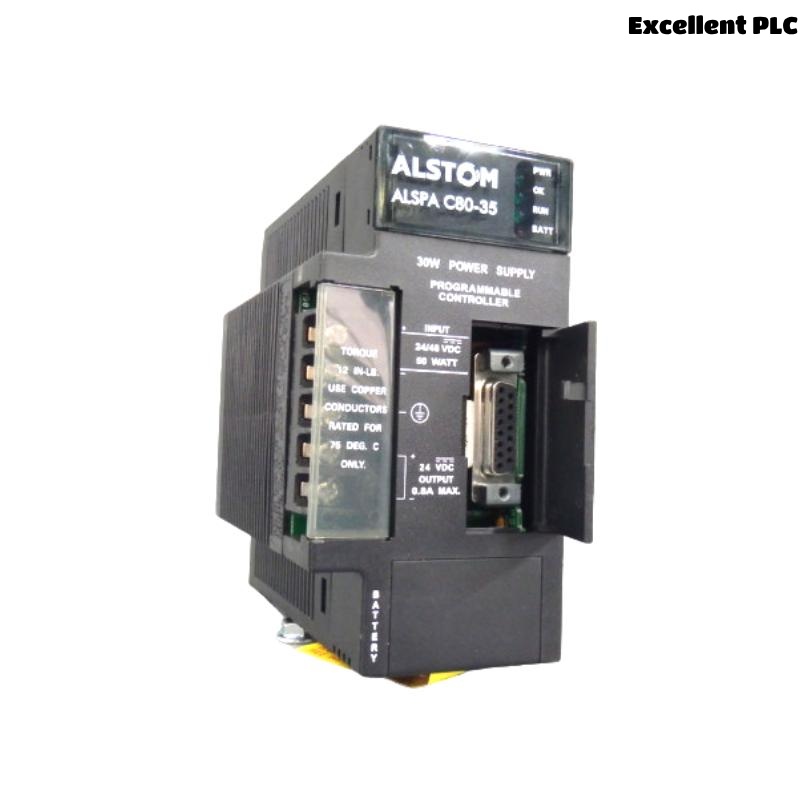

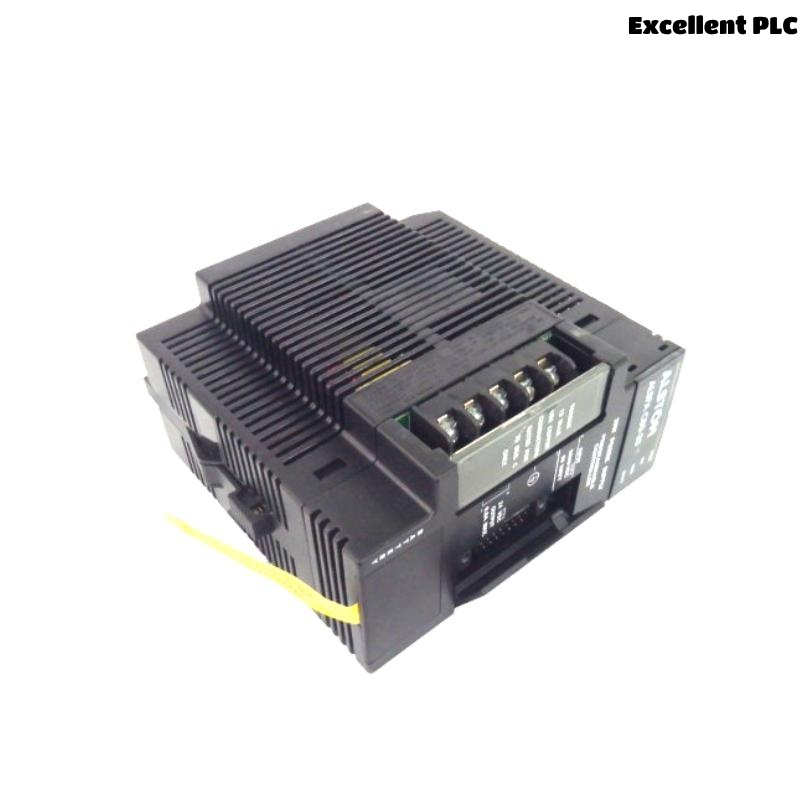

The GE IC693PWR325 is a reliable power supply module designed for the Series 90-30 PLC system. It provides regulated power to support CPUs and I/O modules within the rack. With universal AC input and built-in status indicators, it is a robust component for industrial automation environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | IC693PWR325 |
| Series | Series 90-30 |
| Input Voltage | 120/240 VAC or 125 VDC |
| Output Voltage | +5 VDC, +24 VDC |
| Output Current (5V) | 5 A |
| Output Current (24V) | 0.2 A (isolated), 0.8 A (relay) |
| Mounting Type | Rack-mounted |
| Operating Temperature | 0°C to 60°C |
| Dimensions (W x H x D) | 129 x 52 x 117 mm |
| Weight | 0.5 kg |
Applications
-
Factory automation systems
-
Packaging machinery control
-
Conveyor and material handling systems
-
Process control systems
-
Utility and infrastructure monitoring
Key Advantages
-
Universal input supports both AC and DC power
-
Provides power to CPU and all I/O modules in the rack
-
Compact design conserves panel space
-
LED indicators for power and system health
-
Reliable operation in industrial environments
FAQ – GE IC693PWR325
Q1: What is the input voltage range of the IC693PWR325?
A1: It supports 120/240 VAC or 125 VDC input.
Q2: Can it supply power to the CPU and all I/O modules?
A2: Yes, it powers the CPU and all modules in the same rack.
Q3: Does it support redundant power configurations?
A3: No, the IC693PWR325 is a standalone power module.
Q4: Is this power supply hot-swappable?
A4: No, it must be powered down before replacement.
Q5: What type of mounting does it use?
A5: It is designed for rack mounting.
Q6: Are there LED indicators on the module?
A6: Yes, it features LEDs for power and system status.
Q7: What is the operating temperature range?
A7: 0°C to 60°C.
Q8: Is the 24V output isolated?
A8: Yes, the 0.2 A output is isolated; the 0.8 A output is for relays.
Q9: Can I use it with other GE Series 90-30 modules?
A9: Yes, it is compatible with all modules in the Series 90-30.
Q10: How much space does it occupy in the rack?
A10: It takes up one slot in the baseplate.
Related or Similar Series Models
| Model | Input Voltage | Output Voltage | Dimensions (mm) | Weight |
|---|---|---|---|---|
| IC693PWR321 | 120/240 VAC | +5V, +24V | 129 x 52 x 117 | 0.5 kg |
| IC693PWR322 | 24 VDC | +5V, +24V | 129 x 52 x 117 | 0.5 kg |
| IC693PWR330 | 120/240 VAC | +5V, +24V | 129 x 52 x 117 | 0.5 kg |
| IC693PWR321U | Universal AC/DC | +5V, +24V | 129 x 52 x 117 | 0.5 kg |
| IC693PWR322U | 24 VDC (isolated) | +5V, +24V | 129 x 52 x 117 | 0.5 kg |
| IC693PWR331 | 125 VDC | +5V, +24V | 129 x 52 x 117 | 0.5 kg |
