Product Overview

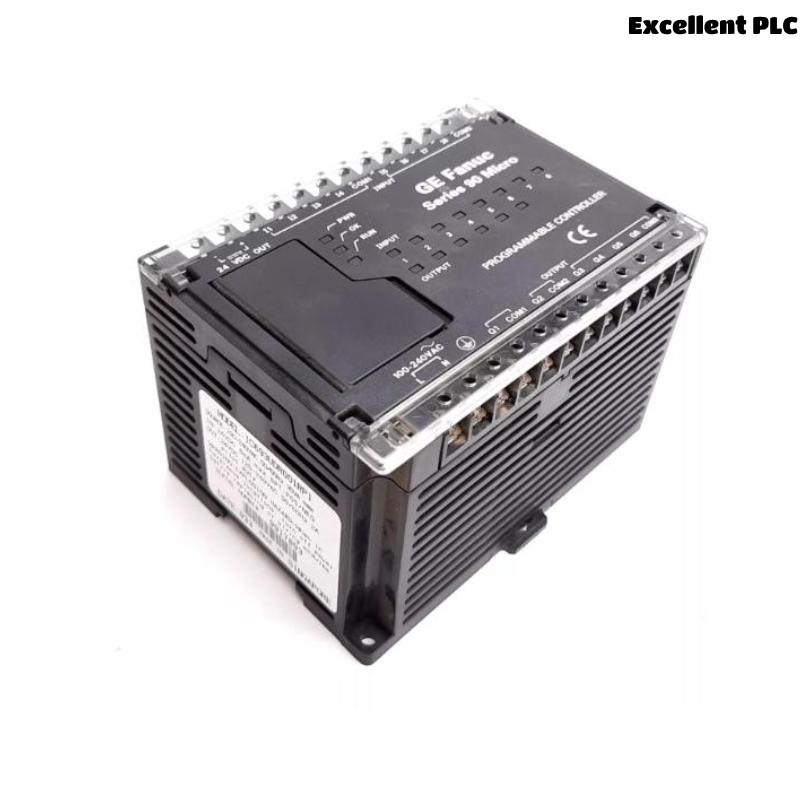

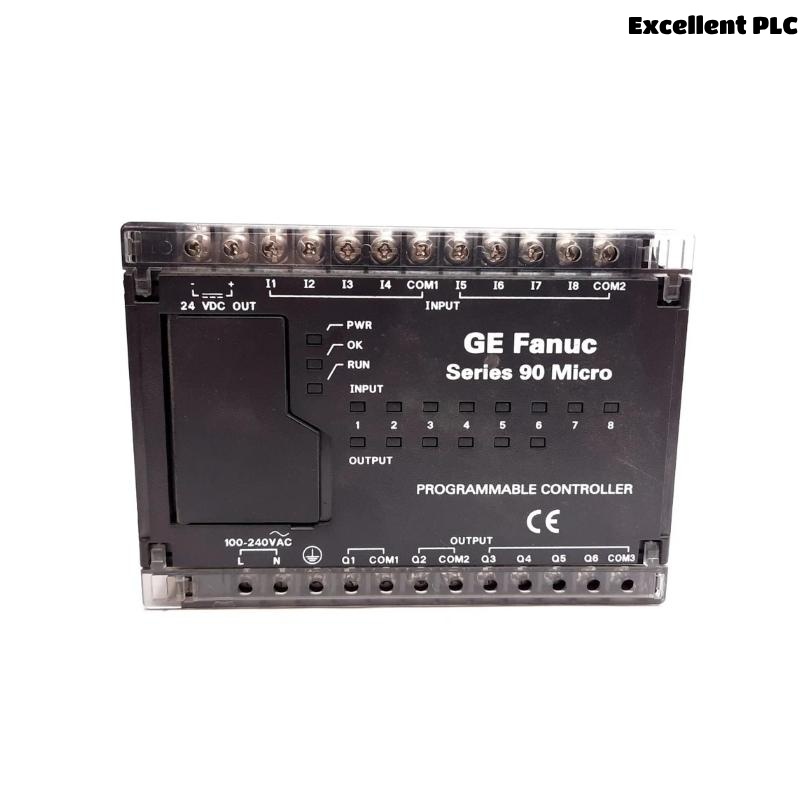

GE IC693UDR001 is a Micro PLC module from the GE Fanuc Series 90-30 family. Designed to offer compact control capabilities, this unit integrates a CPU, I/O, and power supply in one module. The IC693UDR001 is widely adopted in small to mid-size industrial automation systems where space efficiency, cost-effectiveness, and reliable processing are key requirements. It is ideally suited for standalone applications or as a remote module in larger control networks.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | GE IC693UDR001 |
| Product Type | Micro PLC / CPU Module |
| Manufacturer | GE Fanuc (General Electric) |
| Series | Series 90-30 |
| Integrated I/O | 14 DC Inputs, 10 Relay Outputs |
| Programming Software | Proficy Machine Edition / Logic Developer |
| Communication Port | One built-in RS-232 serial port |
| Power Supply | Built-in power supply (120/240 VAC input) |
| Memory Capacity | 6K words user memory |
| Mounting Type | DIN-rail or panel-mounted |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (H x W x D) | 150 x 130 x 40 mm |
| Weight | 0.5 kg |
| Certifications | UL, CSA, CE |
Product Applications
-
Packaging machinery: Provides precise and compact control in automated packaging systems.
-
Material handling: Controls conveyors and automated lifting mechanisms in warehouses and factories.
-
Food & Beverage: Used in mixers, dispensers, and bottling lines for its reliability.
-
Water treatment systems: Ideal for monitoring and controlling small-scale pumping and treatment processes.
-
Building automation: Manages HVAC, lighting, and energy systems.
-
Textile and printing machinery: Delivers high-speed logic processing for machine operations.
Product Advantages
-
All-in-One Design: Integrates CPU, I/O, and power in a single compact module, minimizing wiring and space.
-
Reliable Performance: Built for long-term industrial usage with high MTBF.
-
Ease of Installation: Panel or DIN rail mountable with standard connectors.
-
Wide Software Compatibility: Supports GE’s Proficy Logic Developer for simple programming.
-
Scalable Architecture: Works as a standalone unit or part of a larger Series 90-30 system.
-
Industrial Hardened: Built to perform in harsh operating conditions with wide temperature and voltage tolerances.
Frequently Asked Questions (FAQ)
Q1: What kind of I/O does the IC693UDR001 offer?
A1: It includes 14 DC inputs and 10 relay outputs, suitable for general-purpose digital control.
Q2: Can this PLC be programmed using Proficy Machine Edition?
A2: Yes, the IC693UDR001 is fully compatible with GE’s Proficy Machine Edition software.
Q3: Does it include an integrated power supply?
A3: Yes, it features a built-in power supply that accepts 120/240 VAC input.
Q4: What is the physical size of the unit?
A4: The dimensions are 150 x 130 x 40 mm.
Q5: Is this model suitable for remote I/O applications?
A5: It can be used as a remote node when networked with a host PLC system.
Q6: Can this module communicate over Ethernet?
A6: Not directly. It supports serial RS-232. Ethernet requires an additional communication module.
Q7: What is the maximum ambient temperature for operation?
A7: It is rated for continuous operation up to 60°C.
Q8: What industries commonly use this model?
A8: It is widely used in packaging, water treatment, and small industrial automation.
Q9: How is this unit mounted?
A9: It can be mounted via DIN rail or directly on a panel.
Q10: Does the unit support expansion modules?
A10: Yes, it supports Series 90-30 expansion I/O and specialty modules.
Related Models in the Same Series
| Model | Description |
|---|---|
| IC693UDR005 | Similar model with more memory and I/O channels |
| IC693CPU313 | Basic CPU module for small automation systems |
| IC693CPU331 | Mid-range CPU module with enhanced features |
| IC693MDL740 | 120VAC Input module for Series 90-30 |
| IC693MDL930 | Relay output module |
| IC693CHS391 | 10-slot baseplate for modular expansion |
Popular GE Automation Models
| Model | Product Type | Key Feature |
|---|---|---|

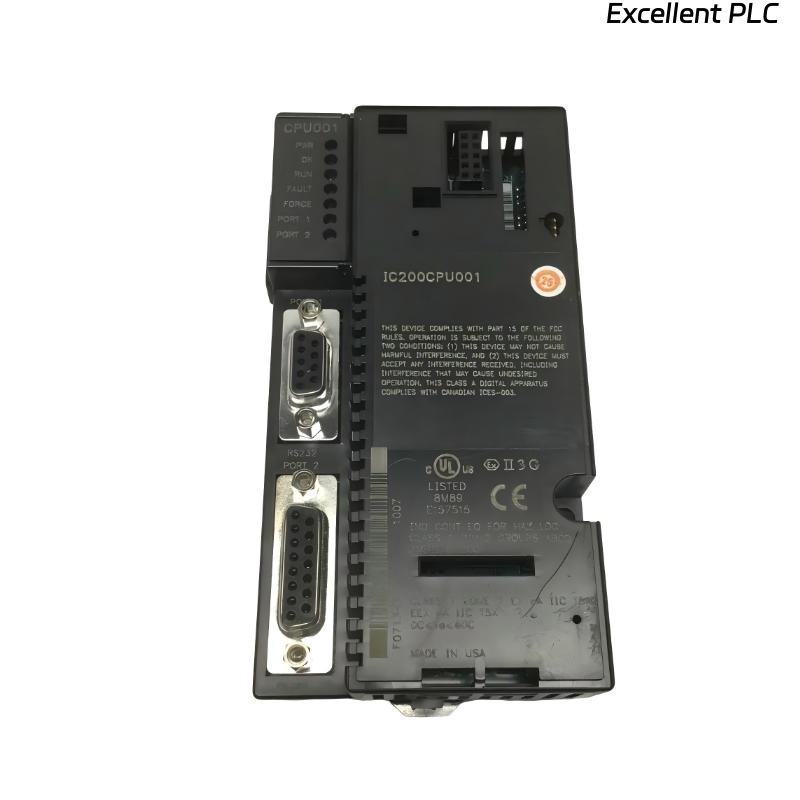

| IC200CPU001 | VersaMax Micro CPU | Compact and scalable CPU |
