Product Introduction

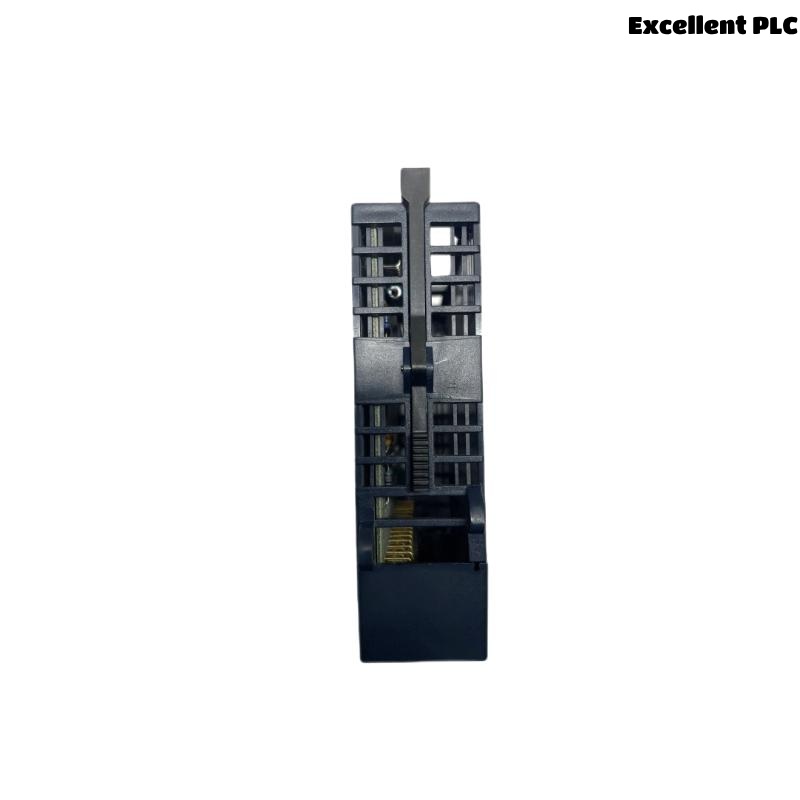

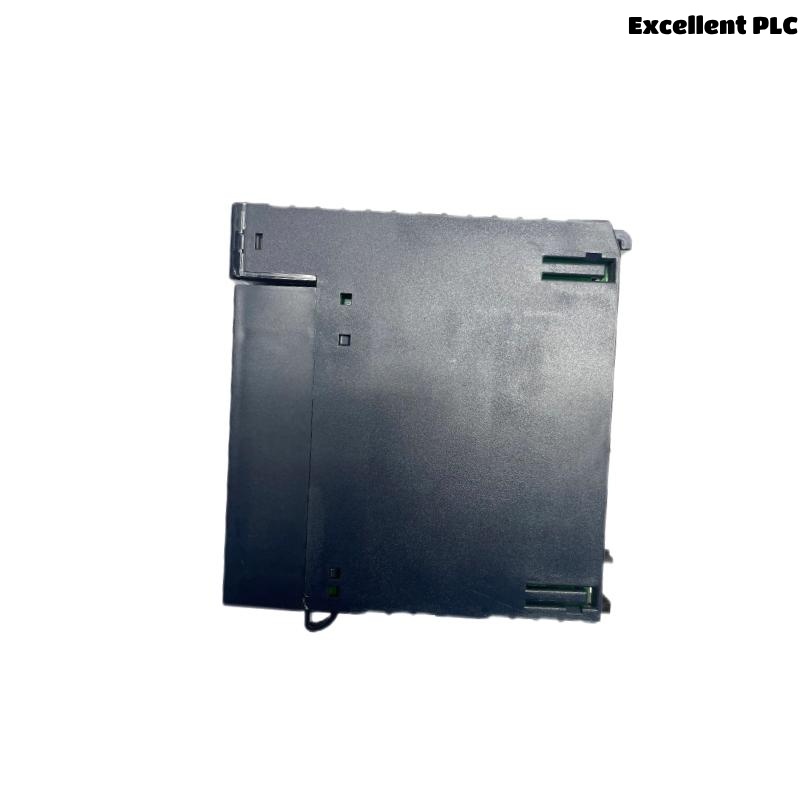

The GE IC694ACC300 is a specialized Input Simulator Module designed to be used with the GE Fanuc Series 90-30 programmable logic controller (PLC) systems. This module plays a crucial role in system testing, commissioning, and troubleshooting by simulating digital input signals. It allows engineers and technicians to verify the behavior of control logic without needing to physically apply input signals from field devices. The simulator can mimic various input conditions, enabling comprehensive validation of system performance before live operation.
Constructed with high-quality components, the IC694ACC300 ensures precise signal simulation with excellent stability and reliability. Its compact design fits easily into the Series 90-30 PLC racks, providing seamless integration and easy maintenance. This module is an indispensable tool in environments where system uptime and accuracy are critical, reducing commissioning times and improving overall system confidence.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC694ACC300 |
| Module Type | Input Simulator Module |
| Compatibility | GE Fanuc Series 90-30 PLC |
| Number of Input Channels | 16 simulated digital inputs |
| Input Signal Simulation | ON/OFF digital signal states |
| Signal Voltage Range | Compatible with standard digital input voltage levels |
| Response Time | Approximately 1 ms |
| Isolation | Galvanic isolation to prevent interference |
| Mounting | DIN rail or rack-mounted within Series 90-30 chassis |
| Dimensions (W × H × D) | 132 × 70 × 140 mm |
| Weight | 0.75 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, CE (depending on configuration) |
Applications
The IC694ACC300 Input Simulator Module is widely used in various industrial control and automation environments for:
-
System Commissioning: Verifying control logic and system responses before connecting to real field inputs.
-
Troubleshooting: Isolating and diagnosing control system issues without needing to manipulate physical devices.
-
Software Testing: Simulating input conditions to test new or modified control programs safely.
-
Training: Providing a hands-on tool for operator and technician training without the risks of live system manipulation.
-
Factory Acceptance Testing: Demonstrating and validating system operation during pre-delivery checks.
-
Process Control: Assisting in the design and verification of complex control sequences by simulating various input scenarios.
Advantages
-
Reliable Simulation: Accurately replicates digital input signals ensuring dependable system testing.
-
Time-Saving: Speeds up commissioning and troubleshooting by eliminating the need for physical signal application.
-
Compact Size: Fits neatly into Series 90-30 racks, saving valuable panel space.
-
Easy Integration: Designed specifically for the GE Fanuc Series 90-30, ensuring compatibility and easy setup.
-
Improved Safety: Allows testing and troubleshooting without energizing actual process inputs, minimizing risk.
-
Durability: Built to withstand industrial environments with stable operation across temperature and humidity ranges.
-
Reduced Downtime: Enables maintenance and testing without interrupting live system operations.
-
Versatile Use: Suitable for multiple testing scenarios including system validation, operator training, and fault analysis.
-
Galvanic Isolation: Protects the control system from electrical noise and interference.
-
Certified Quality: Meets international standards for industrial electronic equipment.
Frequently Asked Questions (FAQ)
-
What is the primary function of the IC694ACC300 module?
It simulates digital input signals for testing and commissioning the GE Series 90-30 PLC. -
How many inputs can this simulator module emulate?
It can simulate 16 digital input channels. -
Is the module compatible with other PLC series?
No, it is specifically designed for GE Fanuc Series 90-30 systems. -
What are the physical dimensions and weight of the module?
Dimensions: 132 × 70 × 140 mm; Weight: 0.75 kg. -
Can this module be used for safety-critical system testing?
Yes, it allows safe simulation without energizing actual inputs, reducing risk. -
What is the typical operating temperature range?
0°C to 60°C. -
Does the module provide electrical isolation?
Yes, it features galvanic isolation to prevent interference. -
Can it simulate analog input signals?
No, it only simulates digital ON/OFF signals. -
How quickly does the module respond to control commands?
Approximately 1 millisecond response time. -
Is the IC694ACC300 easy to install?
Yes, it mounts directly into the Series 90-30 rack or DIN rail with minimal setup.
