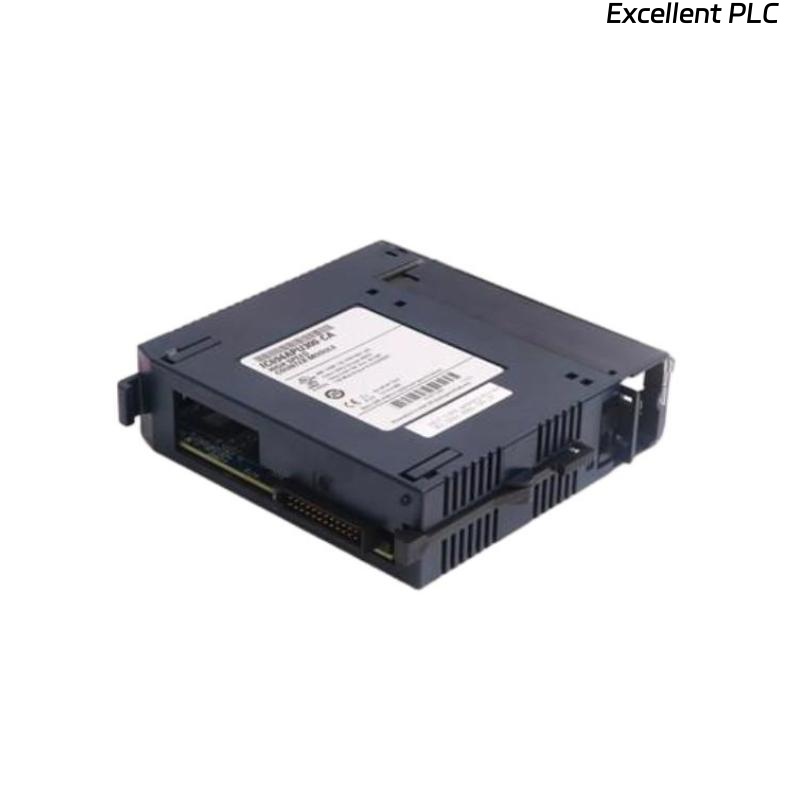

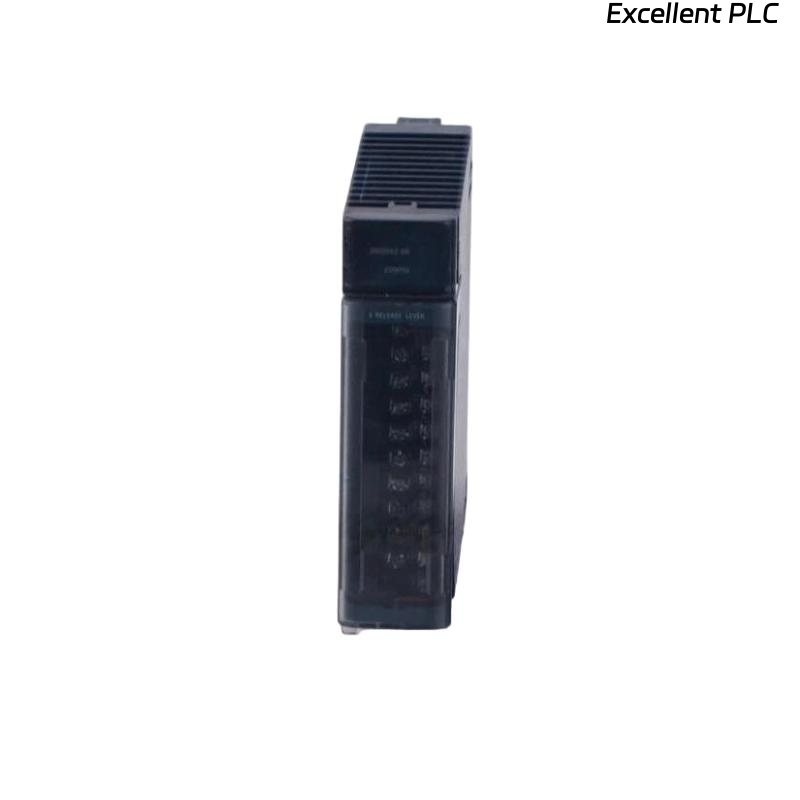

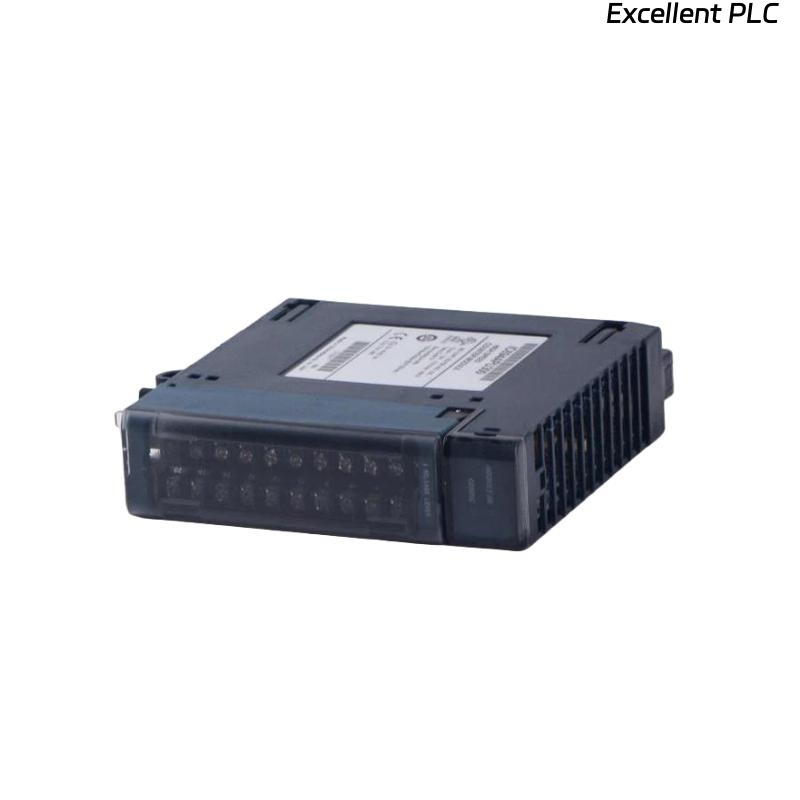

GE IC694APU300 High-Speed Counter Module

Product Introduction

The GE IC694APU300 is a high-speed counter module designed for use with GE’s RX3i PLC systems. This module is specifically engineered to count high-speed events, such as pulses from encoders, flow meters, or other devices that produce fast, frequent signals. With the ability to handle high-frequency inputs and offer precise counting, the IC694APU300 is ideal for applications where fast and accurate event counting is critical.

The IC694APU300 integrates seamlessly with the GE Intelligent Platforms automation systems, providing reliable performance in industries such as manufacturing, material handling, and packaging. This counter module can handle counting frequencies up to 10 MHz, allowing it to capture data at high speeds with minimal delay.

The module features multiple channels, making it suitable for applications requiring the monitoring of multiple events simultaneously. With its flexible configuration and scalability, the IC694APU300 is widely used in industries that require high-speed monitoring and control.

Product Parameters

Product Applications

The GE IC694APU300 high-speed counter module is used in a variety of industrial applications, including:

• Positioning Systems: It is used to count encoder pulses and track the position of machines or robotic arms, providing accurate control for automated machinery.

• Flow Measurement: The module can interface with flow meters to count the pulses generated by fluid or gas movement, enabling precise flow monitoring in industries such as chemical processing and water treatment.

• Speed Monitoring: Used to measure the rotational speed of motors, turbines, and other rotating equipment, providing feedback for performance optimization.

• Packaging Automation: In packaging lines, the IC694APU300 counts items passing on conveyors or tallying outputs from packaging machines.

• Traffic Control Systems: It can count vehicles or pedestrian signals in transportation applications, ensuring proper traffic flow and system regulation.

• Manufacturing Process Monitoring: The module is widely used in the monitoring and control of automated production lines, counting parts or components produced during manufacturing.

Product Advantages

• High-Speed Counting: The IC694APU300 supports counting frequencies up to 10 MHz, enabling fast and accurate counting for high-speed industrial applications.

• Multi-Channel Input: With 4 channels, this module can monitor and count multiple devices or events simultaneously, reducing the need for additional modules in complex systems.

• Flexible Input Options: Supports both differential and single-ended input types, allowing for compatibility with a wide variety of sensors and signal sources.

• Reliable Performance: The module operates in a wide temperature range from 0°C to +60°C, making it suitable for a variety of industrial environments.

• Compact Design: With dimensions of 34 x 145 x 140 mm, it is compact and easy to integrate into space-constrained panels and systems.

• Rack-Mountable: It is designed to be easily mounted in standard industrial racks, simplifying installation and maintenance.

• LED Indicators: Each channel has a dedicated LED status indicator, allowing for quick diagnostics and monitoring of operational status.

• Industry Standard Communication: Supports serial communication protocols like RS-232 and RS-485, ensuring compatibility with a wide range of industrial control systems.

• Versatile Applications: Ideal for various high-speed counting applications across industries like manufacturing, packaging, automotive, and traffic control.

• Scalable: Multiple modules can be added to a system, allowing the configuration to grow as required by the application.

FAQ

1. What is the maximum counting frequency supported by the IC694APU300?
   The IC694APU300 supports counting frequencies up to 10 MHz, making it suitable for high-speed counting applications.

2. How many counter channels does the IC694APU300 have?
   The module provides 4 counter channels, enabling the monitoring of multiple events or devices simultaneously.

3. What types of input signals are supported by the IC694APU300?
   The module supports both differential and single-ended input signals, offering flexibility in signal compatibility.

4. What is the voltage range required to operate the IC694APU300?
   The IC694APU300 operates with a voltage range of 24V DC.

5. Can the IC694APU300 handle high-speed input signals?
   Yes, the IC694APU300 is designed to handle high-speed input signals with a maximum count frequency of 10 MHz.

6. What communication protocols does the IC694APU300 support?
   The module supports serial communication protocols, including RS-232 and RS-485, for seamless integration with control systems.

7. What is the operating temperature range of the IC694APU300?
   The module can operate within a temperature range of 0°C to +60°C, making it suitable for a variety of industrial environments.

8. Is the IC694APU300 module easy to integrate into control systems?
   Yes, the module is designed for easy integration, and its compact size allows it to be mounted in standard industrial racks.

9. What is the weight of the IC694APU300 module?
   The module weighs 0.36 kg, making it lightweight and easy to handle during installation.

10. What industries can benefit from using the IC694APU300?
    The IC694APU300 is ideal for industries such as manufacturing, packaging, automotive, traffic control, and process automation, where high-speed counting and monitoring are critical.
