Product Introduction

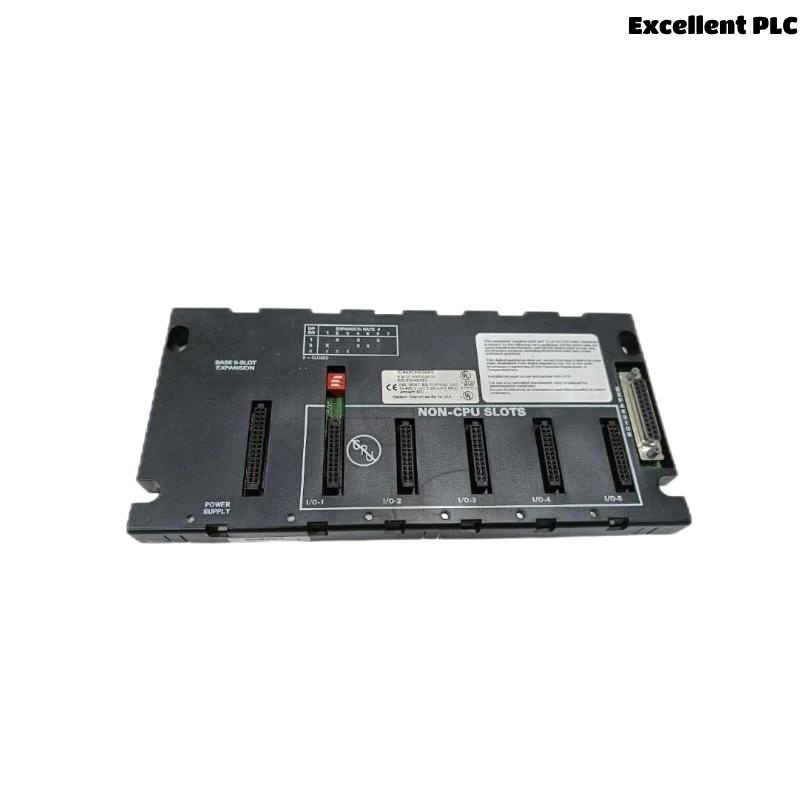

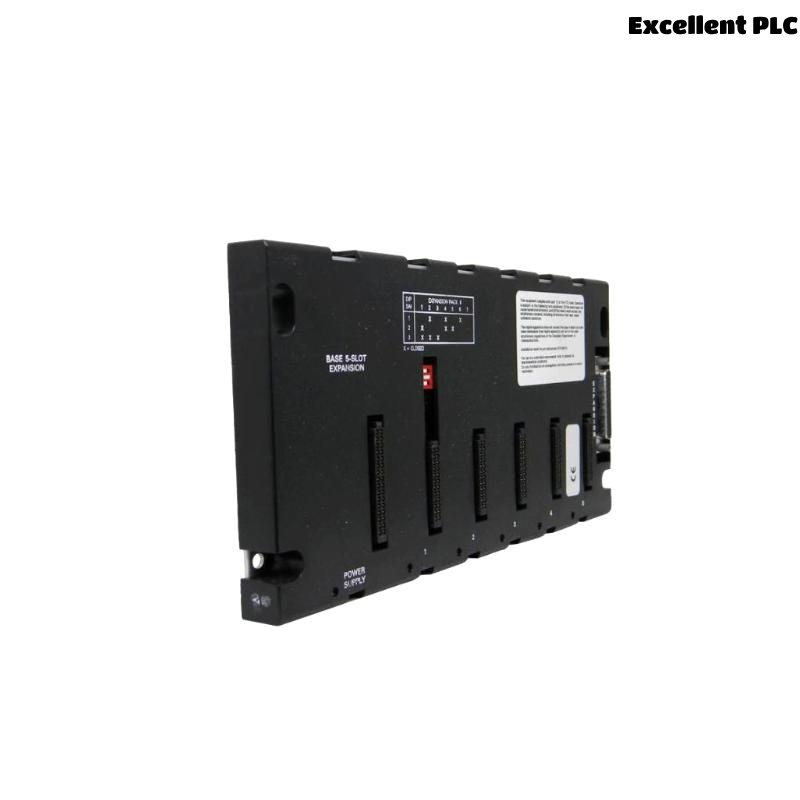

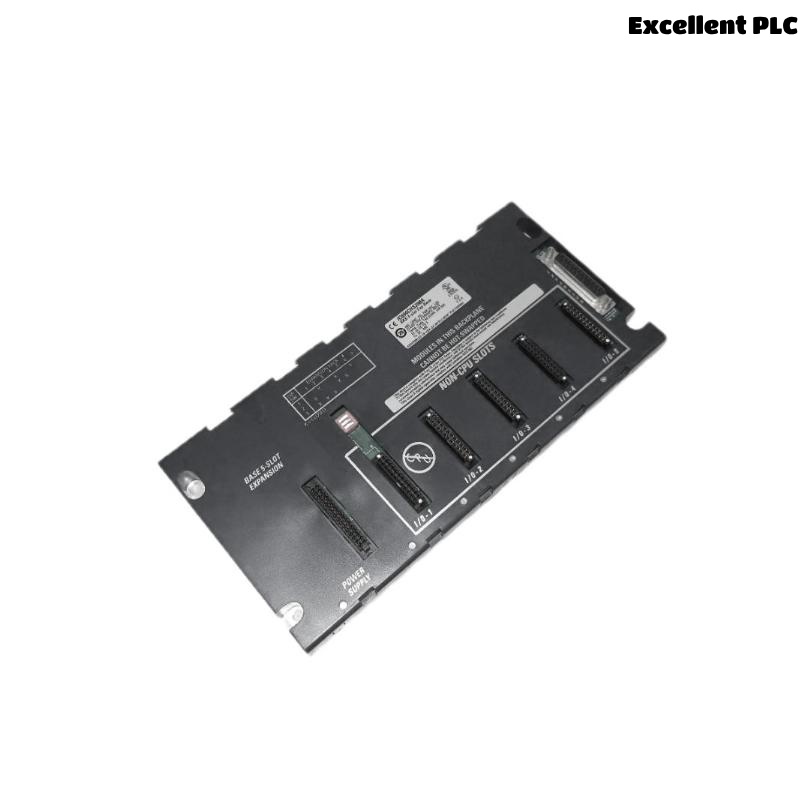

The GE IC694CHS398 is a 5-slot serial expansion backplane designed to enhance the connectivity and modularity of GE’s versatile Series 90-30 and VersaMax programmable logic controllers (PLCs). This backplane serves as a key hardware component allowing users to expand their control system by adding up to five additional modules in a serial configuration.
Known for its robust construction and reliable electrical connections, the IC694CHS398 enables flexible system growth while maintaining high data integrity and communication efficiency between modules. It is engineered to fit seamlessly within industrial environments, providing durable performance under typical operational stresses such as vibration, temperature fluctuations, and electromagnetic interference.
The backplane is suitable for applications requiring scalable automation solutions where multiple I/O and communication modules need to be integrated in a compact, organized manner.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IC694CHS398 |
| Manufacturer | General Electric (GE) |
| Type | 5-Slot Serial Expansion Backplane |
| Supported Modules Slots | 5 |
| Backplane Bus Type | Serial Expansion Bus |
| Operating Voltage | 5 VDC (typical from main chassis) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack Mount |
| Dimensions (WxHxD) | 230 x 120 x 30 mm |
| Weight | 1.2 kg |
| Connector Type | 96-pin card edge connector |
| Compliance | UL recognized, CE certified |
Product Applications
-
Industrial Automation: Enables flexible expansion of I/O and communication modules in factory automation systems.
-
Process Control: Supports scalable control systems for chemical, oil & gas, and power plant operations.
-
Manufacturing Equipment: Facilitates modular integration of specialized control modules in assembly lines.
-
Material Handling Systems: Provides expansion capability for input/output modules controlling conveyors and robotics.
-
Water Treatment Facilities: Allows for additional monitoring and control devices integration.
-
Building Automation: Supports the extension of serial communication modules for HVAC, lighting, and security systems.
Product Advantages
-
Modular Expansion: Allows seamless integration of up to five serial modules, increasing system flexibility.
-
Reliable Connectivity: High-quality connectors ensure stable communication and data transfer between modules.
-
Robust Construction: Designed to withstand industrial environmental conditions including vibration and temperature swings.
-
Space Efficient: Compact design helps save rack space in control cabinets.
-
Ease of Installation: Plug-and-play setup simplifies system expansion and reduces downtime.
-
Compatibility: Works effectively with GE’s Series 90-30 and VersaMax controllers.
-
Low Maintenance: Durable components reduce the frequency of replacements and service interventions.
-
Industry Certifications: Meets global safety and electromagnetic compatibility standards.
-
Cost-Effective Scalability: Enables users to grow their automation system without full hardware replacement.
-
System Integrity: Maintains data integrity through reliable serial communication links.
Frequently Asked Questions (FAQ)
-
What is the maximum number of modules supported by the IC694CHS398 backplane?
The backplane supports up to 5 serial expansion modules. -
Which GE PLC series are compatible with this backplane?
It is compatible with Series 90-30 and VersaMax controllers. -
What are the physical dimensions of the IC694CHS398?
The backplane measures 230 x 120 x 30 mm. -
What type of connector does the backplane use?
It utilizes a 96-pin card edge connector for module attachment. -
Can this backplane operate in harsh industrial environments?
Yes, it is designed to withstand typical industrial conditions including vibration and temperature changes. -
Is the IC694CHS398 hot-swappable?
No, modules should not be inserted or removed while the system is powered on. -
What certifications does this product hold?
It is UL recognized and CE certified for safety and electromagnetic compliance. -
What is the typical weight of the backplane?
It weighs 1.2 kg. -
How is the backplane mounted in a control cabinet?
It is designed for rack mounting within standard PLC racks. -
Does the backplane require an external power supply?
No, it receives its operating voltage (5 VDC) from the main controller chassis.
Recommended Related Models (Same Series or Similar)
| Model Number | Description | Slots | Dimensions (WxHxD) mm | Weight (kg) |
|---|---|---|---|---|
| IC694CHS390 | 3-Slot Serial Expansion Backplane | 3 | 130 x 90 x 110 | 0.45 |
| IC694CHS395 | 5-Slot Expansion Backplane (alternate version) | 5 | 130 x 90 x 160 | 0.68 |
| IC694CHS390A | 3-Slot Serial Expansion Backplane | 3 | 130 x 90 x 110 | 0.47 |
| IC694CHS399 | 9-Slot Serial Expansion Backplane | 9 | 130 x 90 x 250 | 1.10 |
| IC693CHS398 | 5-Slot Backplane for Series 90-70 | 5 | 150 x 100 x 180 | 0.70 |
| IC693CHS399 | 9-Slot Backplane for Series 90-70 | 9 | 150 x 100 x 280 | 1.25 |
Popular GE Models (Other Products)
| Model Number | Description | Type | Dimensions (WxHxD) mm | Weight (kg) |
|---|---|---|---|---|
| IC693CPU352 | VersaMax Micro PLC CPU | CPU Module | 115 x 105 x 80 | 0.30 |
| IC693MDL740 | Analog Input Module | I/O Module | 50 x 130 x 110 | 0.45 |
| IC693ALG220 | Analog Output Module | I/O Module | 50 x 130 x 110 | 0.46 |
| IC693PWR321 | Power Supply Module | Power Module | 50 x 130 x 110 | 0.50 |
| IC693CHS392 | 2-Slot Serial Expansion Backplane | Backplane | 130 x 90 x 90 | 0.35 |
| IC693DSM302 | High-Speed Counter Module | Special Function Module | 50 x 130 x 110 | 0.40 |
