Product Introduction

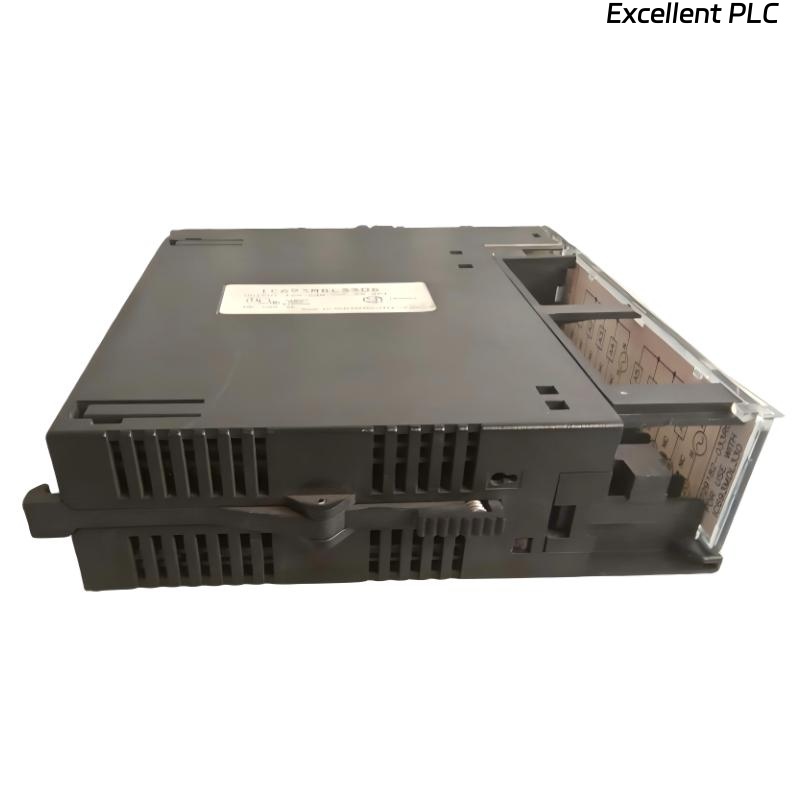

The GE IC694MDL330 RX3i AC Voltage Input Module is a high-performance module designed for RX3i automation systems, providing precise AC voltage measurement and monitoring for industrial processes. With 8 input points, this module allows simultaneous monitoring of multiple AC sources, supporting control and data acquisition in real-time.
It is ideal for industrial automation, process control, and energy management applications, providing accurate signal detection and robust performance in demanding environments. The module supports both 120 VAC and 240 VAC inputs, handling up to 2 A per channel, making it suitable for a wide range of sensors, devices, and field signals.
Designed for compact and modular RX3i installations, the IC694MDL330 ensures easy integration, high reliability, and continuous operation. Its robust design minimizes interference and provides stable measurement under industrial electrical conditions, including noisy environments and fluctuating voltages.
This module is widely used in factory automation, process monitoring, and industrial control systems, where precision, reliability, and multi-point AC voltage monitoring are essential. By consolidating 8 input channels into a single module, it reduces installation complexity and enhances system scalability and efficiency.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | AC Voltage Input Module |
| Series / Model | IC694MDL330 |
| System Compatibility | RX3i Automation System |
| Functionality | 8-point AC voltage measurement and monitoring |
| Input Voltage | 120/240 VAC |
| Maximum Current | 2 A per channel |
| Points / Channels | 8 |
| Mounting Method | Rack-mounted in RX3i backplane |
| Operating Environment | Industrial control and process environments |
| Communication | Integrates with RX3i PLC systems |
| Dimensions | 127 × 50 × 100 mm |
| Weight | 0.358 kg |
Applications
• Industrial automation, monitoring AC voltage signals from multiple sources
• Process control systems, integrating voltage inputs for real-time control
• Energy monitoring, measuring AC line voltages for machinery or equipment
• Factory automation, consolidating multiple AC input channels into a single module
• Data acquisition, feeding accurate AC measurements into RX3i PLCs for analysis
• Retrofit and system upgrades, adding voltage input capability to existing RX3i systems
Advantages
• 8 independent input points, allowing simultaneous multi-channel AC monitoring
• High reliability and industrial robustness, suitable for continuous operation
• Flexible voltage compatibility, supporting both 120 VAC and 240 VAC inputs
• Simplified system installation, reducing the need for multiple single-channel modules
• Stable and accurate measurements, even in noisy electrical environments
• Compact modular design, integrates seamlessly into RX3i PLC backplanes
