Product Introduction

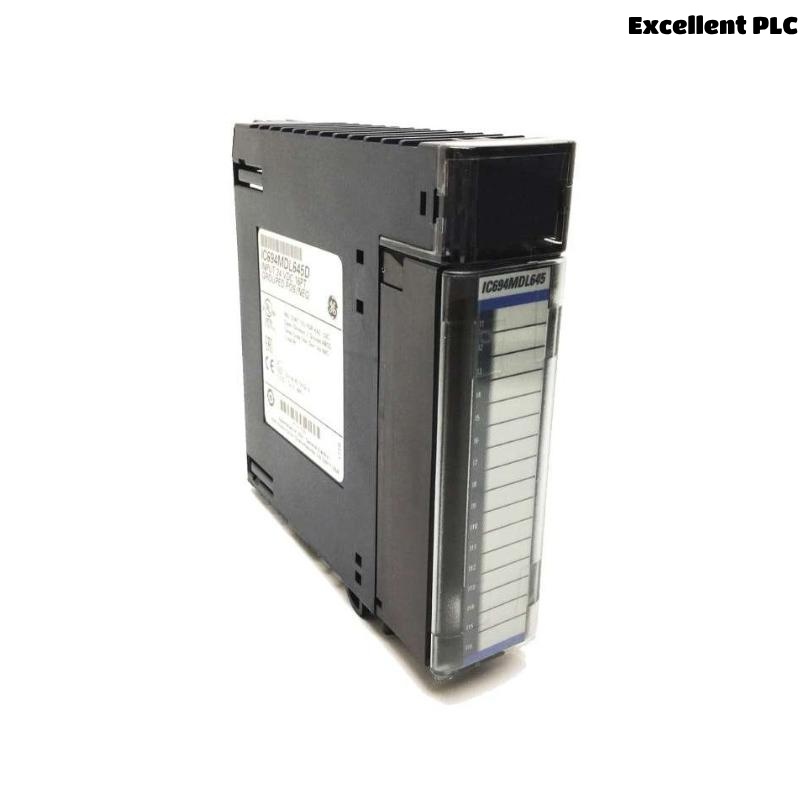

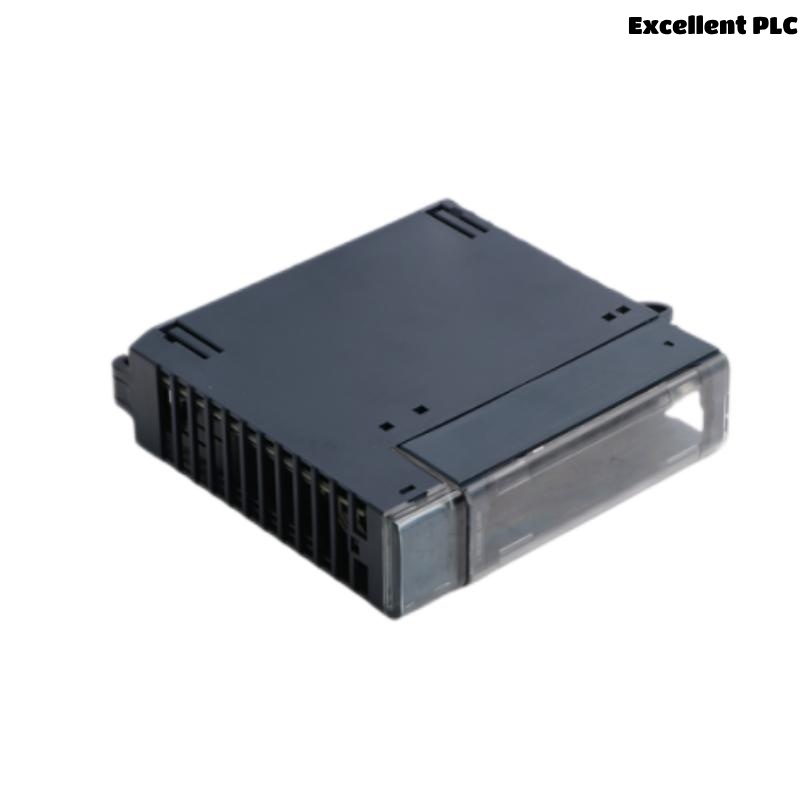

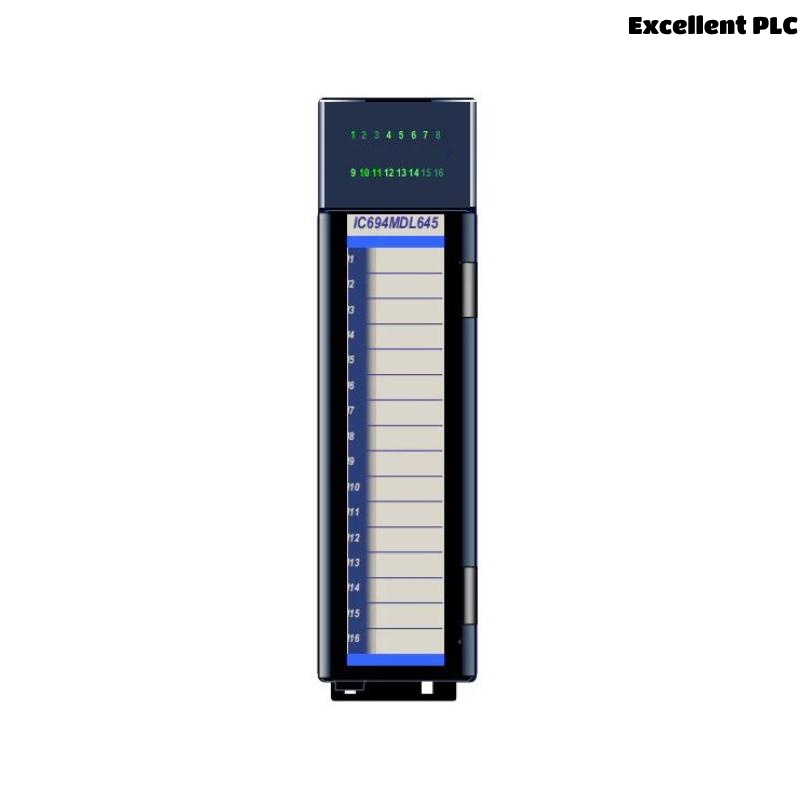

The GE IC694MDL645CAC is a high-performance digital input module designed for use with GE Fanuc’s RX3i and RX7i programmable automation controllers (PACs). This module is part of the VersaMax I/O series, offering reliable and flexible industrial automation solutions. It is widely used in manufacturing, energy, and process control industries due to its robust design and compatibility with various control systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC694MDL645CAC |
| Product Type | Digital Input Module |
| Input Channels | 16 (Sink/Source) |
| Input Voltage | 24V DC |
| Current Consumption | 5mA per input (typical) |
| Isolation Voltage | 1500V AC (channel-to-bus) |
| Response Time | 1ms (ON to OFF), 3ms (OFF to ON) |
| Operating Temp. | -20°C to 60°C (-4°F to 140°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 34 x 145 x 140mm |
| Weight | 0.159 kg |
| Compatibility | RX3i, RX7i PAC Systems |
| Certifications | CE, UL, cUL |
Product Applications
The IC694MDL645CAC is suitable for a wide range of industrial applications, including:
-
Manufacturing Automation: Monitoring sensors, limit switches, and push buttons.
-
Energy Management: Control and monitoring in power distribution systems.
-
Process Control: Input signal processing in chemical and oil & gas industries.
-
Material Handling: Conveyor belt and robotic system integration.
-
Water/Wastewater Treatment: Pump and valve status monitoring.
Product Advantages
-
High Reliability: Designed for harsh industrial environments with high noise immunity.
-
Fast Response Time: Ensures real-time monitoring and control.
-
Flexible Configuration: Supports both sink and source input wiring.
-
Compact Design: Saves space in control cabinets.
-
Wide Compatibility: Works seamlessly with RX3i and RX7i PACs.
-
Easy Maintenance: Hot-swappable design reduces downtime.
Frequently Asked Questions (FAQ)
1. What is the operating voltage range for this module?
The module operates at 24V DC with a tolerance of ±10%.
2. Can this module be used in high-vibration environments?
Yes, it is designed to withstand industrial vibrations and shocks.
3. Is isolation provided between channels?
No, the isolation is between channels and the backplane (1500V AC).
4. What is the maximum input current per channel?
Each channel consumes 5mA (typical) at 24V DC.
5. Can I mix sink and source inputs on the same module?
No, all channels must be configured as either sink or source.
6. Does this module support hot-swapping?
Yes, it can be replaced without powering down the system.
7. What is the response time for input signals?
1ms (ON to OFF) and 3ms (OFF to ON).
8. Is this module compatible with non-GE controllers?
No, it is designed specifically for GE RX3i/RX7i PACs.
9. What certifications does this module have?
It is certified for CE, UL, and cUL standards.
10. How many input points does this module have?
It provides 16 digital input channels.
