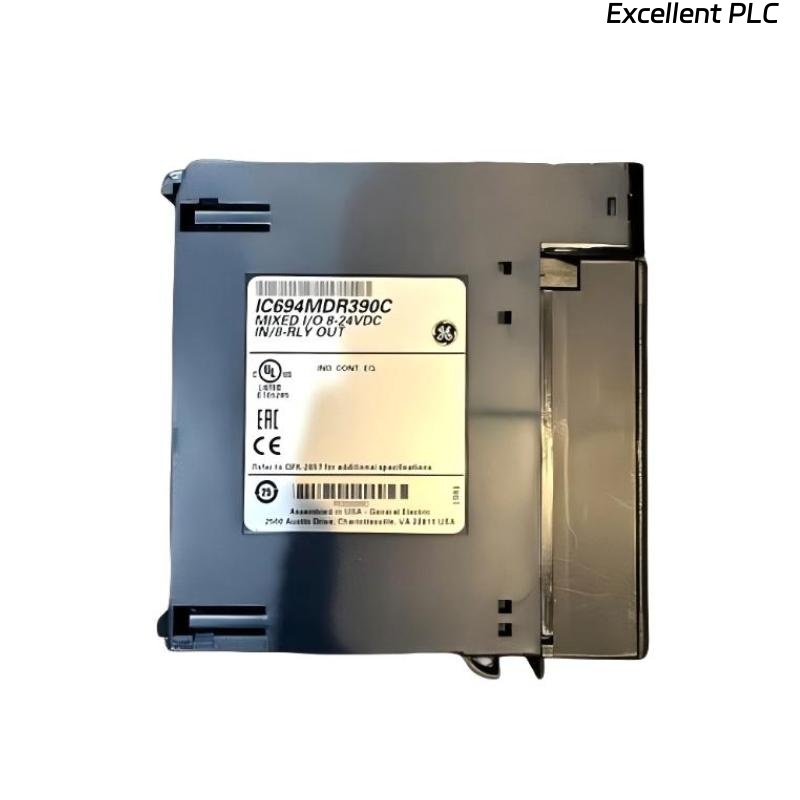

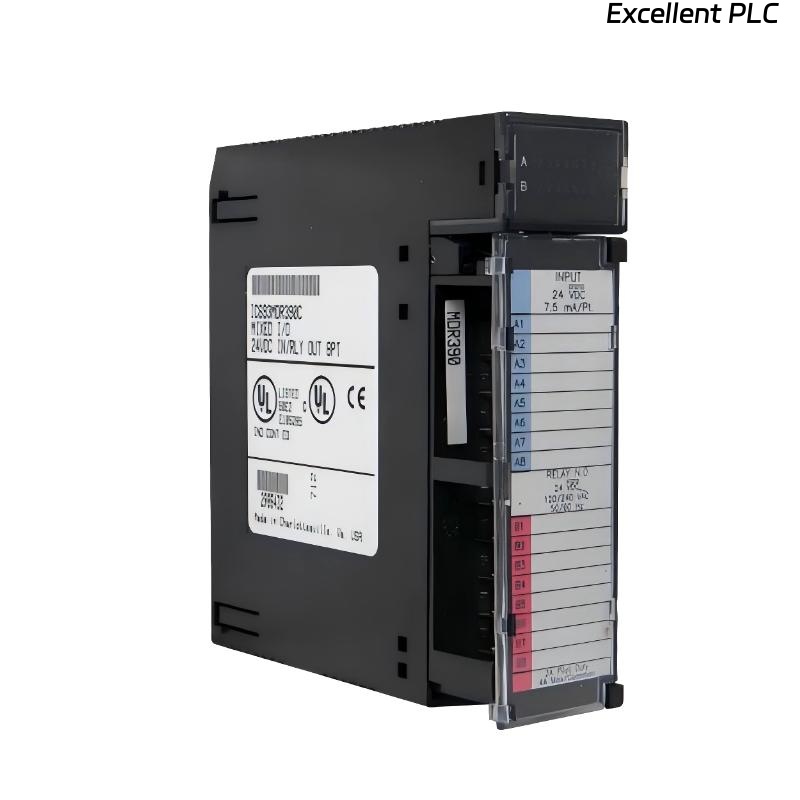

GE IC694MDR390 Mixed I/O Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The GE IC694MDR390 Mixed I/O Module is a high-performance, multifunctional I/O module designed for the PACSystems RX3i programmable automation controller series. It combines both discrete input and relay output channels in a single, compact unit, enabling engineers to optimize space while maintaining flexibility in I/O configuration.

This mixed I/O module integrates seamlessly into GE’s RX3i backplane and provides reliable signal interfacing for various industrial control systems. The IC694MDR390 is ideal for applications requiring a balance between digital sensing and output switching capabilities within a single hardware platform.

Engineered with robust isolation and high electrical endurance, this module ensures safe and consistent performance in environments subject to electrical noise, vibration, or temperature fluctuations. It simplifies system architecture by reducing the need for multiple dedicated I/O modules, helping lower installation complexity and maintenance effort.

---

Technical Specifications

---

Applications

The GE IC694MDR390 Mixed I/O Module is used across a wide range of industrial automation systems that require both monitoring and control functions within a single module. It is particularly effective in applications where space optimization, wiring simplicity, and control versatility are essential.

Common application fields include:

• Manufacturing Automation: Controls machinery, sensors, and actuators in assembly lines and material handling systems.

• Process Control: Interfaces with limit switches, solenoids, and alarms in process plants.

• Building Automation: Manages lighting, HVAC control, and security systems.

• Power and Energy Systems: Controls circuit breakers, alarms, and control panels.

• Oil and Gas Operations: Used in drilling rigs and production platforms for signal monitoring and process control.

• Water and Wastewater Management: Monitors pressure switches, pumps, and valves for automated system regulation.

By combining input and output functionalities, the IC694MDR390 minimizes the number of modules required in a system, providing a cost-effective and reliable control solution.

---

Advantages

• Compact Design: Combines input and output functions in one unit, reducing the need for multiple modules.

• Flexible Signal Support: Handles both DC inputs and AC/DC relay outputs, increasing versatility.

• High Isolation: Ensures electrical protection and prevents signal interference between channels.

• Reliable Switching: Relay outputs are capable of switching both resistive and inductive loads.

• Easy Maintenance: LED indicators simplify troubleshooting and real-time monitoring of I/O states.

• Robust Construction: Designed for industrial-grade environments with strong vibration and temperature tolerance.

• Low Power Consumption: Optimized internal circuitry minimizes energy use while maintaining reliability.

• Seamless Integration: Fully compatible with the RX3i platform and Proficy Machine Edition software.

• Field-Proven Reliability: Built under strict quality control standards for long-term industrial use.

• Enhanced Safety: Built-in electrical isolation and surge protection safeguard the system and field devices.

---

FAQ

1. What type of I/O does the IC694MDR390 provide?
   It offers a combination of 8 DC input channels and 8 relay output channels, allowing for flexible signal handling in mixed-control applications.

2. Are the inputs optically isolated from the outputs?
   Yes, the inputs and outputs are individually optically isolated to prevent cross-interference and ensure electrical safety.

3. What is the maximum switching voltage supported by the relay outputs?
   Each relay output can handle up to 250 VAC or 30 VDC, making it suitable for both AC and DC load control.

4. Can the module handle inductive loads such as solenoid valves?
   Yes, the relay outputs are designed with surge suppression to safely switch inductive loads like solenoids and contactors.

5. How is the module powered?
   The IC694MDR390 draws power directly from the 5 VDC backplane supply of the RX3i system.

6. What kind of diagnostic information is available?
   The module includes LED indicators for each input and output channel, enabling quick visual diagnostics and system verification.

7. Is the module hot-swappable within the RX3i system?
   No, since it contains mechanical relays, the module should only be inserted or removed when power is off to avoid electrical arcing.

8. What is the typical response time for input and output channels?
   The input response time is approximately 3 milliseconds, and the relay output response time is about 10 milliseconds.

9. Can this module be mixed with other I/O types in the same rack?
   Yes, it can operate alongside digital, analog, and communication modules on the same RX3i backplane without interference.

10. Does the module support both sourcing and sinking inputs?
    The inputs are designed for sourcing-type configurations, accepting standard 24 VDC input signals.

---
