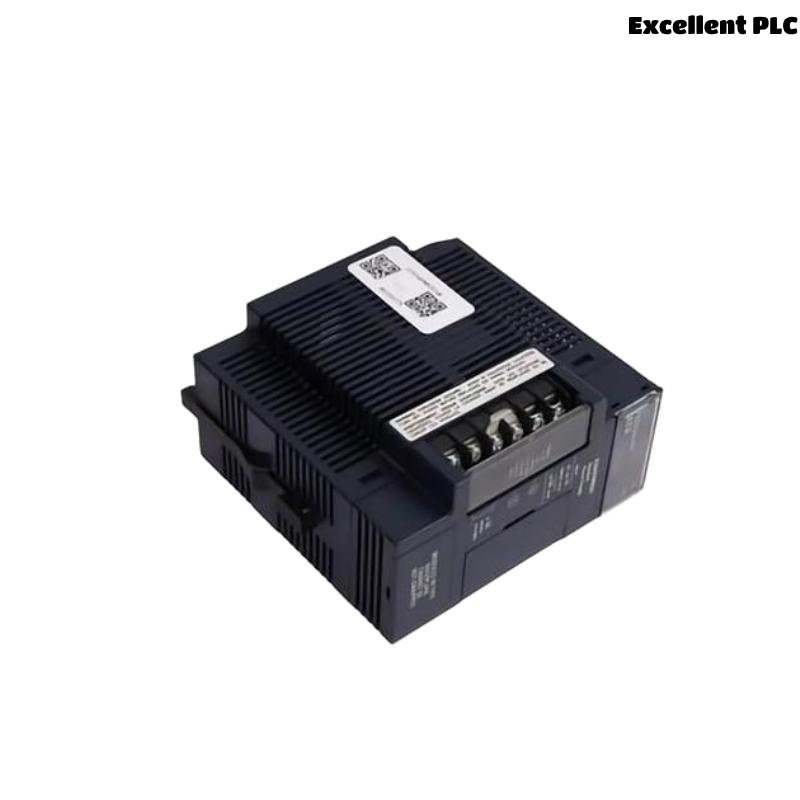

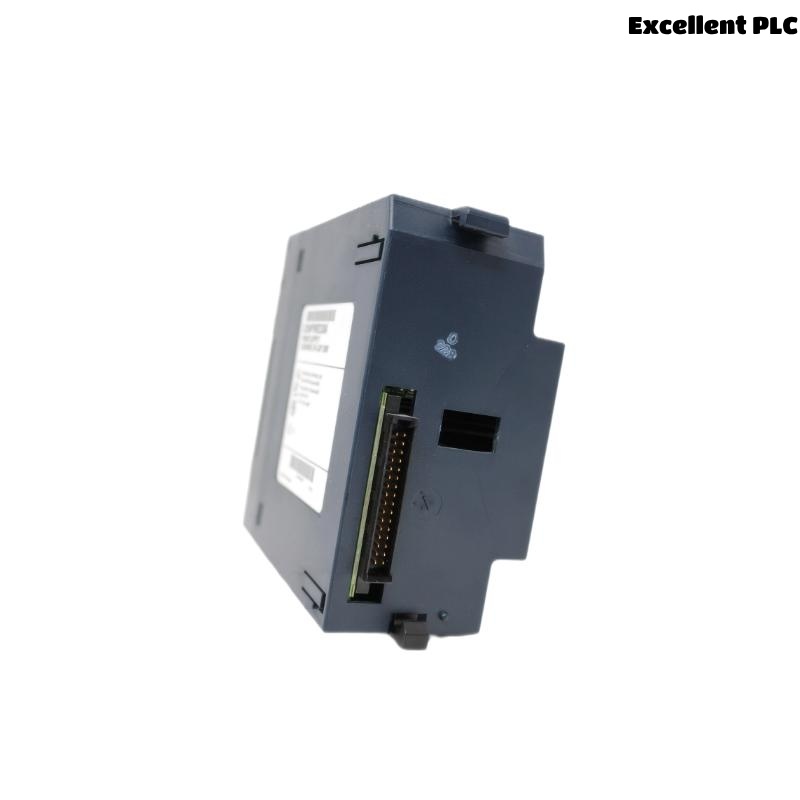

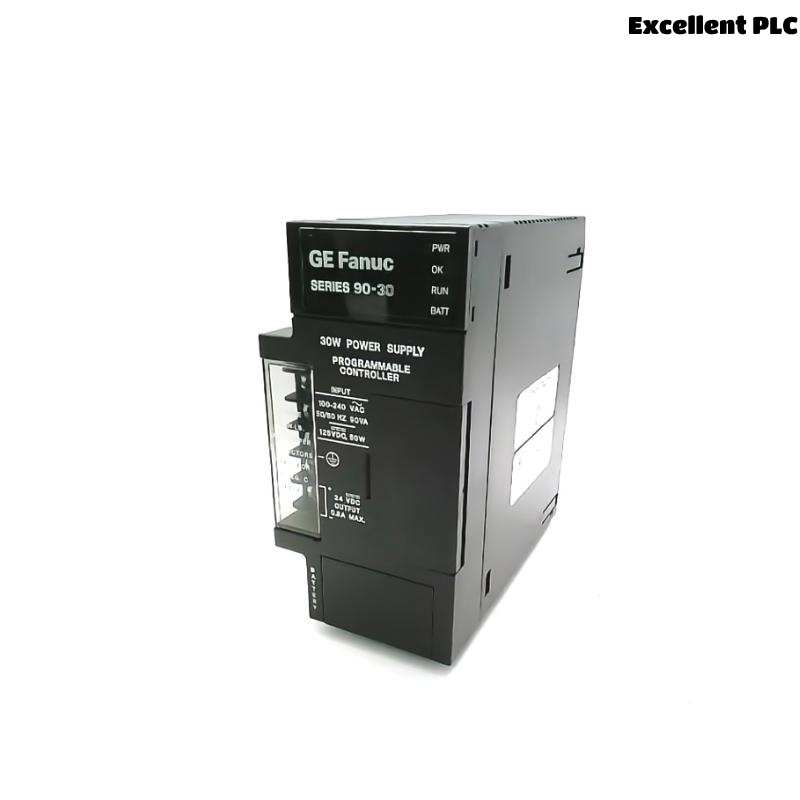

GE IC694PWR321 Power Supply Module

Product Overview:

The GE IC694PWR321 is a high-performance power supply module designed for use with GE’s RX3i PACSystems series of programmable automation controllers (PACs). It provides reliable and regulated power to the CPU, I/O modules, and other components in the RX3i backplane. With robust performance and multiple protection features, the IC694PWR321 ensures stable system operation in industrial environments.

Technical Specifications

Applications

The GE IC694PWR321 power supply module is utilized in various industrial sectors, including:

• Manufacturing: Powers automation systems in assembly lines and robotic cells.

• Energy: Supports control systems in power generation and distribution.

• Water Treatment: Ensures reliable operation of water and wastewater management systems.

• Transportation: Provides consistent power for railway and airport control systems.

• Oil & Gas: Enhances reliability in exploration, drilling, and refining processes.

Its compatibility with both AC and DC input voltages makes it suitable for diverse industrial environments.

Advantages

• Flexible Input Voltage: Supports a wide range of AC and DC input voltages, accommodating various power sources.

• Multiple Output Voltages: Provides +5 VDC, +24 VDC Relay, and +24 VDC Isolated outputs to meet different system requirements.

• Compact Design: Fits into the leftmost slot of the PLC’s serial backplane, saving space in control cabinets.

• LED Indicators: Equipped with PWR, OK, and RUN LEDs for easy monitoring of power and system status.

• Reliable Performance: Designed to operate in industrial environments with temperatures ranging from 0°C to 60°C.

• Ease of Installation: Simple integration into existing RX3i PACSystems PLC setups.

Frequently Asked Questions (FAQs)

1. What is the primary function of the IC694PWR321 module?
   It supplies power to the CPU and I/O modules in the RX3i PACSystems PLC.

2. Which systems are compatible with this module?
   It is compatible with GE Fanuc RX3i PACSystems PLC series.

3. What input voltages does the module support?
   It supports 85 to 264 VAC and 100 to 300 VDC input voltages.

4. What are the output voltages provided by the module?
   It provides +5 VDC, +24 VDC Relay, and +24 VDC Isolated outputs.

5. What is the total power output capacity?
   The module can supply up to 30 Watts of power.

6. Does the module support load-sharing redundancy?
   No, load-sharing redundancy is not supported.

7. Where is the module installed within the PLC system?
   It is installed in the leftmost slot of the PLC’s serial backplane.

8. What are the operating temperature limits?
   The module operates reliably between 0°C and 60°C.

9. What are the dimensions and weight of the module?
   The module measures 100 x 50 x 120 mm and weighs 0.3 kg.

10. What LED indicators are available on the module?
    The module features PWR, OK, and RUN LEDs to indicate power and system status.
