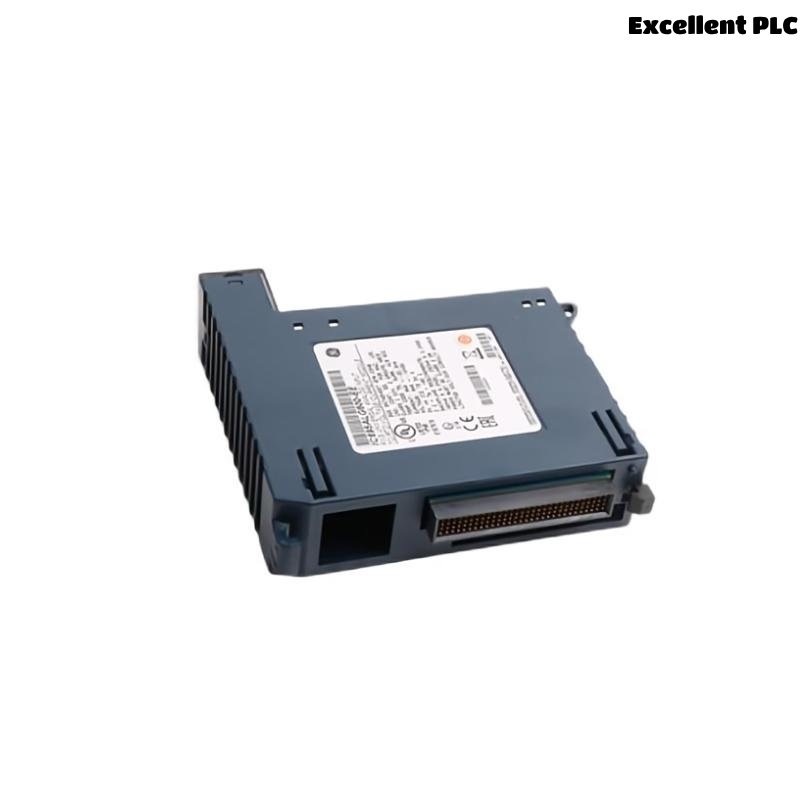

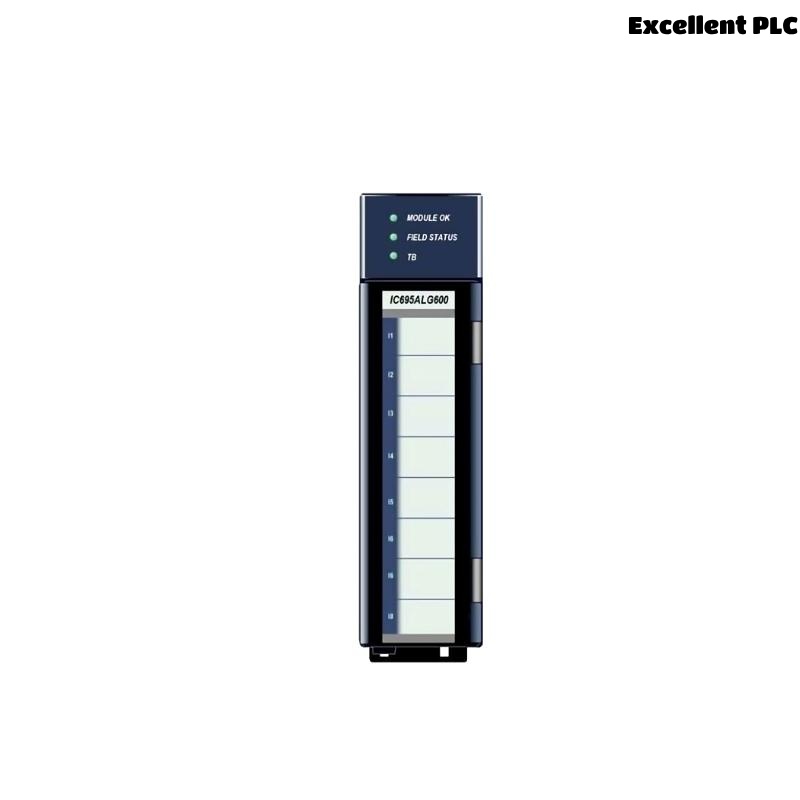

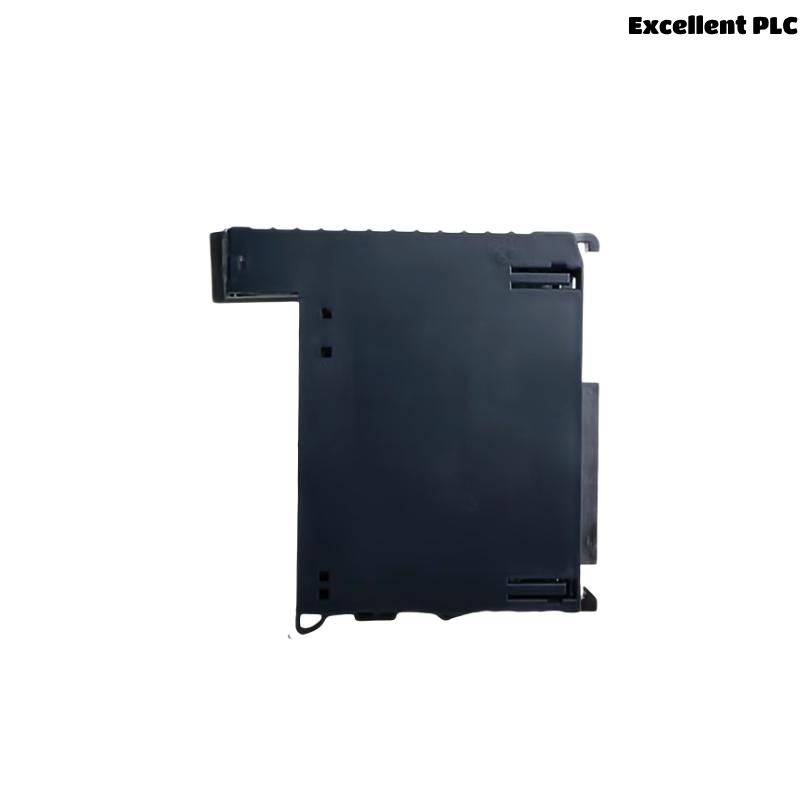

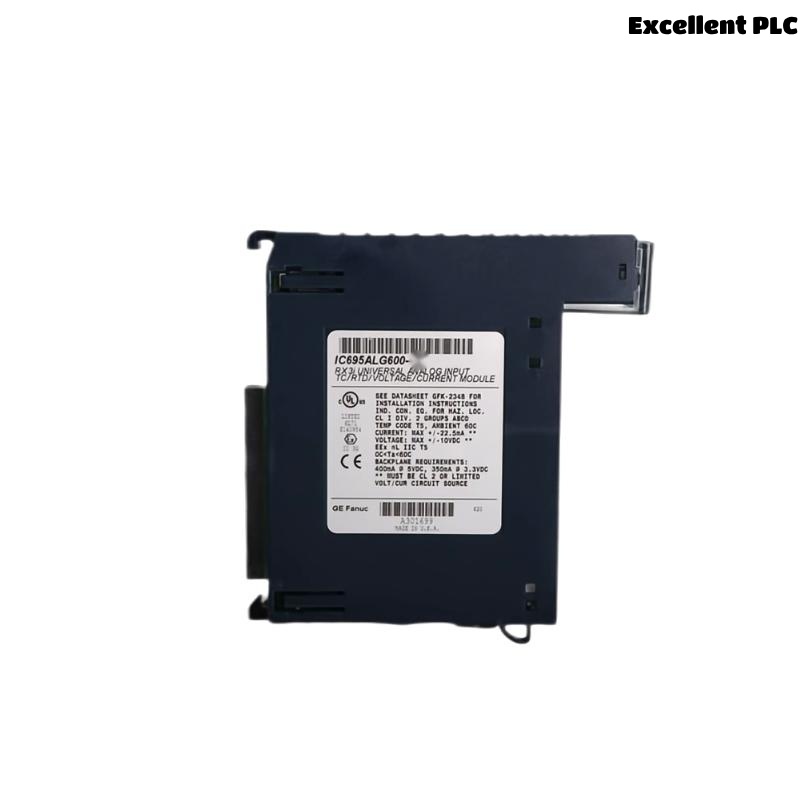

GE IC695ALG600 RX3i Universal Analog Input Module

Product Introduction

The GE IC695ALG600 is a Universal Analog Input Module designed for the RX3i PACSystems series by GE Automation & Controls. As part of GE’s high-performance control platform, this module offers advanced analog signal processing capabilities with exceptional reliability and accuracy. It is engineered to support a broad range of input types, including voltage and current signals, making it suitable for various industrial measurement and monitoring applications.

The IC695ALG600 offers high-resolution data acquisition, robust input protection, and field-configurable channels, making it a flexible solution for both centralized and distributed I/O architectures. Built for compatibility with the RX3i modular backplane, the module provides seamless integration into industrial control systems where precision and durability are key.

Technical Specifications

Applications

The GE IC695ALG600 is used across a wide array of industries that require reliable and precise analog signal acquisition. Typical applications include:

• Power Generation: Monitoring voltage and current signals in turbine control systems.

• Water & Wastewater Treatment: Measuring levels, flows, and pressure with analog transmitters.

• Oil & Gas: Real-time analog data acquisition in drilling and processing operations.

• Manufacturing & Industrial Automation: Supervisory control of analog processes, including temperature, flow, and pressure loops.

• Chemical Processing: Monitoring pH levels, tank levels, and dosing systems.

• Building Automation: HVAC control systems requiring accurate analog input data.

Product Advantages

• Versatility in Input Types: Supports multiple analog formats (voltage and current) on the same module.

• High Accuracy and Resolution: 16-bit resolution ensures precise data acquisition for critical control loops.

• Flexible Channel Configuration: Individual channels can be configured independently, enhancing customization.

• Robust Electrical Isolation: Protects system from signal interference and damage.

• Seamless Integration: Fully compatible with GE RX3i series backplane and PAC Machine Edition software.

• Factory-Calibrated: Reduces maintenance overhead and eliminates the need for user calibration.

• Comprehensive Diagnostics: Real-time fault detection ensures reliability in harsh industrial environments.

• Compact Design: Space-saving form factor ideal for high-density installations.

Frequently Asked Questions (FAQ)

1. Q: What types of signals can the IC695ALG600 handle?
   A: It supports both voltage (±10V, 0–10V) and current (0–20mA, 4–20mA) inputs.

2. Q: Is this module hot-swappable?
   A: No, the IC695ALG600 is not hot-swappable. Power must be removed before installation or removal.

3. Q: How many channels does the IC695ALG600 provide?
   A: It provides 16 single-ended or 8 differential channels.

4. Q: Can each channel be configured independently?
   A: Yes, each channel can be set independently for different signal types.

5. Q: What software is used to configure the module?
   A: GE Proficy Machine Edition (Logic Developer) is used for configuration.

6. Q: Does the module provide any diagnostic features?
   A: Yes, it includes open wire detection and LED indicators for diagnostics.

7. Q: What level of isolation is provided between channels?
   A: Channel-to-channel and channel-to-backplane isolation is rated at 250V.

8. Q: What industries commonly use this module?
   A: It’s widely used in power generation, oil & gas, water treatment, and manufacturing.

9. Q: What is the resolution of the analog inputs?
   A: The module has a 16-bit resolution for all channels.

10. Q: Is additional calibration required in the field?
    A: No, the module is factory-calibrated and does not require field calibration.

Related Models (Same Series / Similar Function)

Popular GE Models (Same Brand)
