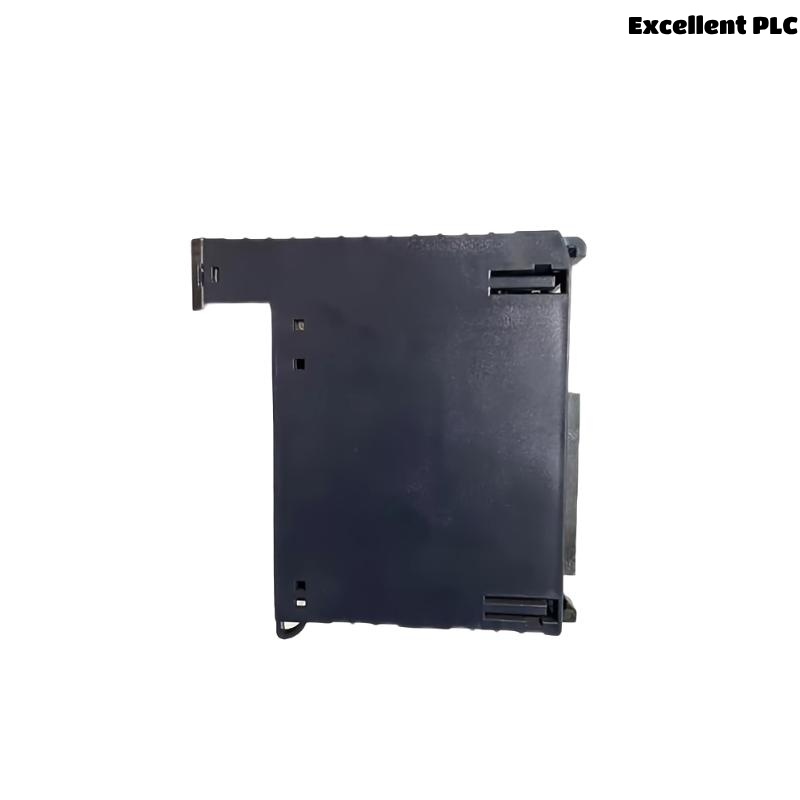

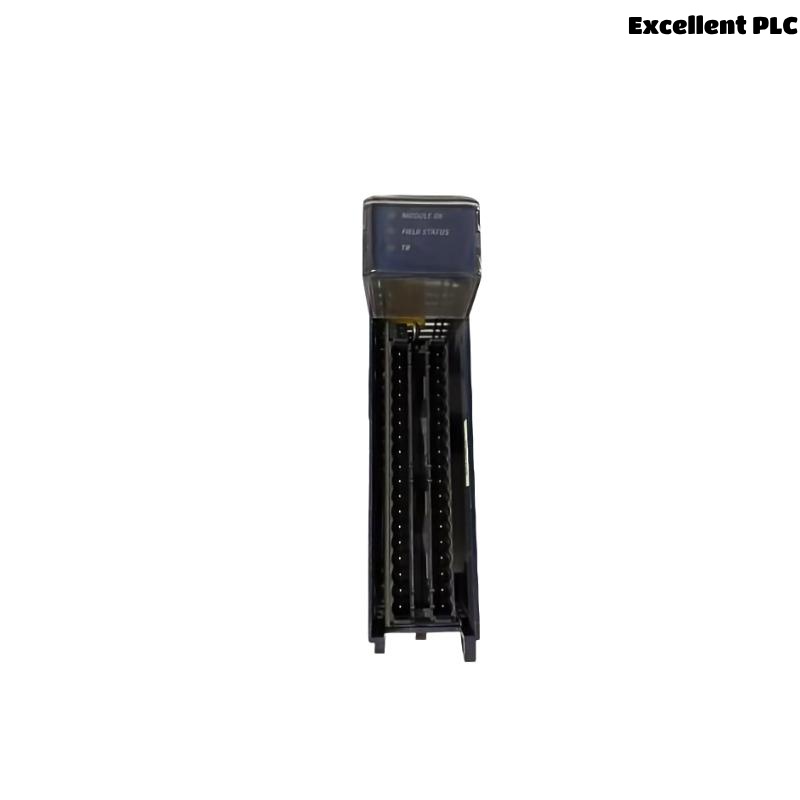

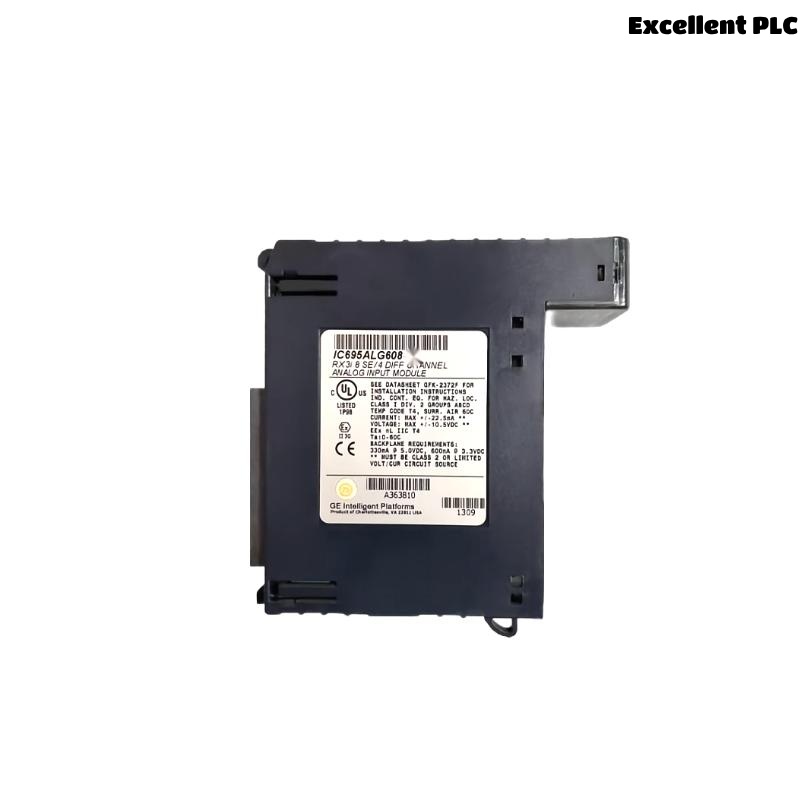

GE IC695ALG608 RX3i Analog Input Module

Product Introduction

The GE IC695ALG608 is a high-performance analog input module designed for the PACSystems RX3i control platform. Engineered for demanding industrial applications, this 16-channel analog input module allows for reliable and precise data acquisition from field devices such as sensors and transmitters. It supports multiple input types, including voltage and current, and offers configurable parameters to suit a wide range of monitoring needs.

The module fits seamlessly into the RX3i backplane and provides superior diagnostic capabilities and signal integrity. It is ideal for process automation, utilities, and manufacturing environments that require scalable and robust I/O systems.

Product Specifications

Product Applications

The IC695ALG608 is commonly deployed in a variety of industries where precise analog measurement is critical. Key application areas include:

• Process Automation: Temperature, pressure, flow, and level measurements.

• Water/Wastewater Treatment: Monitoring of pH, turbidity, and flow rate.

• Power Generation: Sensor interfacing for control and monitoring systems.

• Oil & Gas: Real-time data acquisition for pressure and flow analysis.

• Pharmaceuticals: Integration with cleanroom instrumentation for batch processes.

• Manufacturing: Machine condition monitoring and environmental data logging.

Product Advantages

• High Channel Density: 16 input channels minimize rack space usage.

• Flexible Input Support: Compatible with both voltage and current signals.

• Built-in Diagnostics: Improves system reliability with open circuit and overrange detection.

• Isolation Protection: Enhances safety and signal integrity by isolating channels.

• Hot Swappable: Reduces system downtime during maintenance or replacement.

• Wide Operating Temperature: Suitable for harsh industrial environments.

• Seamless RX3i Integration: Easy configuration via Proficy Machine Edition.

Frequently Asked Questions (FAQ)

1. Q: What types of input signals does the IC695ALG608 support?
   A: It supports both voltage (±10V, ±5V, 0–10V, 0–5V) and current (0–20 mA, 4–20 mA) input signals.

2. Q: Can I use all 16 channels simultaneously?
   A: Yes, all 16 channels can be used simultaneously, and each channel can be individually configured.

3. Q: Is the module hot-swappable?
   A: Yes, it supports hot swapping without shutting down the system.

4. Q: What is the resolution of the analog inputs?
   A: The module features a 16-bit resolution for precise measurements.

5. Q: Is channel-to-channel isolation provided?
   A: Yes, the module offers channel-to-channel and channel-to-backplane isolation.

6. Q: What diagnostic functions are available?
   A: It includes open wire detection, overvoltage protection, and out-of-range indication.

7. Q: Can I mix voltage and current signals on different channels?
   A: Yes, each channel can be independently configured for voltage or current.

8. Q: What software is used to configure the IC695ALG608?
   A: GE Proficy Machine Edition is used for configuration and diagnostics.

9. Q: Is the IC695ALG608 CE certified?
   A: Yes, it meets CE and RoHS compliance standards.

10. Q: What happens if one channel fails?
    A: Diagnostic indicators and software flags will alert the user, allowing for fast troubleshooting.
