Product Introduction

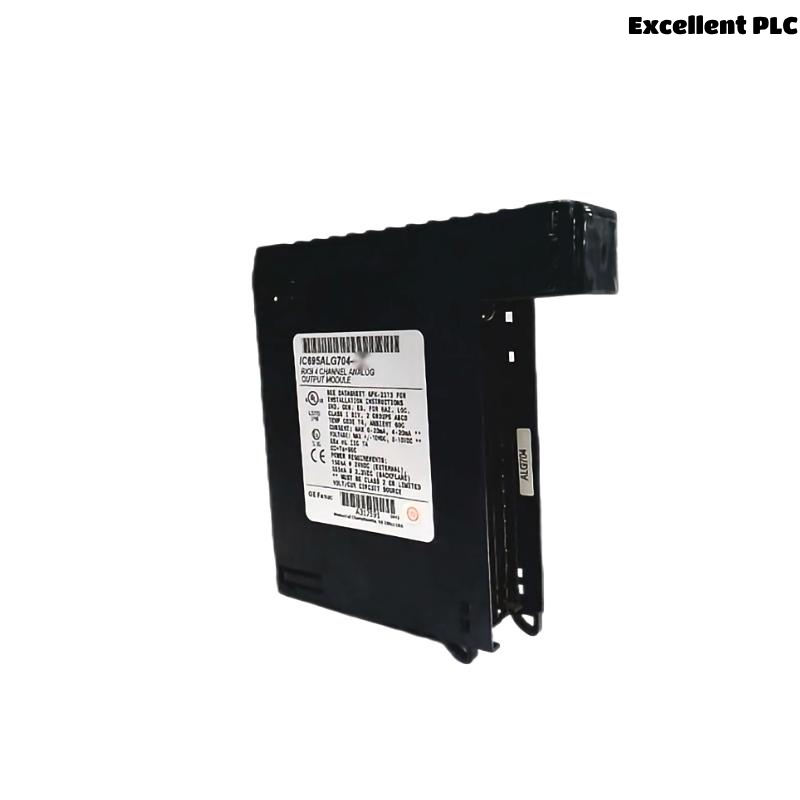

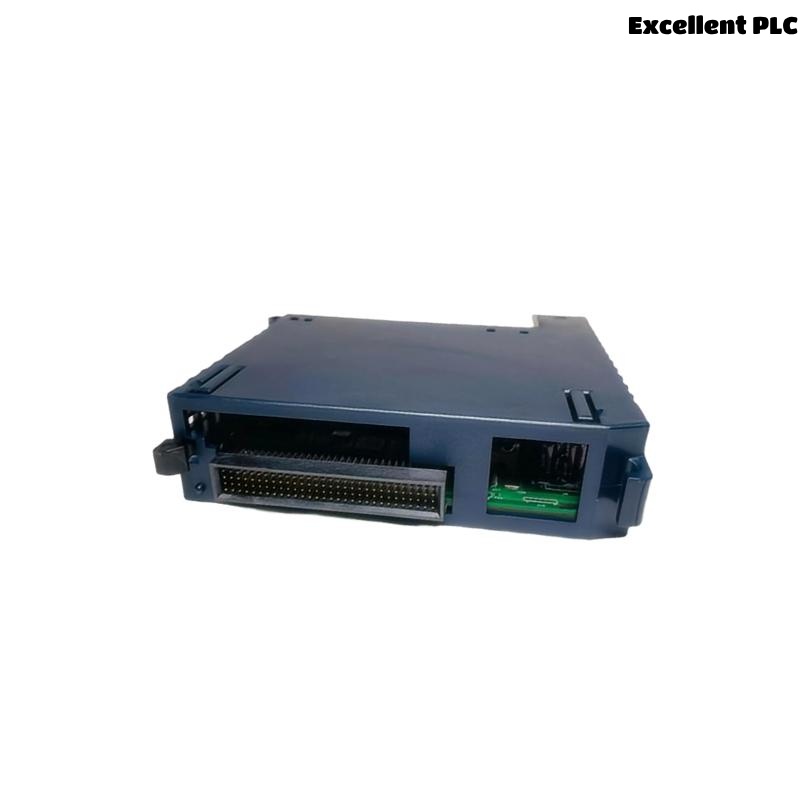

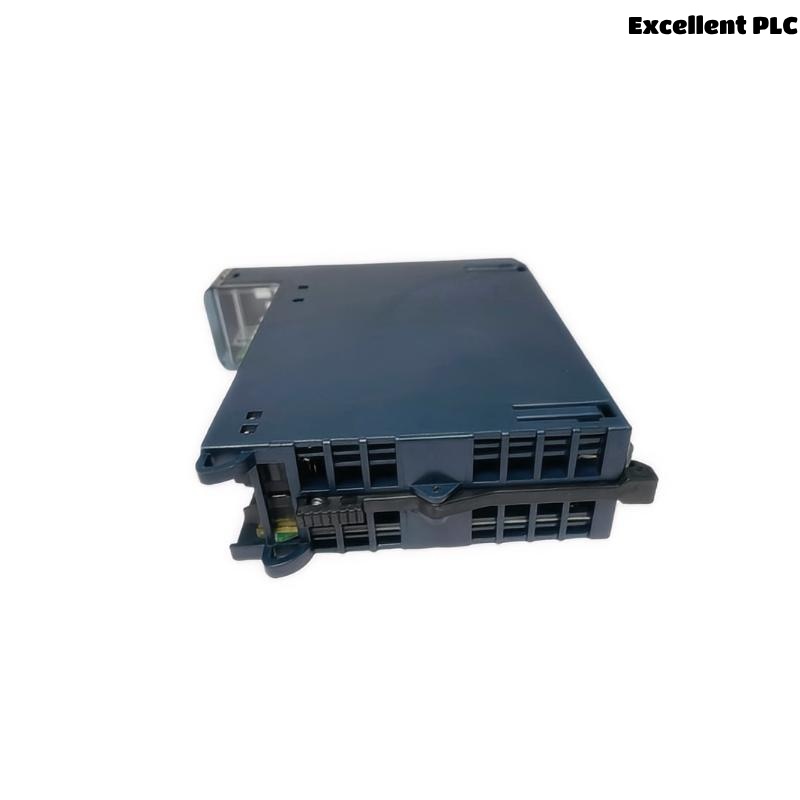

The GE IC695ALG704 is a high-performance 4-channel Analog Output Module specifically engineered for use within the PACSystems RX3i control platform. Designed for industrial-grade applications, this module delivers precise and configurable analog output signals in both current and voltage formats, supporting a wide array of control and monitoring devices such as actuators, positioning drives, and control valves.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC695ALG704 |
| Manufacturer | GE Automation / Emerson Automation |
| Series | PACSystems RX3i |
| Output Channels | 4 non-isolated |
| Output Signal Ranges | Voltage: ±10V, 0–10V<br>Current: 0–20mA, 4–20mA |
| Resolution | ±10V: 15.9 bits<br>0–10V: 14.9 bits<br>0–20mA: 15.9 bits<br>4–20mA: 15.6 bits |
| Update Rate | 8 milliseconds |
| Output Load | Voltage: ≥2 kΩ<br>Current: ≤850 Ω |
| Power Requirements | 3.3V at 375 mA; 24V at 160 mA |
| Power Dissipation | 4.8 W maximum |
| Output Protection | -30V for 60 seconds<br>+30V for one hour |
| Calibrated Accuracy | ±0.15% of full scale at 25°C<br>±0.30% at 60°C |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions (W x H x D) | 34 x 140 x 145 mm |
| Weight | 0.227 kg |
| Mounting | DIN Rail Mounting |
| Certifications | UL, CE, CSA |
Product Applications
-
Industrial Automation: Controls actuators, valves, and drives in manufacturing processes.
-
Process Control Systems: Provides precise analog signals for monitoring and controlling process variables.
-
Energy Sector: Used in power generation and distribution systems for accurate control of electrical parameters.
-
Building Automation: Manages HVAC systems and lighting controls through analog outputs.
-
Water and Wastewater Treatment: Controls pumps, valves, and chemical dosing systems.
Product Advantages
-
High Precision: Offers high-resolution outputs for accurate control.
-
Versatility: Supports both voltage and current outputs, accommodating various devices.
-
Fast Response: 8 ms update rate ensures timely signal delivery.
-
Robust Protection: Built-in overvoltage and overcurrent protection enhances reliability.
-
Easy Integration: Seamlessly integrates with PACSystems RX3i series.
-
Compact Design: Space-saving form factor suitable for various installations.
Frequently Asked Questions (FAQ)
-
What output signal ranges does the IC695ALG704 support?
It supports voltage outputs of ±10V and 0–10V, and current outputs of 0–20mA and 4–20mA. -
How many output channels are available on this module?
The module provides 4 non-isolated analog output channels. -
What is the resolution of the analog outputs?
The resolution varies: ±10V at 15.9 bits, 0–10V at 14.9 bits, 0–20mA at 15.9 bits, and 4–20mA at 15.6 bits. -
What is the update rate for the outputs?
The module updates all outputs approximately every 8 milliseconds. -
What are the power requirements for the module?
It requires 3.3V at 375 mA and 24V at 160 mA. -
Does the module have built-in protection features?
Yes, it includes overvoltage protection of -30V for 60 seconds and +30V for one hour. -
What is the calibrated accuracy of the outputs?
The outputs have a calibrated accuracy of ±0.15% of full scale at 25°C and ±0.30% at 60°C. -
What is the operating temperature range?
The module operates between 0°C and +60°C. -
What are the dimensions and weight of the module?
It measures 34 x 140 x 145 mm and weighs 0.227 kg. -
Is the module compatible with other PACSystems RX3i components?
Yes, it is designed to integrate seamlessly with the PACSystems RX3i series.
Related Models
| Model Number | Description | Notes |
|---|---|---|

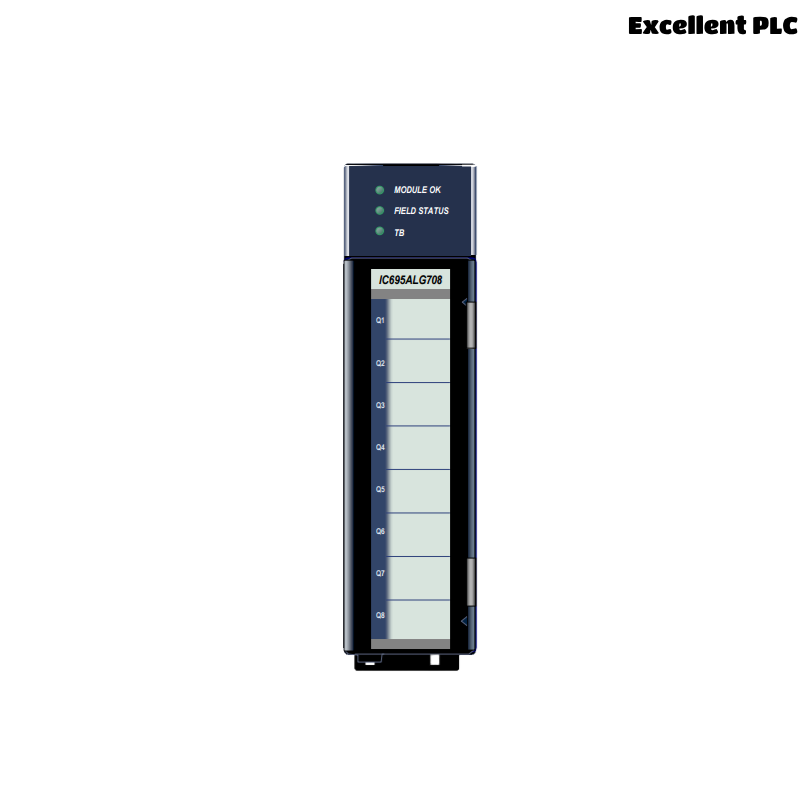

| IC695ALG708 | 8-Channel Analog Output Module | Offers more output channels for larger applications. |
| IC695ALG808 | 8-Channel Isolated Analog Output Module | Provides channel-to-channel isolation for enhanced protection. |
| IC695ALG600 | Universal Analog Input Module | Supports voltage, current, RTD, and thermocouple inputs. |
| IC695ALG616 | 16-Channel Analog Input Module | High-density input module for extensive monitoring. |
| IC695ALG608 | 8-Channel Analog Input Module | Offers high-resolution inputs for precise measurements. |
| IC695ALG626 | Analog Input Module with HART Communication | Enables digital communication with HART-enabled devices. |
