Product Introduction

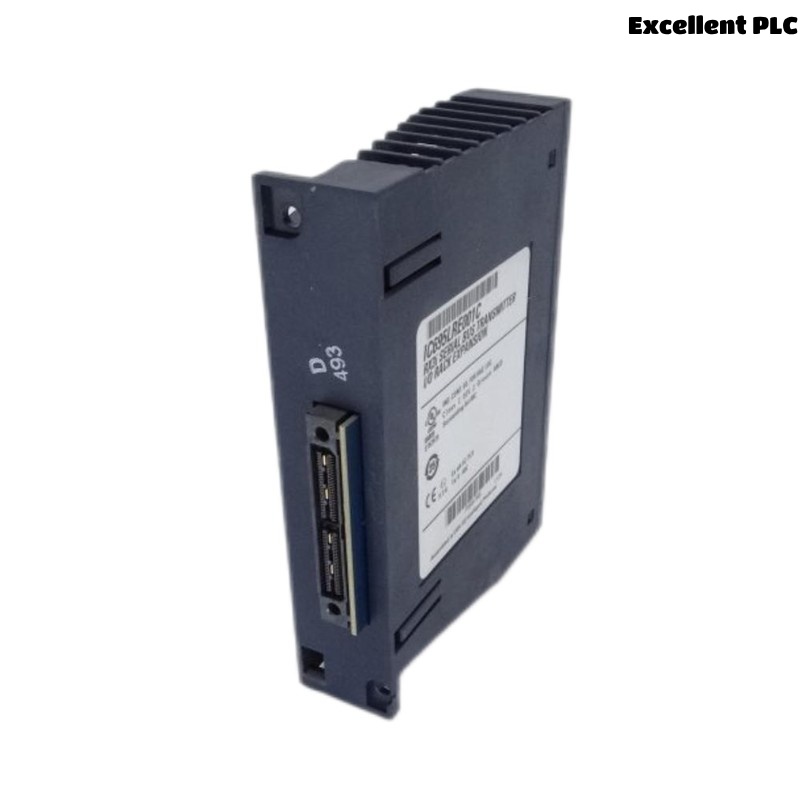

The GE IC695LRE001 is a Serial Bus Transmitter Module designed for the PACSystems RX3i platform. It facilitates communication between the RX3i Universal Backplane and serial expansion or remote backplanes (IC694- or IC693-model numbers). By translating signal levels between the Universal Backplane and Serial Expansion Backplane, it ensures seamless data transmission across the system.

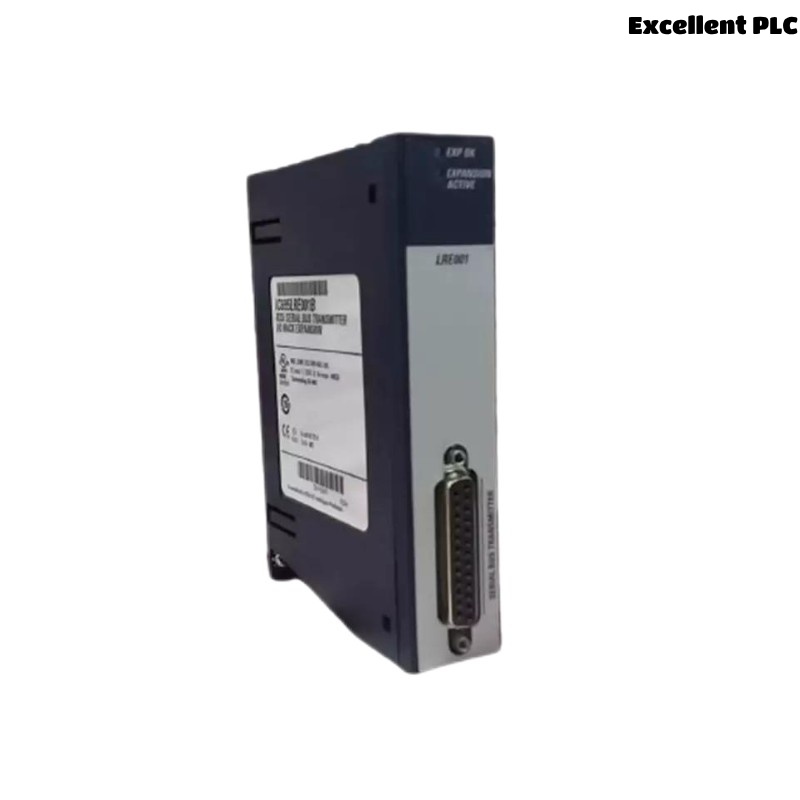

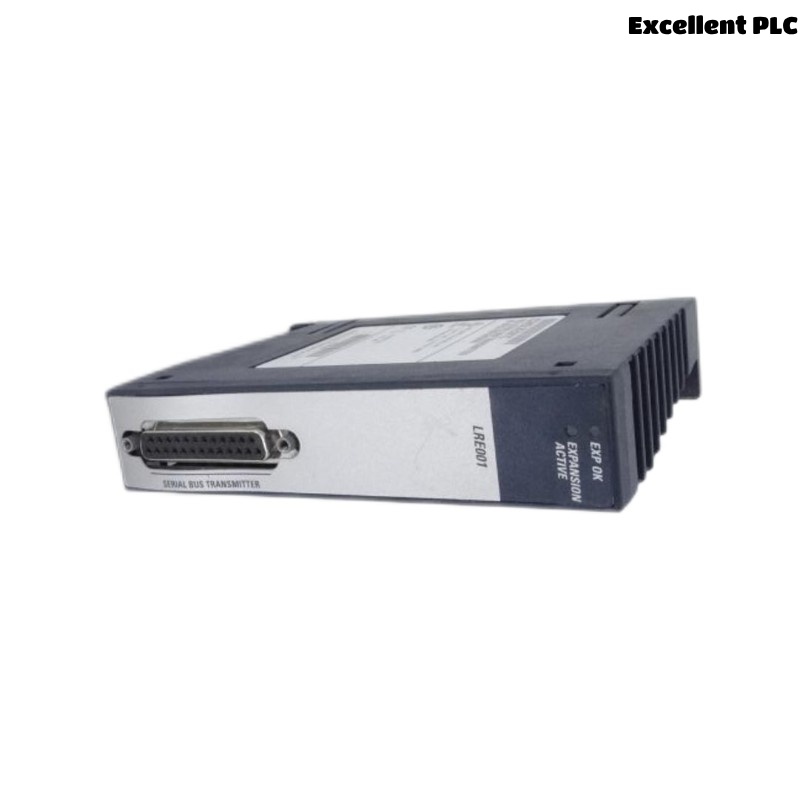

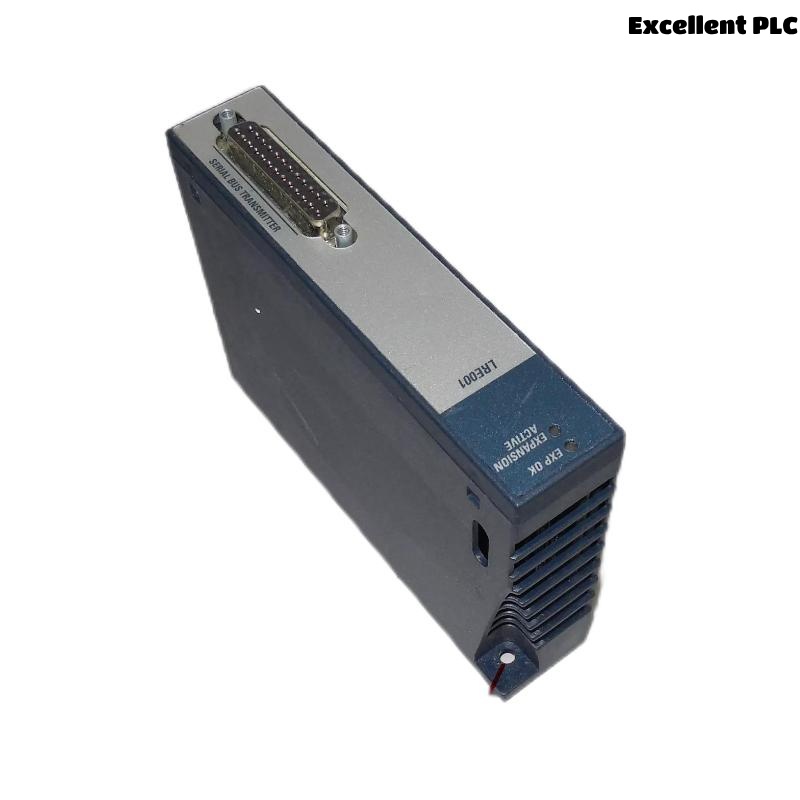

This module must be installed in the special expansion connector located on the right end of the Universal Backplane. It is equipped with two green LEDs that indicate the operating status of the module and the status of the expansion link. The “EXP OK” LED lights up when backplane 5V power is applied, while the “Expansion Active” LED indicates the status of the expansion bus communication.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | IC695LRE001 |
| Module Type | Serial Bus Transmitter Module |
| Number of Slots | 1 (single slot) |
| Current Required from Backplane | 132 mA @ 5 V DC |
| Communication Protocol | RS-232 DCE |
| Effective Data Rate | 500 kBytes per second |
| Maximum Expansion Cable Length | 15 meters (50 feet) – Expansion Backplanes |
| Maximum Remote Cable Length | 213 meters (700 feet) – Remote Backplanes |
| Electrical Isolation | Non-isolated differential communications |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Dimensions (W x H x D) | 35.6 × 25.4 × 135 mm |
| Weight | 0.0223 kg |
| Mounting | Special expansion connector on Universal Backplane |
| Compliance | UL, CE, CSA |
Applications
The GE IC695LRE001 module is utilized in various industrial and automation environments where reliable communication between backplanes is essential:
-
Manufacturing Automation: Facilitates communication between central controllers and remote I/O modules in production lines.
-
Process Control: Enables data exchange between control systems and field devices in chemical and petrochemical plants.
-
Energy Sector: Supports communication in power generation and distribution systems.
-
Water Treatment Plants: Assists in managing data flow between control units and treatment equipment.
-
Material Handling: Ensures seamless communication in logistics and warehousing systems.
-
Building Automation: Integrates various building systems by enabling communication between controllers and remote devices.
Advantages
-
Efficient Communication: Provides high-speed data transfer at 500 kBytes per second, ensuring timely information exchange.
-
Extended Connectivity: Supports long-distance communication with remote backplanes up to 213 meters away.
-
Compact Design: Its small footprint allows for easy integration into existing systems without requiring significant space.
-
Status Indicators: Equipped with LEDs that provide real-time status updates, aiding in quick diagnostics.
-
Versatile Mounting: Designed to fit into the special expansion connector on the Universal Backplane, simplifying installation.
-
Robust Construction: Built to withstand industrial environments with wide operating and storage temperature ranges.
-
Compliance: Meets international standards, ensuring safety and reliability in various applications.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the IC695LRE001 module?
A1: It facilitates communication between the RX3i Universal Backplane and serial expansion or remote backplanes by translating signal levels.
Q2: Where should the module be installed?
A2: It must be installed in the special expansion connector located on the right end of the Universal Backplane.
Q3: Can the module be hot-inserted into the backplane?
A3: No, power must be removed before installing or removing the module.
Q4: What are the maximum cable lengths supported?
A4: 15 meters (50 feet) for expansion backplanes and 213 meters (700 feet) for remote backplanes.
Q5: What is the effective data rate of the module?
A5: It supports a data rate of 500 kBytes per second.
Q6: Does the module provide electrical isolation?
A6: No, it uses non-isolated differential communications.
Q7: What are the operating temperature ranges?
A7: The module operates between -20°C and +60°C and can be stored between -40°C and +85°C.
Q8: What type of communication protocol does it use?
A8: It uses RS-232 DCE for communication.
Q9: Are there any status indicators on the module?
A9: Yes, it has two green LEDs: “EXP OK” and “Expansion Active” to indicate power and communication status.
Q10: Is the module compliant with international standards?
A10: Yes, it complies with UL, CE, and CSA standards.
Related Models (Same Series or Function)
| Model Number | Description |
|---|---|
| IC695CHS012 | 12-slot Universal Backplane |
| IC695CHS016 | 16-slot Universal Backplane |
| IC694CHS392 | 10-slot Serial Expansion Backplane |
| IC694CHS398 | 5-slot Serial Expansion Backplane |
| IC693CBL300 | 1-meter I/O Bus Expansion Cable |
| IC693CBL301 | 2-meter I/O Bus Expansion Cable |
