Product Introduction

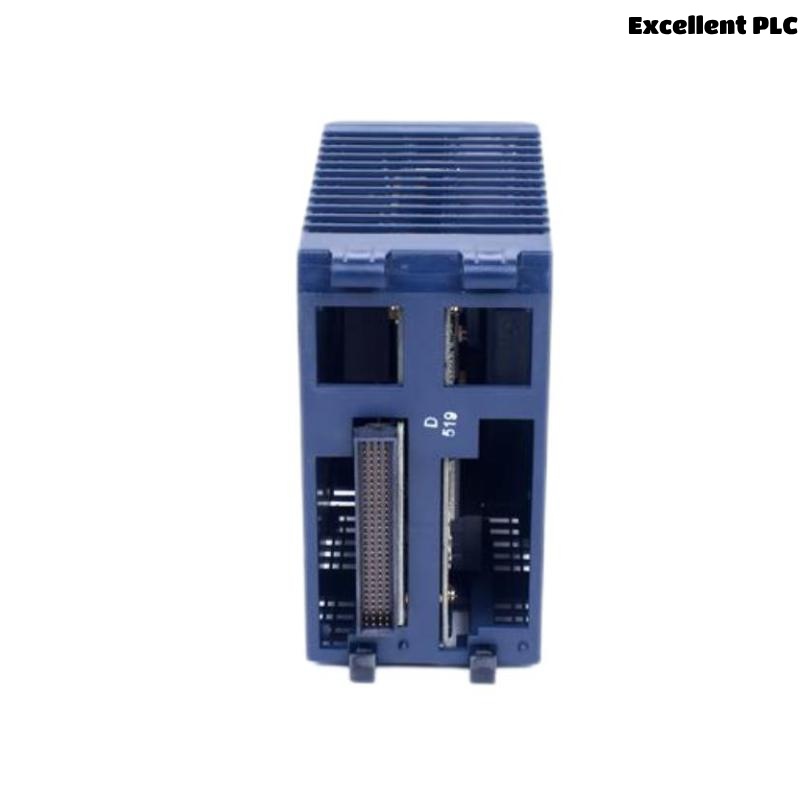

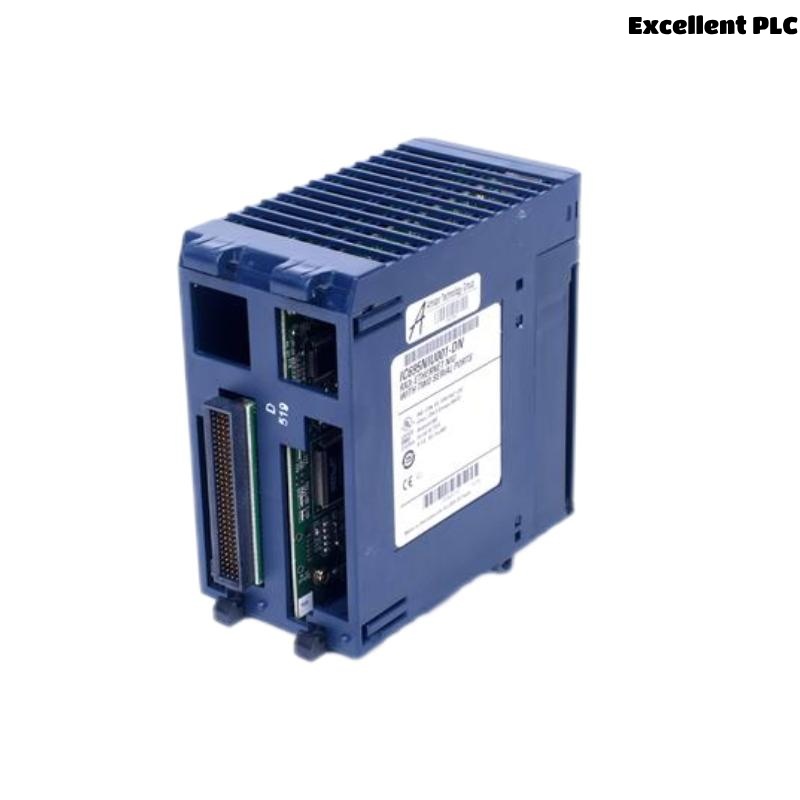

The GE IC695NIU001 is a Network Interface Unit (NIU) used in the PACSystems RX3i family. It allows a remote I/O rack to operate as an intelligent node on a PROFINET or Ethernet network, facilitating high-speed, distributed I/O and modular control. Designed to deliver performance, flexibility, and scalability, it provides efficient I/O communication without requiring a local CPU. The NIU architecture allows for reduced system cost while maintaining high reliability and deterministic control over industrial Ethernet.
The IC695NIU001 supports PROFINET communication via integrated ports or with the addition of an Ethernet daughtercard. It is compatible with a broad range of RX3i I/O modules, offering integration into many industrial automation processes where centralized or distributed control is essential.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | IC695NIU001 |
| Product Type | Network Interface Unit |
| Series | PACSystems RX3i |
| Power Supply Voltage | 18–30 VDC (nominal 24 VDC) |
| Current Consumption | 1.25 A at 3.3 VDC (typical) |
| Communication Interfaces | Dual 10/100 Mbps Ethernet Ports |
| Supported Protocols | PROFINET, Modbus TCP/IP, SRTP |
| Backplane Compatibility | RX3i Universal Backplane |
| I/O Module Support | Supports all RX3i I/O Modules |
| Redundancy | Supports controller-level redundancy |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting | DIN rail or panel mount |
| Dimensions | 35.6 x 125x 150 mm |
| Weight | 0.2 kg |
Product Applications
The GE IC695NIU001 is suitable for the following applications:
-
Remote I/O Control: Acts as a headless controller for remote RX3i I/O racks.
-
Distributed Automation Systems: Ideal for large-scale manufacturing or processing plants where control must be spread over multiple zones.
-
Industrial Ethernet Networking: Supports Ethernet-based control systems that need reliable and deterministic communication.
-
Energy Management Systems: Frequently found in power generation and distribution automation.
-
OEM Equipment Integration: Embedded in machinery or skids for specialized industrial operations.
-
Process Industries: Used in oil and gas, chemical processing, and water treatment facilities.
Product Advantages
-
Headless Operation: Reduces hardware cost by eliminating the need for a local CPU while still enabling intelligent I/O management.
-
Compact Form Factor: Small size makes it suitable for space-constrained installations.
-
Flexible Networking: Native support for Ethernet protocols such as PROFINET and Modbus TCP/IP enhances integration.
-
High Reliability: Industrial-grade build and robust operating temperature range ensure long-term performance.
-
Scalable I/O: Supports multiple I/O modules through RX3i backplane, allowing for future expansion.
-
Plug-and-Play Configuration: Seamless integration into PACSystems architecture, reducing setup time.
-
Redundancy Support: Ensures system uptime for critical applications through controller redundancy.
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the IC695NIU001?
A1: It serves as a network interface controller to connect a remote I/O rack to a central controller over Ethernet.
Q2: Can the IC695NIU001 be used without a CPU?
A2: Yes, it is designed to operate without a local CPU and manages I/O communications autonomously.
Q3: What types of Ethernet protocols are supported?
A3: PROFINET, Modbus TCP/IP, and GE’s native SRTP are all supported.
Q4: How is the unit powered?
A4: It requires 18–30 VDC, with 24 VDC as the nominal supply voltage.
Q5: Does it support hot-swap of I/O modules?
A5: Yes, I/O modules can typically be hot-swapped when used with compatible RX3i backplanes.
Q6: Can it be used in redundant control systems?
A6: Yes, it supports controller redundancy for critical applications.
Q7: What is the maximum ambient temperature it can handle?
A7: It can operate at temperatures up to 60°C (140°F).
Q8: What are the installation options?
A8: The unit can be mounted on a DIN rail or directly on a panel.
Q9: Is it compatible with all RX3i modules?
A9: It supports all RX3i I/O modules when installed on an RX3i universal backplane.
Q10: How do I configure the NIU on a network?
A10: Configuration is typically done via GE’s Proficy Machine Edition software.
