Product Introduction

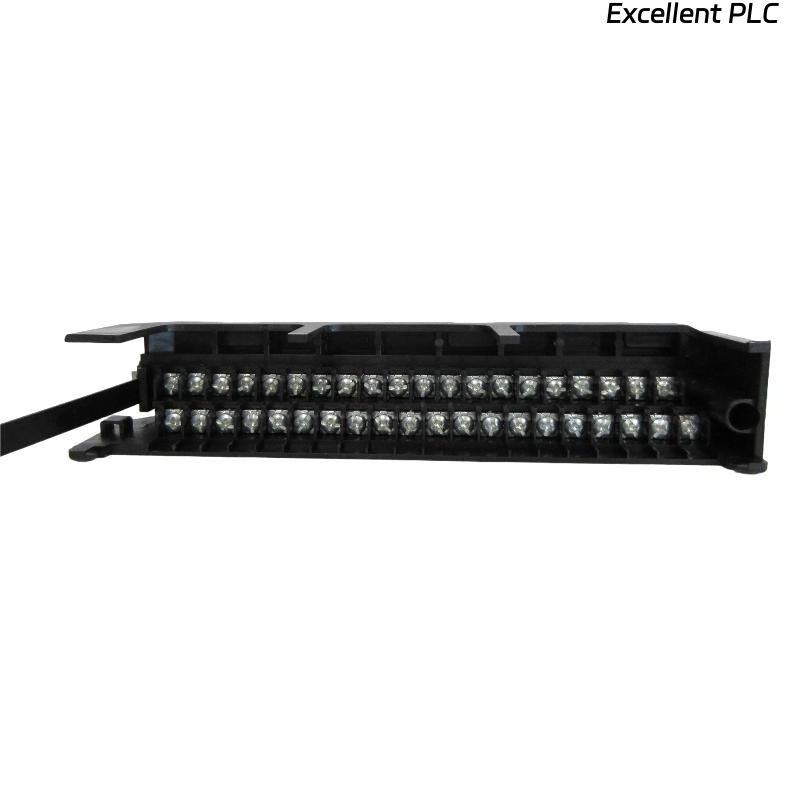

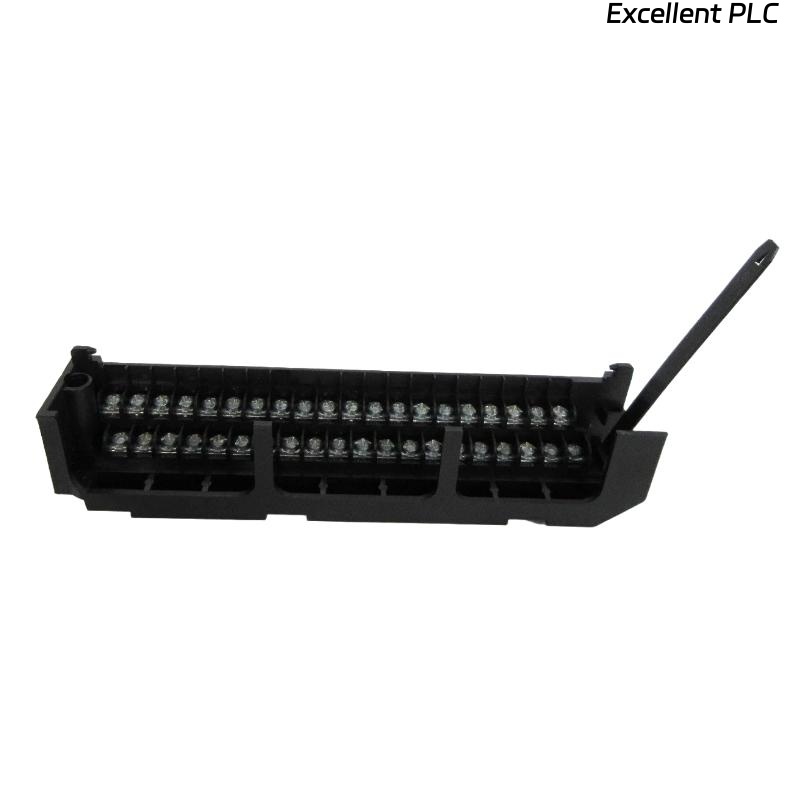

The GE IC697ACC700 Terminal Block is a robust and reliable interface component designed for the GE Series 90-70/90-30 PLC systems and modular automation platforms. This terminal block serves as a central connection point for field wiring, providing secure, organized, and reliable termination of input and output signals to controllers, relays, sensors, and actuators.
The IC697ACC700 is engineered for industrial environments, ensuring high electrical and mechanical reliability under harsh conditions such as vibration, temperature variation, and electromagnetic interference. Its design simplifies installation, wiring maintenance, and system expansion. The terminal block provides clearly labeled, screw-type or spring-clamp connections for consistent contact quality, reducing the risk of loose connections that could lead to system faults.
This component is widely used in process control, manufacturing automation, and power generation systems, where accurate signal management and reliable interconnection are critical for safety and operational efficiency.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IC697ACC700 |
| Product Type | Terminal Block |
| Manufacturer | GE Automation & Controls |
| Function | Provides secure electrical connections for PLC I/O modules |
| Connection Type | Screw-type terminals |
| Wire Size Supported | 24–14 AWG (0.2–2.5 mm²) |
| Rated Voltage | 300 V AC/DC |
| Rated Current | 10 A per terminal |
| Insulation Material | High-grade polyamide or thermoplastic |
| Operating Temperature | -20°C to +70°C |
| Mechanical Protection | Vibration and shock resistant |
| Mounting Method | DIN rail or panel mount compatible |
| Status Indicators | None (passive connection component) |
| Compliance | UL, CE, and IEC standards for industrial terminal blocks |
| Dimensions | 12 × 100 × 55 mm |
| Weight | 1.79 kg |
| Environment | Suitable for indoor industrial use with moderate humidity |
Product Applications
The IC697ACC700 Terminal Block is used in a wide variety of industrial automation and control applications:
-
GE Series 90-70 and Series 90-30 PLC systems – connecting discrete and analog I/O modules.
-
Process control plants – interfacing sensors, actuators, and relays to PLCs.
-
Power generation systems – connecting monitoring and control circuits in turbine and generator systems.
-
Manufacturing automation – facilitating wiring and signal routing in assembly lines and robotics.
-
Building automation systems – managing electrical and control wiring for HVAC, lighting, and safety systems.
By providing a centralized and secure connection point, this terminal block ensures signal reliability, ease of maintenance, and organized wiring layouts in complex control systems.
Product Advantages
-
Reliable Electrical Connections – Screw-type terminals ensure consistent contact pressure and low resistance.
-
Flexible Wiring Support – Accommodates wire sizes from 24–14 AWG for various applications.
-
Industrial Durability – Resistant to vibration, shock, and moderate temperature changes.
-
Safe Voltage Rating – Supports up to 300 V AC/DC for safe signal transmission.
-
Compact and Space-Saving Design – Fits standard DIN rail or panel mounting configurations.
-
Simplifies Maintenance – Clearly labeled terminals make troubleshooting and rewiring straightforward.
-
Compatibility – Integrates seamlessly with GE Series 90-70/90-30 PLC systems and I/O modules.
-
Reduced Installation Errors – Uniform design and markings improve wiring accuracy.
-
High-Quality Insulation – Polyamide/thermoplastic material provides electrical safety and reliability.
-
Standard Compliance – Meets UL, CE, and IEC standards for industrial control devices.
FAQ
-
What is the primary function of the IC697ACC700?
It provides secure electrical connections for PLC input/output modules, enabling reliable signal transmission. -
What type of terminals does it use?
The terminal block uses screw-type terminals for consistent and secure connections. -
Which wire sizes are supported?
Wire sizes from 24 AWG to 14 AWG (0.2–2.5 mm²) are supported. -
What is the rated voltage and current per terminal?
The block supports up to 300 V AC/DC and 10 A per terminal. -
Can it be mounted on a DIN rail?
Yes, it supports standard DIN rail and panel mounting configurations. -
Is the terminal block compatible with Series 90-30 PLC systems?
Yes, it is fully compatible with both Series 90-30 and Series 90-70 PLC systems. -
Does the terminal block include any status indicators?
No, it is a passive connection component without LEDs or status indicators. -
Can it operate in industrial environments with vibration?
Yes, it is designed to withstand vibration and mechanical shock typical of industrial settings. -
What is the operating temperature range?
It operates reliably between -20°C and +70°C. -
What insulation material is used?
High-grade polyamide or thermoplastic is used for electrical insulation and durability.
