Product Introduction

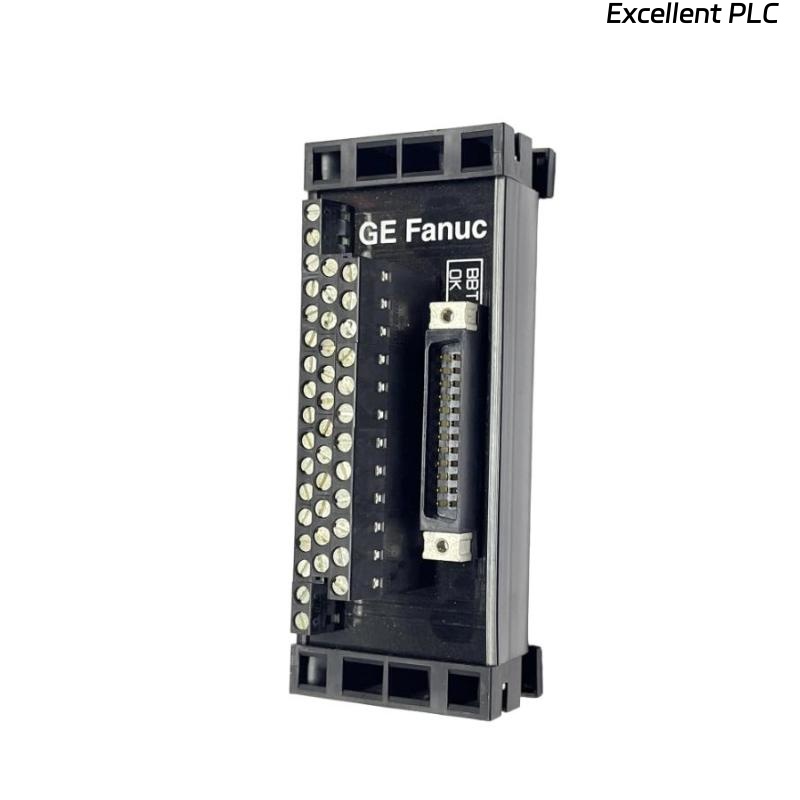

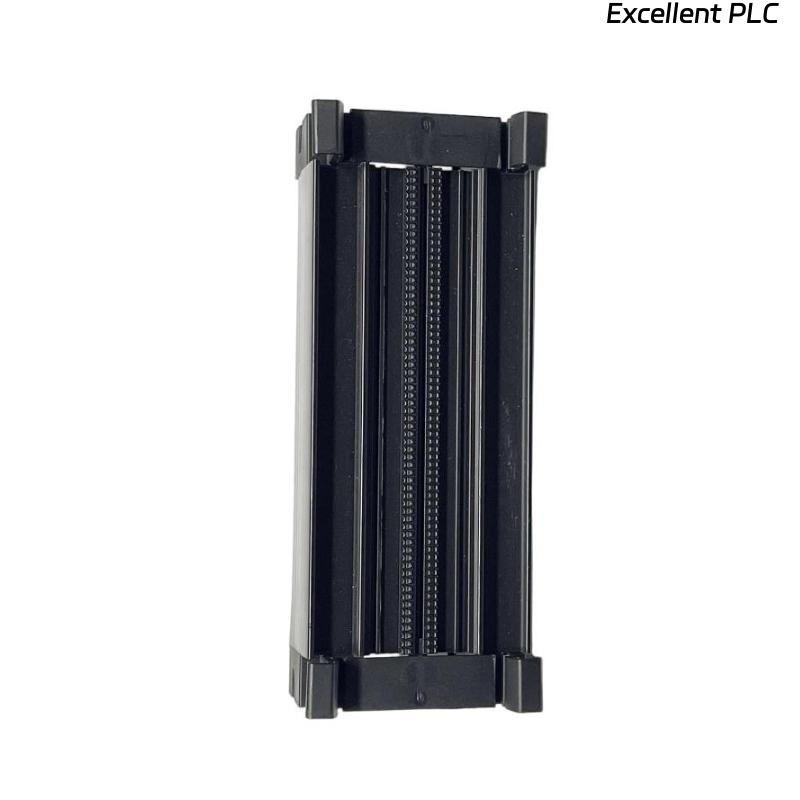

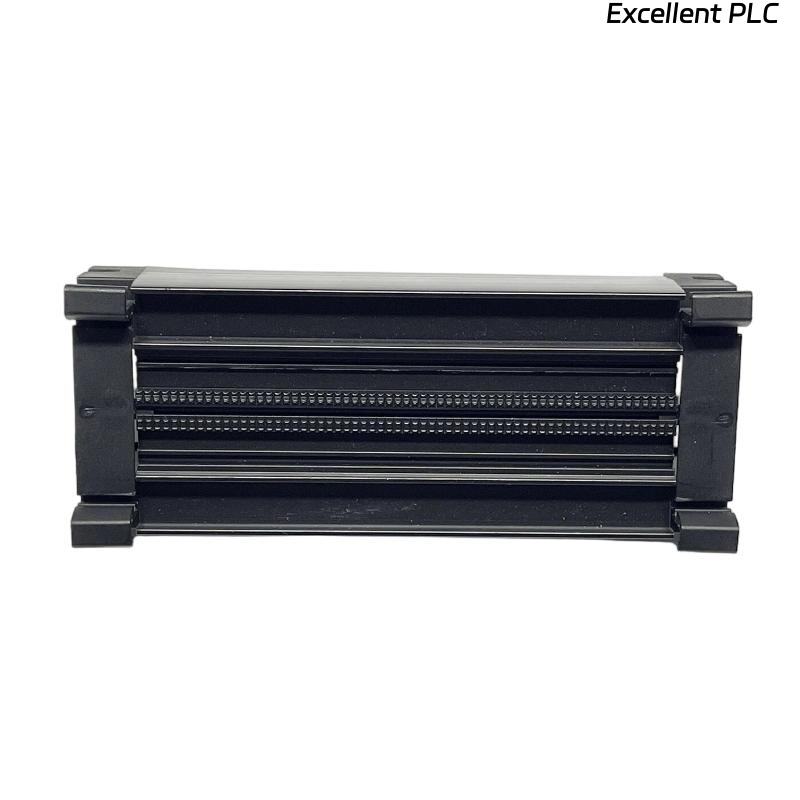

The GE IC697ACC730 Spare Slot Terminal is a specialized terminal block designed for GE Series 90-30 and Series 90-70 PLC systems. It serves as a placeholder or spare connection point within a PLC rack, providing the capability to reserve slots for future I/O expansion or maintain the integrity of unused module positions.
The IC697ACC730 ensures secure electrical continuity in unused or spare slots, preventing system faults caused by open or unconnected terminals. Its design allows easy installation and removal, providing flexibility for plant operators and maintenance personnel during system upgrades or modifications.
Engineered for industrial control environments, this spare slot terminal is compatible with a wide range of GE PLC modules and provides a reliable, insulated, and organized solution for managing spare or unused slots in automation racks. It is widely used in manufacturing plants, process control systems, and industrial automation facilities where future-proofing and modular expansion are required.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IC697ACC730 |
| Product Type | Spare Slot Terminal Block |
| Manufacturer | GE Automation & Controls |
| Function | Provides reserved connection or placeholder for unused PLC slots |
| Connection Type | Screw-type terminals |
| Wire Size Supported | 24–14 AWG (0.2–2.5 mm²) |
| Rated Voltage | 300 V AC/DC |
| Rated Current | 10 A per terminal |
| Insulation Material | Industrial-grade polyamide or thermoplastic |
| Operating Temperature | -20°C to +70°C |
| Mechanical Protection | Vibration and shock resistant |
| Mounting Method | DIN rail or PLC rack mount compatible |
| Status Indicators | None (passive component) |
| Dimensions | 80 × 100 × 50 mm |
| Weight | 0.16 kg |
| Compliance | UL, CE, and IEC standards for industrial terminal blocks |
| Environment | Indoor industrial use with moderate humidity |
Product Applications
The IC697ACC730 Spare Slot Terminal is commonly used in industrial automation systems for:
-
Series 90-30 and 90-70 PLC racks – reserving slots for future expansion or replacement modules.
-
Manufacturing automation plants – maintaining electrical integrity in unused positions of I/O racks.
-
Process control systems – ensuring safe and organized management of spare PLC slots.
-
Power generation facilities – facilitating modular upgrades without interrupting operations.
-
Industrial automation facilities – providing a ready connection point for new modules or system modifications.
This component supports system flexibility, simplifies maintenance, and prevents electrical faults caused by unconnected or open terminals.
Product Advantages
-
Maintains Electrical Continuity – Prevents faults from unconnected PLC slots.
-
Future-Proof Design – Allows quick expansion of PLC systems without rewiring.
-
Reliable Terminals – Screw-type connections provide consistent contact.
-
Flexible Installation – Compatible with DIN rails and standard PLC rack mounting.
-
Supports Standard Wire Sizes – Accommodates 24–14 AWG wiring.
-
Industrial Durability – Resistant to vibration, shock, and moderate temperature variations.
-
Compact Design – Saves space within PLC racks.
-
Simplifies Maintenance – Easily installed or removed during system upgrades.
-
High-Quality Insulation – Provides electrical safety and compliance with UL and IEC standards.
-
Cost-Effective Solution – Reduces downtime and system modification costs by providing ready-to-use spare slots.
