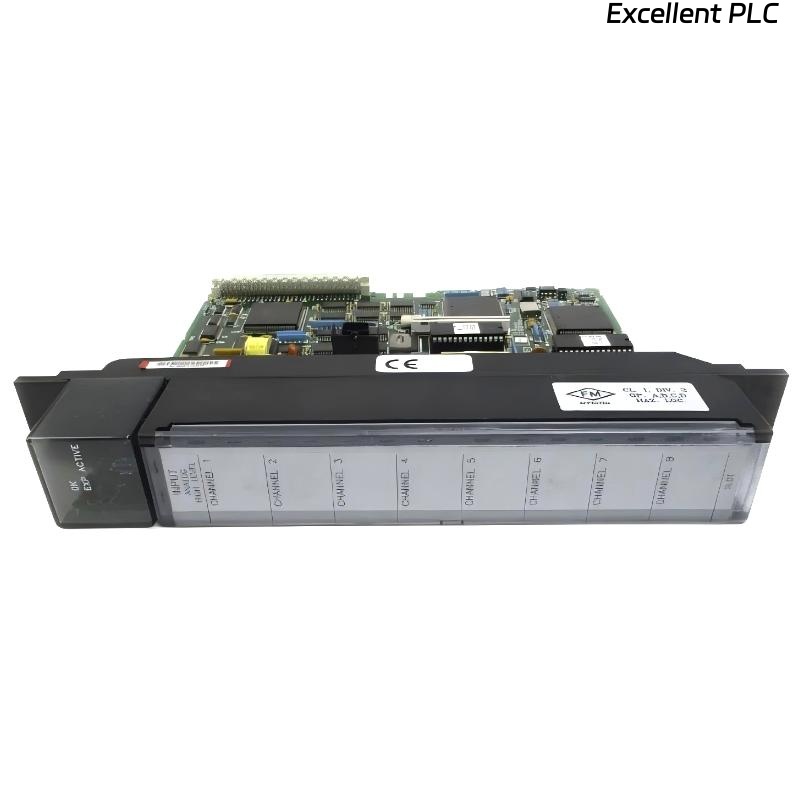

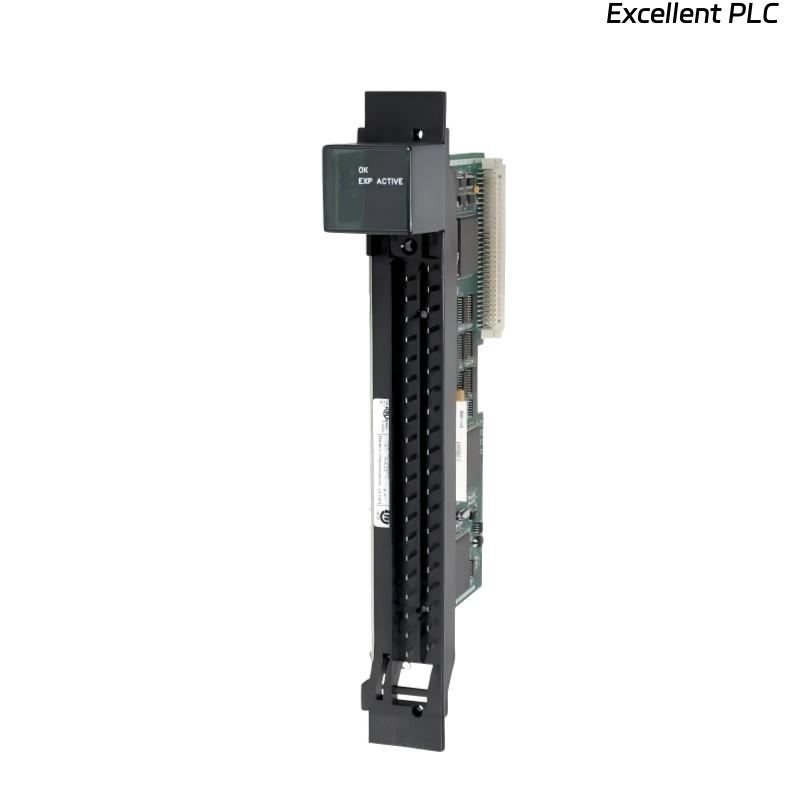

GE IC697ALG230J Analog Input Basic Converter Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The GE IC697ALG230J Analog Input Basic Converter Module is an advanced analog input interface designed for GE Fanuc Series 90-70 PLC systems. It converts analog signals from field devices such as transmitters, sensors, and gauges into precise digital data for programmable logic controllers (PLCs). Engineered for industrial-grade reliability, it ensures stable and accurate data acquisition even under demanding environmental and electrical conditions.

This module supports both voltage and current input signals and is ideal for real-time monitoring and closed-loop control in automation systems. It features software-configurable channels, high-resolution conversion, and integrated signal filtering, making it suitable for critical applications where analog signal fidelity is essential.

The IC697ALG230J offers flexible integration with other GE PLC components, maintaining seamless communication across the control system. It is particularly valued for its robust performance, precise measurements, and long-term stability in complex industrial environments such as process plants, power stations, and manufacturing automation lines.

---

Technical Specifications

---

Product Applications

The IC697ALG230J serves as a critical input device for analog data acquisition in a wide range of industrial control and monitoring applications. Its precise and reliable signal conversion capabilities make it suitable for:

• Process Control Systems: Acquiring data from transmitters for temperature, pressure, flow, or level measurement.

• Power Generation Plants: Monitoring analog feedback from turbines, excitation systems, and generator instrumentation.

• Manufacturing Automation: Providing real-time analog feedback to maintain product quality and control production variables.

• Chemical and Refining Plants: Reading and controlling process variables for safety and efficiency.

• Water and Wastewater Facilities: Monitoring levels, pH, flow, and pressure from analog transmitters.

• Energy Management Systems: Measuring analog voltage or current signals in distribution monitoring and energy optimization systems.

Through its stable performance and high conversion accuracy, the IC697ALG230J contributes to enhanced process reliability, reduced downtime, and better control performance across diverse industrial sectors.

---

Product Advantages

1. High Accuracy Conversion: 12-bit ADC ensures precision analog-to-digital conversion.

2. Multi-Signal Compatibility: Accepts both current and voltage signals for diverse sensor types.

3. Rapid Data Processing: 1 ms per channel conversion for real-time process response.

4. Software Configurability: User-adjustable filtering and input scaling for customized setups.

5. Superior Noise Immunity: High common mode rejection ensures reliable operation in noisy environments.

6. Industrial Durability: Designed to withstand harsh vibration, temperature fluctuations, and electrical interference.

7. Rack Integration: Fits directly into Series 90-70 racks, simplifying installation and maintenance.

8. Strong Electrical Isolation: Provides 1500 VDC isolation between field and logic circuits.

9. Compact and Lightweight Design: Optimized for control panel space efficiency.

10. Regulatory Compliance: Certified under major industrial safety and quality standards for global deployment.

---

FAQ

1. What types of analog input signals does the IC697ALG230J support?
   It supports both 0–10 VDC voltage inputs and 4–20 mA current loop inputs, selectable via software configuration.

2. How many channels does this module provide?
   The IC697ALG230J provides eight single-ended analog input channels for signal acquisition.

3. What is the ADC resolution for signal conversion?
   The module features a 12-bit analog-to-digital converter for high-precision measurements.

4. Is the input range software programmable?
   Yes, users can configure the input range and scaling parameters through GE PLC software.

5. What kind of filtering options are available?
   The module includes programmable low-pass filters to minimize electrical noise and signal fluctuation.

6. Can it measure both voltage and current simultaneously?
   Each channel can be configured independently; however, mixed input types should be verified per system configuration.

7. Does the IC697ALG230J provide channel isolation?
   It offers isolation between field inputs and the PLC logic circuitry up to 1500 VDC.

8. What is the power requirement for this module?
   It requires 5 VDC, supplied through the Series 90-70 PLC backplane.

9. Is calibration required after installation?
   Factory calibration is typically sufficient, but system-level calibration can be performed through the PLC software if necessary.

10. How is data from the IC697ALG230J accessed by the PLC CPU?
    Data is transmitted digitally via the backplane communication bus directly to the CPU for real-time processing and control.

---
