GE IC697CBL803 Cable

Product Introduction

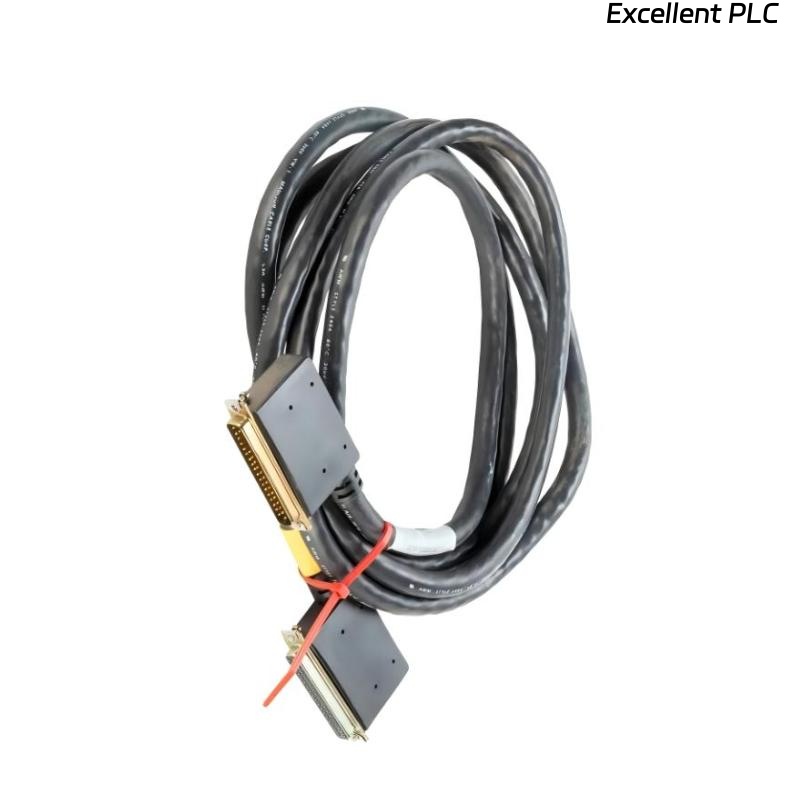

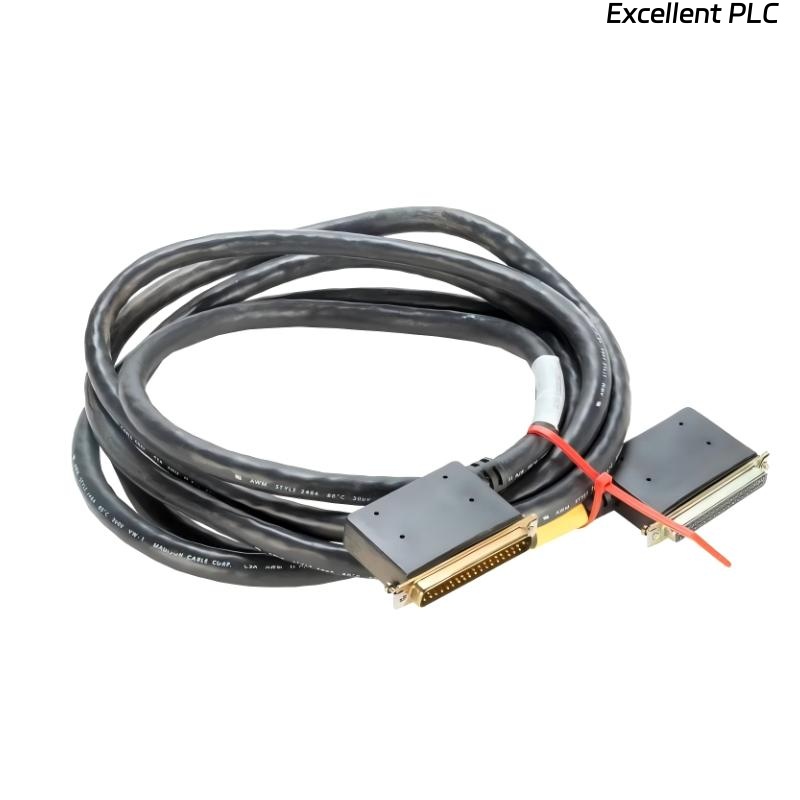

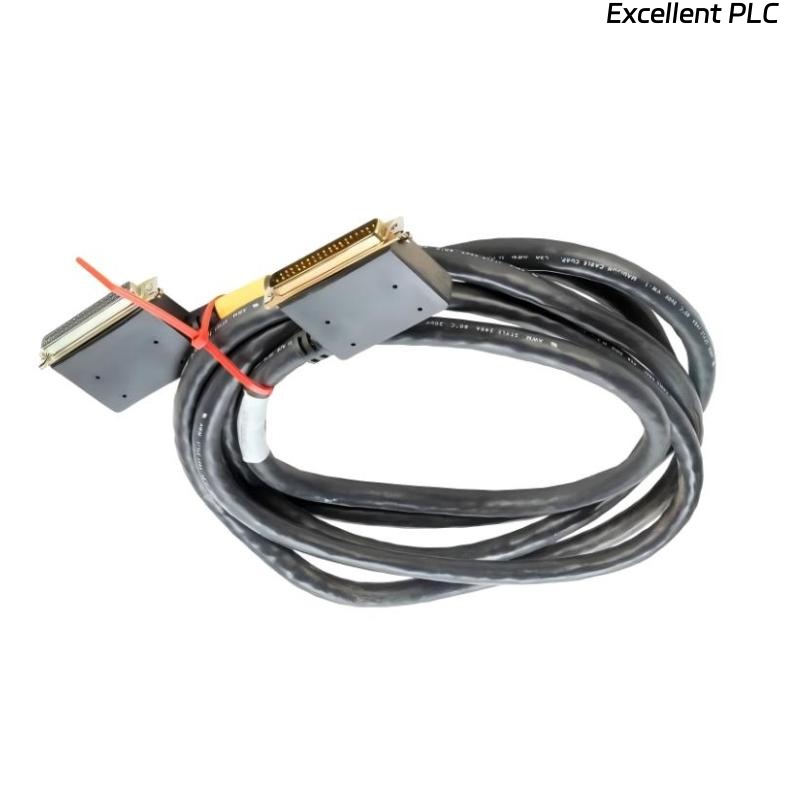

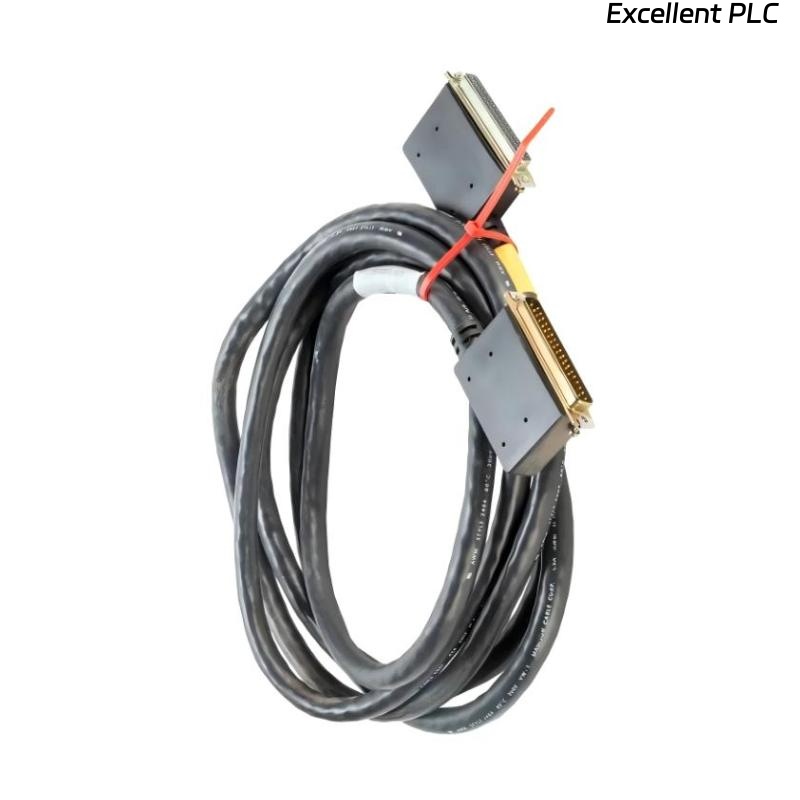

The GE IC697CBL803 Cable is a high-quality industrial cable designed for the GE Fanuc Series 90-70 PLC systems. This cable is primarily used for connecting modules, interface cards, and peripheral devices within PLC racks. It ensures reliable electrical transmission and signal integrity, supporting high-performance communication and control tasks in automated industrial environments.

The IC697CBL803 cable is engineered for robust industrial usage. With a standard length of 3 feet and durable insulation, it supports stable voltage and signal transmission under typical operating conditions. Its design allows flexible routing within control panels while maintaining performance, making it ideal for modular PLC systems where space and organization are critical.

Technical Specifications

Applications

The IC697CBL803 Cable is commonly used in industrial automation where short, reliable interconnections are required between PLC components. Typical applications include:

• Module Interconnection: Linking CPU, power supply, and interface modules within Series 90-70 racks.

• Drive Interface Connections: Connecting drive interface modules to control or I/O systems.

• Short Cable Runs: Providing high-quality connections in compact control panels where longer cables are unnecessary.

• Automation and Material Handling Systems: Ensuring signal and power integrity in conveyor, robotic, or assembly systems.

• Process Control: Supporting reliable connections in chemical, petrochemical, or manufacturing process control installations.

Advantages

• High Reliability: Shielded design ensures minimal interference and consistent electrical performance.

• Compact Length: 3 ft length is ideal for short, organized connections inside PLC racks.

• Industrial Durability: Designed to withstand standard industrial temperatures, humidity, and vibration.

• Easy Installation: Standard connectors simplify module-to-module connections without modification.

• Supports Modular Expansion: Facilitates flexible rearrangement or addition of modules within control systems.

• Stable Power and Signal Transmission: Ensures reliable operation of critical PLC components.

FAQ

1. What is the primary function of the IC697CBL803 cable?
   It provides reliable electrical and signal connections between modules within the Series 90-70 PLC system.

2. What is the rated voltage for this cable?
   The cable is rated for 125 VDC operation, suitable for standard PLC module power requirements.

3. What is the maximum current the cable can carry?
   The IC697CBL803 supports up to 10 A without performance degradation.

4. Is this cable compatible with all Series 90-70 PLC modules?
   Yes, it is designed for use with standard Series 90-70 modules, including CPUs, power supplies, and interface modules.

5. What is the operating temperature range for this cable?
   It operates reliably between 0°C and 60°C in typical industrial environments.

6. Does the cable provide protection against electrical interference?
   Yes, it has a shielded jacket to minimize electromagnetic interference and maintain signal integrity.

7. Can this cable be used in tight panel layouts?
   Yes, its 3 ft length and flexible design make it suitable for compact control panel installations.

8. What type of connectors does the IC697CBL803 use?
   Standard Series 90-70 PLC connectors are used for easy, secure installation.

9. Is this cable suitable for high-vibration environments?
   Yes, the reinforced shielded construction ensures stable performance under mechanical vibration.

10. Can this cable be used for modular expansion of PLC racks?
    Yes, it allows flexible addition or rearrangement of modules without replacing existing wiring.
