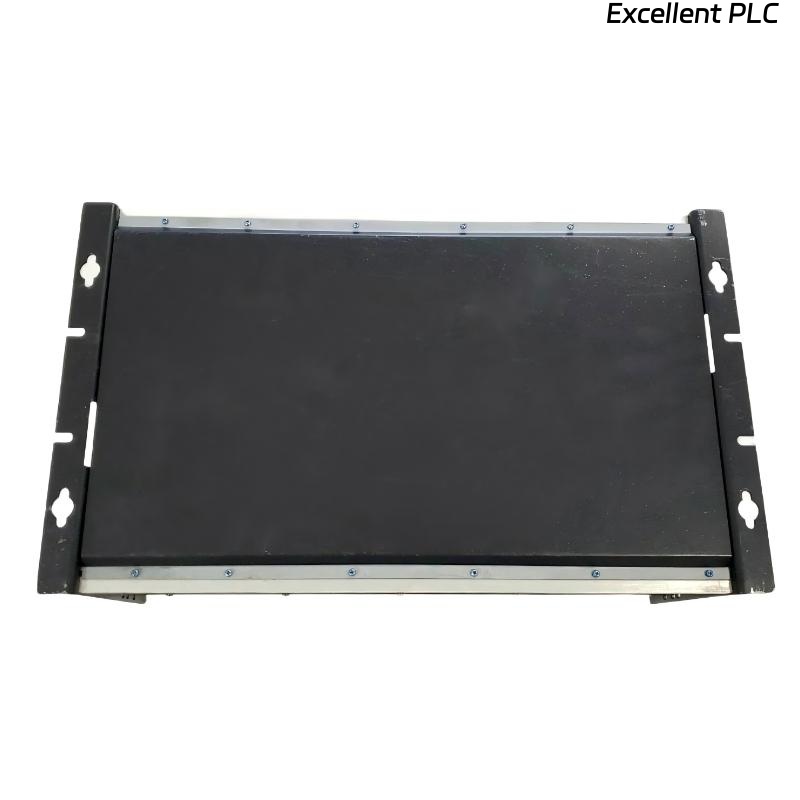

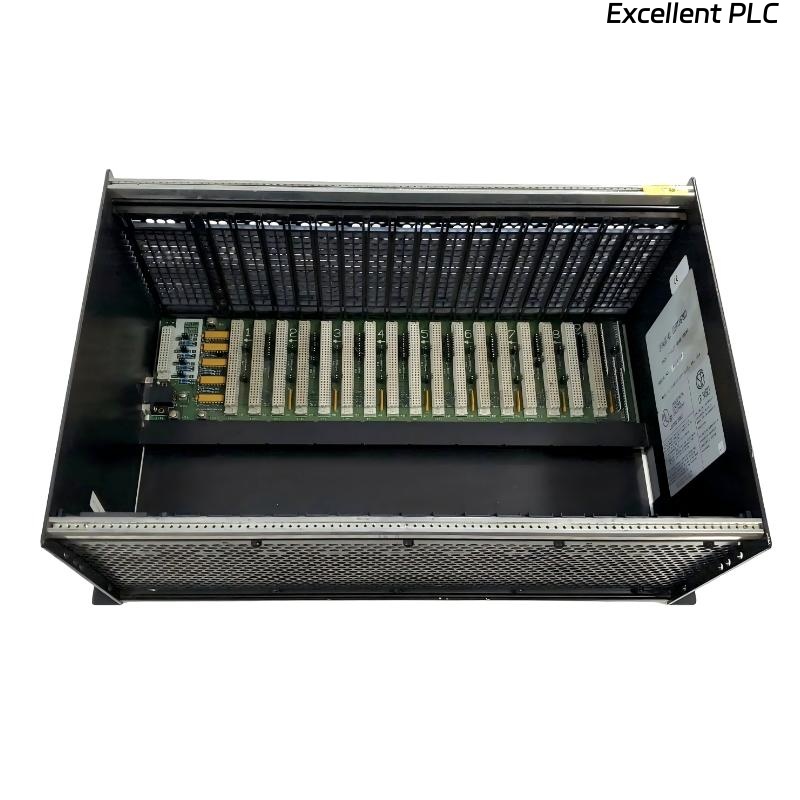

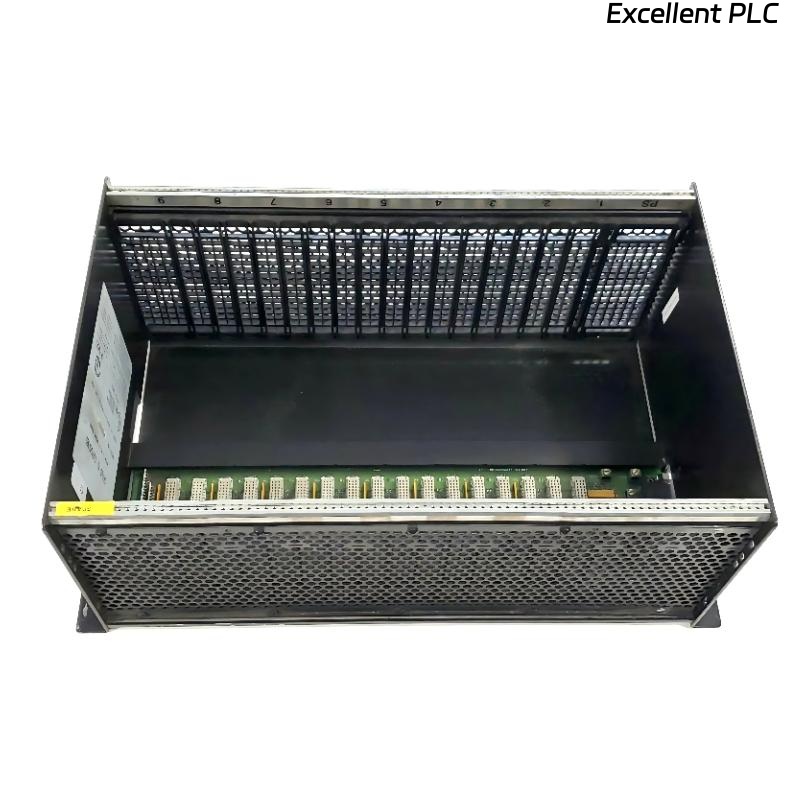

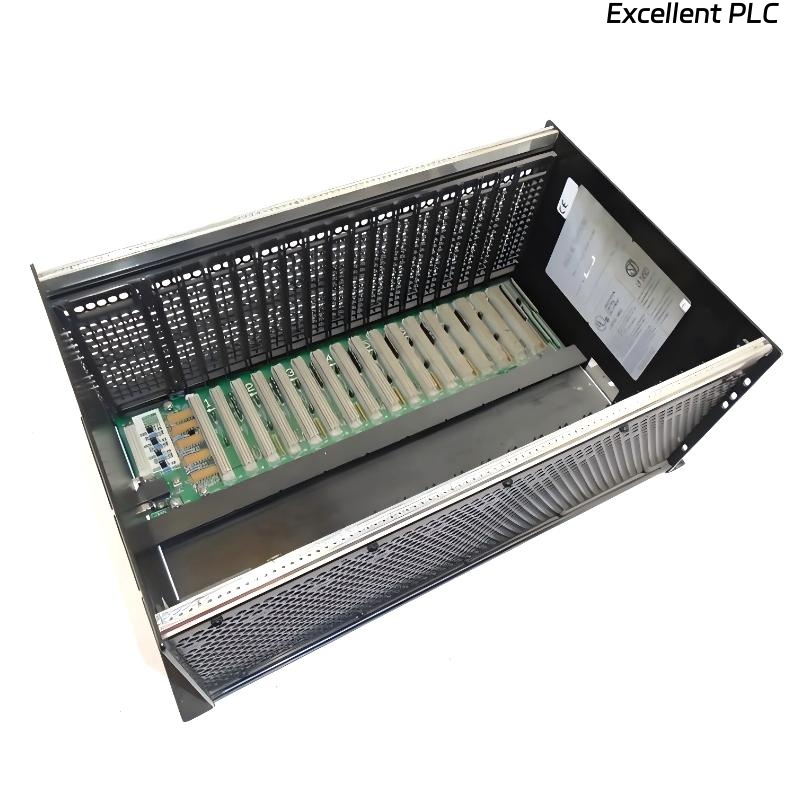

GE IC697CHS782 VME Integrator Rack

Product Introduction

The GE IC697CHS782 VME Integrator Rack is a 17-slot chassis specifically designed for use with the GE Fanuc Series 90-70 PLC family. This model acts as an advanced integration platform between the GE Series 90-70 programmable logic controllers and VME-based systems, enabling a unified architecture that supports both control logic and high-performance computational modules.

The rack features front and rear module mounting and an additional dedicated power supply slot, offering flexible configuration for complex industrial systems. Its robust backplane supports the VMEbus (IEEE 1014 standard), providing high-speed parallel data transfer and stable electrical interconnections.

This model is widely recognized in the automation and control industry for its modular flexibility, electrical integrity, and mechanical durability, making it suitable for mission-critical industrial control, data acquisition, and hybrid automation systems where reliability and expandability are crucial.

Technical Specifications

Applications

The GE IC697CHS782 VME Integrator Rack is designed for large-scale and high-performance automation systems where integration between PLC control and computational modules is required. Common applications include:

• Hybrid Control Platforms: Integrating Series 90-70 PLC control logic with VME-based computing or communication modules.

• Power Generation Systems: Used in turbine and generator control systems where redundant control and data exchange are essential.

• Petrochemical and Refining Plants: Provides a stable control backbone for distributed process automation.

• Manufacturing and Motion Control: Ideal for robotics, packaging, and CNC machine integration with real-time control feedback.

• Aerospace and Defense Testing Rigs: Supports high-speed data acquisition and deterministic signal control.

• Industrial Research Facilities: Used in experimental setups where modular configuration and high bandwidth are needed.

Advantages

• 17-Slot High Capacity Design: Supports complex control architectures with extensive module combinations.

• Front and Rear Mounting Capability: Enables flexible system layout and maintenance accessibility.

• Dedicated Power Supply Slot: Simplifies integration of Series 90-70 power modules without occupying I/O space.

• IEEE 1014 VME Compliance: Ensures compatibility with a wide range of VME-based hardware.

• Superior Mechanical Strength: Rigid steel structure minimizes vibration and electrical noise.

• Advanced Electrical Integrity: Shielded backplane and controlled impedance design enhance signal quality.

• Scalable and Expandable: Can be combined with additional racks for multi-system expansion.

• Thermal Efficiency: Optimized airflow paths for both natural and forced-air cooling setups.

• Simplified Maintenance: Modular layout allows for hot-swapping of compatible modules.

• Industrial-Grade Reliability: Designed for continuous 24/7 operation under harsh environments.

FAQ

1. What is the main purpose of the IC697CHS782 rack?
   It serves as a VMEbus-based integration chassis for the GE Fanuc Series 90-70 PLC, enabling both PLC modules and VME computing boards to operate within a single unified system.

2. How many slots does the rack include?
   The IC697CHS782 provides 17 slots in total—16 for I/O and control modules, plus one dedicated power supply slot.

3. Is the rack compatible with standard VMEbus modules?
   Yes. It fully complies with the IEEE 1014 VMEbus standard, ensuring interoperability with a wide range of third-party VME modules.

4. Can this rack be used with redundant power supplies?
   Yes, it supports redundant power configurations using GE power modules such as IC697PWR711 and IC697PWR748.

5. Does the rack support both front and rear access to modules?
   Correct. The chassis allows front and rear mounting, improving installation flexibility and serviceability.

6. What type of electrical isolation does it provide?
   Each signal channel and slot maintains a 1500 VDC isolation barrier between signal lines and chassis ground, ensuring electrical safety and noise immunity.

7. Is the IC697CHS782 suitable for high-vibration environments?
   Yes. Its heavy-duty chassis design minimizes vibration-induced mechanical stress, making it suitable for industrial and transport applications.

8. Can I integrate this rack into an existing Series 90-70 system?
   Absolutely. The IC697CHS782 is backward-compatible with existing Series 90-70 modules and system architectures.

9. What are the typical cooling recommendations for this model?
   It operates efficiently under natural convection but benefits from forced-air cooling when densely populated with high-power modules.

10. Which power supply modules are compatible with this rack?
    The IC697CHS782 supports GE Fanuc Series 90-70 power modules, including IC697PWR711, IC697PWR748, and IC697PWR749.
