Product Introduction

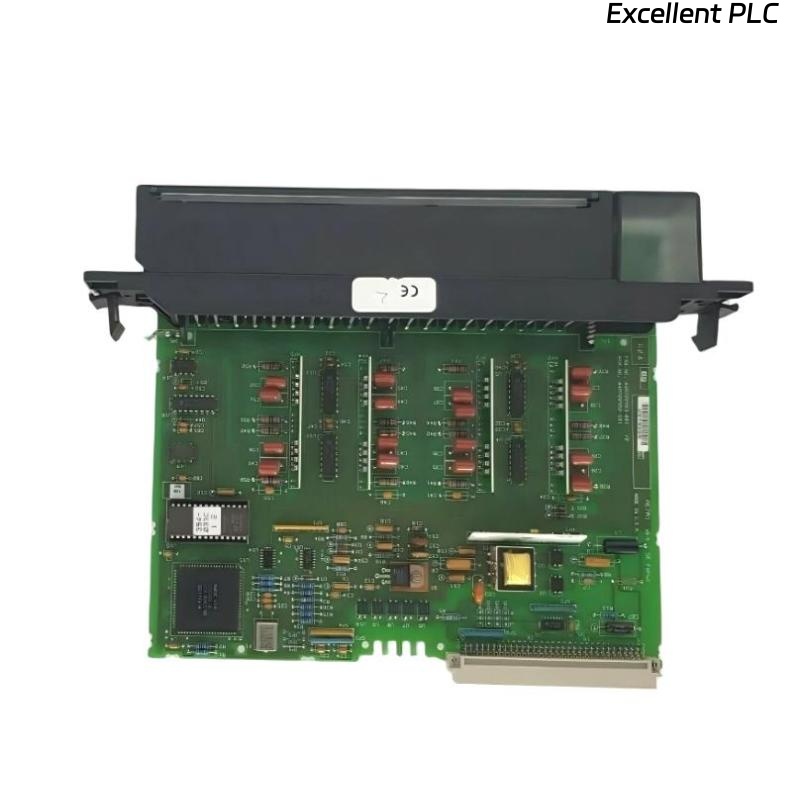

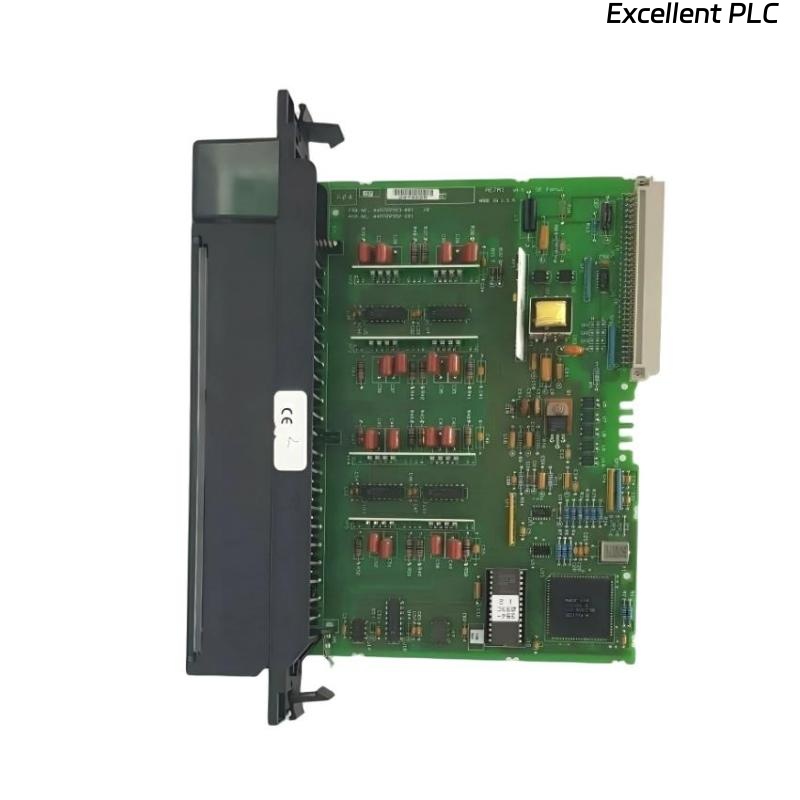

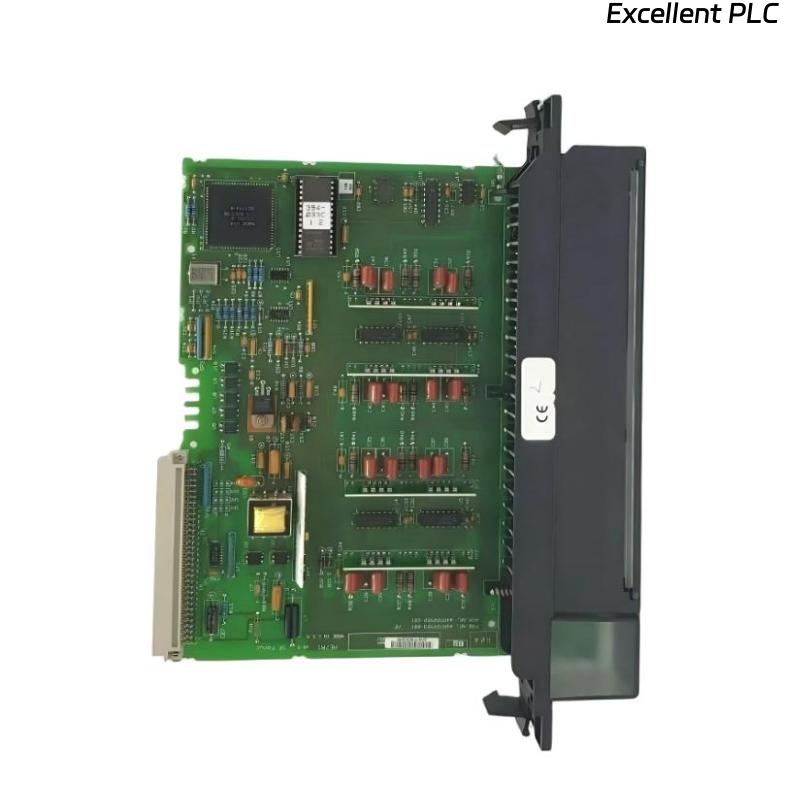

The GE IC697CLG440 Current Expander Module is a high-performance peripheral module designed for the GE Series 90-70 PLC system. It serves as an extension to the IC697 series analog input/output modules, allowing for increased channel capacity and enhanced signal handling capabilities. This module is specifically engineered to expand current input channels in a compact, reliable, and easy-to-integrate format. Its robust architecture ensures minimal signal degradation while maintaining precise and stable analog readings.
The IC697CLG440 is widely adopted in industrial automation, process control, and critical monitoring systems. By enabling additional current channels, it allows users to maximize the existing PLC configuration without significant hardware restructuring. Its design emphasizes compatibility, efficiency, and long-term operational stability, making it suitable for a variety of demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | IC697CLG440 |
| Module Type | Current Expander Module |
| Compatibility | GE Series 90-70 PLC |
| Input Channels | Supports additional 8 current channels |
| Input Type | 4–20 mA DC current inputs |
| Resolution | 12-bit |
| Accuracy | ±0.1% of full scale |
| Update Time | < 10 ms |
| Isolation | Channel-to-channel and channel-to-backplane isolation |
| Operating Voltage | 5V DC from backplane |
| Power Consumption | 2.5 W typical |
| Operating Temperature | 0–70 °C |
| Storage Temperature | -40–85 °C |
| Humidity | 5–95% non-condensing |
| Response Time | < 1 ms for nominal load |
| Diagnostics | Module failure, open circuit, overrange detection |
| Dimensions (H x W x D) | 190 × 25 × 130 mm |
| Weight | 0.45 kg |
Applications
The IC697CLG440 Current Expander Module is ideal for:
-
Industrial Process Control: Expanding current input channels for precise measurement of temperature, pressure, flow, and other critical variables.
-
Power Generation and Distribution: Monitoring multiple analog signals such as current transformers and voltage sensors.
-
Water and Wastewater Treatment: Integrating additional sensor inputs for enhanced control of pumps, valves, and chemical dosing systems.
-
Manufacturing Automation: Extending existing PLC modules to accommodate additional sensors on production lines.
-
Oil & Gas Operations: Providing additional current inputs for distributed control systems monitoring pipelines and process equipment.
Advantages
-
Enhanced Channel Capacity: Expands analog input capabilities without replacing the main PLC module.
-
High Accuracy and Resolution: 12-bit resolution ensures precise current measurement across all channels.
-
Fast Update and Response Times: Guarantees real-time data collection suitable for dynamic processes.
-
Robust Diagnostics: Supports advanced fault detection, helping reduce downtime.
-
Seamless Integration: Fully compatible with existing Series 90-70 backplane and I/O modules.
-
Compact Design: Small footprint minimizes panel space usage while maintaining performance.
-
Wide Operating Range: Supports industrial temperature and humidity ranges.
-
Reliable Isolation: Protects the system from cross-channel interference and electrical noise.
FAQ
-
What is the maximum number of current channels the IC697CLG440 can expand?
The module supports an additional 8 current input channels per module. Multiple modules can be combined for further expansion depending on the PLC configuration. -
What types of current signals does the module support?
It supports standard 4–20 mA DC current inputs. -
How precise is the current measurement?
The module provides 12-bit resolution with an accuracy of ±0.1% of full scale. -
What kind of diagnostics does the module provide?
It can detect module failure, open circuit, and overrange conditions, signaling the PLC for corrective action. -
Can the module operate in high-temperature industrial environments?
Yes, it operates reliably within 0–70 °C, with storage capability from -40 to 85 °C. -
Is there isolation between input channels?
Yes, the module provides both channel-to-channel and channel-to-backplane isolation to prevent cross-talk and interference. -
What is the module’s response time to changes in input current?
The nominal response time is under 1 ms. -
How does the IC697CLG440 integrate with the Series 90-70 PLC?
It plugs directly into the Series 90-70 backplane and is recognized automatically by the PLC system. -
What is the module’s power consumption?
Typical power consumption is 2.5 W, supplied via the backplane. -
Can multiple IC697CLG440 modules be used together in a system?
Yes, multiple modules can be installed to expand current inputs as needed, limited by the backplane capacity and PLC configuration.
