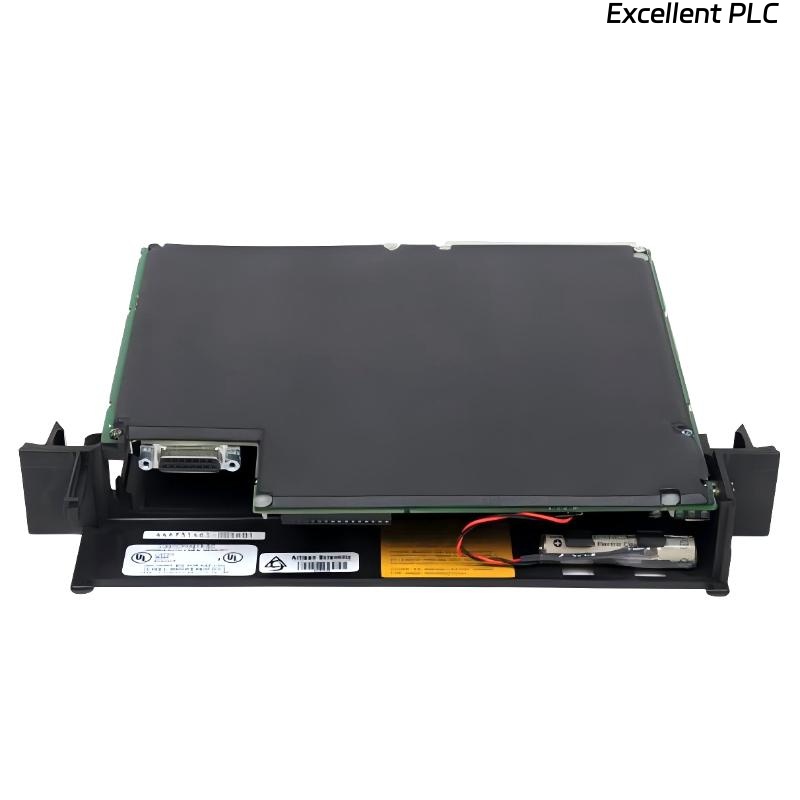

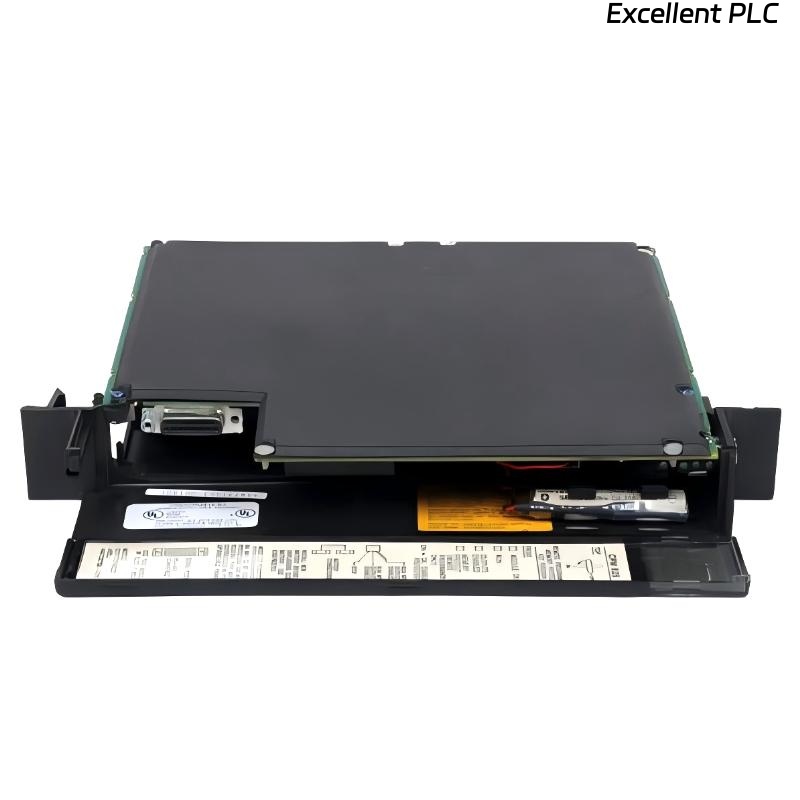

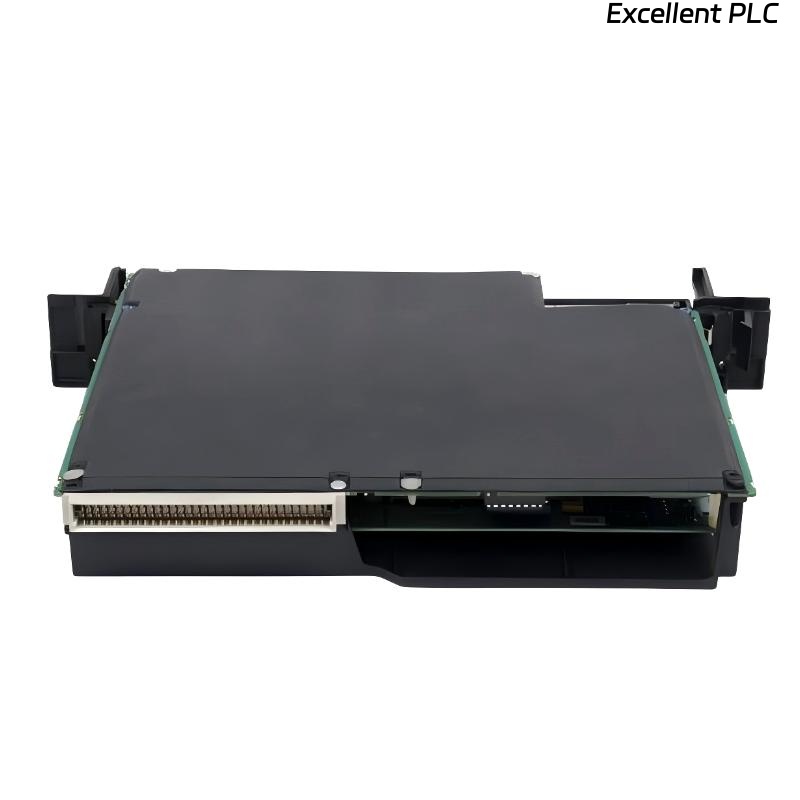

GE IC697CPM915 Central Processor Unit

Product Introduction

The GE IC697CPM915 Central Processor Unit (CPU) is a high-performance, single-slot floating point CPU module designed for the Series 90-70 PLC system. Operating at 64 MHz with a 32-bit floating point architecture and 1 MByte of memory, this CPU delivers superior computational power, fast task execution, and real-time control capabilities for medium-to-large industrial automation systems.

The IC697CPM915 supports a wide range of IC660 and IC661 I/O modules, enabling up to 2000 discrete I/O points when properly configured. The module features one serial communication port, which allows seamless connectivity to HMIs, operator panels, and other serial devices. Its high-speed floating point processing makes it suitable for complex control, data acquisition, and process automation applications.

Engineered for reliability and deterministic operation, the IC697CPM915 is widely used in manufacturing, process control, energy management, and transportation systems where high-speed computation and flexible I/O support are required. Its compact single-slot design ensures minimal panel space usage while providing robust performance.

Technical Specifications

Applications

The IC697CPM915 CPU Module is designed for demanding industrial applications:

• Manufacturing Automation: Controls conveyor systems, robotic cells, and machine operations using up to 2000 discrete I/O points.

• Process Industries: Performs high-speed floating point calculations for temperature, pressure, flow, and level control in chemical, pharmaceutical, and food processing plants.

• Energy and Utilities: Integrates with substation monitoring, energy management systems, and power distribution automation.

• Transportation Systems: Automates traffic signals, airport baggage handling, and material handling systems.

• Remote Monitoring and Data Acquisition: Uses the serial port to interface with HMIs, remote I/O, and data logging equipment for real-time monitoring and control.

• High-Speed Floating Point Calculations: Enables precise control and monitoring in applications requiring rapid numerical computation.

Advantages

1. High-Speed CPU: 64 MHz processor provides fast and deterministic execution of control programs.

2. Floating Point Architecture: 32-bit floating point CPU allows rapid arithmetic and complex calculations.

3. Large Memory: 1 MByte of user memory accommodates program storage, data tables, and floating point calculations.

4. High I/O Capacity: Supports up to 2000 discrete I/O points using IC660 and IC661 modules.

5. Serial Communication: One serial port enables connection to HMIs, operator panels, and other serial devices.

6. Compact Design: Single-slot architecture saves panel space while providing full CPU functionality.

7. Reliable Industrial Operation: Operates in environments from 0–70 °C with 5–95% non-condensing humidity.

8. Advanced Diagnostics: Monitors CPU errors, communication faults, and I/O status to facilitate troubleshooting.

9. Flexible I/O Support: Compatible with both IC660 and IC661 digital and analog modules, enabling versatile system configuration.

FAQ

1. What type of CPU architecture does the IC697CPM915 use?
   It is a 32-bit floating point CPU, capable of performing complex arithmetic and high-speed numerical calculations for industrial automation applications.

2. How fast is the processor?
   The module operates at 64 MHz, providing deterministic control and rapid program execution.

3. What memory capacity does this CPU provide?
   It includes 1 MByte of user memory for storing programs, data tables, and floating point computation variables.

4. How many discrete I/O points can be supported?
   The CPU supports up to 2000 discrete I/O points using compatible IC660 or IC661 modules.

5. Does it provide serial communication capabilities?
   Yes, it features one serial port compatible with RS-232 and RS-485 protocols for connection to HMIs or other serial devices.

6. Which I/O modules are compatible with this CPU?
   It is fully compatible with IC660 and IC661 digital and analog I/O modules.

7. Does the CPU provide diagnostic functions?
   Yes, it monitors CPU errors, communication faults, and I/O errors for troubleshooting and system maintenance.

8. Can this CPU perform real-time floating point calculations?
   Yes, the 32-bit floating point architecture supports high-speed numerical calculations in real-time for precise process control.

9. What are the operating environmental conditions for this CPU?
   It operates within 0–70 °C and 5–95% non-condensing humidity, ensuring stable operation in industrial environments.

10. What is the typical power consumption, and will it affect system performance?
    The IC697CPM915 consumes approximately 5 W from the backplane, allowing multiple modules to operate without impacting overall PLC performance.
