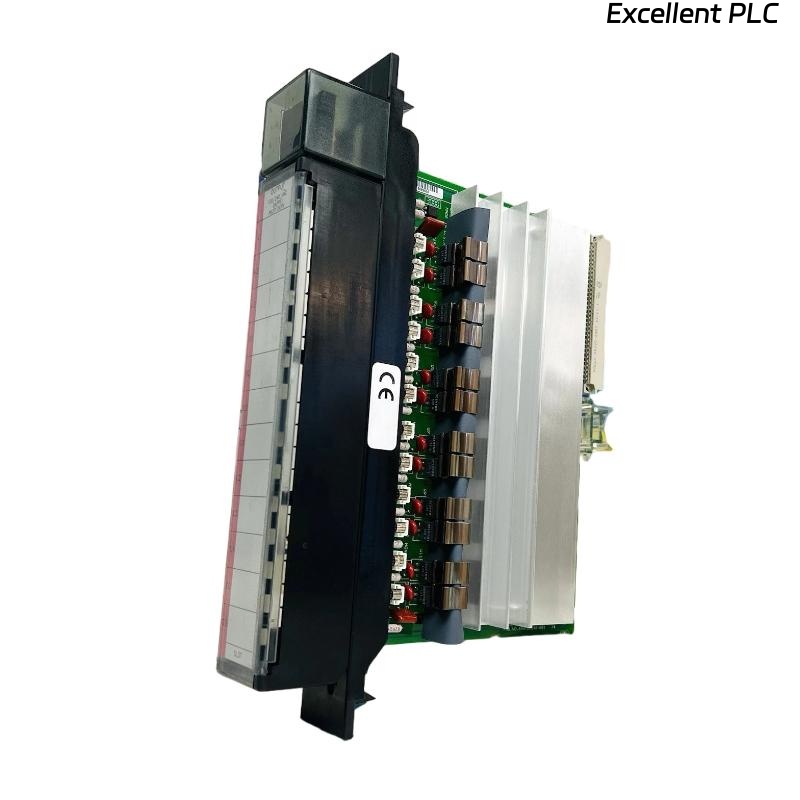

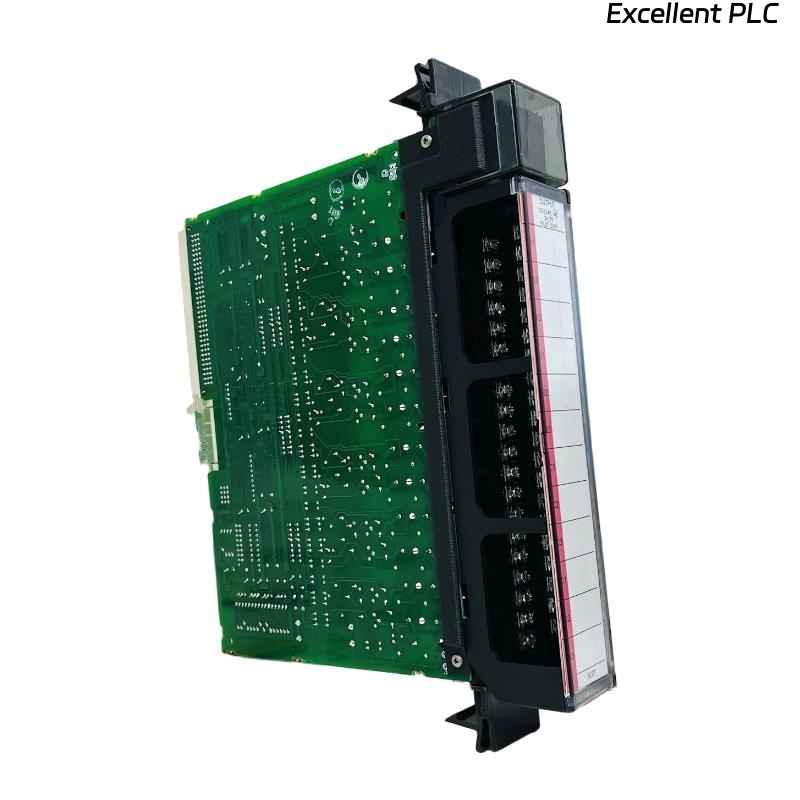

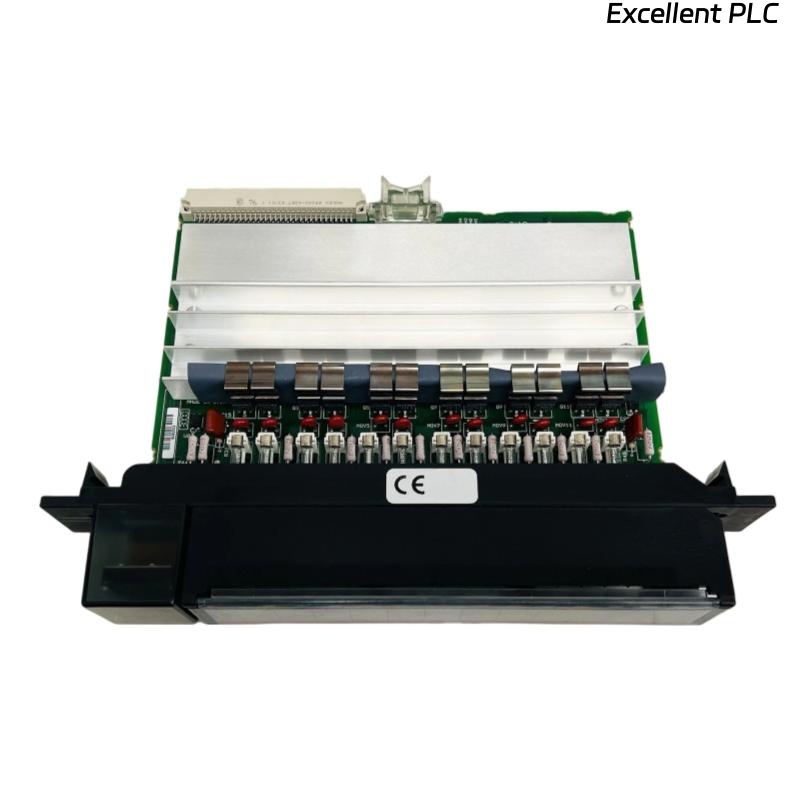

GE IC697MDL341 Discrete Output Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The GE IC697MDL341 Discrete Output Module is a high-performance, isolated AC output module designed for use with GE Fanuc Series 90-70 PLC systems. This model provides 12 individually isolated output points, each capable of switching 120/240 VAC loads at up to 2 Amperes per point, offering exceptional versatility and electrical robustness in demanding industrial control environments.

The IC697MDL341 is engineered for applications requiring reliable, high-current AC output control, such as driving solenoids, contactors, relays, lamps, and other AC actuators. With its high inrush current capability—up to 10 times the rated load current, it is ideal for controlling inductive and capacitive loads commonly found in automation and manufacturing systems. The module’s isolation design ensures that each output channel operates independently, minimizing the risk of signal interference and improving system reliability.

This module combines rugged electrical performance with advanced safety and diagnostic features, making it a trusted component for industrial automation professionals requiring consistent, high-power discrete output performance.

---

Technical Specifications

---

Product Applications

The GE IC697MDL341 Discrete Output Module is designed for use in a wide range of industrial automation and process control applications requiring high-current AC output switching. Typical applications include:

• Motor control systems for starting and stopping AC motors through relays and contactors.

• Lighting control circuits in industrial and commercial environments.

• Solenoid and actuator control in manufacturing processes.

• Pump and fan control systems in HVAC and utility plants.

• Industrial ovens, furnaces, and heating elements for temperature control automation.

• General-purpose automation outputs in factory and process control systems.

The module’s isolated channels and robust electrical design make it suitable for systems where safety, reliability, and electrical noise immunity are critical.

---

Product Advantages

• Individually Isolated Channels: Each of the 12 output points is electrically isolated, preventing ground loops and signal interference.

• High Inrush Current Capability: Supports up to 10× rated current, ideal for inductive or capacitive load switching.

• High Output Capacity: Delivers up to 2 A continuous per output channel at 240 VAC.

• Superior Electrical Protection: Optically isolated triac outputs minimize risk of electrical noise and transient coupling.

• Flexible System Integration: Seamlessly integrates with GE Fanuc Series 90-70 PLC systems via backplane.

• Fast Switching Performance: Rapid turn-on and turn-off response times ensure precise output control.

• Built-In Diagnostics: Includes status LEDs for each channel, simplifying system maintenance and troubleshooting.

• Robust Construction: Industrial-grade design ensures long-term reliability under mechanical vibration and thermal stress.

• Ease of Maintenance: Removable terminal blocks allow fast wiring and field service.

• Certified Industrial Safety: Meets CE, UL, and CSA standards for industrial environments.

---

FAQ

1. What type of output device does the IC697MDL341 use?
   It uses optically isolated Triac outputs for switching AC loads, providing electrical separation and high reliability.

2. Can the outputs handle inductive loads such as solenoids and relays?
   Yes, each output point can handle inductive loads with high inrush current up to 10× the rated current.

3. Are all 12 output channels isolated from each other?
   Yes, each output point is individually isolated, allowing safe connection to different voltage sources or circuits.

4. What is the maximum current per output channel?
   Each output can supply up to 2 Amperes continuously at 120 or 240 VAC.

5. Does the module support mixed load types on different channels?
   Yes, each output channel operates independently, supporting different types of AC loads simultaneously.

6. How is fault detection or diagnostics handled?
   Each channel has a corresponding LED indicator that shows ON/OFF status for quick fault identification.

7. What is the required power source for the module’s internal electronics?
   It consumes approximately 150 mA from the 5 VDC backplane supply of the PLC rack.

8. What protection mechanisms are built into the outputs?
   Outputs are optically isolated and designed to protect against transient voltage spikes and overload conditions.

9. How fast can the outputs switch?
   Typical switching response time is less than 1 millisecond for both turn-on and turn-off.

10. Is the module compatible with older GE Fanuc 90-70 racks?
    Yes, it is fully compatible with all standard Series 90-70 racks and power supplies.

---

Related Models (Same Series or Functionally Similar)

---

Popular Models from the Same Brand

FAQ

1. What type of output device does the IC697MDL341 use?
   It uses optically isolated Triac outputs for switching AC loads, providing electrical separation and high reliability.

2. Can the outputs handle inductive loads such as solenoids and relays?
   Yes, each output point can handle inductive loads with high inrush current up to 10× the rated current.

3. Are all 12 output channels isolated from each other?
   Yes, each output point is individually isolated, allowing safe connection to different voltage sources or circuits.

4. What is the maximum current per output channel?
   Each output can supply up to 2 Amperes continuously at 120 or 240 VAC.

5. Does the module support mixed load types on different channels?
   Yes, each output channel operates independently, supporting different types of AC loads simultaneously.

6. How is fault detection or diagnostics handled?
   Each channel has a corresponding LED indicator that shows ON/OFF status for quick fault identification.

7. What is the required power source for the module’s internal electronics?
   It consumes approximately 150 mA from the 5 VDC backplane supply of the PLC rack.

8. What protection mechanisms are built into the outputs?
   Outputs are optically isolated and designed to protect against transient voltage spikes and overload conditions.

9. How fast can the outputs switch?
   Typical switching response time is less than 1 millisecond for both turn-on and turn-off.

10. Is the module compatible with older GE Fanuc 90-70 racks?
    Yes, it is fully compatible with all standard Series 90-70 racks and power supplies.
