Product Introduction

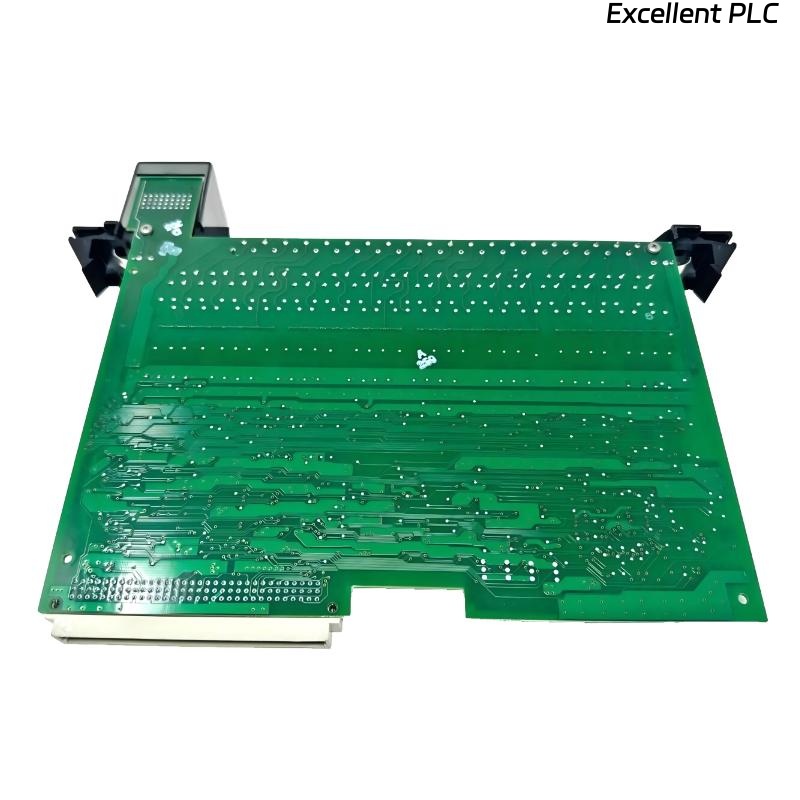

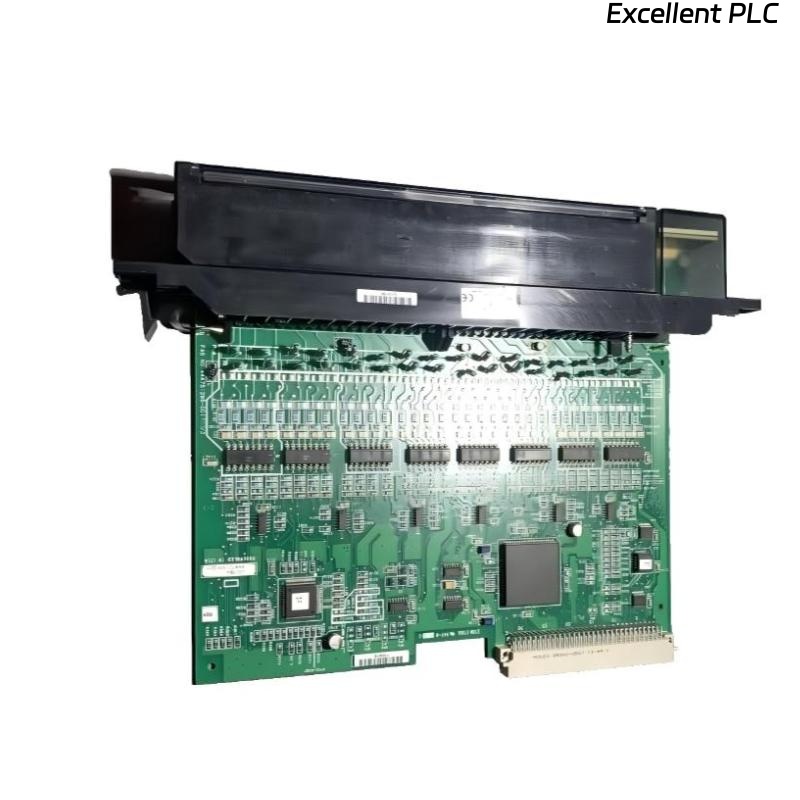

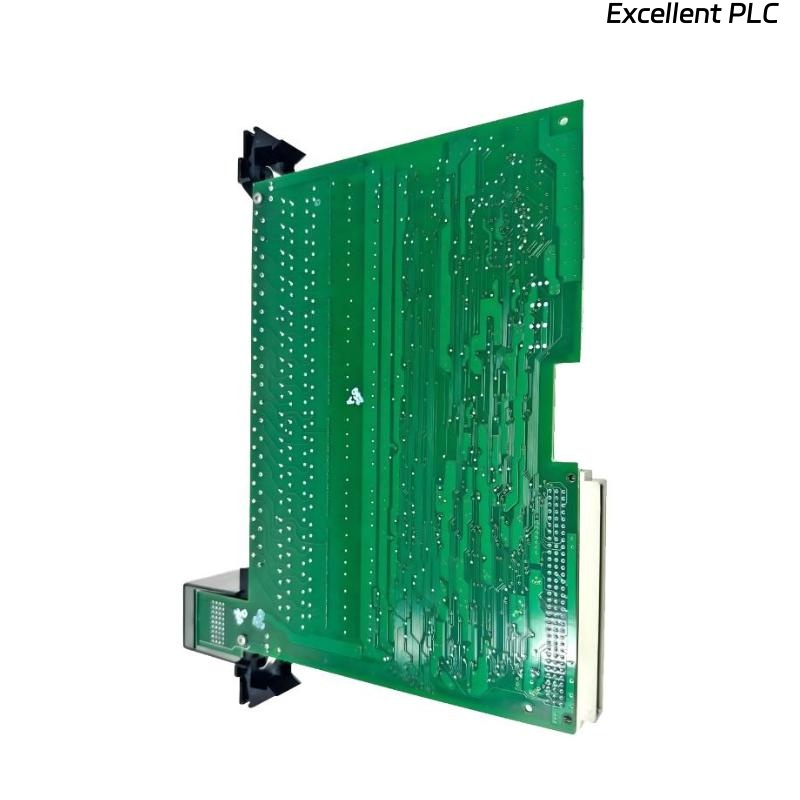

The GE IC697MDL652 Discrete Input Module is a high-density industrial input module designed for the GE Fanuc Series 90-70 PLC system. It is engineered to handle 32 discrete input points with 12V DC signals, supporting both positive and negative logic, making it fully compatible with a wide variety of field devices including proximity switches.
This module is ideal for industrial automation systems that require high reliability, flexible logic compatibility, and noise immunity in electrically challenging environments. The 32 input points are divided into four isolated groups of eight points each, providing robust protection against electrical interference and enhancing signal integrity.
The IC697MDL652 is suitable for systems where fast and accurate input signal detection is crucial, and it integrates seamlessly with Series 90-70 PLC CPUs, output modules, and communication modules. Its design ensures easy installation, modularity, and reliable operation, even in environments with high electromagnetic interference.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | GE Fanuc (General Electric) |
| Product Model | IC697MDL652 |
| Product Type | Discrete Input Module |
| System Series | GE Fanuc Series 90-70 |
| Input Voltage Range | 12V DC nominal |
| Logic Type | Positive/Negative logic selectable |
| Input Compatibility | Compatible with proximity switches and standard DC inputs |
| Number of Input Points | 32 input channels |
| Input Grouping | 4 isolated groups of 8 points each |
| Input Current (Typical) | 5 mA per point at 12V DC |
| Input Impedance | 2.4 kΩ nominal |
| Isolation Voltage | 1500V RMS between groups and logic/common |
| Response Time | <10 ms typical |
| Indicators | One LED per input channel for status indication |
| Backplane Current | 110 mA at 5V DC |
| Power Dissipation | 2.8 W typical |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) |
| Humidity | 5%–95% non-condensing |
| Mounting Type | Rack-mounted (Series 90-70 I/O base) |
| Cooling Method | Natural convection |
| Diagnostics | LED indicators, open-circuit and short-circuit detection |
| Dimensions (W × H × D) | 200 × 45 × 145 mm |
| Weight | 0.45 kg |
| Certifications | CE, UL, CSA approved |
Product Applications
The IC697MDL652 is widely used in industrial automation systems that require high-density input monitoring with flexible logic support. Common applications include:
-
Factory Automation: Monitoring discrete input signals from proximity sensors, limit switches, push buttons, and safety interlocks.
-
Process Control: Detecting status of valves, pumps, and flow sensors in chemical, oil, and gas processes.
-
Power Generation: Monitoring auxiliary systems, breaker positions, and control panels.
-
Material Handling Systems: Reading position and safety signals from conveyors and automated machinery.
-
Water and Wastewater Treatment: Supervising pump states, valve positions, and relay outputs.
-
Building Automation: Integrating discrete signals from sensors, alarm systems, and proximity switches.
Its design ensures reliable operation even in electrically noisy industrial environments, and its compatibility with both logic types and proximity switches expands its usability across multiple industries.
Product Advantages
The IC697MDL652 Discrete Input Module provides numerous operational and engineering benefits:
-
Flexible Logic Compatibility: Supports positive and negative logic for integration with diverse industrial field devices.
-
Proximity Switch Compatibility: Interfaces directly with standard 12V DC proximity sensors.
-
High Channel Density: 32 inputs per module optimize rack space and system design.
-
Isolated Input Groups: Four isolated groups reduce interference and enhance signal integrity.
-
LED Diagnostics: Individual LED per input provides clear status monitoring for troubleshooting.
-
Robust Noise Immunity: Designed to withstand high electromagnetic interference in industrial settings.
-
Rapid Input Response: Typical response time under 10 milliseconds for fast signal detection.
-
Modular and Compact: Fits standard Series 90-70 racks for flexible system expansion.
-
Reliable Industrial Performance: Built with industrial-grade components for continuous 24/7 operation.
-
Global Compliance: CE, UL, and CSA certifications ensure worldwide safety and reliability standards.
FAQ
-
What type of logic does the IC697MDL652 support?
The module supports both positive and negative logic selectable for each input. -
How many discrete input points are available?
The module provides 32 input channels divided into four isolated groups of eight points. -
What is the nominal input voltage?
The IC697MDL652 operates with 12V DC input signals. -
Is the module compatible with proximity switches?
Yes, it is fully compatible with standard 12V DC proximity switches. -
What is the isolation voltage between input groups?
Each group is isolated up to 1500V RMS from other groups and the logic/common reference. -
What is the typical input current per channel?
Approximately 5 mA per input at 12V DC. -
How is the status of each input indicated?
Each input point has an LED indicator on the front panel. -
Can it handle both sourcing and sinking inputs?
Yes, the module supports both positive and negative logic configurations for sourcing or sinking devices. -
What is the response time for input detection?
The typical response time is less than 10 milliseconds. -
Is the module compatible with other Series 90-70 modules?
Yes, it integrates seamlessly with all Series 90-70 CPUs, output, and communication modules.
Related or Similar Models
| Model | Description |
|---|---|
| IC697MDL650 | 32-Point 24V DC Input Module, positive logic type |
| IC697MDL651 | 32-Point 3–7V DC Negative Logic Input Module |
| IC697MDL640 | 16-Point 125V DC Input Module with positive/negative logic |
| IC697MDL653 | 32-Point 24V DC Negative Logic Input Module |
| IC697MDL250 | 32-Point 24V DC Output Module for Series 90-70 |
| IC697MDL241 | 12-Point 120/240V AC Output Module with isolated points |
