GE IC697MDL740 Discrete Output Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

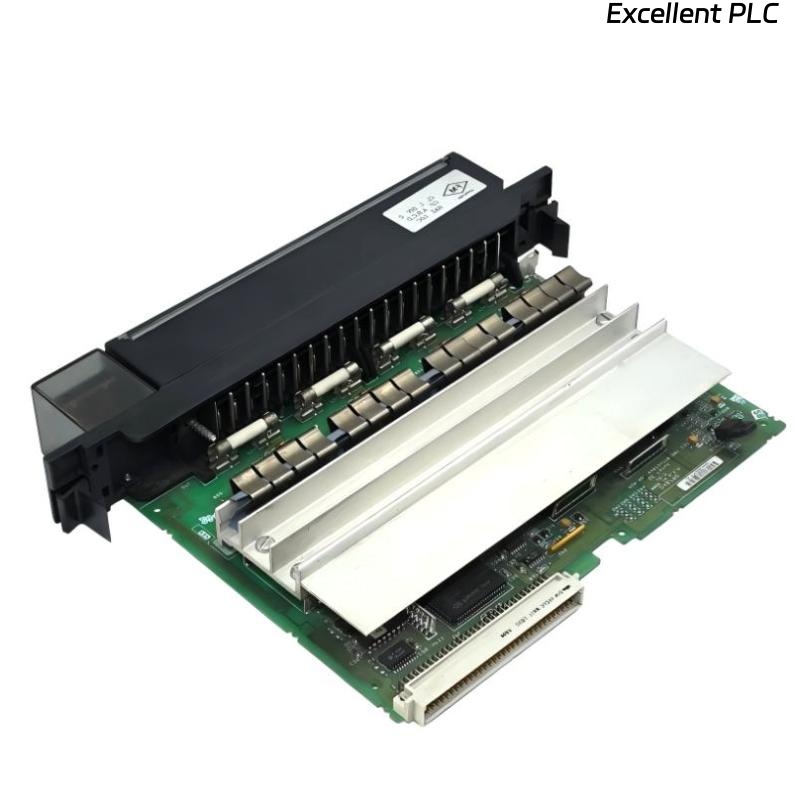

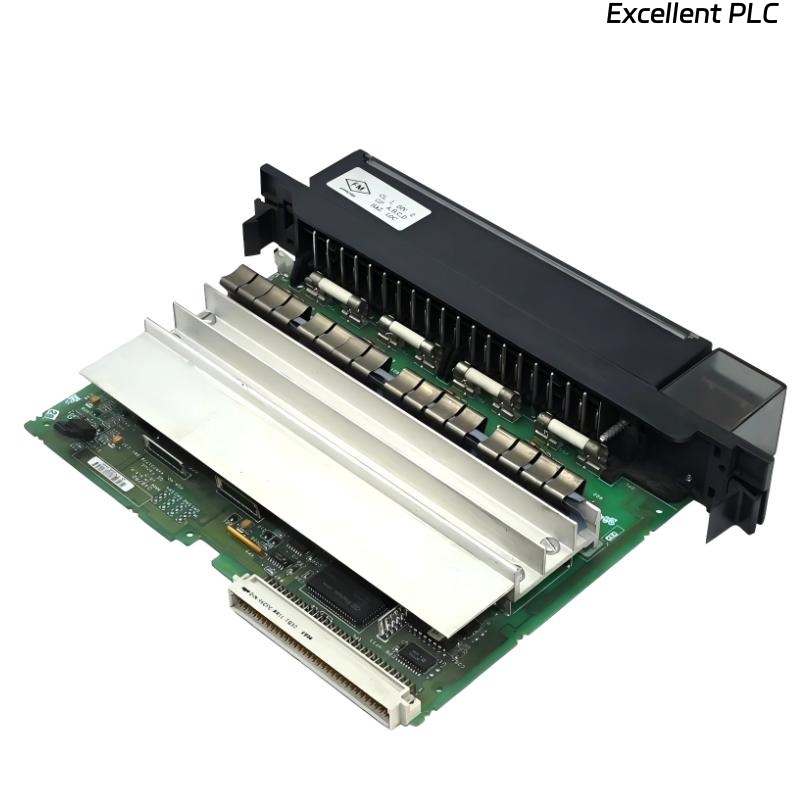

The GE IC697MDL740 Discrete Output Module is a reliable and industrial-grade output module engineered for use with the GE Fanuc Series 90-70 Programmable Logic Controller (PLC) system. Designed to deliver consistent and precise control of DC loads, this module provides 16 discrete output points capable of handling both 24V DC and 48V DC voltage levels with an output current capacity of 2 amperes per point.

The IC697MDL740 is ideal for applications where dependable switching and electrical isolation are essential. Each output channel is individually controlled and protected, ensuring reliable operation even in harsh industrial environments. The module features optically isolated outputs that protect against voltage transients, as well as LED indicators that allow for quick and convenient monitoring of each output’s status.

With its robust design, high current capacity, and flexible voltage compatibility, the IC697MDL740 ensures high-performance control of solenoids, relays, contactors, and other industrial actuators. It integrates seamlessly with Series 90-70 backplanes, offering consistent performance and long service life in complex automation systems.

---

Technical Specifications

---

Product Applications

The GE IC697MDL740 Discrete Output Module is designed for diverse automation applications where accurate DC switching and reliable signal control are required. Its versatility allows it to be deployed in a wide variety of industrial systems, including:

• Manufacturing Automation: Controls motors, solenoids, alarms, and pilot lamps in assembly and packaging lines.

• Power Generation and Distribution: Operates relays, breakers, and control devices in substation automation.

• Process Control Systems: Activates pumps, heaters, and valves in chemical and refining processes.

• Material Handling and Robotics: Drives actuators and relays in conveyor and robotic systems.

• Water and Wastewater Management: Controls pumps, aeration systems, and monitoring devices.

• Building and Infrastructure Automation: Switches lighting circuits, HVAC components, and safety alarms.

Its combination of electrical robustness and precise control makes it particularly suitable for heavy-duty industrial environments where uptime, electrical isolation, and fast response are critical.

---

Product Advantages

The IC697MDL740 offers a range of advantages that enhance system performance, reliability, and ease of maintenance:

• Sixteen Independent Outputs: Each channel operates independently, offering flexibility for controlling multiple field devices.

• High Load Capacity: Supports up to 2 A per point, making it ideal for both small and large loads.

• Dual Voltage Compatibility: Works with both 24V and 48V DC systems for greater flexibility.

• Optical Isolation: Each output is optically isolated to protect the control system from voltage transients and ground loops.

• Built-in Protection: Includes overcurrent and short-circuit protection for enhanced reliability.

• Status Indicators: Each output has a dedicated LED indicator, simplifying troubleshooting and maintenance.

• Fast Response: Typical response time is less than 1 millisecond for high-speed applications.

• Durable Industrial Design: Built to withstand vibration, temperature variation, and electrical noise in demanding environments.

• Easy Integration: Fully compatible with the GE Fanuc Series 90-70 system and other standard I/O modules.

• Reliable Long-Term Operation: Designed for industrial environments where stability and uptime are essential.

---

FAQ

1. What type of outputs does the IC697MDL740 use?
   It uses solid-state (transistor) DC outputs designed for high-speed switching and long operational life.

2. What voltage range does this module support?
   The module supports both 24V DC and 48V DC nominal output voltages, providing flexibility in industrial applications.

3. Can the outputs drive inductive loads such as solenoids or relays?
   Yes, the outputs are suitable for inductive loads, and each channel is protected against voltage spikes and surges.

4. How much current can each output handle?
   Each of the 16 output points can handle up to 2 amperes of current for resistive loads.

5. Are the outputs isolated from one another?
   Yes, the outputs are electrically isolated to prevent noise and ground potential differences from affecting system stability.

6. Does the module provide status indication for each output?
   Yes, every output point has its own LED indicator that shows its ON/OFF status in real time.

7. What is the typical switching response time?
   The typical response time is less than 1 millisecond, enabling fast and precise control in automation systems.

8. Can the IC697MDL740 be used with both sourcing and sinking devices?
   It is primarily designed for sourcing-type applications, but it can interface with various logic configurations using appropriate wiring.

9. How is protection handled in case of overcurrent?
   The module includes built-in electronic protection to prevent damage during short-circuit or overcurrent conditions.

10. Is this module hot-swappable?
    No, it should not be inserted or removed while the PLC system is powered on. Always power down the rack before replacement.

---
