Product Introduction

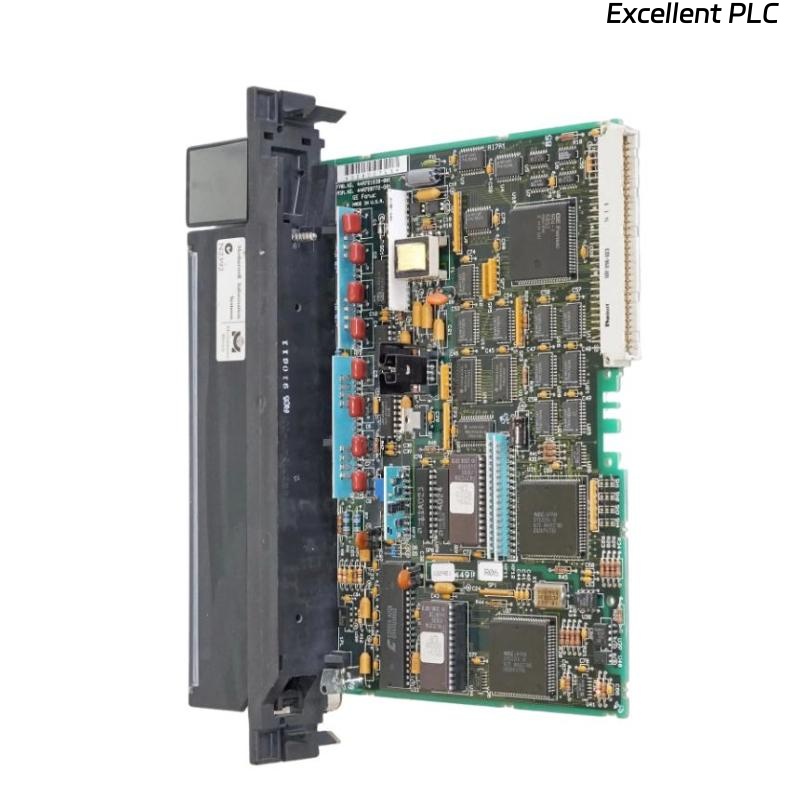

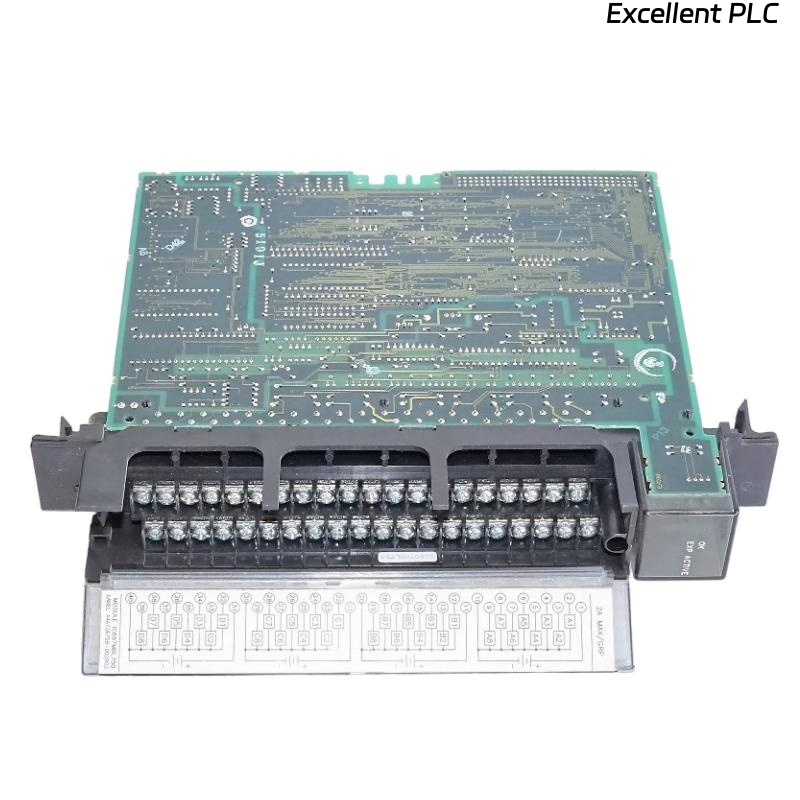

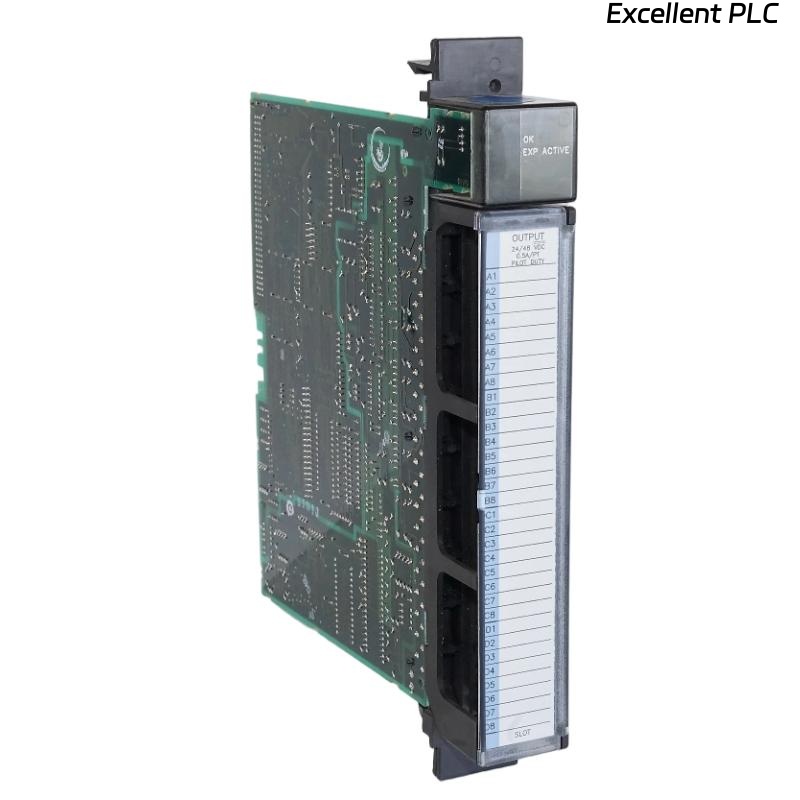

The GE IC697MDL750 Discrete Output Module is a high-density, industrial-grade 32-point DC output module designed for use with the GE Fanuc Series 90-70 PLC system. It delivers dependable control performance for a wide range of discrete automation tasks, providing 32 individually controlled output points divided into four isolated groups of eight points each. Each output channel is capable of sourcing 0.5 amperes continuously, with a high inrush current capacity up to 20 times the rated load, allowing the module to handle demanding inductive and capacitive loads with ease.

Engineered for flexibility and resilience, the IC697MDL750 operates at 24/48 VDC nominal voltage, making it suitable for various industrial control systems, including motion control, machine automation, process control, and power distribution. Its modular construction enables straightforward installation into the Series 90-70 rack without the need for special wiring or additional interfaces.

Each output channel is optically isolated, providing robust protection between the field and the logic circuits, thereby reducing electrical noise and ensuring long-term reliability in harsh environments. LED indicators on the front panel provide clear visual feedback for each channel’s operational status, aiding in rapid troubleshooting and system diagnostics. The IC697MDL750 exemplifies GE’s commitment to reliability, precision, and industrial durability, making it a preferred solution for automation engineers and plant operators worldwide.

---

Technical Specifications

---

Product Applications

The IC697MDL750 Discrete Output Module is used across a wide spectrum of industrial and manufacturing control systems where multiple digital outputs are required for process control or machine automation. Its 32-point configuration allows compact yet powerful control capability for diverse applications such as:

• Factory Automation: Drives actuators, solenoids, lamps, and control relays in automated manufacturing systems.

• Material Handling Systems: Controls conveyor belts, sorting mechanisms, and robotic systems with precise timing.

• Power Generation and Distribution: Interfaces with circuit breakers, relays, and alarm systems for reliable plant operation.

• Process Control Systems: Operates valves, pumps, and heating elements in chemical, petrochemical, and food processing plants.

• Water and Wastewater Treatment: Manages pumps, aerators, and treatment plant control valves.

• HVAC and Building Automation: Controls lighting, fans, dampers, and security systems for large facilities.

Its robust design and wide voltage range make it particularly suitable for industrial environments with varying electrical conditions.

---

Product Advantages

The GE IC697MDL750 provides a combination of performance, protection, and durability that makes it a preferred choice among industrial engineers. Its major advantages include:

• High-Density Output Capability: 32 outputs allow control of multiple devices from a single module, saving rack space and wiring.

• High Inrush Current Tolerance: Withstands startup surges up to 20× rated current, perfect for inductive loads such as solenoids or relays.

• Flexible Voltage Operation: Compatible with both 24VDC and 48VDC systems for enhanced application versatility.

• Group Isolation: Four isolated groups of eight outputs each improve fault tolerance and electrical separation.

• Optical Isolation: Reduces noise interference between logic and field devices, ensuring stable performance.

• Integrated Protection Circuits: Built-in overload and short-circuit protection increase system safety and longevity.

• LED Diagnostic Indicators: Simplifies system monitoring with clear real-time status for each output.

• Fast Switching Response: Enables precise control in time-critical automation sequences.

• Maintenance Efficiency: Modular, replaceable design with quick terminal access simplifies servicing.

• Rugged Construction: Designed for long-term use in industrial conditions with wide temperature and humidity ranges.

---

FAQ

1. What type of outputs does the IC697MDL750 provide?
   The module provides 32 sourcing-type DC outputs capable of switching 24 or 48 VDC loads, suitable for driving external devices that share a common negative bus.

2. Can this module handle inductive loads like solenoids or relays?
   Yes, it is designed with high inrush current capability—up to 20× the rated current—for reliable switching of inductive or capacitive loads.

3. How are the outputs organized?
   The outputs are divided into four isolated groups of eight points each, allowing separate grounding and power sourcing configurations for enhanced flexibility.

4. Is optical isolation provided between the outputs and logic circuits?
   Yes, optical isolation is implemented to protect the PLC’s logic system from electrical transients or field-level faults.

5. What is the maximum current rating per output channel?
   Each channel can source up to 0.5 amperes continuously.

6. Does the module support overload or short-circuit protection?
   Yes, each output group is protected against overload and short-circuit conditions to prevent module or system damage.

7. How fast is the module’s switching performance?
   The IC697MDL750 has a typical response time of less than 1 millisecond, ensuring precise output timing in control applications.

8. Can the module operate with both 24V and 48V DC systems?
   Yes, it supports both 24VDC and 48VDC nominal levels within the voltage range of 19.2 to 60 VDC.

9. Are there visual indicators for each output?
   Each output point has a dedicated LED indicator for real-time status monitoring, which helps in system diagnostics.

10. What types of field wiring are supported?
    The module uses removable screw-type terminal blocks, supporting easy field wiring and secure connections during installation.

---
