Product Introduction

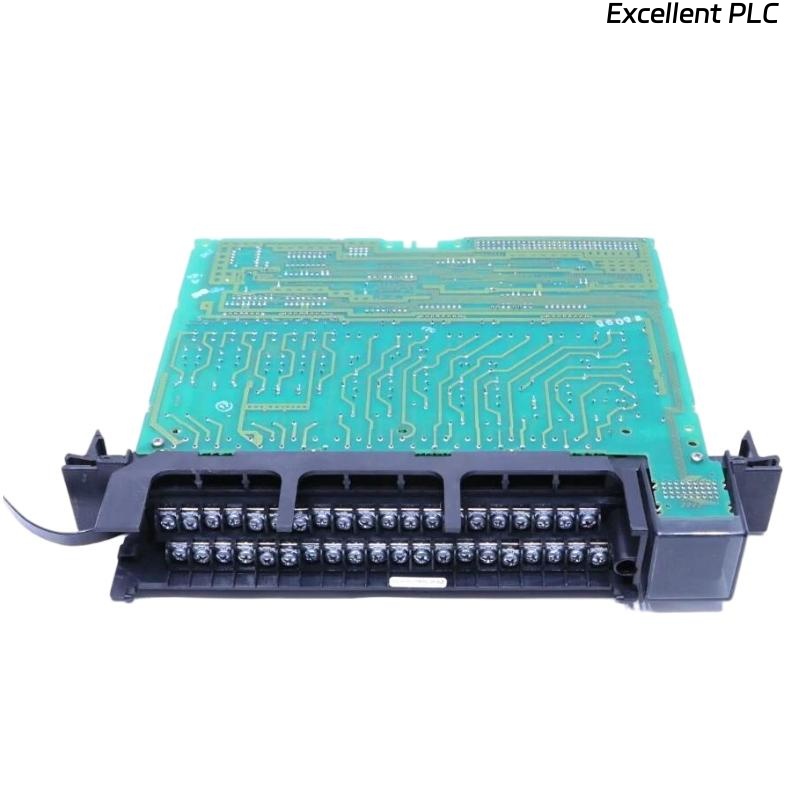

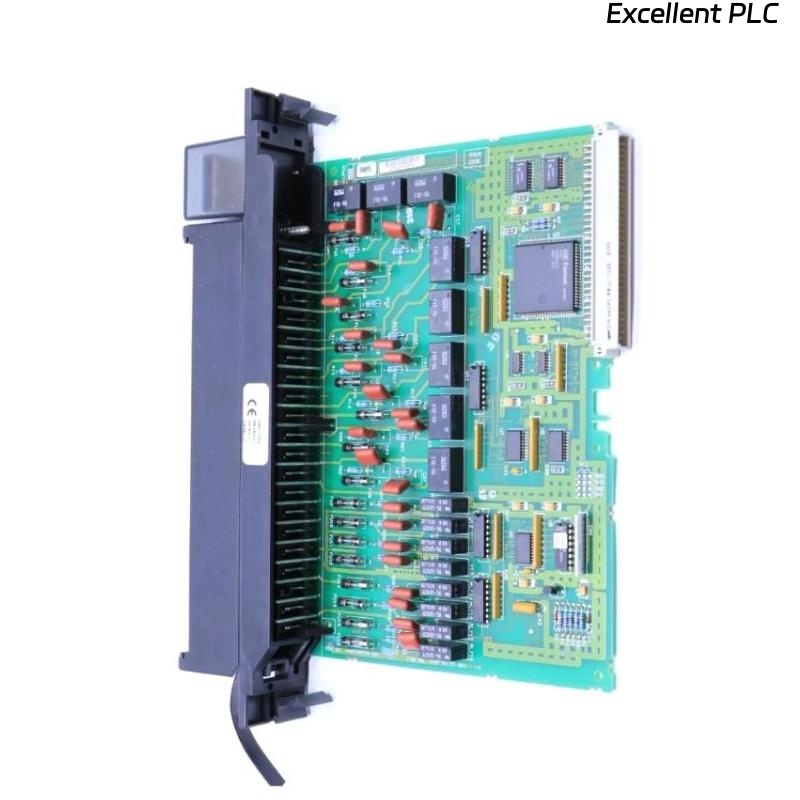

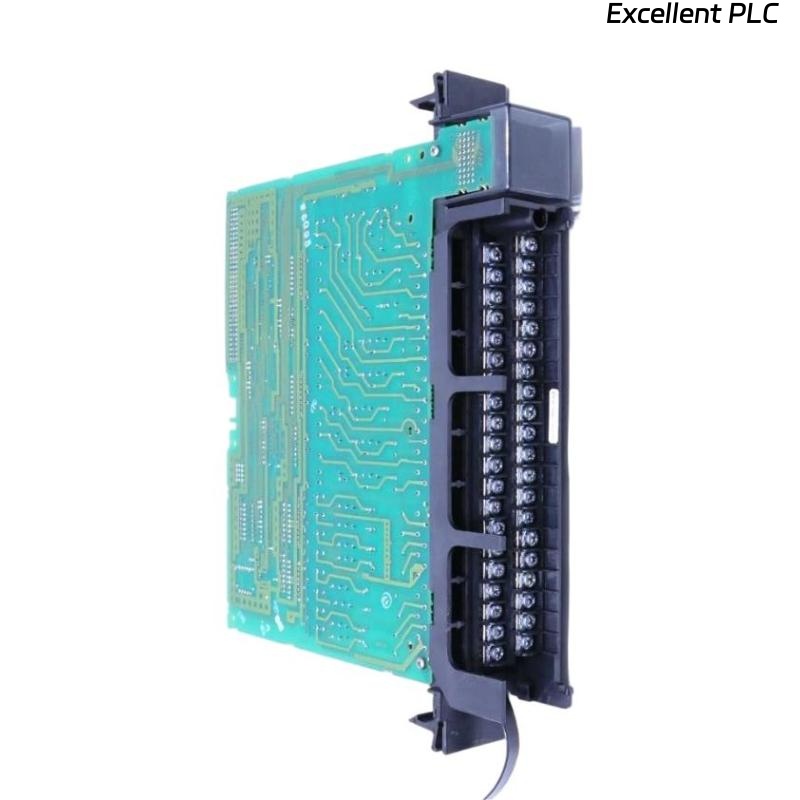

The GE IC697MDL970 Relay Output Module is a robust, high-current output module designed for the GE Fanuc Series 90-70 PLC system. This module provides 16 high-capacity relay outputs suitable for controlling both AC and DC loads, supporting industrial applications that demand reliable, isolated switching.
The IC697MDL970 is capable of handling high load currents, supporting AC voltages of 120/240 VAC and DC voltages up to 125 VDC. Each relay output can manage loads up to 16 A, allowing the module to operate heavy-duty devices such as contactors, solenoids, motors, and high-power indicators. The module’s design includes individually isolated groups of outputs, providing strong electrical protection and preventing interference between circuits.
Equipped with LED indicators for each output, the IC697MDL970 allows technicians to quickly identify the operational state of each channel. Its combination of high current capability, electrical isolation, and compatibility with the Series 90-70 I/O rack makes it a reliable choice for demanding automation environments, including manufacturing, power generation, material handling, and process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Model | IC697MDL970 |
| Product Type | Relay Output Module |
| Series | Series 90-70 |
| Number of Outputs | 16 points |
| Output Type | Relay (Form A, normally open) |
| AC Load Voltage | 120/240 VAC |
| DC Load Voltage | 5–125 VDC |
| Maximum Load Current | 16 A per point |
| Power Handling (AC) | 480 VA per output |
| Power Handling (DC) | 60 W per output |
| Output Groups | 4 isolated groups of 4 points each |
| Output Isolation | 1500 V RMS minimum |
| Switching Time (Operate/Release) | 10 ms typical |
| Output Status Indicators | Individual LED per output |
| Backplane Current Consumption | 0.7 A at 5 VDC |
| Operating Temperature Range | 0°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5–95 % non-condensing |
| Mounting Type | Series 90-70 rack mounting |
| Dimensions (H × W × D) | 200 × 40 × 150 mm |
| Weight | 0.95 kg |
| Certifications | UL, CE, CSA compliant |
Product Applications
The IC697MDL970 Relay Output Module is widely used in industrial and process control systems requiring high-current, reliable digital switching.
Key applications include:
-
Manufacturing automation: Switching motors, solenoids, and high-power indicators for production lines.
-
Power generation and distribution: Controlling auxiliary equipment, alarms, and contactors.
-
Oil and gas industry: Operating solenoids, valves, and pumps in remote or hazardous locations.
-
Water and wastewater systems: Actuating pumps, valves, and signaling devices.
-
Material handling systems: Driving conveyors, actuators, and motorized gates.
-
Building automation: Switching lighting, HVAC systems, and other high-power devices.
The module’s isolation and high-current handling make it suitable for heavy-duty industrial environments with complex electrical loads.
Product Advantages
The GE IC697MDL970 provides robust, reliable, and flexible output control:
-
High Current Capacity: Each relay output can handle up to 16 A, suitable for heavy-duty applications.
-
AC/DC Compatibility: Operates with both AC (120/240 V) and DC (5–125 V) loads.
-
Independent Output Isolation: Four isolated groups prevent interference between circuits and enhance safety.
-
Solid Relay Switching: Mechanical relays provide reliable, high-current switching for inductive and resistive loads.
-
LED Indicators: Individual status LEDs allow easy monitoring and troubleshooting.
-
Fast Switching Response: Typical operate/release time of 10 ms ensures timely control in automation systems.
-
Wide Industrial Compatibility: Compatible with other Series 90-70 modules and I/O racks.
-
Rugged Design: Able to withstand harsh industrial conditions, including vibration and electrical noise.
FAQ
-
What type of loads can the IC697MDL970 handle?
The module supports AC and DC loads, including solenoids, motors, lamps, and contactors, making it versatile for industrial automation. -
What is the maximum current per output point?
Each output can handle up to 16 A, which allows control of high-power industrial devices. -
Does the module provide electrical isolation?
Yes, the outputs are divided into 4 isolated groups of 4 points each, providing protection against cross-coupling and electrical interference. -
How are the output statuses indicated?
Each output has a dedicated LED indicator, allowing visual verification of ON/OFF state for each channel. -
What is the typical switching time for the relay outputs?
The operate and release time is approximately 10 milliseconds, enabling responsive control. -
Can AC and DC loads be used simultaneously on the same module?
Yes, AC and DC loads can be configured in separate isolated groups to prevent interference and maintain operational integrity. -
What is recommended for inductive load protection?
External suppression devices such as diodes or RC snubbers are recommended for inductive loads to prevent relay contact wear. -
How is field wiring accomplished?
Removable screw-type terminal blocks provide secure and convenient field wiring connections. -
What is the power consumption from the PLC backplane?
The module consumes approximately 0.7 A at 5 VDC from the backplane. -
Can the module be used in redundant PLC systems?
Yes, it is compatible with Series 90-70 redundant PLC configurations, supporting fail-safe and high-availability system designs.
Recommended Related Models
| Model Number | Description | Voltage/Current Rating | Output Type | Points |
|---|---|---|---|---|
| IC697MDL940 | 16-Point Relay Output Module | 120/240 VAC or 5–125 VDC, 16 A | Relay | 16 |
| IC697MDL710 | 16-Point 24/48 VDC Output | 2 A per point | Relay | 16 |
| IC697MDL740 | 16-Point 24/48 VDC Output | 2 A per point | Transistor | 16 |
| IC697MDL750 | 32-Point 24/48 VDC Output | 0.5 A per point | Transistor | 32 |
| IC697MDL752 | 32-Point 12 VDC Output | 0.5 A per point | Transistor | 32 |
| IC697MDL753 | 32-Point 5/48 VDC Output | 0.5 A per point, Negative Logic | Transistor | 32 |
