GE IC697VAL132 Analog Input Module

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

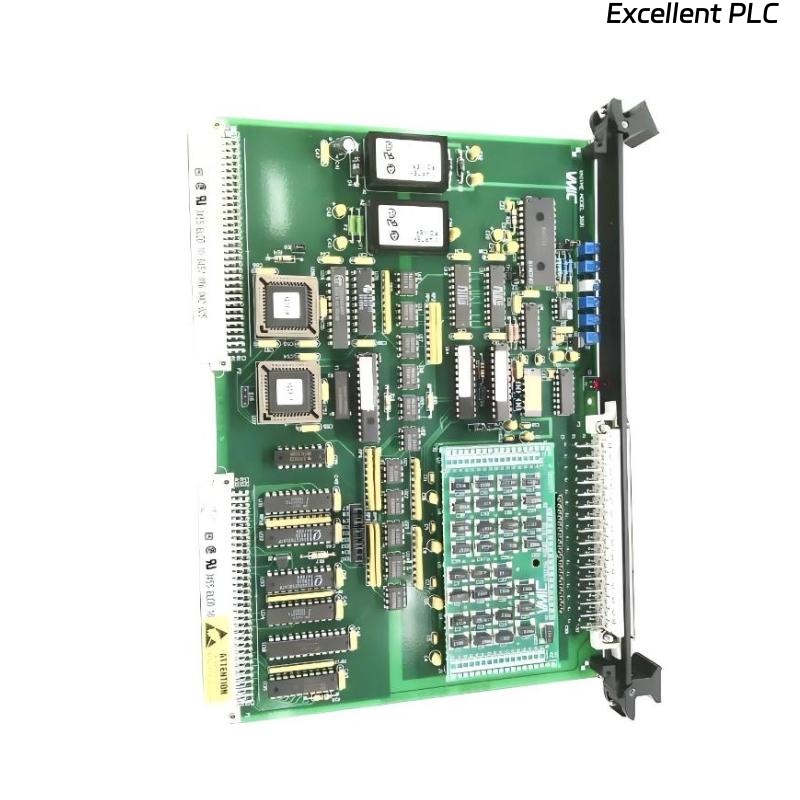

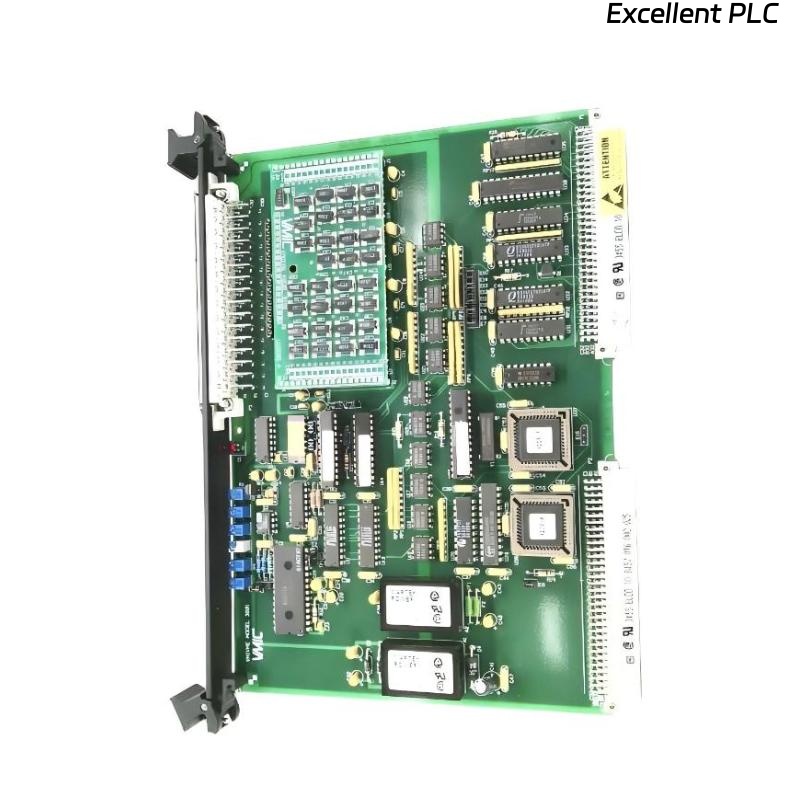

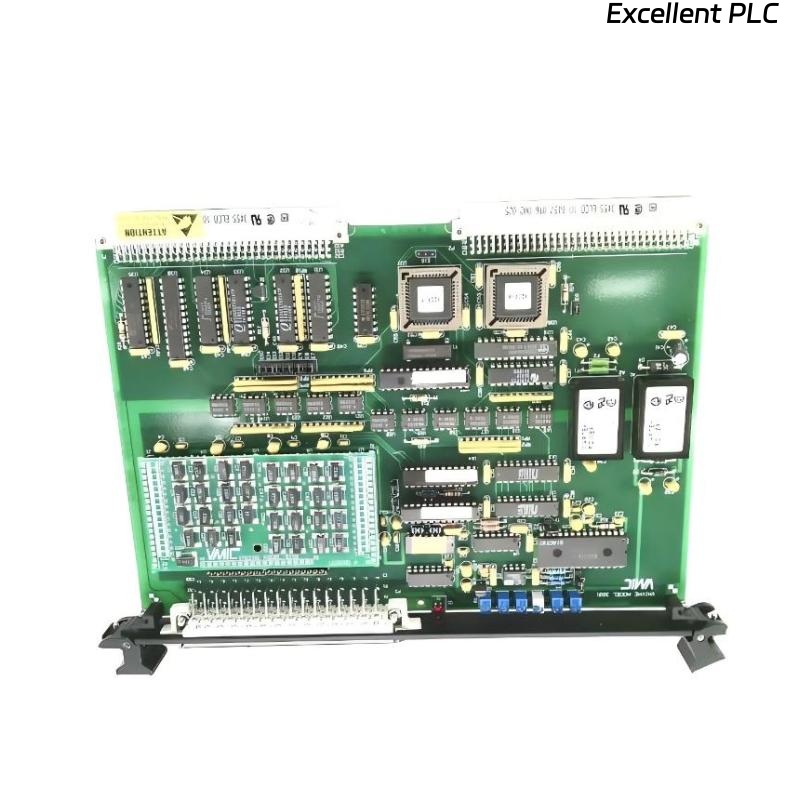

The GE IC697VAL132 Analog Input Module is a 32-channel, 12-bit resolution module designed for the Series 90-70 PLC system. This module is optimized for precise analog signal acquisition, supporting multiple standard current input ranges, including 0-20 mA, 4-20 mA, and 5-25 mA, making it versatile for industrial process control applications.

The module features single-ended inputs, allowing straightforward wiring and signal measurement from various field devices such as sensors, transmitters, and transducers. The removable terminal block simplifies installation, maintenance, and troubleshooting, and no external cabling is required, reducing complexity and enhancing reliability in industrial environments.

Designed for fast and accurate analog-to-digital conversion, the IC697VAL132 ensures high-speed data acquisition for real-time control systems. Its robust industrial design ensures stable operation even in electrically noisy or harsh environments, making it suitable for continuous process monitoring and control.

---

Technical Specifications

---

Product Applications

The IC697VAL132 is suitable for industrial processes requiring high-precision analog measurement.

Typical applications include:

• Process industries: Monitoring of temperature, pressure, flow, and level via analog sensors.

• Batch control systems: Precise measurement for recipe and dosing control.

• Energy management systems: Acquisition of current loop signals from power meters or transducers.

• Automated manufacturing: Real-time monitoring of machinery and production lines.

• Chemical and oil & gas processes: Acquisition of multiple analog signals for regulatory control and safety systems.

• Integration with PLCs in complex automation systems: For large-scale analog input collection without external signal conditioning.

The module ensures reliable and accurate analog data collection in systems that require simultaneous monitoring of multiple signals.

---

Product Advantages

The IC697VAL132 provides key benefits for industrial automation:

• High-Channel Count: Supports 32 analog inputs, minimizing the number of modules required.

• Multiple Input Ranges: Compatible with 0-20 mA, 4-20 mA, and 5-25 mA signals.

• 12-bit Resolution: Provides precise analog-to-digital conversion for accurate process control.

• Single-Ended Design: Simplifies wiring and reduces installation complexity.

• Removable Terminal Block: Simplifies wiring, installation, and maintenance.

• No Cable Required: Reduces installation complexity and potential connection issues.

• Fast Conversion: 5 ms per channel enables near real-time process monitoring.

• Robust Industrial Design: Stable performance under electrical noise, vibration, and temperature variations.

• Seamless Integration: Fully compatible with Series 90-70 PLC systems for immediate deployment.

• Reliable Data Acquisition: Ideal for process control, energy monitoring, and automation systems.

---

FAQ

1. What is the primary function of the IC697VAL132?
   It acquires analog signals from field devices and converts them into digital values for PLC processing.

2. Which input ranges does this module support?
   It supports 0-20 mA, 4-20 mA, and 5-25 mA single-ended signals.

3. How many channels does the module provide?
   The IC697VAL132 provides 32 single-ended analog input channels.

4. What is the resolution of the analog-to-digital conversion?
   It provides 12-bit resolution for precise measurement.

5. Does the module require external cabling for signal input?
   No, the module has a removable terminal block and requires no external cabling.

6. What is the conversion time per channel?
   The typical conversion time is 5 milliseconds per channel, allowing rapid data acquisition.

7. Is the module isolated between channels?
   Yes, it provides channel-to-channel isolation to prevent signal interference.

8. Can the module be installed in standard Series 90-70 racks?
   Yes, it is designed for direct mounting in Series 90-70 racks.

9. What kind of signals can it read from field devices?
   It can read standard current loop signals from sensors, transmitters, and transducers.

10. Is it suitable for real-time industrial process control?
    Yes, its fast conversion speed and multi-channel capability make it ideal for real-time process monitoring and control.

---
