Product Introduction

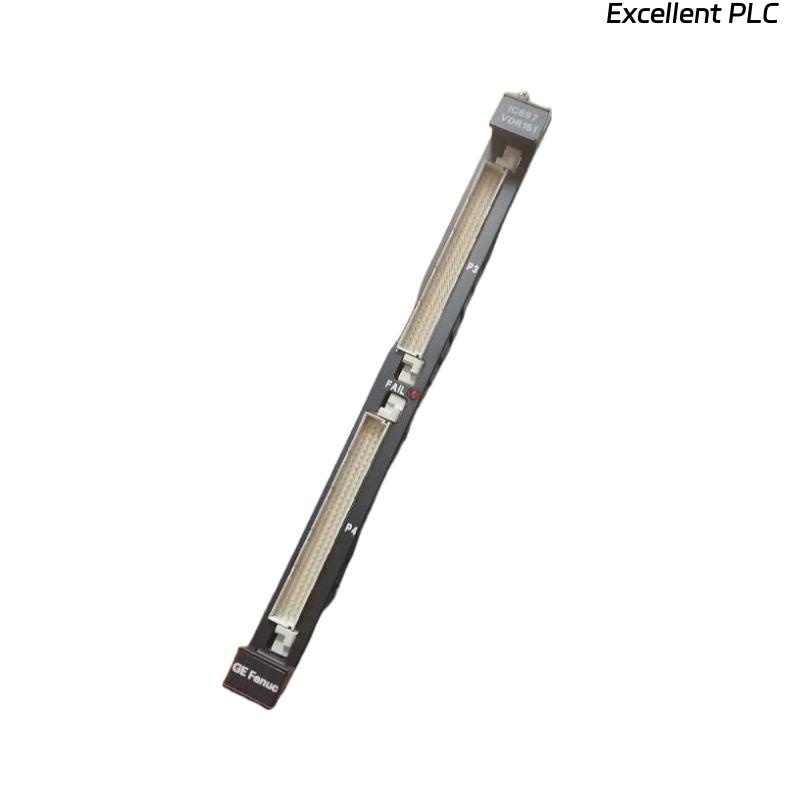

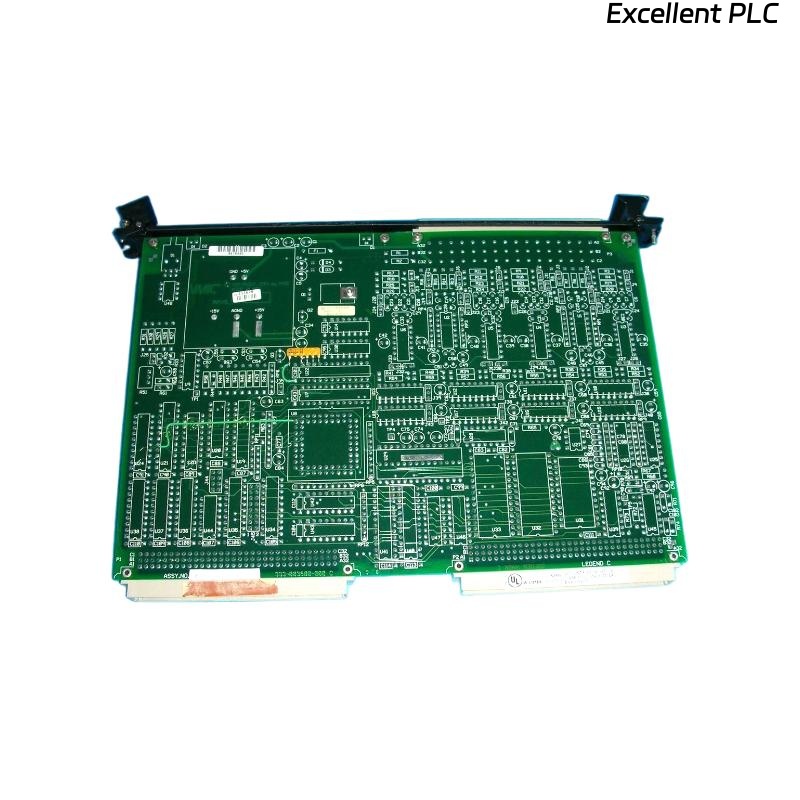

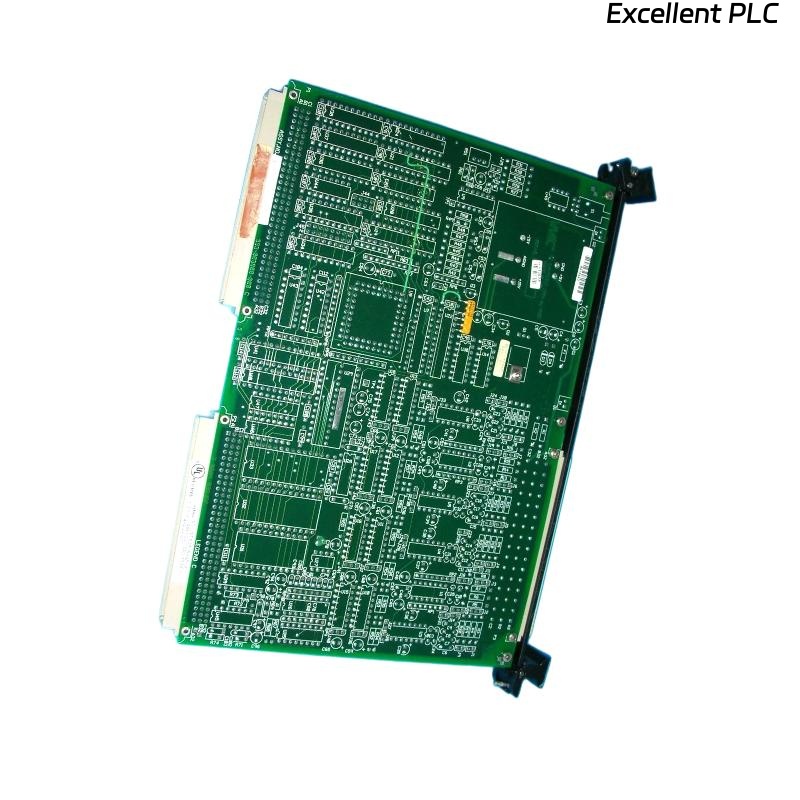

The GE IC697VDR151 is a high-performance relay output module designed for use with the GE Series 90-30 PLC. This module is designed to control external devices such as relays, motors, solenoids, and other high-power loads that require the switching of electrical circuits. The IC697VDR151 provides 16 relay output channels, offering high flexibility and versatility in a wide range of industrial automation applications. The module’s ability to handle high-voltage, high-current loads makes it ideal for industries that require precise control of external devices in demanding environments.
Specifications
The following table outlines the key specifications of the GE IC697VDR151 Relay Output Module:
| Specification | Details |
|---|---|
| Model Number | IC697VDR151 |
| Dimensions (L × W × H) | 200 × 40 × 150 mm |
| Weight | 1.36 kg |
| Output Channels | 16 Relay Output Channels |
| Output Type | SPDT (Single Pole Double Throw) |
| Output Voltage Range | 5-30 V DC |
| Maximum Output Current | 2 A per channel (resistive load) |
| Relay Contact Rating | 2 A at 30 V DC, 1 A at 125 VAC |
| Power Consumption | 5 W |
| Isolation | 1500 V RMS |
| Operating Temperature | 0 to 60°C |
| Compatibility | Compatible with Series 90-30 PLCs |
Applications
The GE IC697VDR151 Relay Output Module is designed for applications that require reliable switching of high-power external devices. It can be used in a wide variety of industrial environments, including:
-
Control of Motors: Ideal for switching motors in manufacturing lines, HVAC systems, and other industrial machines.
-
Process Control Systems: Enables the switching of relays and other devices in complex industrial automation processes.
-
Alarm Systems: Used for triggering alarms and safety systems that require reliable switching under various conditions.
-
Lighting Control: Suitable for controlling lighting systems, especially in industrial facilities where high-current switches are required.
-
Machine Automation: Useful for controlling actuators, solenoids, and other high-power actuators in automated systems.
-
Industrial Equipment Protection: Provides switching for external circuit breakers and protection systems.
Advantages
-
High-Current Switching: Each output channel can handle up to 2 A (resistive load), making it capable of switching high-power industrial equipment.
-
Versatile Output Options: The module offers SPDT (Single Pole Double Throw) relay contacts, providing flexible output choices for various control applications.
-
Built-in Isolation: With 1500 V RMS isolation, the module provides excellent protection against electrical surges, ensuring the integrity of the control system.
-
Energy-Efficient: Despite handling high-power loads, the module consumes only 5 W of power, ensuring low energy usage.
-
Compact Design: The small size (200 × 40 × 150 mm) allows for easy installation in spaces with limited room for additional components.
-
Wide Temperature Range: Operates efficiently within a temperature range of 0°C to 60°C, making it suitable for various environmental conditions in industrial settings.
FAQ
1. How many output channels does the IC697VDR151 module provide?
The IC697VDR151 module provides 16 relay output channels, which allows for the control of multiple external devices simultaneously.
2. What is the maximum output current for each channel?
Each output channel can handle up to 2 A of current when switching resistive loads, providing high-current switching capability for industrial devices.
3. What is the contact rating of the relays?
The relay contacts can handle 2 A at 30 V DC or 1 A at 125 VAC, ensuring compatibility with a wide range of external devices and equipment.
4. What is the power consumption of the IC697VDR151?
The module consumes 5 W of power during operation, offering energy-efficient performance.
5. What type of relay contacts does the IC697VDR151 have?
The module uses SPDT (Single Pole Double Throw) relay contacts, which provide flexible switching options for a variety of devices.
6. What is the isolation voltage for the IC697VDR151?
The module provides 1500 V RMS isolation, protecting against electrical interference and surges that could damage the system or external equipment.
7. Is the IC697VDR151 compatible with other GE PLC models?
Yes, the module is designed to work with GE Series 90-30 PLCs, and it can easily integrate into existing GE automation systems.
8. What is the operating temperature range of the IC697VDR151?
The module operates within a temperature range of 0°C to 60°C, making it suitable for a wide variety of industrial applications.
9. Can the IC697VDR151 be used for controlling motors and other high-power devices?
Yes, the IC697VDR151 is capable of controlling motors, solenoids, and other high-power devices that require reliable switching.
10. How does the IC697VDR151 provide electrical protection?
With 1500 V RMS isolation, the module ensures that the control system and connected devices are protected from electrical surges and spikes.
Related Models
The following table lists other related models and their descriptions:
| Model Number | Description |
|---|---|
| IC697VDR151 | 16-channel relay output module for Series 90-30 PLCs |
| IC697VDR152 | 8-channel relay output module with enhanced features |
| IC697VDR160 | High-current relay output module for industrial automation |
| IC697VDR170 | 16-channel relay output module with diagnostic LEDs |
| IC697VDR180 | High-density relay output module for large systems |
| IC697VDR190 | Relay output module with additional isolation and filtering |
