Product Introduction

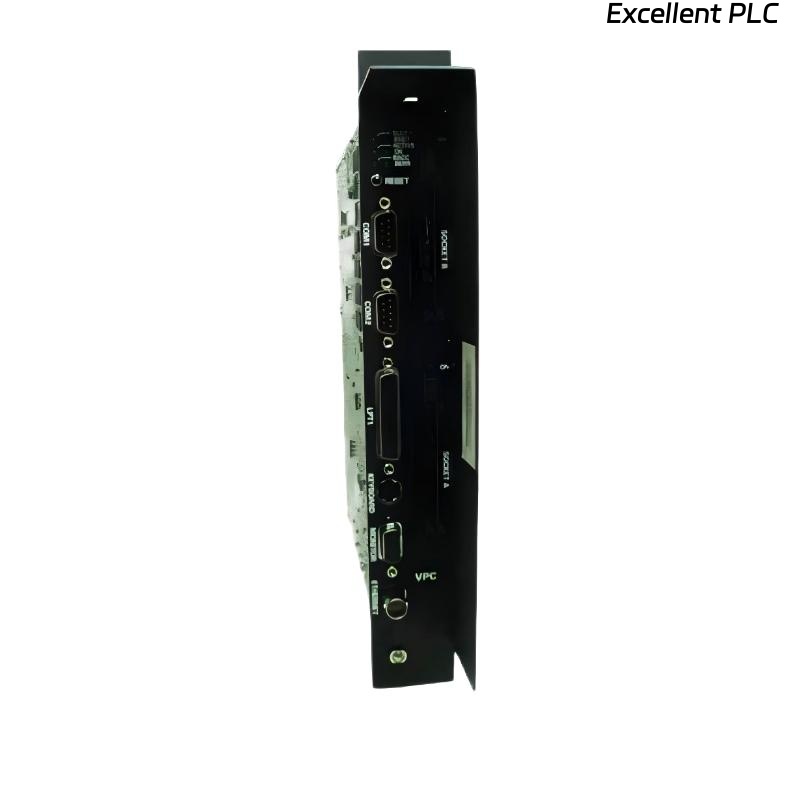

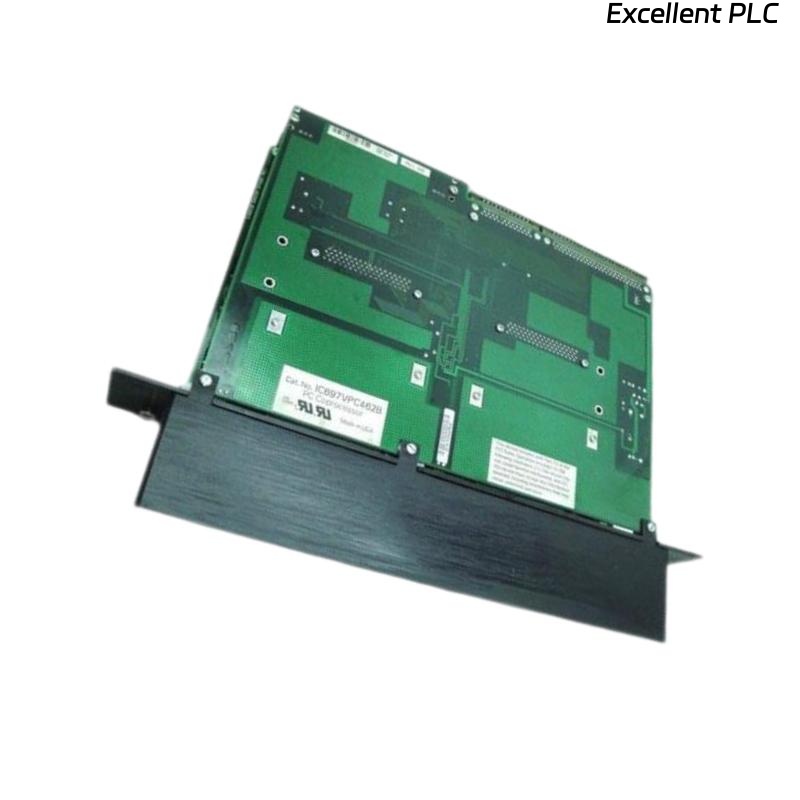

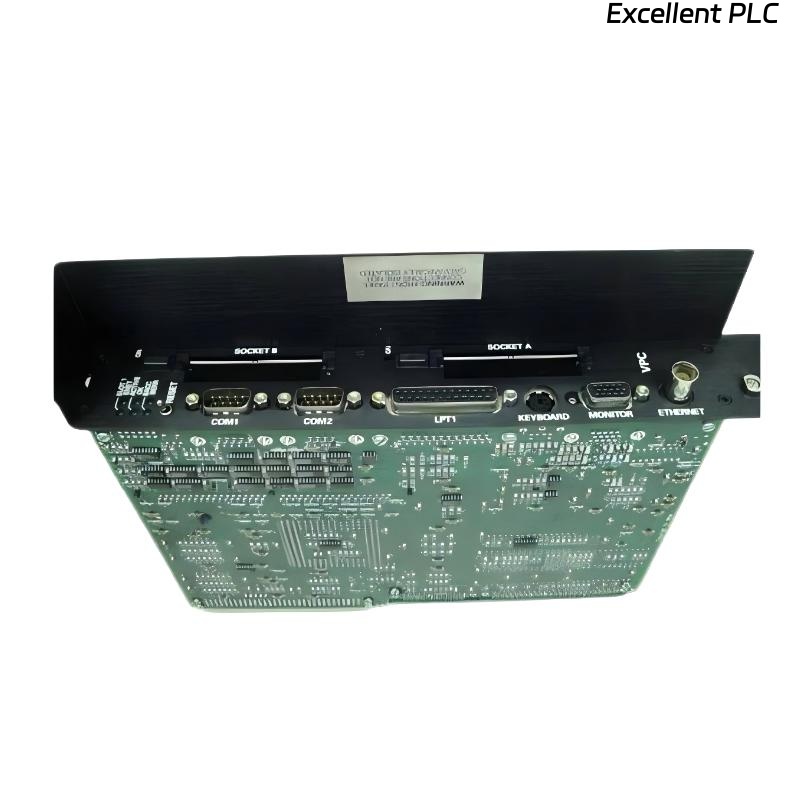

The GE IC697VPC462 is a high-performance co-processor module designed for use with the GE Series 90-30 PLC. This module is specifically engineered to expand the processing capabilities of the Series 90-30 PLC by offloading computational tasks that require more processing power, such as complex data handling, mathematical calculations, and high-speed communication processing. By incorporating the IC697VPC462 co-processor, industrial systems can perform tasks faster and more efficiently, increasing the overall throughput of automated processes. This module is crucial for applications where high-speed data processing and parallel computing are necessary to maintain system performance.
Specifications
The following table outlines the key specifications of the GE IC697VPC462 Co-Processor Module:
| Specification | Details |
|---|---|
| Model Number | IC697VPC462 |
| Dimensions (L × W × H) | 200 × 40 × 150 mm |
| Weight | 0.93 kg |
| Processor Type | Co-processor for Series 90-30 PLCs |
| Processor Speed | 20 MHz |
| Memory Capacity | 256 KB (Expandable) |
| Communication Interface | Serial Communication Ports |
| Power Consumption | 6 W |
| Operating Temperature | 0 to 60°C |
| Compatibility | Compatible with Series 90-30 PLCs |
Applications
The GE IC697VPC462 Co-Processor Module is designed to enhance the performance of automation systems by providing additional processing power for complex tasks. Some common applications include:
-
Complex Data Processing: The module is ideal for applications requiring intensive data manipulation or complex mathematical computations, such as in manufacturing, packaging, or chemical processing industries.
-
High-Speed Communication Systems: It accelerates communication between PLCs and peripheral devices, making it suitable for systems that need to manage large amounts of data at high speeds, such as control systems in power generation or telecommunications.
-
Parallel Processing: The IC697VPC462 is used to handle parallel tasks in industrial automation, such as controlling multiple machines or monitoring numerous input signals simultaneously.
-
Real-Time Processing: With its fast processing speed, the module is suitable for applications in real-time systems where data must be processed and acted upon immediately, such as safety monitoring or quality control systems.
-
Process Optimization: Ideal for use in optimizing industrial processes by reducing the time taken for calculations and decision-making, thus improving operational efficiency.
-
Embedded Systems: It can be incorporated into embedded systems where dedicated computational tasks are required, supporting more advanced applications in robotics or high-speed material handling systems.
Advantages
-
Enhanced Processing Power: The IC697VPC462 co-processor provides additional processing power to the Series 90-30 PLC, making it capable of handling more complex calculations and data handling without overloading the main PLC.
-
Faster Execution: The 20 MHz processor speed allows for faster execution of computational tasks, leading to improved system performance and throughput.
-
Memory Expansion: With 256 KB of memory (expandable), the module provides sufficient storage for large datasets and complex algorithms.
-
Seamless Integration: The co-processor module integrates seamlessly with Series 90-30 PLCs, enabling users to enhance their existing systems without needing extensive hardware changes.
-
Efficient Communication: The module supports serial communication ports, ensuring efficient data exchange between the PLC and connected devices, which is crucial for systems requiring high-speed data transfer.
-
Compact and Space-Efficient: Its compact size (200 × 40 × 150 mm) allows for easy installation in control panels and industrial environments with limited space.
-
Energy-Efficient: The module consumes only 6 W of power, providing enhanced performance without excessive energy consumption.
FAQ
1. What is the processor speed of the IC697VPC462 co-processor?
The IC697VPC462 co-processor operates at a processor speed of 20 MHz, providing fast computational performance for industrial automation tasks.
2. How much memory does the IC697VPC462 have?
The module comes with 256 KB of memory, which is expandable to meet the needs of more complex applications.
3. What type of communication interfaces are supported by the IC697VPC462?
The module supports serial communication ports, allowing for efficient data exchange between the PLC and peripheral devices.
4. What is the power consumption of the IC697VPC462 module?
The module consumes 6 W of power, making it energy-efficient while delivering high performance.
5. Is the IC697VPC462 compatible with other GE PLCs?
The IC697VPC462 is specifically designed for use with the GE Series 90-30 PLC, ensuring seamless integration and enhanced processing capabilities within this system.
6. What are the primary benefits of using the IC697VPC462 co-processor?
The key benefits include enhanced processing power, faster execution of tasks, memory expansion, and efficient communication with minimal impact on energy consumption.
7. Can the memory of the IC697VPC462 be expanded?
Yes, the IC697VPC462 has 256 KB of memory, which is expandable to support larger datasets and more complex tasks.
8. What is the operating temperature range for the IC697VPC462?
The module operates effectively in temperatures ranging from 0°C to 60°C, making it suitable for various industrial environments.
9. How does the IC697VPC462 improve system performance?
By offloading computational tasks from the main PLC, the IC697VPC462 allows for faster data processing, more efficient control, and improved system throughput.
10. Is the IC697VPC462 suitable for real-time applications?
Yes, the IC697VPC462 is ideal for real-time applications that require fast data processing and immediate action, such as safety systems and process control.
Related Models
The following table lists other related models and their descriptions:
| Model Number | Description |
|---|---|
| IC697VPC462 | Co-processor module for Series 90-30 PLCs |
| IC697VPC460 | Lower capacity co-processor module for smaller systems |
| IC697VPC470 | Co-processor with enhanced communication interfaces |
| IC697VPC465 | High-speed co-processor module for industrial automation |
| IC697VPC475 | Co-processor with additional memory and processing power |
| IC697VPC480 | Advanced co-processor module for complex applications |
