Product Overview

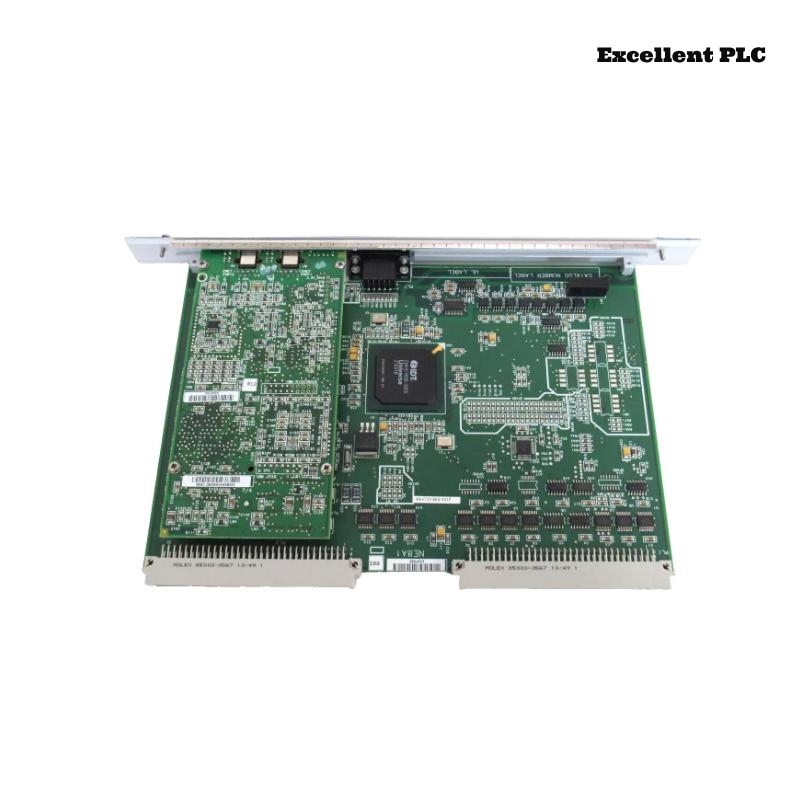

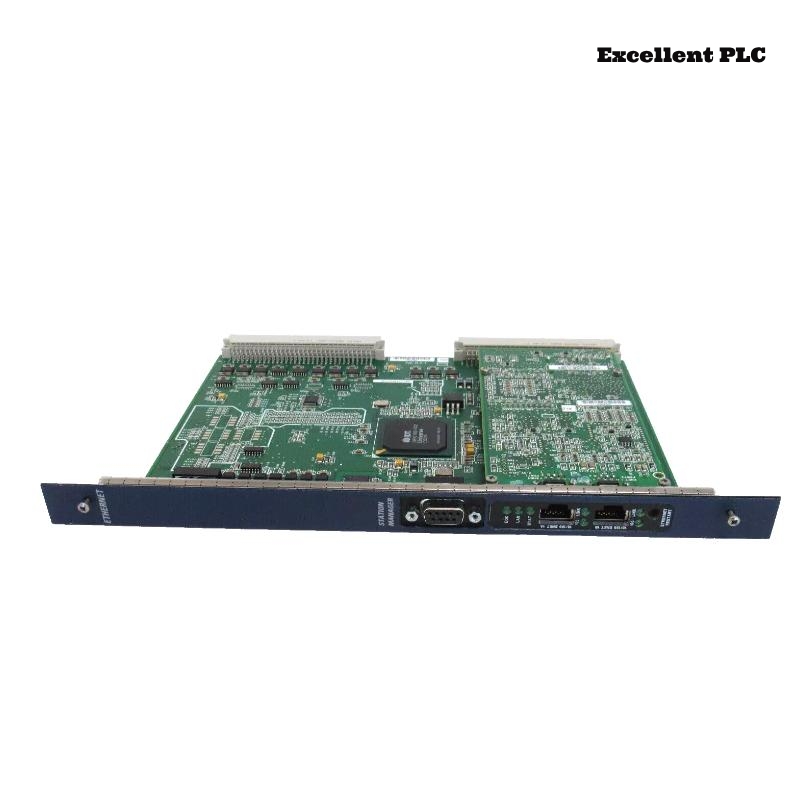

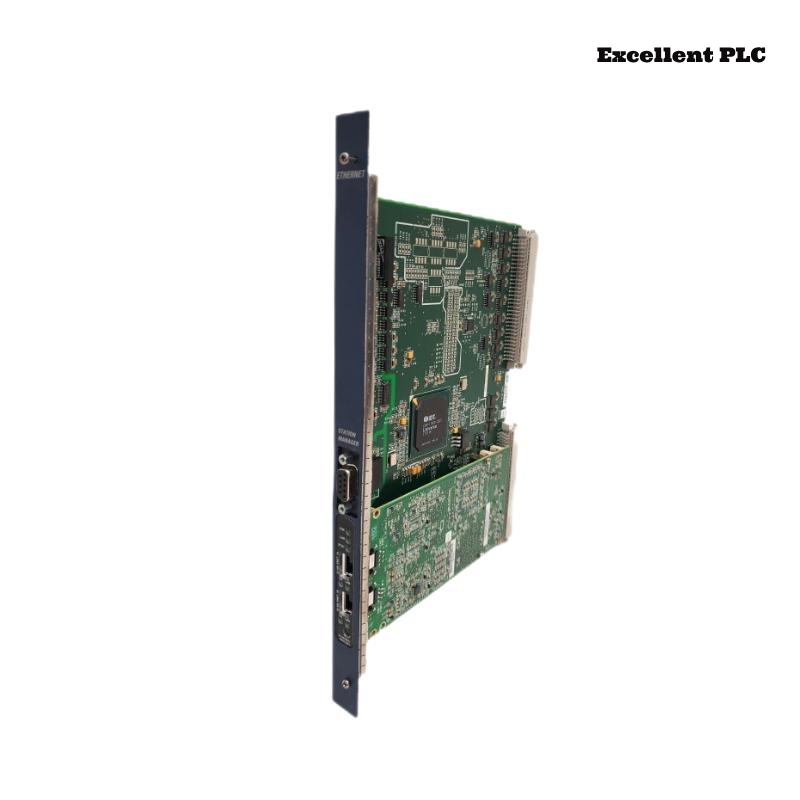

The GE IC698ETM001-EP Ethernet Interface Module is a high-performance communication module designed for integration within GE’s PACSystems RX7i control systems. It facilitates seamless Ethernet connectivity, enabling efficient data exchange between controllers, remote devices, and enterprise networks. This module is essential for applications requiring reliable and high-speed communication in industrial automation environments.
Product Specifications
| Specification | Details |
|---|---|

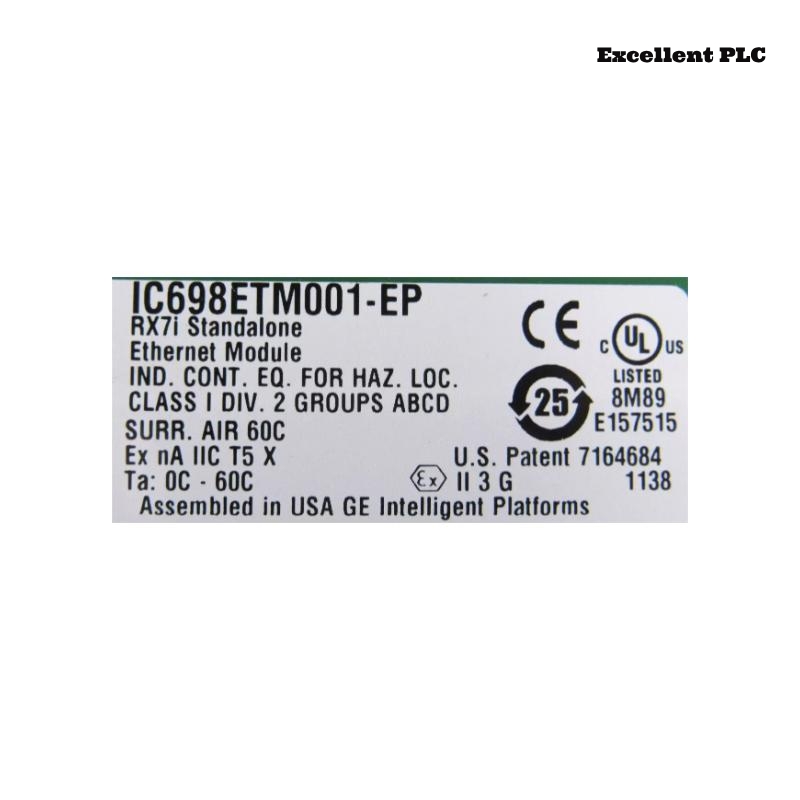

| Model Number | IC698ETM001-EP |
| Ethernet Ports | 2 ports supporting 10/100 Mbps with auto-sensing capabilities |
| Serial Communication Port | 1 RS-232 port (9-pin sub-D connector) |
| Supported Protocols | TCP/IP, SRTP, Modbus/TCP (Server and Client) |
| Ethernet Processing Speed | 200 MHz |
| Operating Voltage | +5 VDC |
| Current Consumption | 1.5 Amps max |
| Dimensions | 130 x 75 x 140 mm |
| Weight | 0.417 kg |
| Operating Temperature Range | 0°C to +60°C |
| Connector Type | RJ45 for Ethernet ports |
| Cable Requirements | Minimum CAT5 for Ethernet connections |
| Network Topologies Supported | Linear, star, and ring configurations; supports unique or redundant IP addressing |
| Compatibility | GE PACSystems RX7i series |
| Compliance Standards | IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet) |
Applications
The IC698ETM001-EP module is utilized in various industrial applications, including:
- Data Acquisition and Monitoring: Collecting and transmitting data from sensors and monitoring devices to central control systems for analysis.
- Remote Device Control: Enabling operators to manage and control machinery and processes from remote locations.
- Communication Gateway: Facilitating data exchange between different devices and systems within an industrial network.
- Internet Connectivity: Providing access to internet-based services for remote diagnostics and maintenance.
Advantages
- High-Speed Communication: Supports 10/100 Mbps Ethernet speeds, ensuring rapid data transfer.
- Versatile Protocol Support: Compatible with multiple communication protocols, enhancing integration flexibility.
- Robust Design: Engineered to withstand industrial environments, ensuring reliable operation.
- Scalability: Easily integrates into existing systems, allowing for future expansion without significant overhauls.
- Remote Accessibility: Enables remote monitoring and control, reducing the need for on-site interventions.
Latest News Titles
- “GE Enhances Industrial Automation with Advanced Ethernet Modules”: Discusses the latest advancements in GE’s Ethernet interface modules, including the IC698ETM001-EP, highlighting improved performance and integration capabilities.
- “New Firmware Update Released for GE’s IC698ETM001-EP Module”: Covers the recent firmware update that enhances security features and protocol support for the IC698ETM001-EP module.
Frequently Asked Questions (FAQs)
-
What is the primary function of the IC698ETM001-EP module?
- It provides Ethernet connectivity for GE’s PACSystems RX7i controllers, enabling high-speed data communication within industrial networks.
-
Which communication protocols does the module support?
- It supports TCP/IP, SRTP, and Modbus/TCP (both Server and Client modes).
-
How many Ethernet ports are available on the module?
- The module features two Ethernet ports with 10/100 Mbps auto-sensing capabilities.
-
What type of cable is recommended for Ethernet connections?
- A minimum of CAT5 Ethernet cable is recommended for optimal performance.
-
Can the module operate in a redundant network configuration?
- Yes, it supports unique or redundant IP addressing, allowing for network redundancy.
-
What is the operating temperature range for the module?
- The module operates within a temperature range of 0°C to +60°C.
-
Is the module compatible with other GE control systems?
- It is specifically designed for the PACSystems RX7i series but may be compatible with other GE systems supporting similar modules.
-
What is the power requirement for the module?
- It requires a +5 VDC power supply with a maximum current consumption of 1.5 Amps.
-
Does the module support remote firmware updates?
- Yes, firmware updates can be applied remotely to enhance functionality and security.
-
What network topologies are supported by the module?
- It supports linear, star, and ring network configurations.
