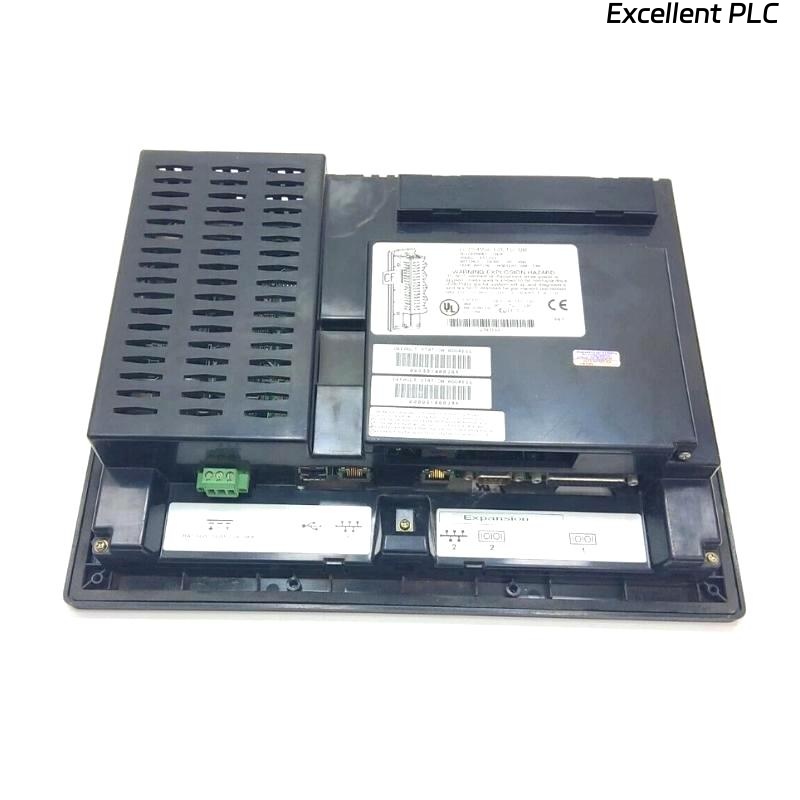

GE IC754VGL12CTD HMI Terminal

Technical Overview

The GE IC754VGL12CTD is a 12-inch color HMI Terminal engineered for industrial visualization, equipment diagnostics, and machine-level control. As part of GE’s QuickPanel family, this unit integrates processing, display, and communication hardware into a single solid-state platform, offering dependable runtime operation in both standalone and PLC-connected environments.

Designed for industrial automation architectures, the IC754VGL12CTD provides a stable visual interface for controllers, drives, and distributed I/O systems. Its high-brightness display, robust panel-mount construction, and multi-protocol communication capabilities make it a reliable option for applications that demand continuous visibility and operator interaction.

Technical Specifications

Applications / Use Scenarios

• Supervisory interfaces for factory machinery and processing equipment

• Local operator interface for GE PLC systems (RX3i, VersaMax, legacy 90-30)

• Distributed HMI nodes in SCADA architectures

• OEM machine control panels requiring compact integrated visualization

• Production lines where stable 24/7 HMI operation is required

• Energy, water treatment, and utility control systems

Advantages / Engineering Benefits

• Integrated solid-state architecture means fewer failure points and consistent runtime performance

• SVGA 12-inch touchscreen for detailed operational graphics and alarms

• Flexible communication options supporting mixed PLC environments

• Fanless cooling design increases long-term reliability

• Rugged bezel ensures durability when mounted in vibration-prone panels

• Simplified program deployment using Ethernet or USB interfaces

• Stable operation during brownouts or voltage disturbances when paired with clean 24 VDC power

Technical FAQs

1. What is the touchscreen technology?
   Analog resistive, suitable for gloved operation.

2. Does the unit support Ethernet-based protocols?
   Yes, including standard industrial communication protocols.

3. Can it store large application files?
   Yes, internal flash memory supports typical HMI projects.

4. Is this model panel-mounted?
   Yes, designed for sealed industrial panel mounting.

5. Does it operate reliably in 24/7 environments?
   Yes, intended for continuous industrial duty.

6. Is USB available for firmware or project transfer?
   Yes, USB Host and Device ports are included.

7. Does it interface with GE and non-GE PLCs?
   Yes, via Ethernet or serial connections.

8. What display resolution does it support?
   800 × 600 (SVGA).

9. Is external cooling required?
   Not under normal conditions; fanless internal design.

10. Can the device withstand electrical noise?
    Yes, suitable for industrial EMI environments with proper grounding.
