Product Introduction

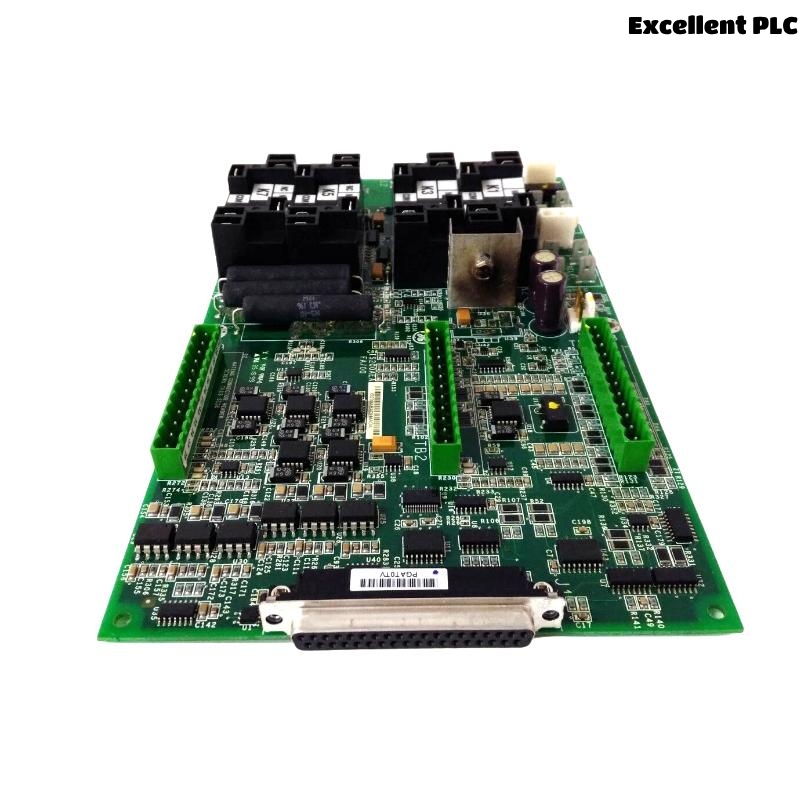

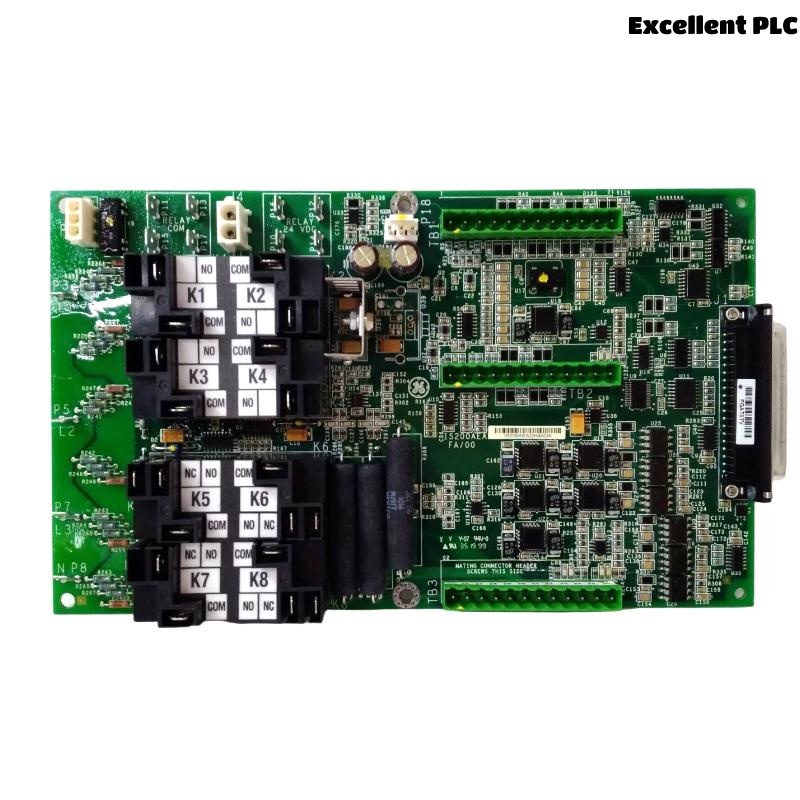

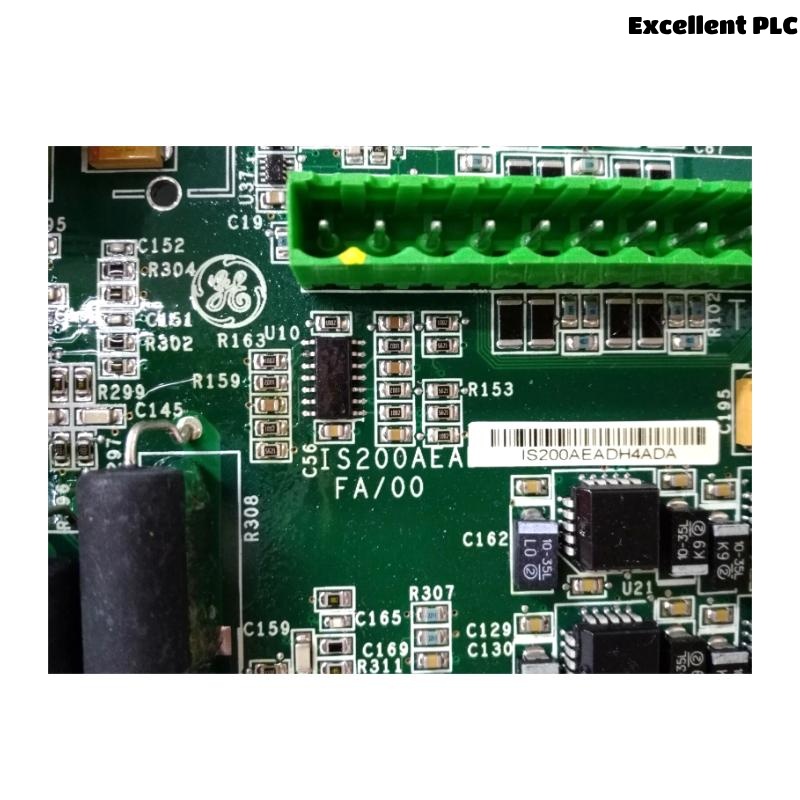

The GE IS200AEADH4ADA is a specialized Analog Electrostatic Discharge and Attenuation Terminal Board (AEAD) designed for use within the GE Mark VI and Mark VIe control systems. It functions as an interface between field-mounted analog sensors and the core control electronics, facilitating clean, safe, and reliable signal transmission. The AEADH4ADA version belongs to a refined series that ensures robust analog signal integrity by filtering noise and safeguarding input channels against electrostatic discharge (ESD) and transient voltage spikes.
As an input terminal board, the IS200AEADH4ADA serves as the first point of contact for incoming analog signals, conditioning them before they’re routed to analog input modules. The module’s rugged design and conformity to GE’s strict quality standards make it ideal for demanding industrial environments such as power plants, oil & gas refineries, and heavy manufacturing.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IS200AEADH4ADA |
| Manufacturer | General Electric (GE) |
| Product Type | Analog Input Terminal Board |
| System Compatibility | GE Mark VI / VIe Series |
| Primary Function | Analog signal termination, filtering, and ESD protection |
| Input Types Supported | ±10 VDC, 4–20 mA, RTD, and other analog sensor inputs |
| Number of Input Channels | Multiple (varies by installation configuration) |
| Signal Conditioning | EMI filtering, surge protection |
| Connector Type | Screw-terminal blocks + ribbon connectors |
| Backplane Interface | High-density VME-style edge connector |
| Power Supply Requirement | Typically powered through the I/O pack interface |
| Operating Temperature | -30°C to +70°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Conformal Coating | Yes (anti-corrosion, dust, and moisture protection) |
| Mounting Method | Rack/Panel Mount |
| Dimensions (W × H × D) | 40 × 240 × 210 mm |
| Weight | 0.85 kg |
| Compliance Standards | RoHS, CE, UL, CSA |
Product Applications
The IS200AEADH4ADA is a key part of the GE Mark VI/Vie control ecosystem. It is used extensively across sectors that require high-fidelity analog data acquisition from field sensors. Primary applications include:
-
Gas and Steam Turbine Control Systems
-
Balance-of-Plant (BoP) Automation Systems
-
Petrochemical Process Automation
-
Power Generation and Distribution Stations
-
Water Treatment Facilities
-
Heavy Industrial Machinery Monitoring
Product Advantages
-
Superior Signal Integrity: The board provides EMI suppression and noise filtering for clean signal transfer.
-
Integrated ESD Protection: Protects sensitive electronics from damage due to electrostatic discharge or lightning-induced surges.
-
Reliable Field Connections: Screw-terminal blocks allow secure and field-serviceable wiring for multiple analog channels.
-
Extended Environmental Tolerance: Designed for temperature extremes and humidity typical in industrial operations.
-
Simplified System Integration: Seamless interface with I/O packs and controller modules in the GE Mark VI/VIe framework.
-
Long Service Life: Durable construction and protective coatings reduce the likelihood of failures and downtime.
Frequently Asked Questions (FAQ)
-
What is the function of the IS200AEADH4ADA terminal board?
It serves as a signal entry point for analog inputs, filtering and protecting signals before they reach the control module. -
Is this model compatible with older Mark VI systems?
Yes, it supports both Mark VI and Mark VIe platforms, depending on I/O pack compatibility. -
Does the AEADH4ADA model support current and voltage inputs?
Yes, it supports standard analog signals including 4–20 mA and ±10 VDC. -
Can this board be used in high-vibration environments?
Yes, with proper mounting and support, it withstands industrial vibration levels. -
Does it include LED indicators or diagnostics?
The board itself typically does not include LEDs; diagnostics are handled via the controller interface. -
Is conformal coating standard on this board?
Yes, it includes protective conformal coating for harsh environment operation. -
How many analog inputs can it support?
The board typically supports multiple analog channels, depending on system configuration. -
Can I replace the board without system shutdown?
No, the system should be powered down to replace or service the AEADH4ADA safely. -
Is it suitable for safety-rated applications?
Yes, when integrated into certified GE control systems, it supports safety compliance. -
How is the board connected to the controller?
It uses ribbon and edge connectors to interface with the main rack and controller module.
