Control Room Operator Training Guide
1. Understanding the Module in Daily Operation

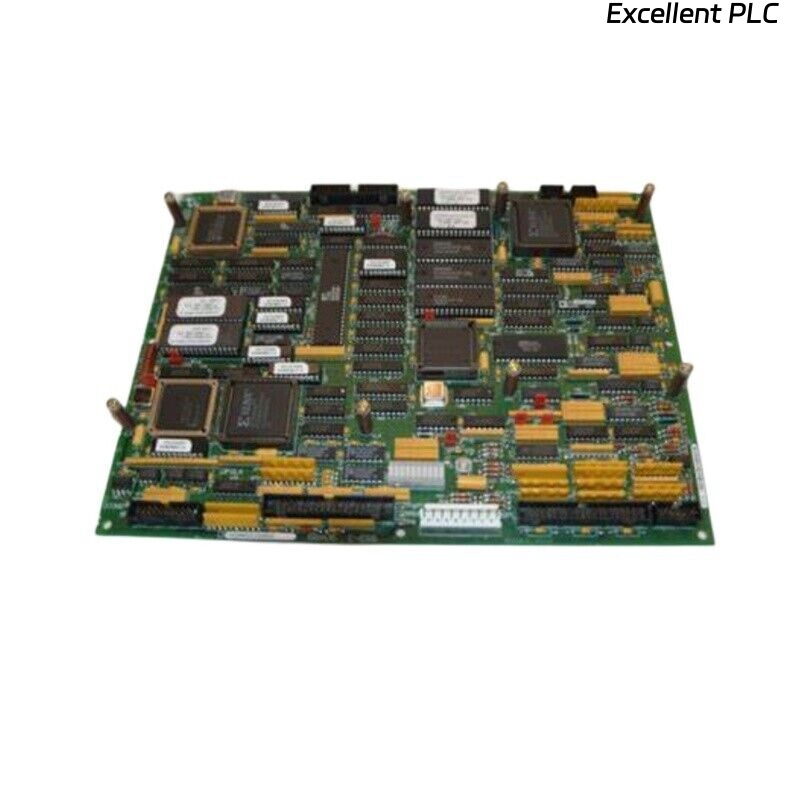

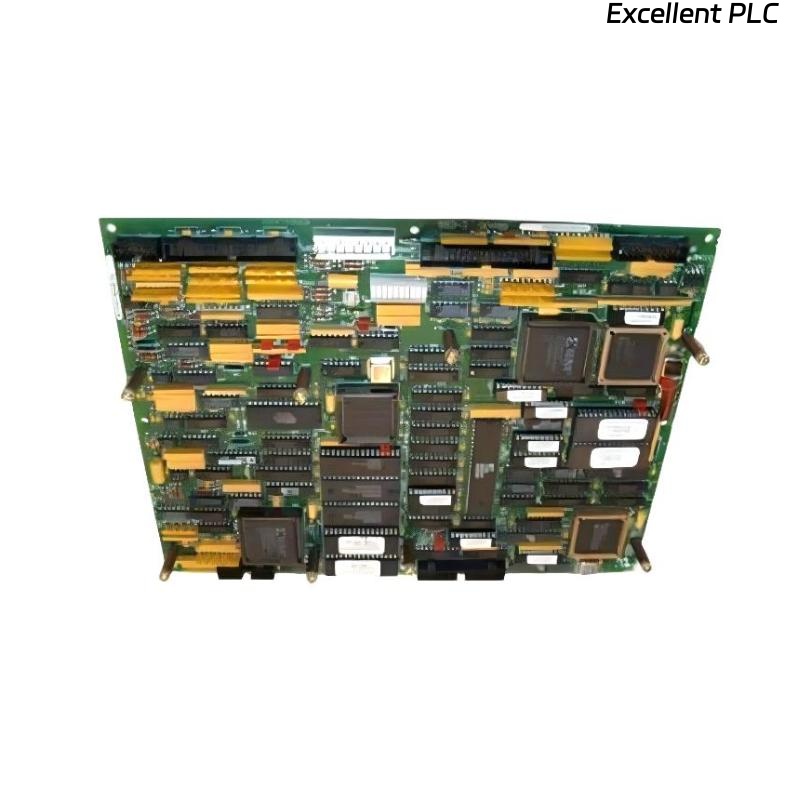

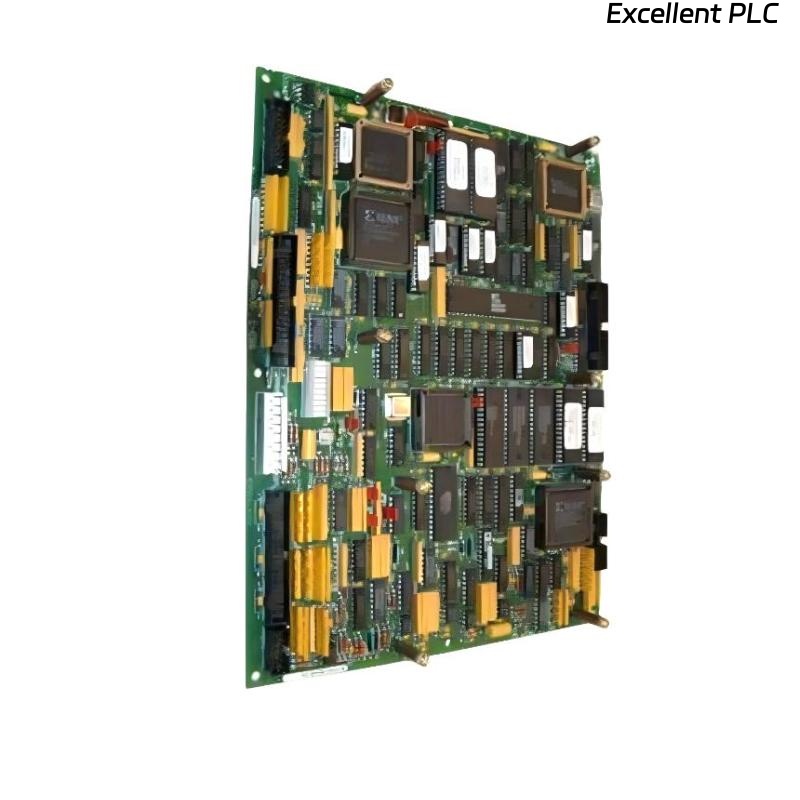

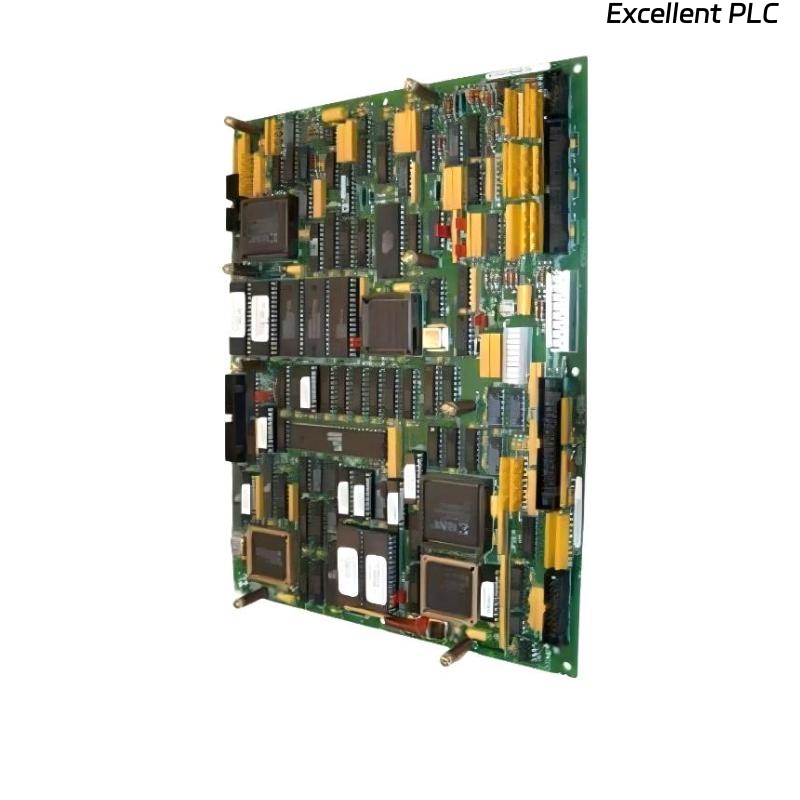

The IS200BICIH1ACA is a Backplane Communication & Interface module used across GE Mark VI/VIe control frames. For operators, this board is rarely adjusted directly—but it plays a crucial part in coordinating communication between the controller core and the associated I/O subsystem.
In routine operation, you may notice its role only when communication alarms appear in the HMI. This guide highlights what operators need to know to identify early signs of communication irregularities and how to respond effectively.
2. Technical Outline for Operator Familiarity
| Parameter | Specification |
|---|---|
| Brand | GE |
| Module Type | Backplane Communication / Interface Board |
| Operating Voltage | 24V DC |
| Signal Architecture | Isolated differential signaling |
| Data Handling | FPGA-assisted bus arbitration |
| Status Indicators | LED-based communication & integrity signals |
| Dimensions (L × W × H) | 160 mm × 92 mm × 41 mm |
| Weight | 0.70 kg |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
| Surge Immunity | Up to 2 kV transient protection |
3. How It Functions During Plant Operation
When the control system is running, the IS200BICIH1ACA continuously exchanges timing data and communication packets with attached boards. Operators should be aware that:
-
Bus timing is fully automated—no intervention required.
-
LED behavior matters; changes from steady to intermittent blinking can indicate communication congestion.
-
The module buffers data, preventing partial or corrupted packets from reaching the controller.
-
Short noise bursts in the cabinet typically do not impact system performance thanks to isolation circuitry.
Understanding these behaviors helps operators distinguish between minor disturbances and symptoms of broader system faults.
4. Typical Control Room Use Cases
You will encounter this module in several operational contexts:
-
Turbine control cabinets, where it coordinates sequencing signals.
-
High-density I/O racks, maintaining stable refresh cycles.
-
Redundant controller arrangements, synchronizing communication across paired units.
-
Mixed-signal environments, where isolation prevents digital noise from affecting analog devices.
While the module itself requires no operator adjustments, knowing its role helps during troubleshooting discussions with maintenance teams.
5. Operational Advantages for On-Shift Personnel
-
Stable communication reduces HMI nuisance alarms.
-
Consistent isolation minimizes false system warnings due to electrical noise.
-
High resistance to thermal drift ensures predictable performance across long operating shifts.
-
Diagnostic LEDs give operators quick visual confirmation of subsystem health.
-
Strong mechanical build prevents loose seating issues after maintenance cycles.
-
Low jitter timing supports smooth controller performance.
These characteristics directly improve operational reliability and reduce unnecessary shutdowns or resets.
