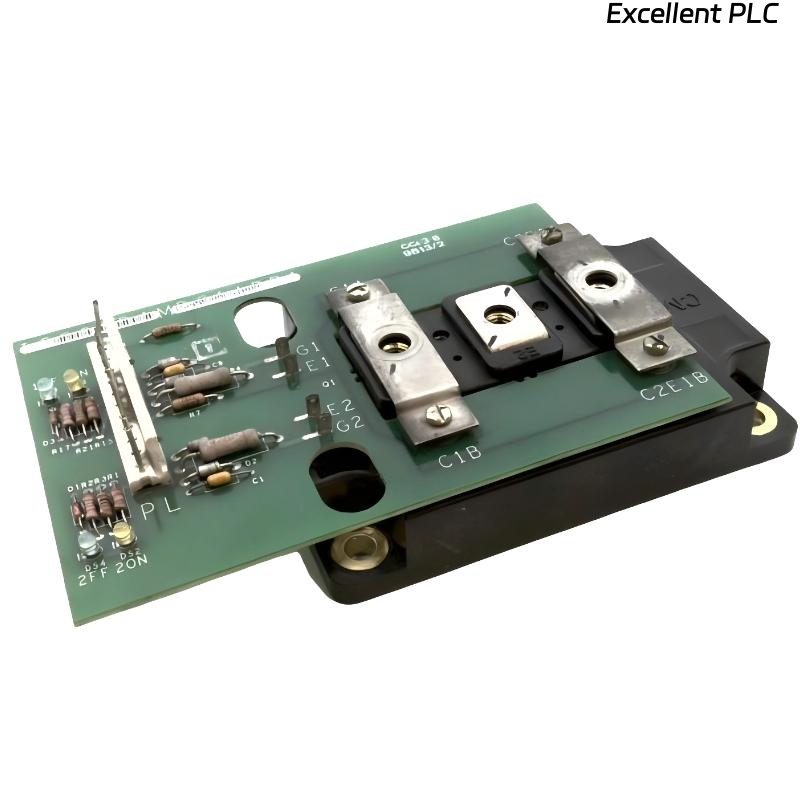

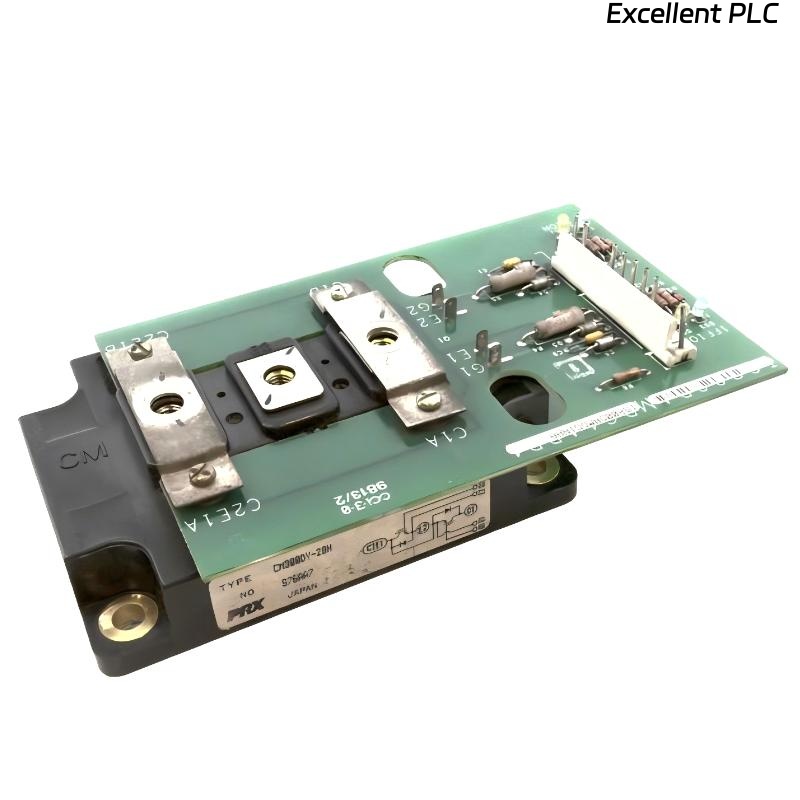

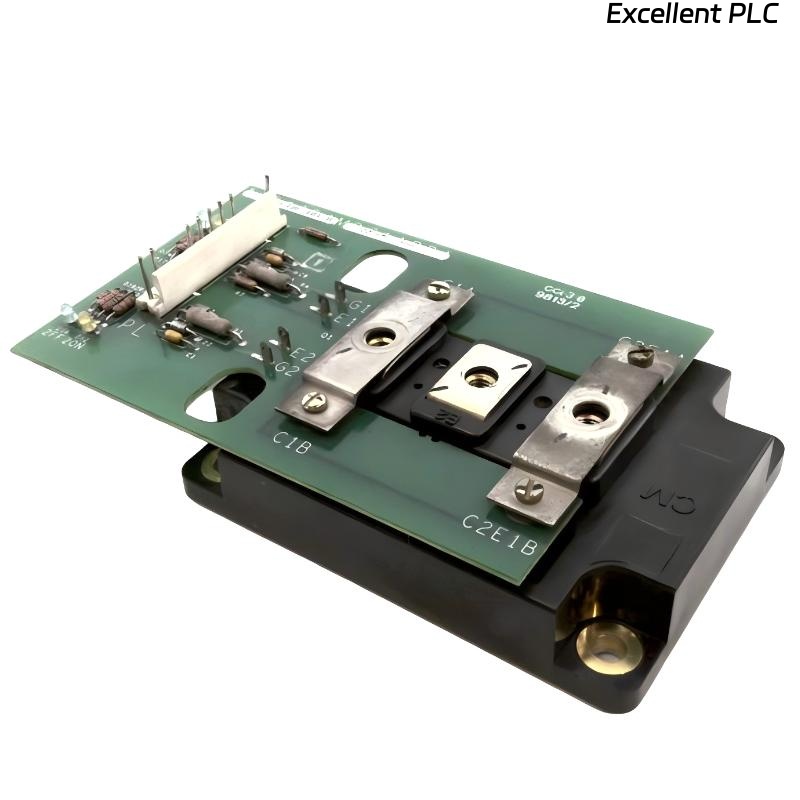

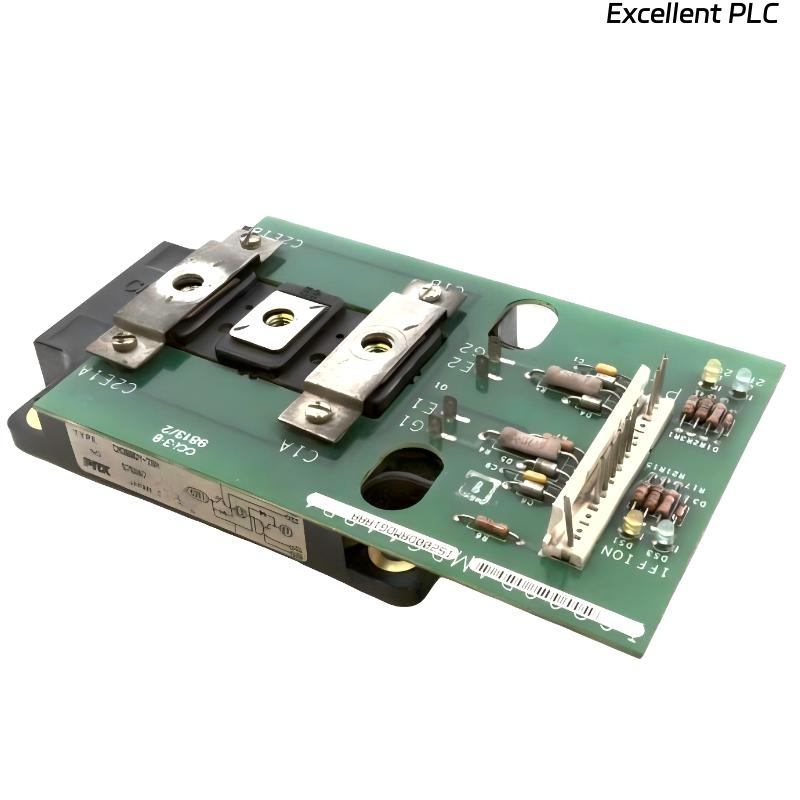

GE IS200DAMDG1A Gate Driver Board

Product Introduction

The GE IS200DAMDG1A is a Gate Driver Board designed for controlling high-power semiconductor devices such as IGBTs and MOSFETs in industrial automation and power electronics applications. It provides precise gate drive signals to ensure fast switching, protection, and efficient operation of power modules.

This board is compact and robust, making it suitable for integration into inverter systems, motor drives, and distributed control architectures. Its fast response, electrical isolation, and protective features make it ideal for demanding industrial environments.

The IS200DAMDG1A is widely used in variable speed drives, power converters, renewable energy systems, and industrial motor control where reliable gate control and switching protection are critical.

Product Specifications

Applications

The IS200DAMDG1A board is used in industrial and power electronics applications that require precise gate control:

• Variable Speed Drives – controlling IGBT/MOSFET gates for motor speed regulation.

• Power Converters – ensuring reliable switching in AC/DC and DC/AC converters.

• Renewable Energy Systems – gate driving for photovoltaic inverters and wind power converters.

• Industrial Motor Control – precise switching of power devices in large motors.

• High-Power Switching Systems – fast and safe operation of IGBTs/MOSFETs in industrial applications.

Advantages

Key benefits of the IS200DAMDG1A include:

• Precise Gate Drive – ensures accurate timing for high-power semiconductor switching.

• Electrical Isolation – protects control circuits from high-voltage power devices.

• Fast Switching Support – capable of driving devices up to 20 kHz.

• Robust Protection – overvoltage, undervoltage, short-circuit, and overcurrent safeguards.

• Compact and Lightweight – easy integration into panels and PCBs.

• Wide Operating Temperature – stable operation from -10°C to 60°C.

• Supports Logic-Level Inputs – compatible with PWM and other control signals.

• Maintenance Friendly – simple installation and replacement.

FAQ

1. Which power devices can this board drive?
   It is designed for IGBTs and MOSFETs used in industrial applications.

2. What is the typical drive voltage?
   ±15 V to ±20 V for gate control.

3. Are the outputs electrically isolated?
   Yes, all gate drive outputs are isolated from control circuits.

4. What is the maximum switching frequency supported?
   Up to 20 kHz.

5. What protections are included?
   Overvoltage, undervoltage, overcurrent, and short-circuit protections are integrated.

6. Can it handle multiple gate channels simultaneously?
   Yes, depending on configuration, multiple outputs can be driven concurrently.

7. What is the operating temperature range?
   -10°C to 60°C continuous operation.

8. How is the board mounted?
   Panel or PCB mounting is supported.

9. Can the board maintain gate signal integrity under transient conditions?
   Yes, it includes protective circuitry to maintain stable gate drive signals.

10. Is the board suitable for high-noise industrial environments?
    Yes, electrical isolation and filtering ensure reliable operation in noisy conditions.
