Product Introduction

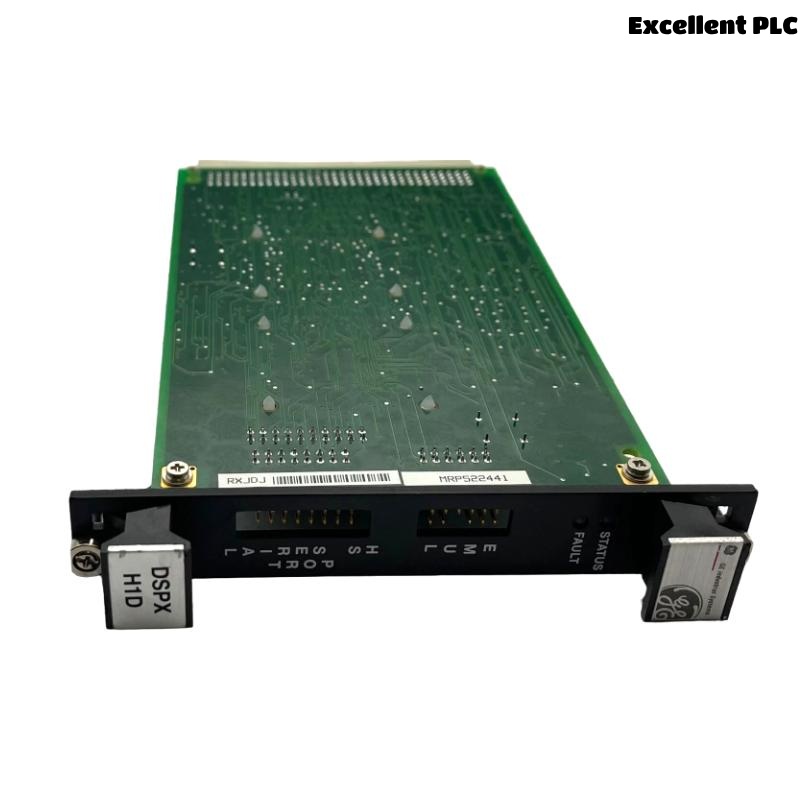

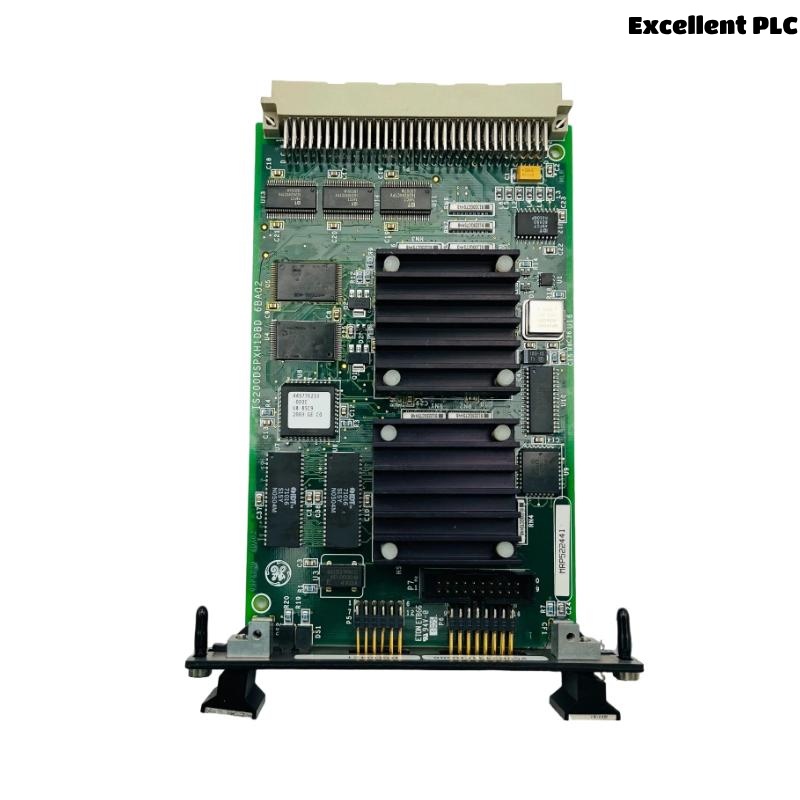

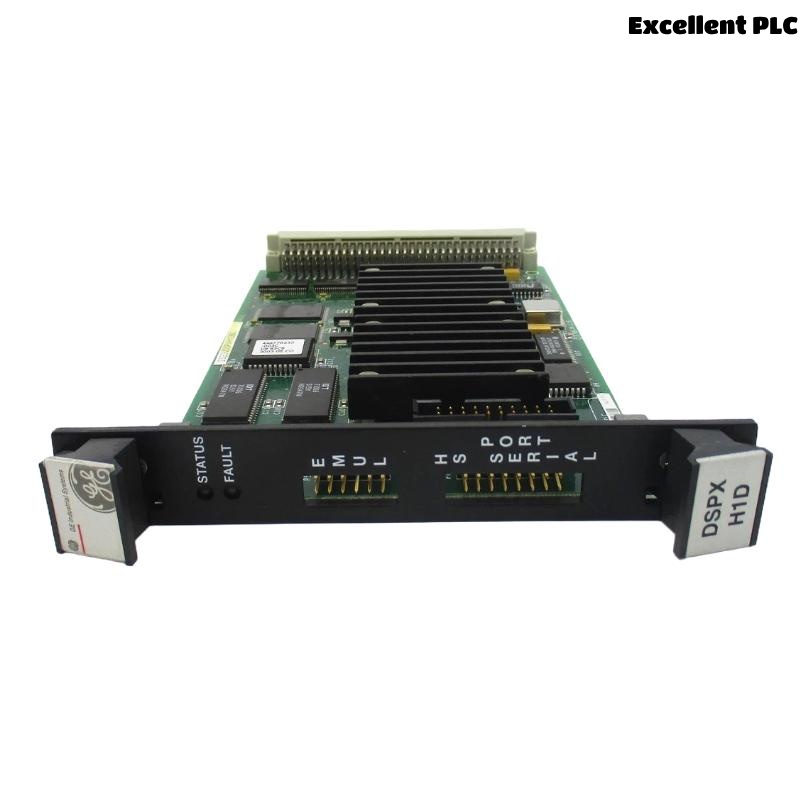

The GE IS200DSPXH1D is a Digital Signal Processor Control Board developed for use in GE’s Mark VI and Mark VIe turbine control systems. This advanced module serves as the central processing unit (CPU) for digital signal processing (DSP) tasks, managing complex control algorithms required in high-speed, real-time industrial applications.
At the core of the IS200DSPXH1D is a high-performance digital signal processor that handles control logic, real-time signal filtering, closed-loop feedback calculations, and system diagnostics. Its precise and reliable operation ensures that rotating machinery such as gas and steam turbines, motors, compressors, and generators are controlled efficiently and with minimal latency.
Designed for harsh industrial environments, the board provides critical computational power and interfaces for other modules through high-speed data channels and backplane communication. The IS200DSPXH1D is vital for maintaining the accuracy, responsiveness, and safety of distributed control systems across power generation and heavy industries.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | IS200DSPXH1D |
| Manufacturer | General Electric (GE) |
| Product Type | Digital Signal Processor Control Board |
| System Compatibility | GE Mark VI / Mark VIe Control Systems |
| Processor Type | High-performance digital signal processor (DSP) |
| Memory | Onboard flash and RAM for real-time computation and data storage |
| Input Voltage | Supplied via backplane (typically 5V DC nominal) |
| Communication Interface | VME / Backplane / Serial communication buses |
| Real-Time Functions | Control loop processing, signal filtering, logic execution |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Mounting Style | Rack-mounted (CompactPCI or VME-style rack) |
| Dimensions (mm) | 267 × 100 × 25 mm |
| Weight | 0.5 kg |
| Certifications | CE, UL, RoHS |
Product Applications
-
Gas & Steam Turbine Control
Executes real-time control loops for fuel valves, actuators, and vibration management. -
Generator and Excitation Systems
Calculates voltage regulation and excitation control parameters. -
Motor Drives and Variable Speed Systems
Handles speed, torque, and position regulation through fast digital signal processing. -
Oil & Gas Processing Equipment
Controls pumps, compressors, and balance-of-plant equipment with deterministic timing. -
Power Plants and Substations
Integrates into DCS systems to support critical timing and safety calculations. -
Renewable Energy Systems
Optimizes control algorithms for wind turbine yaw, pitch, and inverter synchronization.
Product Advantages
-
Real-Time Processing Capabilities
Designed to execute high-speed control logic and digital filtering with minimal delay. -
Rugged Industrial Design
Withstands electrical noise, vibration, and temperature fluctuations in harsh settings. -
Modular Integration
Seamlessly integrates with GE’s Mark VIe systems using VME and backplane connections. -
Onboard Memory for Fast Execution
Embedded RAM and flash support storage of logic and control routines. -
High-Speed Communication
Supports serial and parallel data interfaces for rapid system-wide coordination. -
Serviceability and Diagnostics
Includes diagnostic indicators and remote monitoring support for fast troubleshooting.
Frequently Asked Questions (FAQ)
-
What is the main purpose of the IS200DSPXH1D?
It functions as the central control processor for executing real-time logic and DSP tasks in turbine and power control systems. -
Which GE systems support this board?
It is fully compatible with GE Mark VI and Mark VIe control architectures. -
Does it contain its own memory?
Yes, it includes flash memory and RAM for storing and executing control programs. -
Is the board capable of handling analog inputs directly?
No, it processes digitized input from other modules like A/D converter or I/O boards. -
What kind of processor is used in this module?
A high-speed, deterministic digital signal processor (DSP), typically Texas Instruments or similar industrial-grade processors. -
Can the firmware be updated?
Yes, firmware upgrades are managed through GE’s configuration software tools. -
What communication protocols are supported?
The board interfaces via VME backplane, serial communication, and system buses. -
Is the board field-serviceable?
Yes, it is modular and can be replaced during system maintenance cycles. -
How is the module cooled?
Cooled by forced air within the rack enclosure or natural convection depending on installation. -
What is the lifecycle expectancy?
Designed for long-term industrial operation, typically exceeding 10 years in service with proper maintenance.
